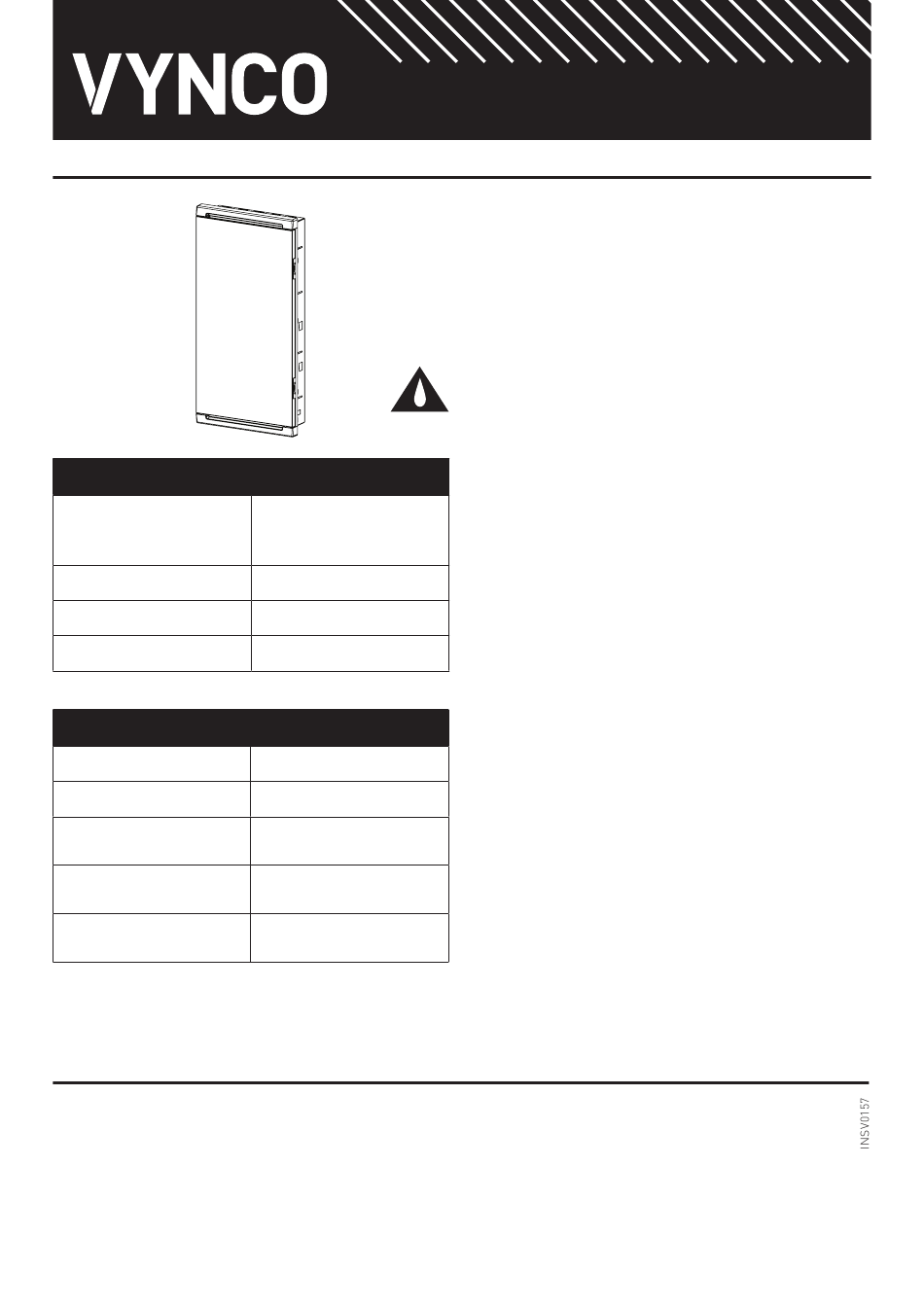

Vynco VMC351 Installation Instructions

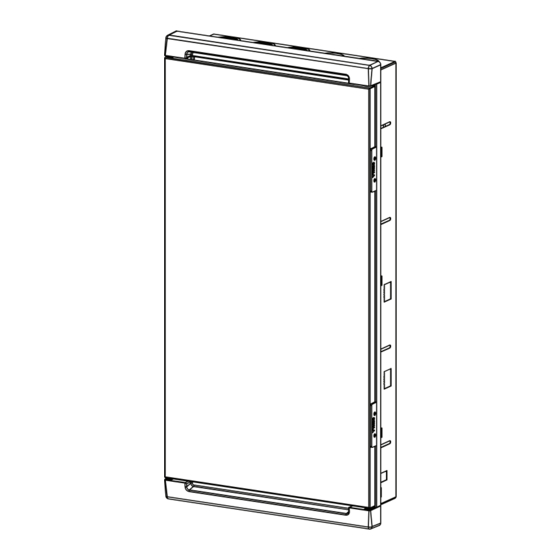

VMC351 - 51 WAY THREE PHASE SERIES COMBINED METER BOARDS

SPECIFICATIONS

Rated Operational
Voltage
Maximum Current
Rated Insulation Voltage
Short Circuit Withstand
DIMENSIONS
Cover Assembly
Base Box Dimensions
Overall Assembled
Dimensions
Total Internal Meter
Mounting Space
Maximum Meter Depth
VYNCO INDUSTRIES (NZ) LIMITED
CHRISTCHURCH
388 Tuam Street, Phillipstown, Christchurch, 8011
PO Box 9022, Tower Junction, Christchurch 8149
New Zealand
P +64 3 379 9283
E sales@vynco.co.nz
VYNCO.CO.NZ
IP40
415V AC maximum,
50Hz
100A
1000V
10kA
900 x 402 x 77mm
853 x 355 x 150mm
900 x 402 x 171mm
310 x 320 x 139mm
130mm
INSTALLATION INSTRUCTIONS
WARRANTY
This product is covered by a 1 Year Vynco Warranty -
proof of purchase is required. Please contact Vynco
for details of returns procedure.
NOTE: This product contains NO user serviceable parts.

SAFETY

This product complies in full with AS/NZS 61439.3.
This product should be installed by a suitably
qualified person in accordance with Australian
and New Zealand wiring rules.

INSTALLATION PROCEDURE

This product is designed to be installed inside a wall
cavity with a minimum stud size of 90mm and a
minimum plaster board/wall covering of 10mm.
For surface mounting use VMCC surface mount
enclosure in conjunction with this board.
The metal wall enclosure must be earthed. Fold out
tags (x6) on the side walls of the enclosure can be
folded out to set the correct height onto the studs.
Door hinge pins are easily removable and the door
can be reversed so that it swings either left or right.
This product is designed to be used with
New Zealand and Australia's MEN system.
DO NOT install a link between the neutral bars
and earth bar on circuits dedicated to RCDs.
Please ensure circuits and protective devices
are adequately identified during installation.
AUCKLAND
9 Levene Place, Mount Wellington
PO Box 12 249, Penrose, Auckland 1061
New Zealand
P +64 9 525 6051
