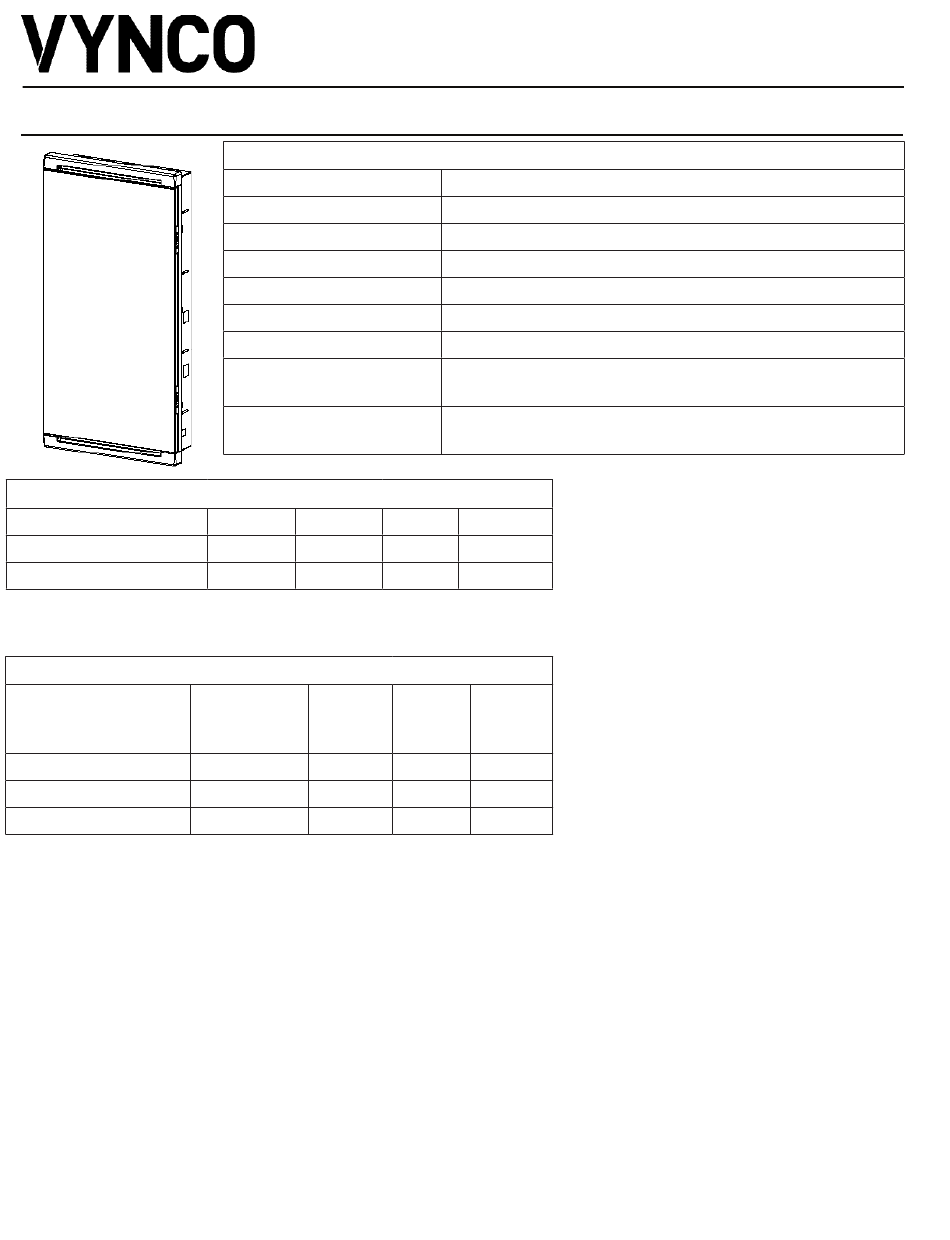

Vynco VMC34 Manual

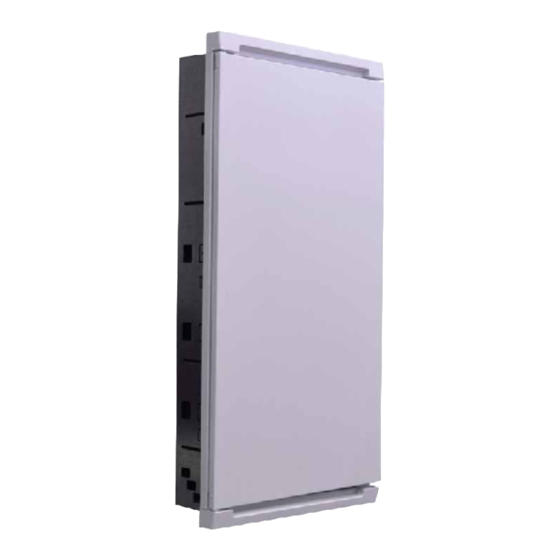

VMC34 - COMBINED METER BOARD
DIMENSIONS AND WEIGHT
Cover assembly
Base (cut out size)
EARTH AND NEUTRAL BUSBAR LAYOUT
Earth bar
Neutral bar
RCD neutral bar
WARRANTY STATEMENT
• The VMC34 is guaranteed for a period of one year from the date of purchase against defects in
workmanship and materials.
• Defects will be rectified by replacement of the product.
• This warranty becomes null and void if, in our opinion, the product has been misused, incorrectly installed,
tampered with, or subject to power surges.
• The warranty does not include any labour or other associated expenses that may be involved in removal or
installation of the product.
• To obtain a replacement under this guarantee, return the goods (prepaid) to the place of purchase
(proof of purchase must be supplied).
Rated operational voltage 415V a.c. maximum, 50Hz
Maximum current
Rated insulation voltage
Short circuit withstand
Degree of protection
Usage
Number of ways (Poles)
Gear tray
Maintenance
Height Width
800mm 400mm
754mm 355mm
Material Number
of bars
Brass steel 1
Brass steel 1
Brass steel 5
SPECIFICATIONS
100A
1000V
10kA
IP40 – Indoor Use Only
Recommended for use with copper conductors only
34 Ways – 2 rows of 17 Ways
Size of gear tray 320mm × 248mm
Maximum height of meter = 84mm
This product does not require maintenance once
installed
INSTALLER NOTES
1. This product is designed to be installed
Depth Weight
35mm 4.8 kgs
- 4.8 kgs
2. This product is designed to be installed
3. For surface mounting use VMCC
4. The metal wall enclosure must be
Double Single
screw screw
5. Fold out tags (x6) on the side walls of
tunnels tunnels
3 30
6. Door hinge pins are easily removable
4 14
1 3
7. This product is designed to be used
8. DO NOT install a link between the
9. Please ensure circuits and protective
PRODUCT INFORMATION
inside a wall cavity with a minimum
stud size of 90mm and a minimum gib
board/ wall covering of 10mm.
inside a wall cavity on its own.
surface mount enclosure in conjunction
with this board.
earthed.
the enclosure can be folded out to set
the correct height onto the studs.
and the door can be reversed so that it
swings either left or right.
with New Zealand and Australia's MEN
system.
neutral bars and earth bar on circuits
dedicated to RCDs.
devices are adequately identified during
installation.
34 WAY
