Vynco VMC51 Quick Start Manual

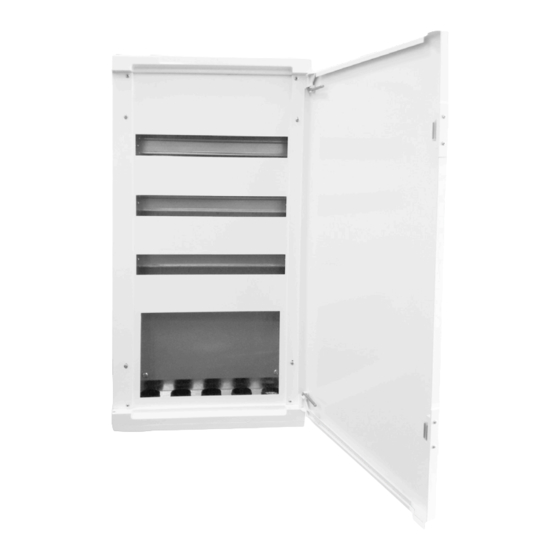

VMC51 COMBINED METER BOARD
DIMENSIONS AND WEIGHT
Cover Assembly
Base (cut out size)
EARTH AND NEUTRAL BUSBAR LAYOUT
Earth Bar Brass Steel
Neutral Bar
Brass Steel
RCD Neutral Bar Brass Steel
WARRANTY STATEMENT
The VMC51 is guaranteed for a period of one year from the date of
purchase against defects in workmanship and materials.
Defects will be rectified by replacement of the product.
This warranty becomes null and void if, in our opinion, the
product has been misused, incorrectly installed, tampered with, or
subject to power surges.
The warranty does not include any labour or other
associated expenses that may be involved in removal or
installation of the product.
To obtain a replacement under this guarantee, return the goods
(prepaid) to the place of purchase (proof of purchase must be supplied).
SPECIFICATIONS
Rated Operational Voltage
Maximum Current
Rated Insulation Voltage
Short Circuit Withstand
Degree of Protection
Usage
Number of Ways (Poles)
Gear Tray
Maintenance
Height Width
800mm 402mm
754mm 355mm
Number
Material
of Bars
1
1
8
415V AC maximum, 50Hz
100A
1000V
10kA
IP40 – Indoor use only
Recommended for use with copper conductors only
51 Ways – 3 rows of 17 Ways
Size of Gear Tray: 320mm × 248mm
Maximum Height of Meter: 84mm
This product does not require maintenance once installed
Depth Weight
35mm 4.5kg
98mm 5.2kg
Double Single
Screw Screw
Tunnels Tunnels
3 40
4 22
1 3
PRODUCT INFORMATION
INSTALLER NOTES
1. This product is designed to be installed
inside a wall cavity with a minimum stud
size of 90mm and a minimum plaster board/
wall covering of 10mm.
2. For surface mounting use VMCC surface mount
enclosure in conjunction with this board.
3. The metal wall enclosure must be earthed.
4. Fold out tabs (x6) on the side walls of the
enclosure can be folded out to set the correct
height onto the studs.
5. Door hinge pins are easily removable and
the door can be reversed so that it swings
either left or right.
6. This product is designed to be used with
New Zealand and Australia's MEN system.
7. Do not install a link between the neutral bars
and earth bar on circuits dedicated to RCDs.
8. Please ensure circuits and protective devices
are adequately identified during installation.
51 WAY
