Summary of Contents for Moffat GO12

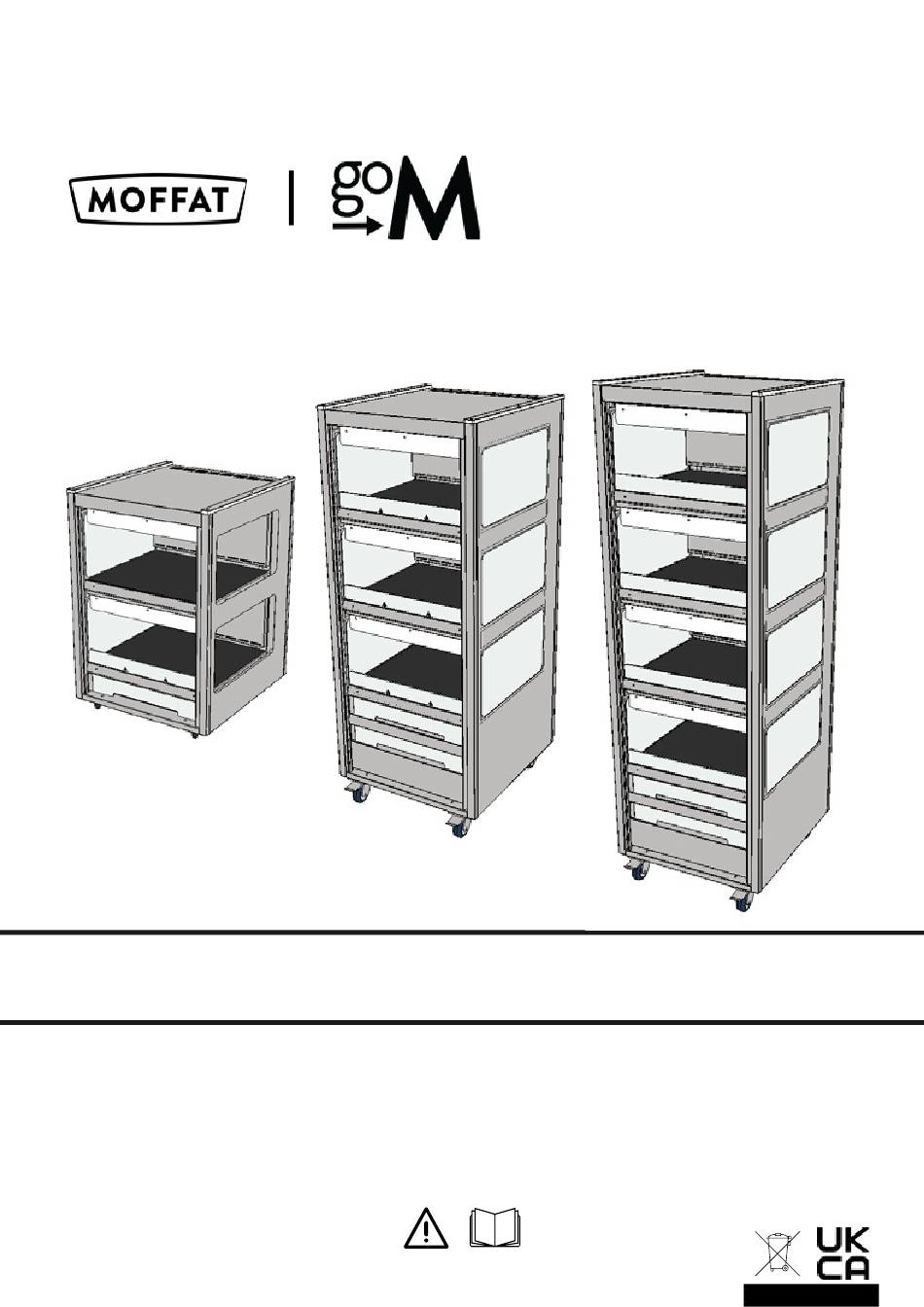

- Page 1 Heated & Chilled Merchandisers Operating & Service Manual Manual 047 Issue 001 August 2023...
- Page 2 To ensure the best results from this unit please take the time to read and follow all safety, installation and maintenance guidelines carefully before proceeding to install. Keep this manual in a safe place for future consultation. These appliances are marked in compliance with the relevant regulations Voltage stated on unit data plate.
- Page 3 Contents Page Electrical Specification General Specification 5 / 6 General Installation 7 / 8 / 9 Operation Heated model 10 / 11 Refrigerated Models Installation Conditions Operation Refrigerated Models Cleaning...
- Page 4 Dimensions Power Rating Model Supply (kg) W X D X H (mm) (kw) 13amp 600 x 650 x 880 1.50 GO12 13amp 600 x 650 x 1580 2.25 GO13 13amp 600 x 650 x 1858 3.00 GO14 13amp 900 x 650 x 880 3.00...
- Page 5 (e.g. near doors, windows, air conditioning units or fans] Should conditions exceed the above, the display units may not maintain food temperatures at the required levels. E & R Moffat cannot accept responsibility for the performance of the units being used in extreme conditions.
- Page 6 3: General Installation Table top models: To ensure the safety of both the unit and personnel, it is important to make appropriate arrangements for lifting and positioning. This will help minimize the risk of damage or injury. Sufficient personnel should be available to handle each unit, while adhering to the health and safety policies of the company or site.
- Page 7 4: Operation Heated Models Heated display units are designed to keep pre-heated food at a regulated serving temperature and are suitable for the display of most types of hot food. Designed with individually controlled shelves maintaining a safe and compliant temperature within.
- Page 8 4: Operation Heated Models Adjusting the temperature: The minimum and maximum temperature limits are factory set, the controlled temperature of each zone can be set anywhere between the limits 60°C and 90°C. To view the set temperature of a zone. •...
- Page 9 It is crucial to consider these requirements to ensure optimal quality and safe temperature for consumption. However, E&R Moffat Ltd does not accept responsibility for any variances or loss of quality that may occur due to product differences."...
- Page 10 5: Installation Conditions Refrigerated Models. Refrigerated Unit Venting When installing these refrigerated units, allowances must be made for air venting. It is crucial that there is an unrestricted air flow through the under slung compressor and condensing coil. Proper venting must be provided ensuring cool air from the room can be pumped in through the condensing coil and out the other side.
- Page 11 60%. Should conditions exceed the above, the display units may not maintain food temperatures at the required levels. E & R Moffat cannot accept responsibility for the performance of the units being used in extreme conditions.
- Page 12 Refrigerated Units 6: Operation Refrigerated Models Refrigerated display units are designed to keep pre-chilled food at a regulated serving temperature and are suitable for the display of most types of cold food. Designed to provide a chilled condition maintaining a safe and compliant temperature within.
- Page 13 Special care should be exercised when working around electrical parts, and excessive use of water should be avoided. E&R Moffat Ltd cannot assume responsibility for any malfunctions or damages that may occur if the aforementioned cleaning procedures are not followed diligently. It is crucial to adhere to...
- Page 14 Thank you for choosing E&R Moffat! Scan the QR code below to visit the E&R Moffat website for further information: E&R Moffat Ltd. www.ermoffat.co.uk Bonnybridge +44 (0) 1324 812272 FK4 2BS sales@ermoffat.co.uk Scotland...
