Kit contents
•
1x Arm
•
1x Angle adaptor
•
1x secondary arm adaptor
•
1x secondary arm
o 2x clip in parts
•
1x Locking clip
•
1x Back plate
•
1x Minifigure mount
•
1x Minifigure mount lug
•
1x Wall plug (6x30mm)
•
1x Wall screw (4.5x50mm)
•
1x Small Command strip
Wall Mount Instructions
Ahsoka's T6 Shuttle – (75362)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GECKO BRICKS Ahsoka's T6 Shuttle
Summary of Contents for GECKO BRICKS Ahsoka's T6 Shuttle

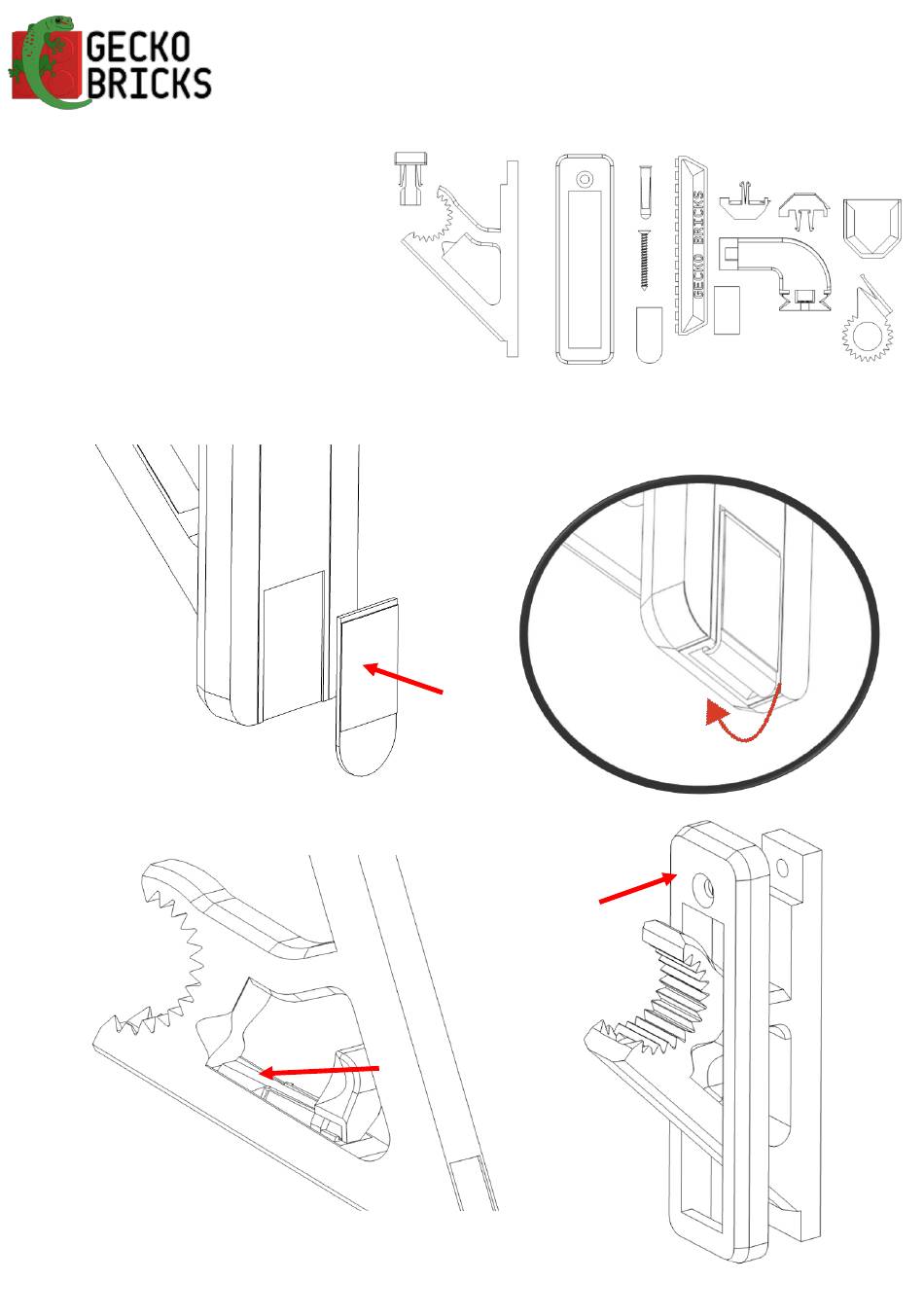

- Page 1 Wall Mount Instructions Ahsoka’s T6 Shuttle – (75362) Kit contents • 1x Arm • 1x Angle adaptor • 1x secondary arm adaptor • 1x secondary arm o 2x clip in parts • 1x Locking clip • 1x Back plate • 1x Minifigure mount •...
- Page 2 Wall Mount Instructions Ahsoka’s T6 Shuttle – (75362) Careful not to over tighten the screw You may adjust the angle of the set by Lock the adaptor in place with the repositioning the angled adaptor sliding clip...
- Page 3 Wall Mount Instructions Ahsoka’s T6 Shuttle – (75362) Remove the Lego part as shown. Ship right facing Ship left facing Mirrored process for both left and right facing...
- Page 4 Wall Mount Instructions Ahsoka’s T6 Shuttle – (75362) Attach the Minifigure mount lug to the wall first...
