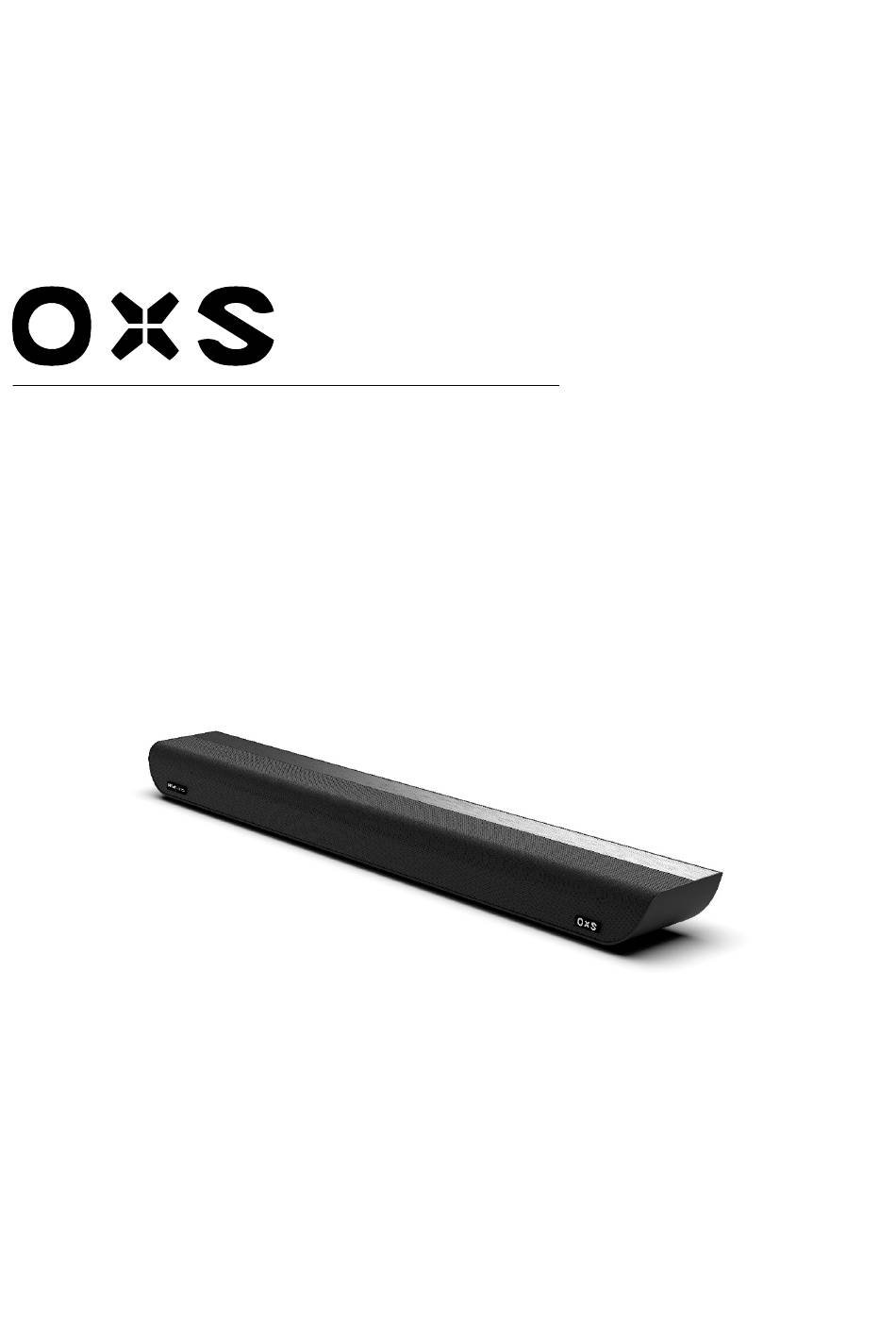

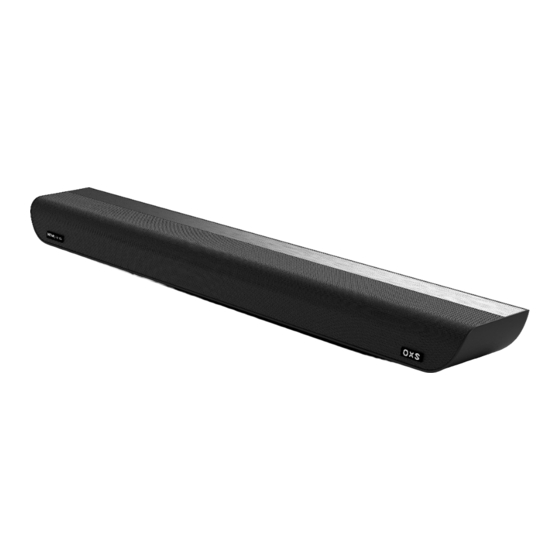

S5
User Manual
3.1.2 Dolby Atmos Soundbar
Before using the machine, please read the instructions carefully and keep them for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dolby Atmos S5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OXS Dolby Atmos S5

Summary of Contents for OXS Dolby Atmos S5

  • Page 1   User Manual 3.1.2 Dolby Atmos Soundbar Before using the machine, please read the instructions carefully and keep them for future reference.
  • Page 2 Note Reference: personnel carry out maintenance. Instructions: This symbol See the table below for a description of the directs the user to refer symbols that may appear on your OXS S5 to the instructions for products. more security related information.
  • Page 3 Clean Warning   Matters needing attention Before cleaning, be sure to turn off the system and unplug the power adapter from the 1.Make sure the AC power supply in your house power outlet. meets the power requirements listed on the label sticker at the bottom of the product.

  • Page 4: Table Of Contents

      Directory S5 .................................. 1  3.1.2 Dolby Atmos Soundbar .......................... 1  1.  Check the components .......................... 1  2.  Overview of the product ........................... 2  Top panel of Soundbar .......................... 2  Soundbar interface panel  ......................... 3  3.  Remote Control ............................ 4  Key Instructions for Remote Control ...................... 4  Output configuration for different sound modes ................... 6  4.  Connect the subwoofer and rear surround speakers ................ 7  Connect power and device ........................ 7 ...
  • Page 5   1. Check the components Unit Quantity Soundbar remote control AAA Battery Power cord Power cable Optical fiber line HDMI cable Wall mount screws User manual Quick Start Guide • For more information about power supply and power consumption, see the label that comes with the product.

  • Page 6: Overview Of The Product

      2. Overview of the product Top panel of Soundbar Standby button In standby mode, press the standby button to turn on speaker system Volume up button and down button Adjust the volume Audio source selection button TV->HDMI1->-USB->Optical->BT->AUX Bluetooth Switch to Bluetooth source, or Bluetooth pairing display Displays system status and current mode.

  • Page 7: Soundbar Interface Panel

      Soundbar interface panel Connect the DC power supply to the speaker system. Connect external analog audio inputs. For USB Playback and after sale service only. Digital (optical cable) output connected to external devices. (see page XX) HDMI1 Use HDMI cable to input digital video and audio signals simultaneously. Connect to the HDMI output of external devices.

  • Page 8: Remote Control

      3. Remote Control Key Instructions for Remote Control Turn on and off the soundbar. • Auto Standby will automatically shut down in the following cases: In AUX /OPT/ TV/HDMI /BT mode, up to 15 minutes if no audio signal is present. In standby mode, press the standby button to run the speaker.
  • Page 9   system. If pressed, the Settings items are displayed in order, such as BASS, TREBLE,CENTER LEVEL, FRONT TOP LEVEL and sync. You can use left/right keys to adjust the desired items. To control the volume of TREBLE or BASS, select –...

  • Page 10: Output Configuration For Different Sound Modes

      Output configuration for different sound modes SOUND MODE INPUT Source S5 output 2.0 channel 2.1 channel STANDARD 5.1 channel 3.1 channel 7.1 channel 3.1 channel  the input 3.1.2 channel 3.1.2 channel source VOICE 2.0 channel 2.1 channel Dolby 5.1 channel 3.1 channel Atmos,...

  • Page 11: Connect The Subwoofer And Rear Surround Speakers

      4. Connect the subwoofer and rear surround speakers Connect power and device Please use the power cord to connect thesoundbar speaker to the power outlet in the following order:  See the label that comes with the product for more information about the power supply required and power consumption.

  • Page 12: Led Screen Activity

      2. Press again to shut down. System will go to Standby mode. In STANDBY mode sound bar’s screen show "--" . 3. If no input, no operation and silent state after 10 minutes, sound bar goes into Standby automatically. 4.

  • Page 13: Method 1. Connecting Through Hdmi

      Attention  When both the HDMI cable and the cable are connected, the HDMI signal is received first.  To connect the HDMI cable between the TV and the soundbar, make sure to connect the terminals marked ARC or eARC. Otherwise, the TV sound may not be output. ...

  • Page 14: Method 2. Connecting Through Optical Cable

      Method 2. Connecting through optical cable Check before connection  When both the HDMI cable and the cable are connected, the HDMI signal is received first.  When you are using cable and the terminals have a cover, be sure to remove the cover. Optical cable is used to connect the OPTICAL port on the speaker interface board and the OPTICAL output port on the TV with the TV and the active home speaker off.

  • Page 15: Use A Wireless Connection To The Tv

    3seconds to display "PAIRING". 2. Select Bluetooth mode on your TV. 3. Select "OXS S5" from the list on the TV screen. The sound bar available are indicated as "required to pair" or "paired" on the TV Bluetooth device list. To connect the TV to the soundbar, select the message and then establish the connection.

  • Page 16: Disconnecting Sound Barfrom Tv

      If the device connection fails  If you already have an active host speaker on your TV's speaker list (such as the OXS S5), remove it.  Then repeat steps 1 through 3 Disconnecting sound barfrom TV Long press Bluetooth button on the top of sound bar or the (source) button on the remote control.

  • Page 17: Connecting External Devices

      8. Connecting external devices Check the list before connecting  Dolby Atmos® is supported in HDMI mode only.  If the audio output option includes Auxiliary Audio, be sure to set Auxiliary Audio to Off.  Make sure the content supports Dolby Atmos®. Method 1.

  • Page 18: Method 2. Connecting With Optical Cable

      Use an HDMI cable TO connect the HDMI IN port on the TV and the HDMI TO TV (EARC /ARC) port on the back of the active home speaker. Turn on active speakers, TVs, and peripherals. Select "HDMI” modes by pressing the (source) button on the top of the active home speaker or the (Source) button on the remote.

  • Page 19: Connecting Mobile Devices

      Turn on the soundbar and external devices. To select "OPT" mode, press the (source) button on the top of the soundbar or the (source) button on the remote control Your soundbar will play sounds from external devices. 9. Connecting mobile devices Mode 1.
  • Page 20 • The speaker will actively reconnect after you first disconnect the active home speaker from the mobile device. If the device connection fails  If you already have an active host speaker on your TV's speaker list (for example, OXS S5), remove it. Then repeat steps 1 to 2.

  • Page 21: Usb Playback

      Electrical changes may occur when there is an obstruction, such as a wall or partition, at or near a corner. – When exposed to radio interference caused by other products operating in the same frequency range, such as – medical devices, microwave ovens, and wireless LAN devices.

  • Page 22: Wall-Mounted Sound Bar

       Don’t remove the USB device during operation. To avoid data corruption or damage to the USB device, turn the speaker system off before connecting or removing the USB device.  Some files may not play depending on the file format, file encoding, recording condition, or other conditions. ...

  • Page 23: Trouble Shooting

    Rear speaker wall mount must be able to support more than 5. 0 kg.  OXS is not responsible for any damage to the product due to improper installation.  Be careful not to install the rear speakers on the side or upside down.
  • Page 24    For the TV's sound output, choose the soundbar.  Cable connections to the soundbar should not be loosened. Unplug the cable and reconnect.  Unplug the power cord completely, reconnect, and then switch on the power. Initialize the product and retry. The TV is not connected via HDMI ...

  • Page 25: The License

      Soundbar is not turned on after the If you turn off the sound bar while watching TV, power TV is turned on synchronization with the TV is disabled. Turn off the soundbar manually or restart the TVonce. The license Manufactured under license of Dolby Laboratories.Dolby, Dolby Atmos, Dolby Audio, Dolby Digital Plus, and the double D symbol are trademarks of Dolby Laboratories.

  • Page 26: Legal&Compliance

      Legal&Compliance FCC Class B Radio Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 27: Important Notes On Maintenance

    All software is provided subject to software license agreements and you agree that you will be bound by such license agreements in addition to other applicable terms of use. By using the OXS products, you agree to the Export Regulations Customer acknowledges that the OXS products, which include technology and software, are subject to customs and export control laws in the United States (“US”).

  • Page 28: Specifications

      Specifications OXS S5 MODEL WEIGHT(NET) 4.2 kg DIMENSION(WXHXD) 1100mmx170mmx120mm OPERATING + 5 ° C to + 35 ° C TEMPERATURE RANGE 10 to 75 percent OPERATING HUMIDITY RANGE AMPLIFIER (20W x 3) + (20W x 2) RATED OUTPUT POWER REQUIRMENT...
  • Page 29   Hazardous substance information in the product Part name Harmful substances lead mercury cadmium Six price Polybrominate Polybrominat (Pb) (Hg) (Cd) Cr(VI) biphenyls (PCBS) disylenethers (PBB) (PBDE) Printed circuit ○ ○ ○ ○ ○ board assembly The metal part ○ ○...
  • Page 30   products recycling and processing, and hand it over to the local manufacturer with the state-recognized recycling and processing qualification for recycling and processing. 26 / 30    ...
