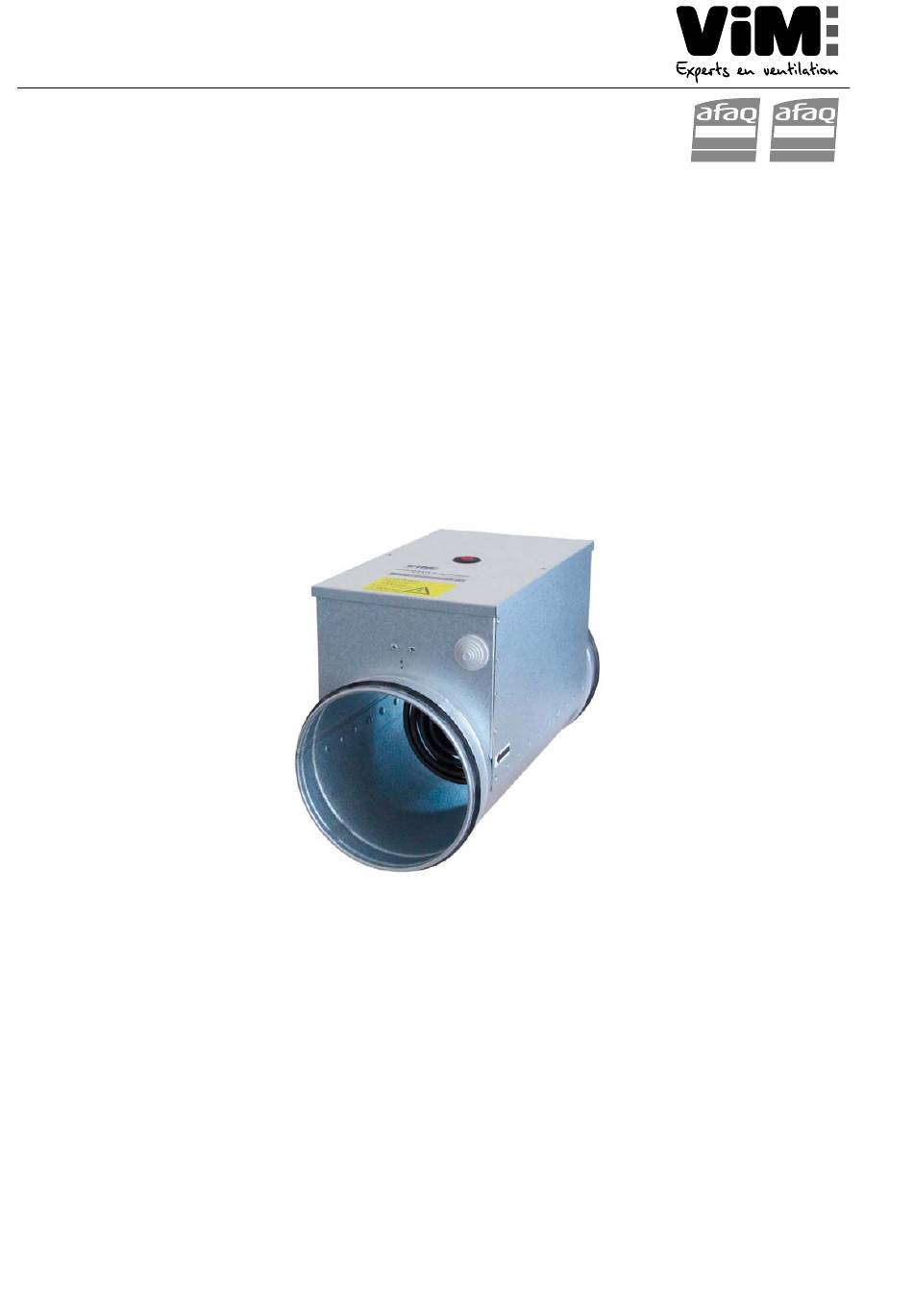

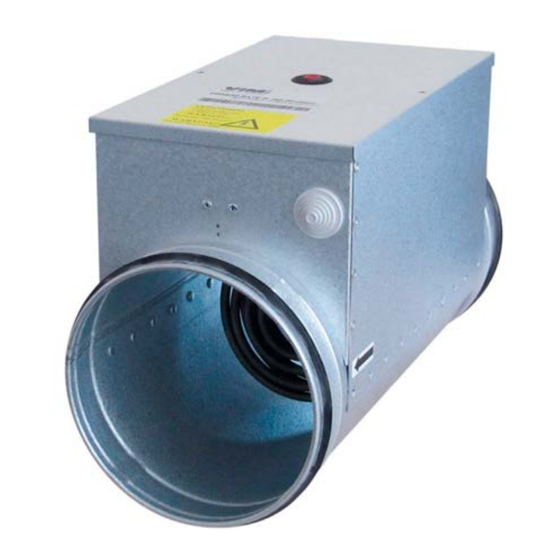

- Page 1 INSTALLATION | WIRING | COMMISSIONING | MAINTENANCE | I S O 9 0 0 1 ISO 14001 Q u a l i t é Environnement AFNOR CERTIFICATION AFNOR CERTIFICATION BATE-R010 Circular electrical heater 0-10V external signal power control fitted NT00000592-BATE-R-010-AN-231018...
-
Page 2: Table Of Contents
Warranty ........................... 4 RANGE / PRODUCT PRESENTATION ....................4 INSTALLATION ..........................5 Features ........................... 5 ELECTRICAL CONNECTION ......................6 BATE-R010 Single phase ......................7 BATE-R010 Three-phase ......................8 COMMISSIONING - MAINTENANCE - ALARMS ................10 Safety instructions ........................10 Commissioning ........................10 Maintenance and alarm ...................... -
Page 3: General
GENERAL 1.1 Warnings This product has been manufactured in compliance with rigorous technical safety regulations, in accordance with CE standards. The CE declaration can be downloaded from the website (contact details on last page). Before installing and using this product, carefully read these instructions which contain important information for your safety and that of users during the installation, commissioning and maintenance of this product. -
Page 4: Reception - Storage
1.3 Reception – Storage In the event of lack, non-compliance, total or partial damage of the products delivered, the Buyer must, in accordance with article 133-3 of the Commercial Code, issue written reservations on the carrier's receipt and confirm them within the 72 hours by registered letter with a duplicate addressed to the seller. Unreser- ved receipt of the material deprives the Buyer of any further recourse against us. -
Page 5: Installation
INSTALLATION 3.1 Features Dimensions (mm) Power Intensity Weight Minimum Maximum Designation (Kg) flow (m flow (m 230V single-phase power supply BATE R010 125-300W Mono 48,5 BATE R010 125 600W Mono 48,5 BATE R010 125 900W Mono 48,5 BATE R010 125 1200W Mono 48,5 1 200 BATE R010 125-1800W Mono... -
Page 6: Electrical Connection
ELECTRICAL CONNECTION The device is originally equipped with two safety thermostats to prevent overheating: a thermostat with au- tomatic reset (50°C) and a thermostat with manual reset (100°C) placed on the cover. They must control a contactor (not supplied) which cuts off the general power supply to the heater in the event of a trip. -
Page 7: Bate-R010 Single Phase
4.1 BATE-R010 Single phase RANK 1 LED6 RANG 1 LED5 LED1 LED2 MODE HEATING CHAUFFAGE LED3 POWER ON SOUS TENSION t° t° Shunt for Shunt pour running autorisation de marche authorization 230V 230V Included in the heater Accessories EKR-K KN1 NI PTC 2NTC controller... -
Page 8: Bate-R010 Three-Phase
4.2 BATE-R010 Three-phase BATE-R010 Three-phase < 18kW LED6 RANK 1 RANG 1 LED5 LED1 LED2 L1 L2 L3 MODE CHAUFFAGE HEATING LED3 POWER ON SOUS TENSION t° t° Shunt pour Shunt for autorisation running authorization de marche 230V 3x400V Included in the heater... - Page 9 BATE-R010 Three-phase ≥ 18kW LED6 RANK 1 RANG 1 LED5 LED1 LED2 L1 L2 L3 MODE CHAUFFAGE HEATING LED3 POWER ON SOUS TENSION RANK 2 RANG 2 L1 L2 L3 t° t° Shunt pour Shunt for running au- autorisation thorization...
-
Page 10: Commissioning - Maintenance - Alarms
COMMISSIONING - MAINTENANCE - ALARMS 5.1 Safety instructions Before starting up, the heater must be connected to the air ducts and the cover must be closed. The fan must be operational. Turn off the power before opening the case. See § "1.2 Assembly and safety instructions", page 3. 5.2 Commissioning Ensure the presence of a 0-10V control signal to control the heater and post-ventilation when the heater is turned off. -
Page 11: Waste Management
WASTE MANAGEMENT 6.1 Treatment of packaging and non-hazardous waste Packaging (non-returnable pallets, cardboard boxes, films, wooden packaging) and other non-hazardous waste must be recycled by an approved service provider. It is strictly forbidden to burn them, bury them or dump them illegally. 6.2 Treatment of Professional WEEE This product should not be landfilled or treated with household waste but should be taken to an appropriate collection point for waste electrical and electronic equipment (WEEE). - Page 12 Les prés de Mégy Sud – SOUDAN CS 60120 - 79401 ST MAIXENT L’ECOLE CEDEX Tel. : +33 (0)5 49 06 60 38 or +33 (0)5 49 06 60 25 sav@vim.fr - www.vim.fr 12/12 NT00000592-BATE-R-010-AN-231018...
