Summary of Contents for QYSEA FIFISHV6

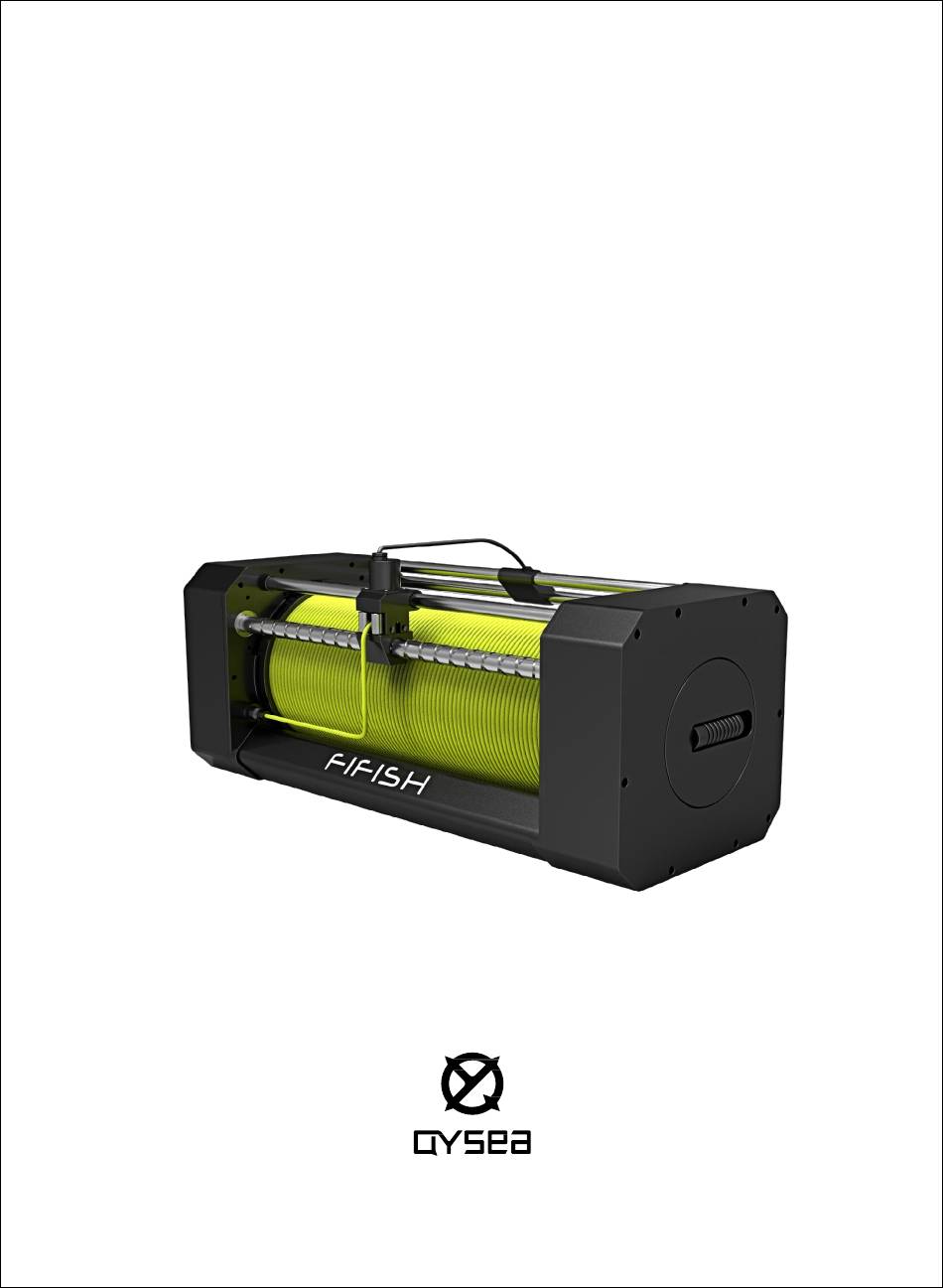

- Page 1 Quick Start for Electrical Spool （3 in 1）...
-
Page 3: Table Of Contents
Contents Packing list·······································································································································01 Safety Rules·····································································································································05 Product specification······················································································································06 Usage instructions··························································································································07 Installation······································································································································08 Operation········································································································································18 Operation (Share screen & USB recording )···················································································22 LED color index (OPSS-PM)·············································································································29 Maintenance and after-sales support···························································································· 30 Disclaimer········································································································································31... -
Page 5: Packing List
/Packing List and Introduction Serial Item Name Quantity Unit Number Eletric Spool OPSS Power Management Universal Power Adapter AC Input Cable for OPSS-PM E-Tank Mount on ROV Mini USB to Ethernet cable HDMI Cable RC Cable E-spool to OPSS-PM Cable AC Input Cable for OPSS-PM Quick Start... - Page 6 /Packing List and Introduction FIFISH E-Spool 1. ON / OFF 2. Battery Level 3. Start / Stop 4. Speed Switch 5. 3.5 mm Port (to RC) 6. Ethernet Port 7. U Disk Port 8. HDMI Output 9. OPSS Port 10. Charging Port for E-Spool...
- Page 7 /Packing List and Introduction Onshore Power Supply System - Power Management (OPSS-PM) 1. AC Input socket (95~240 V in AC) 2. AC Output socket 3. ON/OFF 4. Status Indicator LED...
- Page 8 /Packing List and Introduction Electric Power Tank (E-Tank) 1. E-Tank 2. Securing Loop 3. ROV Plug...
-
Page 9: Safety Rules
1.Unauthorized disassemble may cause the leakage problem, and damages on OPSS. Such type of safety issues is not responded to QYSEA’s legal liability. In addition, the warranty will not valid for unauthorized disassembled products. -
Page 10: Product Specification
/Product Specification Item Specification OPSS Tether (Length) 200 m Work Temperature -10 to 60 ℃ Status Indicator Submersible Charge time (in Static Water) less than 2 hours (20% to 100%) HDMI Output resolution 1080P 60fps... -
Page 11: Usage Instructions
/Usage Instructions Precautions before usage 1. Before usage, please check whether all accessory interfaces, plug-ins, and O-rings are damaged or missing, and whether they are kept dry and clean. 2. Before connecting the Q-Camera with the underwater vehicle, the underwater vehicle shall be powered off. 3. -
Page 12: Installation
/Installation 1. Install the tail kits to the bracket... - Page 13 /Installation 2. Install the bracket between the thrusters 需要换图...
- Page 14 /Installation 3. Place and lock the E-Tank to the bracket Pull out and rotate 45° the Dowel Pin to Lock/Unlock...
- Page 15 /Installation 4. Remove the proctective cap Insert ROV plug and fasten the cap...
- Page 16 /Installation 5. Tie the securing loop around the rear wing Note: Check whether the knot is locked. NO gap between the rings.
- Page 17 /Installation 6. Connect the OPSS-PM to the electric spool...
- Page 18 /Installation 7. Insert power cord Plug AC input Cable to the socket Note: please keep the power outlet off for safety...
- Page 19 /Installation 8. Connect one end of the 3.5 mm cable to the remote controller and the other end to the electric spool...
- Page 20 /Installation 9. Connect MINI USB-ethernet cable between the RC and electric spool...
- Page 21 /Installation 10. Connect HDMI cable between the extra screen and electric spool Insert U disk into the USB port...
-
Page 22: Operation
/Operation 1. Power ON the electric spool by the ON/OFF button... - Page 23 /Operation 2. Power ON the OPSS-PM by the ON/OFF button The OPSS-PM LED will stay red when ready...
- Page 24 /Operation (Release spool) 3. Releasing the tether by operating the ROV to move The release speed depends on ROV...
- Page 25 /Operation (Retrieving spool) 4. Lock the thrusters by the remote controller Select speed level with speed switch Press Start/Stop button to run the E-spool...
-
Page 26: Operation (Share Screen & Usb Recording )
/Operation (Share screen & USB recording ) HDMI2.0 can output video(1080P 60fps) Download while recoding video and save to U disk Note: HDMI Box do NOT share the screen and download while recording video simultaneously. - Page 27 /Operation (Share screen) 1. After the ROV is connected and power is ON. Open the APP and click the ‘toolbox’ , Select the ‘HDMI Box’...
- Page 28 /Operation (Share screen) 1. After the ROV is connected and power is ON. Open the APP and click ‘HDMI Box’from the ‘toolbox’ 1.1 Click the ‘Share Screen’ icon...
- Page 29 /Operation (USB Recording) 1. After the ROV is connected and power is ON. Open the APP and click ‘HDMI Box’from the ‘toolbox’ 1.2 Click the' download' icon to switch mode, Click the video button to start recording...
- Page 30 /Operation (USB Recording) 1. After the ROV is connected and power is ON. Open the APP and click ‘HDMI Box’from the ‘toolbox’ 1.2 After stopping recording, the' Folder' icon will flash and show the number of files currently being transferred. After the transfer is completed, the number of icons will return to 0 (Note: please do NOT plug the U disk during this period).
- Page 31 /Operation (USB Recording) 1. After the ROV is connected and power is ON. Open the APP and click ‘HDMI Box’from the ‘toolbox’ 1.2 After the transmission is completed, insert the U disk into the computer The file path is as follows...
- Page 32 /Operation (Charging for E-spool) Connect the adapter to the E-spool Note: please keep the power outlet off for safety Full power Charging...
-
Page 33: Led Color Index (Opss
/LED color index (OPSS-PM) Green: Fully charged or no Yellow: Overheat alarm charging Red: Normal charging Purple: Overloading alarm Blue: Leakage alarm White: Overvoltage or under voltage alarm... -
Page 34: Maintenance And After-Sales Support
WeChat official account (FIFISH Underwater Robot) and the official website. 2. Contact number: +86-755-2266-2313 Working hours: Monday to Friday, 9:00-22:30 (GMT+8) 3. Email: support@qysea.com 4. If there is a machine malfunction, please record the malfunction video in advance, as well as p r o vid in g th e m ac h in e S N n u m b e r an d p u r c h ase in vo ic e , so th at w e c a n p r o v i d e y o u w i t h a solution faster. -
Page 35: Disclaimer
Failures or damages caused by any third-party products (including products that QYSEA may provide or integrate into QYSEA products at the request of users). Any damage caused by non-QYSEA technology or other support (for example, the support for solving the "operation method" problem or incorrect product settings, installation and firmware upgrades).
