Quick Start Guide
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIFISH PRO W6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for QYSEA FIFISH PRO W6

Summary of Contents for QYSEA FIFISH PRO W6

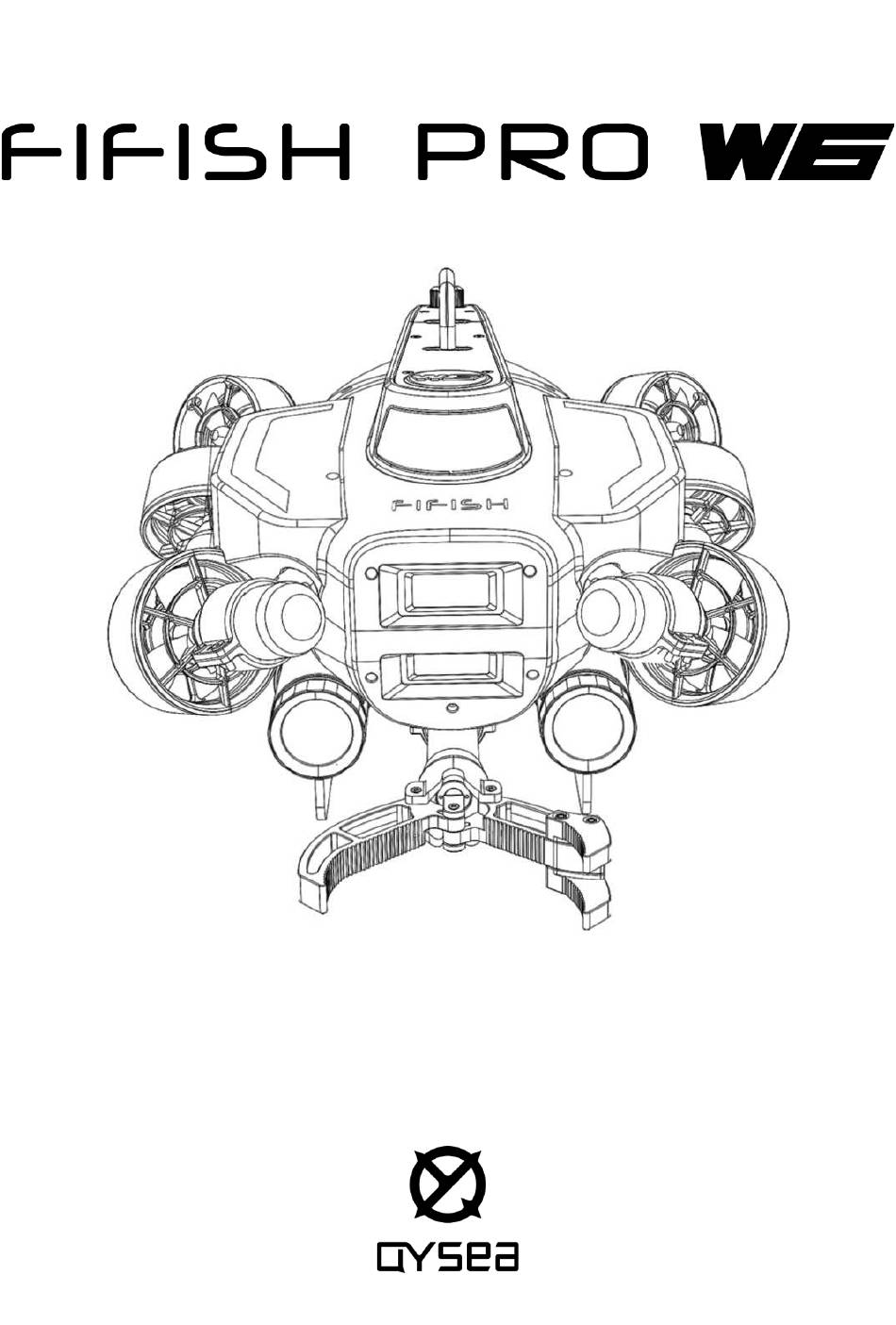

  • Page 1 Quick Start Guide V1.0...

  • Page 2: Safety And Regulations

    Safety and Regulations Operating FIFISH products requests training and practice. Please read through this document before operating in water. Avoid overheating of motors, do Do NOT touch the Do NOT throw the ROV when NOT run the thrusters in air for running propeller deploying into the water over 30 seconds...
  • Page 3 Safety and Regulations Please ensure that you have completed the study of FIFISH PRO W6 product related functions and precautions before the first use. Holding ONLY on the stainless-steel handle Do NOT pull the tether between connector and safety lock...
  • Page 4 Introduction The FIFISH PRO W6 is an ROV (Remote Operated Vehicle) for underwater operations. 6 vector thrusters™ optimize the maneuverability and speed at the same time. 350 m (over 1100 ft) depth rating covers 95% of underwater operation fields. 2 gen Q-motor Pro has higher output and energy efficiency.
  • Page 5 Introduction About FIFISH PRO W6 ROV 1. 4K UHD Underwater Camera #1 2. 4K UHD Underwater Camera #2 3. Lasers × 2 4. 6,000 Lumens LEDs × 2 5. Robotic Arm 6. 2 gen Q-motor Pro Thrusters × 6 7. Battery Plug × 2 8.
  • Page 6 Introduction RC (Remote Controller) 1. ON/OFF 2. Depth Holding (ON/OFF) 3. LOCK/UNLOCK 4. Left Control Stick 5. Right Control Stick 6. Right Wheel 7. Left Wheel 8. Video (Record/Stop) 9. Control Mode (Attitude / Sport / Combine) 10. Tether Port 11.
  • Page 7 Introduction Tether on Spool 1. Spool Handle 2. Spool Frame 3. Tether Regulator 4. Reel 5. Foldable Handle 6. ROV Plug 7. RC Plug...

  • Page 8: Hardware Connection

    1. FIFISH App Download and Installations Option 1. Scan the QR code below to download FIFISH App. Option 2. Search the FIFISH on App Store (iOS) or Google Play (Android). Option 3. Go to QYSEA's website at https://www.qysea.com/cn/support/app-download/ 2. Hardware connection 1.
  • Page 9 Preparation, Connection, and Operating （1） Plug the tether (3.5 mm head) into remote controller （2） Turn ON the RC. Press and hold the ON/OFF button, you can hear 7 chimes from low to high (Do, Re, Mi, Fa, Sol, La, Ti) （3）The “ON/OFF”，“Depth Holding"...
  • Page 10 (3) The password is "1234567890” (4) Select your ROV type (Swipe the model if necessary) 4. Operation interface Note ： ROV sensor calibration is recommended before dive, especially traveled in the difference locations. For more information about ROV sensor calibration https://www.qysea.com/support/...
  • Page 11 (2) Stop recording the video before closing the FIFISH App (3) Pull ONLY on the tether to retrieve the ROV 7.Video/Photo Download Download videos/photos by using terminal equipments (smart phones or tablets), PC for FTP FileZilla to transfer. The detailed tutorials can be found on https://www.qysea.com/support/...
  • Page 12 Introduction of Controlling Definition of Controlling The FIFISH PRO W6 uses the patented Smart Thruster Array™ to ensure the ultimate maneuverability and delivers the 6 DOF (degree of freedom). • W6 can move in descend & ascend, left and right, forward and backward.
  • Page 13 Introduction of Controlling Controlling Modes FIFISH PRO V6 PLUS supports 3 modes for control: A, S, and C. A is Attitude Auto mode, S is Sport mode, C is the Combination mode. 1 .Attitude Mode Attitude mode is designed for beginners. The ROV will not roll in Attitude mode. The ROV will stay in same depth moving when depth holding is ON.
  • Page 14 Charging ROV Charging Pull out the battery and charge the battery separately. RED LED indicator illuminates while charging and green LED indicator illuminates while fully charged. RC Charging Flashing ON/OFF button, RC is charging White steady ON/OFF button, RC is fully charged. Red, less than 30% Yellow, 30% to 70% White, 70% or higher...
  • Page 15 Features 2 3 4 5 6 Operation interface 12 13 14 15 1. ROV Status 14. Camera #1 Remaining Time/Pics Controlling Preferences 15. Camera #2 Remaining Time/Pics 3. Control Mode 16. Camera Settings 4. LED Brightness 17. Pilot’s Heading 5. ROV Battery 18.

  • Page 16: Image Settings

    FIFISH App Image Settings Video Settings 1. Exposure and WB 5. Image Resolution 8. Resolution Live on FIFISH App 2. Video Setting 6. Shutter Speed 9. Bitrate Live on FIFISH App 3. System Preferences 7. Lighting Meter 10. Analog color Television Standards 4.
  • Page 17 Features Laser Ruler The Laser Dots could be the reference dots. It can work out the distance measure with a manual Image Processing software. Laser Ruler Laser Inspection Ruler Subject 10cm...

  • Page 18: Maintenance

    For more information about FIFISH Authorized Services Centers https://www.qysea.com/support/repair-center/ 5. Clean sand or mud if necessary. Soak the ROV inside the clean fresh water at least 1 hour. Shake ROV tail down or head down position, let sand washed out through the venting holes.

  • Page 19: Specifications

    Specifications Dimension 604 mm × 450 mm × 310 mm (~ 23 ¾ in × 17 ¾ in × 12 ¼ in) Weight 19 kg (41 7/8 lbs) Thrusters 6 ×(FIFISH 2 Gen Q-Motor Pro) Sway；left / right Moving Surge；forward / backward Heave；up/down Rotation 360°, Pitch, Yaw, &...
  • Page 20 Specifications Camera Sensor 1/2.3” SONY CMOS Pixels 12MP 100-6400 Dual cameras Field of View: 178º Single camera Field of View: 166º Lens Aperture：f/2.5 Min Focusing Distance: 0.4 m (~1 1/3 feet) Shutter 5~1/5000 Frames 3 / 5 / 10 / 15 White Balance 2500K ~ 8000K White Balance...

  • Page 21: Robotic Arm

    Specifications Tether 305 meters (~ 1,000 feet) Length 160 kgf (~352 ¾ lbsf) Breaking Force Spool 295 mm x 246 mm x 255 mm (~ 11 ½ in × 9 ¾ in × 10 in) Dimension 7.0 kg (~ 15 ½ lbs) Weight Hold up to 305 meters (~ 1,000 feet)tether Capability...
  • Page 22 • Loss of, or damage to, your data by a product. • Any software programs, whether provided with the product or installed subsequently. • Failure of, or damage caused by, any third-party products, including those that QYSEA may provide or integrate into the QYSEA product at your request.
  • Page 23 Maintenance Guide In order to have your W6 in a good condition at all time, soak and clean your W6 with clean fresh water after every dive. The cleaning procedures in FIFISH App will instruct you to get rid of the salt residues and salt crystallization inside the motors, as well as, clean the chlorine from pool water.
