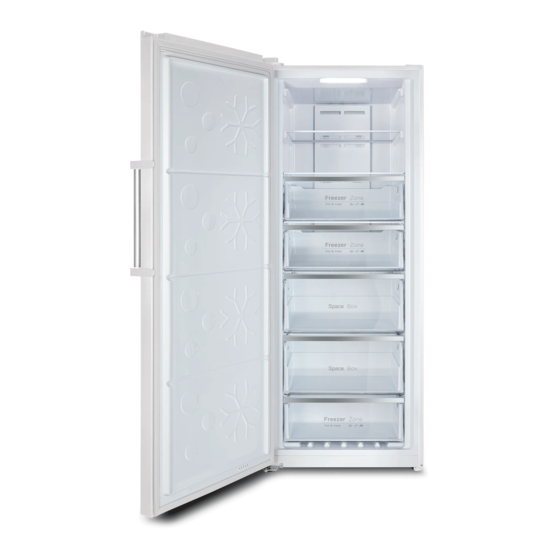

- Page 1 HYBRID UPRIGHT FREEZER USER MANUAL MODEL CSH380NWL2 CSH380NWR2 CSH379NBSL2 CSH379NBSR2 Customer Service 1300 796 688 www.chiq.com.au...
-
Page 2: Part Names And Locations
PART NAMES AND LOCATIONS Description Refrigerator drawers Leveling feet Glass shelves Image for CSH380NWL2/CSH379NBSL2... - Page 3 Description Glass shelves Freezer drawers Adjustable feet Little bottle racks Bottle rack Image for CSH380NWR2/CSH379NBSR2 IN ACCESSORY BAG: USER MANUAL, WARRANTY CARD, DOOR REVERSAL PARTS As the manufacturer holds the authority to redesign or modify its products without notice: Any modifications or upgrades of our products will result in this Refrigerator varying slightly from this manual but the functionality will remain the same to that as set out within this manual.
-
Page 4: Important Safety Instructions
• Report any notable defects with the appliance to Chiq or retailer as soon as it is noted. Failure to do so can result in a non-warranty claim. Keep all packaging materials in a safe location until the unit has been installed properly. - Page 5 R600a WARNINGS NOTE: This model uses R600a flammable refrigerant in its sealed system. The following must be observed for your safety: R600a Refrigerant Warning • This appliance contains 82grams R600a refrigerant which is environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the greenhouse effect.
-
Page 6: Product Features
Product Features This is an upright single-door inverter refrigerator with electronic control. It features switchover between the fridge mode and the freezer mode. Under the freezer mode, it can be used for the preservation of fish, meat, etc. that need be frozen for the long-term storage. - Page 7 Door reversal instruction Door reversal job requests some spare parts which are in the accessory bag, top hinge, top hinge cover, bottom hinge and plastic door closer. For safety purpose, two people is recommended for the job. The following tool is required: ladder, flat screwdriver, phillips screwdriver, adjustable spanner, socket wrench and 8mm socket.
- Page 8 take out two wire harness from there. , remove it from bottom hinge and keep it on a stable place Lift the refrigerator door adjustable spanner or socket wrench Remove the front leveling feet, use to remove the 4 screws then remove the hinge.
- Page 9 door to same color one from cabinet. a magnet sensor from right top hinge cover (the one is removed at the Remove beginning), the parts has two wires and a two pins socket. Install it under the new hinge cover from the accessory bag. C two pins socket to the onnect the wire harness...
-
Page 10: Installation Instructions
INSTALLATION INSTRUCTIONS Before Using the Refrigerator • Remove the exterior and interior packing. • Before connecting the Refrigerator to a power source, let the unit stand upright for approximately 4 hours to mitigate the possibility of a malfunction in the cooling system from improper handling during transportation. -
Page 11: Function & Setting
OPERATING INSTRUCTIONS Function & Setting The display panel is on the door, the following picture will show the display symbols and functions. When the refrigerator is connected to power supply for the first time, all icons on the display panel gets illuminated for 2s, and the system runs in the freezer mode at - 18℃... - Page 12 Exit or Enable the Child Lock function Press and hold the OK/Lock button more than 3s till a beeping sound, then the Child Lock function will be turned on or off. Fast freezer When the Fast freezer function is enabled, the unit will be set at -32℃. After 26 hours of running, the Fast freezer function will be turned off automatically.
-
Page 13: Fault Alarm
10s. Fault alarm In case E0, E1, E2, EH, or EC is displayed on the display panel, it indicates fault with the refrigerator. Please contact CHIQ service centre for a service call. -
Page 14: General Care And Maintenance
GENERAL CARE AND MAINTENANCE Cleaning the Refrigerator • Upon installation of your new appliance, it is recommended that it be cleaned thoroughly and properly maintained thereafter. • Turn off the Refrigerator and then unplug the unit from the wall outlet. •... -
Page 15: Troubleshooting Guide
TROUBLESHOOTING GUIDE Problem Solution Power cord isn’t plugged in properly. The Refrigerator has no The circuit breaker tripped or a blown fuse. power Try a different power point. The room temperature is hotter than normal. A large amount of food has been added to the ... - Page 16 The doors will not close Clean the seals and make sure they are dry before properly. closing the door/s. The storage basket and/or shelves are out of position. For any enquiries, please call the CHiQ Cusotmer care on: 1300 796 688...
-
Page 17: Customer Service
Customer Service 1300 796 688 www.chiq.com.au Changhong Electric (Australia) P/L all rights reserved.
