- Page 1 UPRIGHT FREEZER USER MANUAL MODEL CSF206NW CSF205NSS Customer Service 1300 796 688 www.chiq.com.au...
-
Page 2: Part Names And Locations

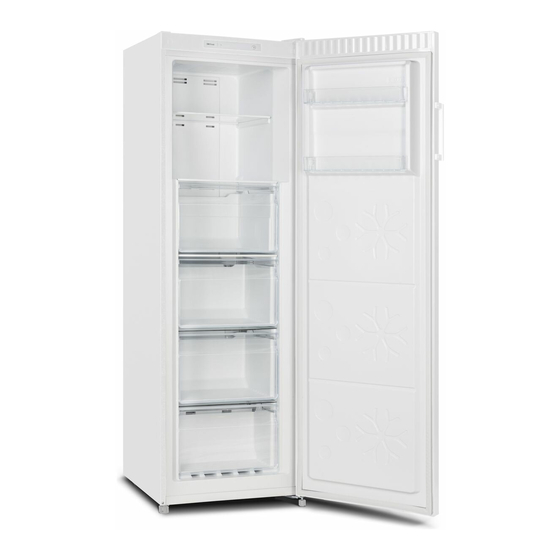

PART NAMES AND LOCATIONS Description Control panel Freezer Glass Shelves Freezer drawers Adjustable Feet Freezer door Shelves IN ACCESSORY BAG: USER MANUAL, WARRANTY CARD, HOLE PLUG, HOLE COVER, ICE BOX. As the manufacturer holds the authority to redesign or modify its products without notice: Any modifications or upgrades of our products will result in this Freezer varying slightly from this manual but the functionality will remain the same to that as set out within this manual. -
Page 3: Important Safety Instructions
• Report any notable defects with the appliance to Chiq or retailer as soon as it is noted. Failure to do so can result in a non-warranty claim. Keep all packaging materials in a safe location until the unit has been installed properly. - Page 4 R600a WARNINGS NOTE: This model uses R600a flammable refrigerant in its sealed system. The following must be observed for your safety: R600a Refrigerant Warning • This appliance contains 0.045kg R600a refrigerant which is environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the greenhouse effect.
- Page 5 Door reversal instruction There is no spare parts required for door reversal job. The following tool is required, flat screwdriver, phillips screwdriver, adjustable spanner, socket wrench and 8mm socket. 1. Make sure the power cable is unplugged. 2. Remove the hinge cover with a flat screwdriver, remove the three screws that hold the upper hinge on the door, then remove the upper hinge.
- Page 6 11. Remove the screw that secures the hinge screw hole cover from the top left side of the cabinet and put it on the right side. 12. Secure the upper hinge with the three screws. Before you tighten the upper hinge screws, make sure the door is level with the cabinet and rubber gasket has a good seal.
-
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Before Using the Freezer • Remove the exterior and interior packing. • Before connecting the Freezer to a power source, let the unit stand upright for approximately 4 hours to mitigate the possibility of a malfunction in the cooling system from improper handling during transportation. - Page 8 OPERATING INSTRUCTIONS TEMPERATURE CONTROL PANEL The freezer has temperature control panel on the top. Temperature control key: Press the set key to adjust temperature setting. Keep pressing until it reaches desired temperature and the number will flashing on display panel. Wait for few seconds, it will be light up stable and setting is changed properly.
-
Page 9: General Care And Maintenance
Door open alarm If any door is opened for more than 3 minutes, buzzer alarm will be continuously beeping. It can be stopped by pressing key button, but it will be restored after 3 minutes if the door keeps opening. The alarm will stop when the doors are closed properly. -
Page 10: Troubleshooting Guide
• Remove all the food and drinks. • Securely tape down all loose items inside your Freezer. • Tape the doors to be closed securely. • It is recommended that the Freezer stays in the upright position during transportation. But if it is laid down for transport purpose, please lift it up immediately after the job is done. - Page 11 The doors will not close Clean the seals and make sure they are dry before properly. closing the door/s. The storage basket and/or shelves are out of position. For any enquiries, please call the CHiQ Cusotmer care on: 1300 796 688...
- Page 12 Customer Service 1300 796 688 www.chiq.com.au Changhong Electric (Australia) P/L all rights reserved.
