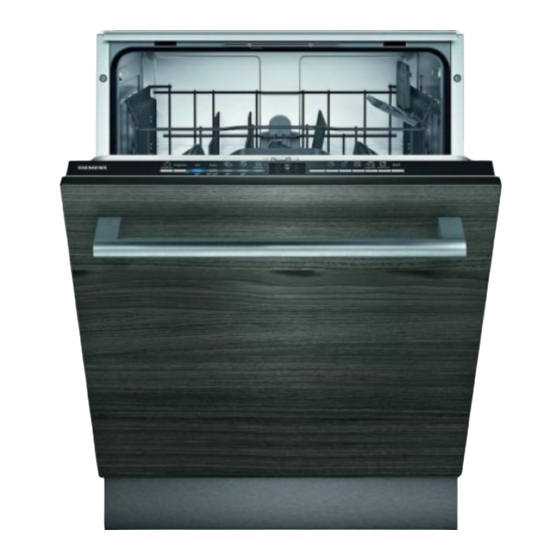

- Page 1 Dishwasher SN61IX09TE Information for Use Register your product on My Siemens and discover exclusive services and offers. siemens-home.bsh-group.com/welcome The future moving in. Siemens Home Appliances...
-
Page 2: Table Of Contents
Futher information and explanations are available online: Table of contents 1 Safety ........... 4 8.2 Etagere ........ 20 1.1 General information.... 4 8.3 Bottom basket ...... 20 1.2 Intended use...... 4 8.4 Folding prongs ...... 21 1.3 Restriction on user group.. 4 8.5 Cutlery basket ...... - Page 3 14 Basic operation ....... 30 21 Technical specifications.. 50 14.1 Switching on the appliance ... 30 21.1 Information regarding Free and Open Source Software... 50 14.2 Setting a programme .... 31 14.3 Setting additional functions ... 31 22 Declaration of Conformity .. 51 14.4 Setting timer programming ..
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... - Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing.
-
Page 6: Safe Use
en Safety Contact between the appliance and installation lines may lead to a defect in these lines, e.g. gas pipes and power lines. Gas from a corroded gas pipe can ignite. A damaged power line can cause a short circuit. ▶ Check that there is a distance of at least 5 cm between the ap- pliance and installation lines. - Page 7 Safety en Highly caustic alkaline or highly acidic cleaning agents in conjunc- tion with aluminium parts in the interior of the appliance may cause explosions. ▶ Never use highly caustic alkaline or highly acidic cleaning agents, in particular commercial or industrial products, in con- junction with aluminium parts (e.g.
-
Page 8: Damaged Appliance
en Safety 1.6 Damaged appliance WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never operate an appliance with a cracked or fractured surface. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. - Page 9 Safety en WARNING ‒ Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. ▶ With redundant appliances, unplug the power cord. Then cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close.
-
Page 10: Preventing Material Damage
en Preventing Modified or damaged water hoses Preventing 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing 2.1 Safe installation Only use the water hoses supplied ▶ with the appliance or genuine ATTENTION! spare hoses. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en So as not to scratch the finish on ▶ 4 Installation and con- the appliance, do not use sponges with a rough surface or abrasive nection cleaning agents. To prevent corrosion, do not use To ensure proper operation, connect ▶... -
Page 12: Drainage Connection
en Installation and connection installing it under a continuous work- 4.4 Drinking water connec- top that is securely connected to ad- tion jacent cabinets. Follow the safety instructions. Connect your appliance to a drinking → Page 4 water connection. Follow the instructions for electrical Installing the drinking water connection. -
Page 13: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 49. The data you need for Customer Service → Page 48. - Page 14 en Familiarising yourself with your appliance Detergent dispenser Add detergent to the detergent dispenser. → "Detergent", Page 26 Bottom basket Bottom basket → Page 20 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 22 Lower spray arm The lower spray arm washes the table- ware in the bottom basket.
-
Page 15: Controls
Familiarising yourself with your appliance en 5.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. 4 5 6 7 8 9 ON/OFF button and reset Switching on the appliance... - Page 16 en Familiarising yourself with your appliance Programme buttons and addi- Programmes tional functions → "Programmes", Page 17 Additional functions → "Additional functions", Page 19 Door handle Open the appliance door. Programme sequence display The programme sequence display shows the current cycle of the appli- ance, e.g. washing. Special salt refill indicator Water softening system → "Adding special salt", Page 23...
- Page 17 Programmes en 6 Programmes You can find an overview of the pro- ted. The running time will change if grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
-
Page 18: Information For Test Institutes
en Programmes Programme Programme se- quence Favourite Note: The relatively long running time ¡ To reset the programme to the in the Eco 50 ° programme is due to Pre-rinse programme stored at the longer soaking and drying times. This factory, use the Home Connect results in optimal consumption val- or reset your appliance to ues. -
Page 19: Additional Functions
Additional functions en 7 Additional functions You can find an overview of the additional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme. -
Page 20: Etagere
en Features Adjusting top basket with pairs of 8.2 Etagere rollers Use the cutlery shelf and space un- To wash large items of tableware in derneath for small cups and glasses the baskets, adjust the shelf position or for large items of cutlery, e.g. of the top basket. -
Page 21: Folding Prongs
Features en Push the lever forwards and fold down the prongs . 8.4 Folding prongs To use the prongs again, fold them Use the folding prongs to position back up. tableware securely, e.g. plates. a The prongs audibly click into posi- tion. -
Page 22: Before Using For The First Time
en first time Add detergent → Page 26. first time 9 Before using for the Start the Programme with the first time highest cleaning temperature without tableware. first time To remove any marks from water 9.1 Performing the initial con- or other residues, we recommend figuration you operate the appliance without tableware before using it for the... -
Page 23: Setting The Water Softening System
Water softening system en To save the settings, press for 3 seconds. 10.3 Special salt You can use special salt to soften water. Adding special salt Note: Set the water hardness determ- ined on your appliance. If the special salt refill indicator lights → "Setting the water softening sys- up, add special salt to the dispenser tem", Page 23... -
Page 24: Switching Off The Water Softening System
en Water softening system Note: Only use special salt for ¡ The water hardness is 0 - 8 °E. dishwashers. You do not need to use special Do not use salt tablets. salt. Do not use table salt. Press . Add the special salt to the dis- To open the appliance settings, penser. -
Page 25: Rinse Aid System
Rinse aid system en Add rinse aid up to the max mark. Additional power consump- 0.05 tion in kWh The consumption values specified are laboratory measurements determ- ined in accordance with the currently applicable standard using the Eco 50° programme and with the factory value of the water hardness set to 9 - 20 °E. -
Page 26: Switching The Rinse Aid System Off
en Detergent Press repeatedly until the To save the settings, press right amount of rinse aid has been for 3 seconds. set. a The rinse aid system is switched off and the rinse aid refill indicator is deactivated. 12 Detergent 12.1 Suitable detergents 0, 1, 2 or 3 LEDs will light up ac- cordingly. -
Page 27: Unsuitable Detergents
Detergent en ing and drying results we recom- Liquid detergent mend using special salt and rinse aid Liquid detergent works faster and is from a water hardness of 17 °E. If recommended for shorter pro- you are using combined detergent, grammes without PreRinse. the washing programme is adjusted Sometimes liquid detergent may leak automatically to ensure the best pos-... -
Page 28: Adding Detergent
en Tableware ¡ To prevent sticking, only touch de- Close the lid of the detergent dis- tergents in a water-soluble pouch penser. with dry hands and only ever place them in a dry detergent dispenser. ¡ Even if the rinse aid and special salt refill indicators light up, wash- ing programmes will run properly with combined detergents. -
Page 29: Tableware
Tableware en 13.1 Damage to glass and Cause Recommenda- tion tableware Highly caustic al- If you are using Only put glasses and china in the kaline or highly highly caustic al- dishwasher if it is marked as dish- acidic cleaning kaline or highly washer-safe by the manufacturer. -
Page 30: Removing Tableware
en operation ¡ For better washing and drying res- ults, position items with curves or recesses at an angle so water can run off. 13.3 Removing tableware WARNING Remove large remnants of food Risk of injury! from tableware. Hot tableware can cause burns to the To save resources, do not pre- skin. -
Page 31: Setting A Programme
operation en The Eco 50° programme is espe- 14.4 Setting timer cially environmentally friendly and programming ideal for normally soiled tableware. It is the most efficient programme You can delay the start of the pro- for the combination of energy/wa- gramme by 3, 6 or 9 hours. ter consumption for this type of Press repeatedly until the relev-... -
Page 32: Interrupting Programme
en operation ¡ The appliance switches off auto- Tip: If you press during the wash matically 1 minute after the end of cycle, the programme currently run- the programme to save energy. If ning will be interrupted. When you you open the appliance door im- switch the appliance back on, the mediately after the programme has programme continues automatically. -
Page 33: Basic Settings
Basic settings en 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of the basic settings The basic settings depend on the features of your appliance. Basic setting Selection Description Water hardness Scale with 4 levels Set the water hardness. - Page 34 en Basic settings Basic setting Selection Description Remote Start Scale with 3 levels Activate or deactivate the function. → "Activating Remote Start ", Page 35 This basic setting is not available until you have connected the appliance with the Home Connect app. → "Home Connect ", Page 35 Factory setting Reset...
- Page 35 Home Connect en Press repeatedly until the Set Wi-Fi LEDs show the right value. Press . To open the appliance settings, press for 3 seconds. flashes. Press repeatedly until flash. Press repeatedly until the LEDs show the right value. If LED A lights up, the function is permanently deactivated.
-
Page 36: Home Connect Quick Start
en Home Connect Home Connect services in your coun- The Home Connect app guides try. You can find information about you through the entire login pro- this at: www.home-connect.com. cess. To be able to use Home Connect, Setting up Home Connect you must first set up the connection to the WLAN home network (Wi-Fi Requirements and to the Home Connect app. -
Page 37: Data Protection
Cleaning and servicing en Note: Please note that the Requirements ¡ The appliance is connected to your Home Connect functions can only be WLAN home network. utilised with the Home Connect app. ¡ The appliance is connected to the Information on data protection can be Home Connect app. -
Page 38: Tips On Appliance Care
Dishwasher Care and Ma- ance to malfunction. To avoid such chine Cleaner for Dishwashers online faults and reduce odours, we recom- at https://www.siemens-home.bsh- mend cleaning your appliance at reg- group.com/store or from customer ular intervals. service. -
Page 39: Filter System
Cleaning and servicing en ¡ Make sure that there are no alu- 17.5 Filter system minium parts, e.g. extractor hood The filter system removes coarse grease filters or aluminium pans, in soiling from the dishwashing cycle. the interior of the appliance. ¡ If you have not run Machine Care after 3 washing cycles, the indic- ator for Machine Care will go out automatically. -
Page 40: Cleaning Spray Arms
en Cleaning and servicing Pull down the micro filter to re- Insert the filter system into the ap- move. pliance and turn the coarse filter clockwise. Make sure that the arrow mark- ‒ ings match up. Press the locking catches gether and lift the coarse filter out ... - Page 41 Cleaning and servicing en Pull up the lower spray arm to re- Check the outlet nozzles on the move. spray arms for blockages under running water and remove any for- eign bodies. Insert the lower spray arm. a The spray arm clicks into position. Insert the upper spray arm and screw it firmly in place.
-
Page 42: Troubleshooting
en Troubleshooting 18 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. Tip: You can find further information and explanations on troubleshooting on- line by scanning the QR code in the table of contents and on our website www.bosch-home.com. - Page 43 Troubleshooting en Fault Cause and troubleshooting Display for water sup- Re-insert the filter in the supply hose. ply lights up Screw the water connection back on. Check the water connection for leaks. Restore the power supply. Switch the appliance on. Wastewater hose is blocked or kinked. Reposition the wastewater hose without kinks.
- Page 44 en Troubleshooting Fault Cause and troubleshooting All LEDs lit up or Electronics have detected a fault. flashing. Press the main switch button for approx. 4 seconds. The appliance is reset and restarted. If the problem occurs again: Switch off the appliance. ‒ Pull out the mains plug or switch off the fuse in ‒...
- Page 45 Troubleshooting en Fault Cause and troubleshooting Remnants of food on Filters are inserted incorrectly and/or not engaged. tableware. Insert the filters properly. → "Filter system", Page 39 Engage the filters. Washing programme selected too weak. Select a more intensive washing programme. ▶ → "Programmes", Page 17 Tableware has been precleaned too intensely.
- Page 46 en Troubleshooting Fault Cause and troubleshooting Rust spots on cutlery. Cutlery is not sufficiently rust-resistant. Knife blades are often more severely affected. Use rust-resistant tableware. ▶ Cutlery may also rust if washed together with rusting items. Do not wash rusting items. ▶...
-
Page 47: Clean Wastewater Pump
Transportation, storage and disposal en Insert the pump cover and press 18.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 48: Protect Appliance From Frost
en Customer Service 19.2 Protect appliance from 19.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 49: Customer Service
Customer Service en Customer Service for a period of at 20.2 AQUA-STOP guarantee least 10 years from the date on In addition to warranty claims against which your appliance was placed on the seller under the purchase agree- the market within the European Eco- ment and in addition to our manufac- nomic Area. - Page 50 en Technical specifications 21 Technical specifications Weight Max.: 60 kg Voltage 220 - 240 V, 50 Hz or 60 Hz Power rating 2000 - 2400 W Fuse 10 - 16 A Water pressure ¡ min. 50 kPa (0.5 bar) ¡ max. 1000 kPa (10 bar) Inlet rate Min. 10 l/min Water temperature Cold water. Hot water max.: 60 °C Capacity 12 place settings You can find more information about...
- Page 51 Declaration of Conformity en Hereby, BSH Hausgeräte GmbH de- 22 Declaration of Con- clares that the appliance with Home Connect functionality is in formity compliance with relevant statutory requirements. BSH Hausgeräte GmbH hereby de- A detailed Declaration of Conformity clares that the appliance with Home can be found online at www.bosch- Connect functionality conforms to the home.co.uk among the additional...
- Page 52 Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG *9001821155* 9001821155 (030201) 642 E5...
