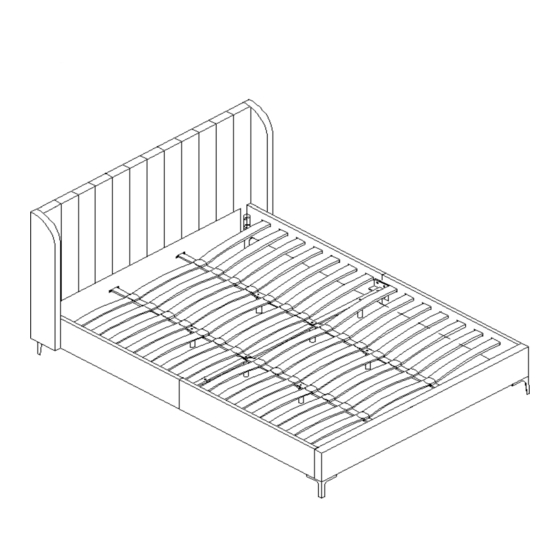

ASSEMBLY INSTRUCTIONS
STA-FRA-NAT-60
Please Inspect all items carefully before assembling. If for any reason you need to return
this item, you must return it in its original packaging. Assembled items cannot be returned.
Please open the zip on the back of the headboard.
You may find the footboard and some of the components inside
Minimum No.of people recommended to assemble this product: Two (2)
Approx. Assembly time: 90 mins
1) Owing to the size and weight of the bed, we recommend that it is assembled by two adults,
on a flat surface in a room that it is intended for.
2) Please Do Not use any tools other than those provided or recommended in these instructions.
3) Please Do Not discard any packaging until you have checked that you have all the parts and fittings.
Keep all fittings out of reach of children.
4) Assemble all parts loosely until advised to tighten. Depending on use, it maybe necessary to tighten
the fittings from time to time, So please save your Allen key and Spanner that has beed provided.
5) Do Not throw away any of the packaging or the instructions booklet until you have checked all
the components and fittings and the furniture is fully assembled.
STA-FRA-GREY-60
IMPORTANT
HELPFUL ADVICE PRIOR TO ASSEMBLING THE BED
STA-FRA-BLUE-60
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for NOVO Annie STA-FRA-NAT-60
Summary of Contents for NOVO Annie STA-FRA-NAT-60
- Page 1 ASSEMBLY INSTRUCTIONS STA-FRA-NAT-60 STA-FRA-GREY-60 STA-FRA-BLUE-60 IMPORTANT Please Inspect all items carefully before assembling. If for any reason you need to return this item, you must return it in its original packaging. Assembled items cannot be returned. Please open the zip on the back of the headboard. You may find the footboard and some of the components inside Minimum No.of people recommended to assemble this product: Two (2) Approx.
- Page 2 Components Siderail L Headboard Footboard Siderail R Centre Rail S upport Leg Feet Slat Transverse Rail Headboard Ear A Central Slat Cap Headboard Ear B Page 2 of 6...
- Page 3 Hardware Connection Plate Left × × Connection Plate Right M6*35mm Bolt × × M6*20mm Bolt × Connection Three-hole × M8*25mm Bolt M8*45mm Bolt × × M6*25mm Bolt × 4*25mmScrew × Connection Four-hole Washer × × Screw driver(not provided) Allen key M5 Allen key M4 Spanner Page 3 of 6...
- Page 4 Step 1: Step 1: Secure the Headboard ear A 10 & Headboard ear B 11 to the Headboard 1 using Bolt J and Allen key M5 Step 2: Step 2a : Secure Connection Three-hole C & Connection Four-hole F to Siderail A 3 & Siderail A 3 and Siderail B 4 &...
- Page 5 Step 3: Step 3: Secure the four Feet 7 to the bottom of the Headboard 1 and Footboard 2 & Siderail A 3 and Siderail B 4 , using Screw K and Screw driver Step 4: Step 4a: Secure Transverse 9 to Connection Three-hole C using Bolt E , Nut M6 G and Spanner...
- Page 6 Step 5: Step 5 ： Slot the slats 8 into the central slat cap 12 and Siderail A 3 & Siderail B 4 as shown. Attach slats to the Centre Rail 5 then firmly press into place After this step , please fully tighten all bolts if you check all the parts are positioned.
