Summary of Contents for NOVO Lottie MOLCOTS-OTT-GREY-30

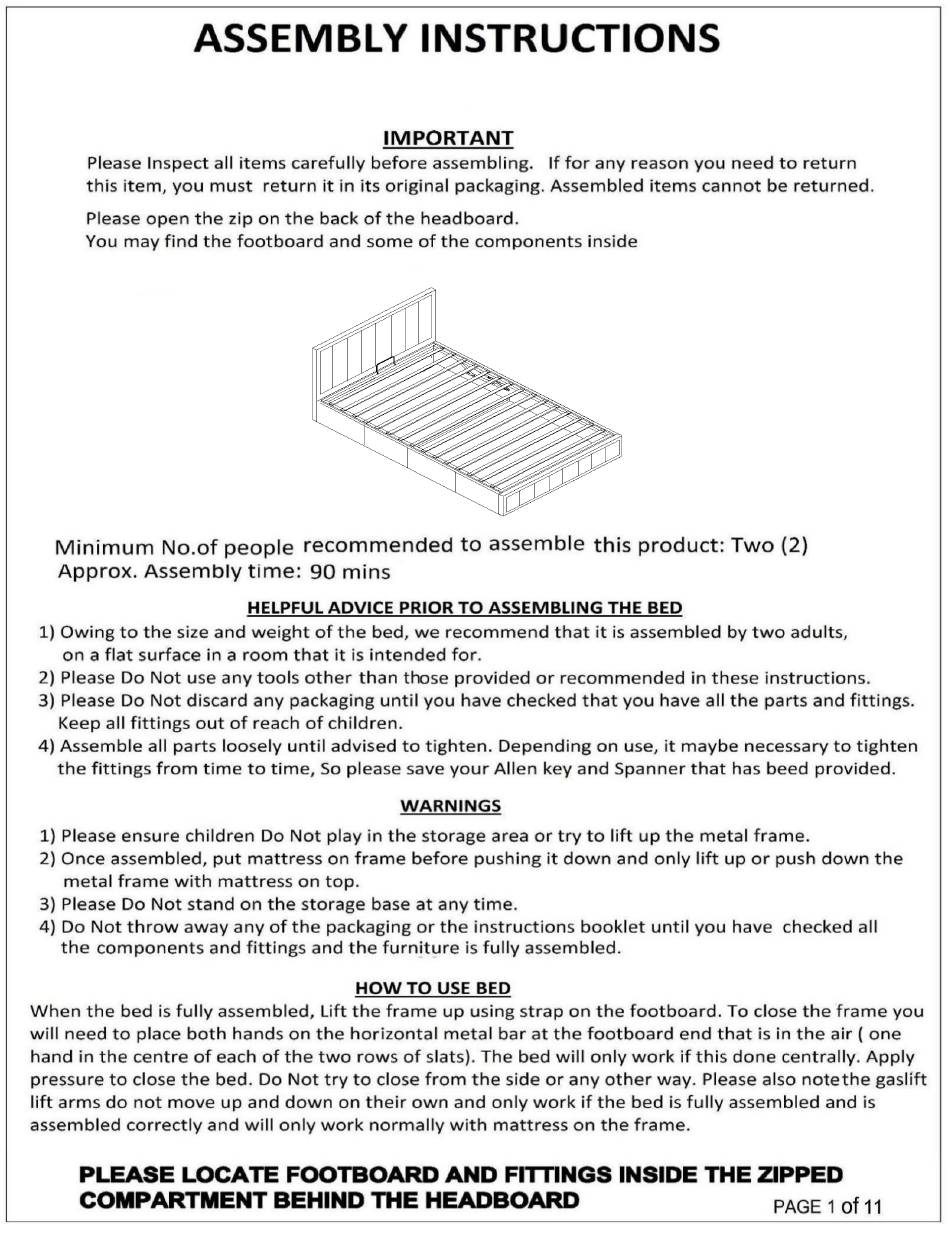

- Page 1 MOLCOTS-OTT-GREY-30 MOLCOTS-OTT-NAT-30...
- Page 2 Components Siderail Left Siderail Right Footboard Headboard End Slat Cap Corner Angle Bracket Support Block Folding mechanism (R) Connection bar Side rail of Metal Frame Cross Rail of Headboard Pneumatic cylinder Folding mechanism (L) Slat Cross Rail of Footboard Cross Rail Mattress stopper Non-Woven Fabric Page 2 of 11...
- Page 3 Hardware Connection Plate Left × × Connection Plate Right M8*15mm Bolt × × M6*35mm Bolt × M6*20mm Bolt × M8*20mm Bolt × M8*35mm Bolt × M6*70mm Bolt × Washer × Allen key M5 Allen key M4 Spanner Page 3 of 11...
- Page 4 Step 1: Step 1a Step 1a : Secure Connection Plate Left A & Right B to Siderail B 4 & Siderail A 3 Step 1b using Bolt D and Allen Key M5 Step 1b : Secure Connection Plate Left A & Right B to Headboard 1 &...
- Page 5 Step 3: Step 3 : Secure Cross rail of Headboard 13 & Cross rail of Footboard 15 to Side rail of metal frame 8 using Bolt H and Allen key Step 4b Step 4a Step 4: Slot in Mattress stopper Step 4a : 18 to Cross rail of Headboard 13 Step 4b :...
- Page 6 Step 5: Secure Cross rail 14 to Siderail 4 & Siderail 3 using Bolt C and Allen Key M4 Step 6: Attach the Non Woven fabric Base Turn bed on its side and attache the Non-woven fabric 17 to the Velcro strip on the underside of the edge of the bed base.
- Page 7 Step 7: Slot the slats 16 into the Step 7: end slat cap 7 as shown. Attach slats 16 to the side rails of metal frame 8 then firmly press into place. After this step , please fully tighten all bolts if you check all the parts are positioned Step 8: Secure Pneumatic cylinder 12 to...
