PSEN 2.2p-24 Introduction Validity of documentation This documentation is valid for the product PSEN 2.2p-24, ATEX. It is valid until new docu- mentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product.
If installed in other environments, measures should be taken to comply with the applicable standards and directives for the respective installation site with regard to in- terference. Operating Manual PSEN 2.2p-24 20971-EN-16...
Disposal In safety-related applications, please comply with the mission time T in the safety-related characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PSEN 2.2p-24 20971-EN-16...

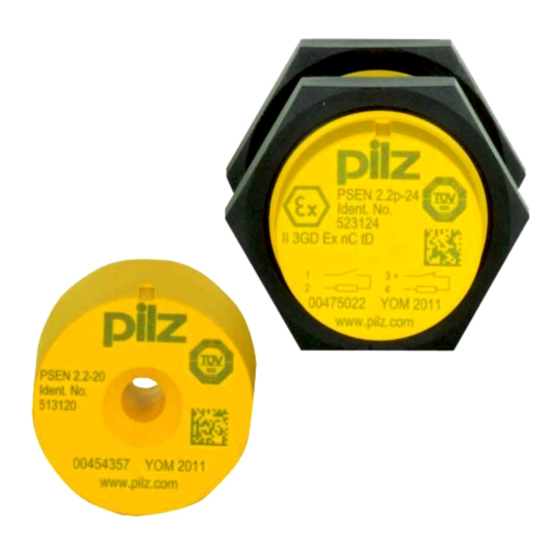

Safety switch with 4-pin M8 male connector 2 safety contacts (reed contacts - N/C and N/O) Design: round (M30) Operation Magnetic Switching voltage 24 VDC Series connection via PSEN i1 interface ECOLAB tested LED to display switch status Operating Manual PSEN 2.2p-24 20971-EN-16...
If the actuator is within the response range (safety gate closed), the safety contacts of the safety switch are closed and the LED will go out. The safety switch is designed for applications in series connections. Operate the PSEN 2.2p-24, ATEX in conjunction with the following components: Actuator PSEN 2.2-20 (see Order reference [...
[3] Lateral offset [4] Notches at the safety switch and actuator Actuator PSEN 2.2-20 Assured operating distance S in mm Lateral offset Vertical offset The stated values are valid at a temperature of 20 °C. Operating Manual PSEN 2.2p-24 20971-EN-16...
– Protect the connector from being removed unintentionally. Pin assignment NOTICE The colour marking for the connection lead only applies for the cable that Pilz supplies as an accessory The safety switch is shown in an unoperated condition. brown Assignment of the 4-pin connector...
PSEN 2.2p-24 Requirements and connection to evaluation devices For use of PSEN 2.2p-24, ATEX in accordance with DIN EN 60947-5-3 an evaluation device must be connected. Connect the PSEN 2.2p-24, ATEX either with a certified Pilz evaluation device or with an evaluation device with defined properties...
Page 12
11 12 21 22 31 32 41 Non-Ex area 11 12 21 22 33 34 43 44 Ex area PSENmag Fig.: Dual-channel connection of four PSENmag to the input circuits of an evaluation device Operating Manual PSEN 2.2p-24 | 12 20971-EN-16...
Page 13
PSEN 2.2p-24 Examples for connection to Pilz evaluation devices: PNOZmulti PSENmag PSEN i1 brown white blue black Non-Ex area Ex area Legend I0 Input OSSD I1 Input OSSD T1, T2 Test pulse outputs PNOZ s3 PSEN i1 PSENmag brown white...
Please note the installation measures in accordance with EN ISO 14119 for a proximity switch type 4 with coding level Low. Alignment errors of the guard must not adversely affect the safety function of the guard. Operating Manual PSEN 2.2p-24 | 14 20971-EN-16...
The protection type (see Technical details [ 17]) can only be achieved by using the Pilz connection leads available as an accessory. Adjustment The safety switch may only be used with the corresponding actuator PSEN 2.2-20. Always test the function with the PSEN i1 interface and connected evaluation device.
Dimensions in mm Safety switch M8x1 SW 36 Actuator ø 1,75 Legend [1] Notches at the safety switch and actuator [2] Nib at the actuator to prevent is from twisting Operating Manual PSEN 2.2p-24 | 16 20971-EN-16...
Vibration In accordance with the standard EN 60947-5-2 Frequency 10 - 55 Hz Amplitude 1 mm Shock stress In accordance with the standard EN 60947-5-2 Acceleration Duration 11 ms Airgap creepage Pollution degree Operating Manual PSEN 2.2p-24 | 17 20971-EN-16...
Page 18
Height 30 mm Width 30 mm Depth 16 mm Weight of safety switch 35 g Weight of actuator 20 g Weight 55 g Where standards are undated, the 2015-09 latest editions shall apply. Operating Manual PSEN 2.2p-24 | 18 20971-EN-16...
Page 20
Product type Features Order no. PSEN i1 Interface for 4 Interface PSEN i1 for connecting and evaluating several safety 535110 PSEN 2 switches PSEN ma PDP67 F 8DI ION Decentralised input module IP67 for PNOZmulti 773600 Operating Manual PSEN 2.2p-24 | 20 20971-EN-16...
This product/these products meet the requirements of the following directives of the European Parliament and of the Council. 2006/42/EC on machines 2014/34/EU (ATEX) The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/ downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany...
