- Page 1 PSEN 2.2p-20 PSEN sensor technology Operating Manual-20915-EN-08...
- Page 2 Preface This document is a translation of the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received.
-
Page 3: Table Of Contents
Operating distances Lateral and vertical offset Wiring Pin assignment Requirements and connection to evaluation devices Installation Adjustment Periodic test Dimensions in mm Technical details Safety characteristic data Order reference System Accessories EC declaration of conformity Operating Manual PSEN 2.2p-20 20915-EN-08... -
Page 4: Introduction

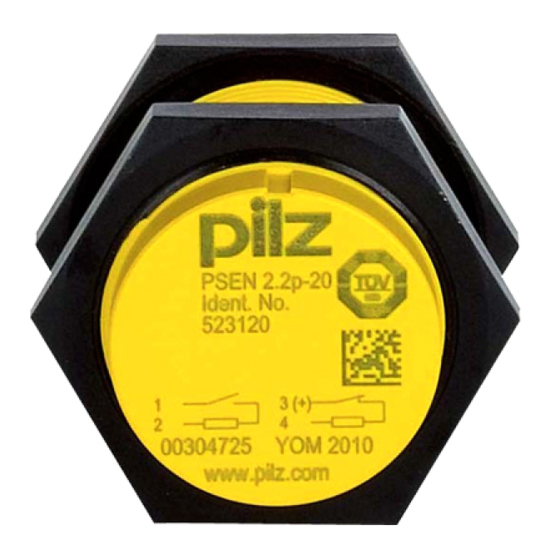

PSEN 2.2p-20 Introduction Validity of documentation This documentation is valid for the product PSEN 2.2p-20. It is valid until new documenta- tion is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 5: Safety
If installed in other environments, measures should be taken to comply with the applicable standards and directives for the respective installation site with regard to in- terference. Operating Manual PSEN 2.2p-20 20915-EN-08... -
Page 6: Safety Regulations
In safety-related applications, please comply with the mission time T in the safety-re- lated characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PSEN 2.2p-20 20915-EN-08... -
Page 7: For Your Safety
The N/O contact is closed and the N/C contact is opened. The safety switch is designed for applications in series connections. Operate the PSEN 2.2p-20 in conjunction with the following components: Actuator PSEN 2.2-20 (see... -
Page 8: Block Diagram
Block diagram Actuator Safety switch Magnet Operating distances (mm) omin Legend Assured operating distance Min. operating distance omin Assured release distance The offset-independent values for the switching distances are included in the Technical details [ 15]. Operating Manual PSEN 2.2p-20 20915-EN-08... -
Page 9: Lateral And Vertical Offset
In the following cases, check the function that detects shorts across contacts prior to commissioning: – On evaluation devices with DC supply voltage: Overall cable resistance ≥ 15 Ohms per channel – On evaluation devices with AC supply voltage: Overall cable resistance ≥ 25 Ohms per channel Operating Manual PSEN 2.2p-20 20915-EN-08... -
Page 10: Pin Assignment
Blue [3+] Black Requirements and connection to evaluation devices For use of PSEN 2.2p-20 in accordance with DIN EN 60947-5-3 an evaluation device must be connected. Connect the PSEN 2.2p-20 either with a certified Pilz evaluation device or with an evaluation device with defined properties... - Page 11 PSEN 2.2p-20 – Always comply with the max. switching current safety contacts of PSEN 2.2p-20. Outputs at the evaluation device must only be switched on again when both reed con- tacts at the safety switch have been opened and closed (partial operation lock)
-
Page 12: Installation
PSEN 2.2p-20 Examples for connection to Pilz evaluation devices: PNOZmulti PSENmag PSEN i1 Brown White Blue Black Legend I0 Input OSSD I1 Input OSSD T1, T2 Test pulse outputs Installation CAUTION! Potential loss of safety function due to changed device properties The unit's properties may be affected if installed in an environment contain- ing electrically or magnetically conductive material. - Page 13 15]). On the mounting surface, drill a hole (⌀ 2 mm) as specified in the drawing, and place the nib in the drill hole when installing the actuator. ø 1,75 Legend [1] Nib on the actuator Operating Manual PSEN 2.2p-20 20915-EN-08...
-
Page 14: Adjustment
The protection type (see Technical details [ 15]) can only be achieved by using the Pilz connection leads available as an accessory. Adjustment The safety switch may only be used with the corresponding actuator PSEN 2.2-20. Always test the function with the PSEN i1 interface and connected evaluation device. -
Page 15: Dimensions In Mm
Coding level in accordance with EN ISO 14119 Design in accordance with EN ISO 14119 Classification in accordance with EN 60947-5-3 PDDB Electrical data Supply voltage Voltage 24 V Kind Voltage tolerance -20 %/+20 % Max. switching frequency 1 Hz Operating Manual PSEN 2.2p-20 20915-EN-08... - Page 16 Assured release distance Sar 26 mm Repetition accuracy switching distances Min. distance between safety switches 25 mm Sensor flush installation in accordance with EN 60947-5-2 Yes, follow installation guidelines Connection type M8, 4-pin male connector Material Operating Manual PSEN 2.2p-20 20915-EN-08...
-
Page 17: Safety Characteristic Data
Magnetic safety switch, actu- 4-pin M8 male connector 503 220 PSEN2.2-20/8mm 1unit ator round, with assured oper- ating distance 8 mm PSEN 2.2p-20 /8mm 1 Magnetic safety switch 4-pin M8 male connector 523 120 switch PSEN 2.2-20 / 1 actu- Actuator round, with assured 513 120... -
Page 18: Accessories
Installation materials Product type Features Order no. PSEN Winkel / bracket Mounting bracket 532 110 Connector Product type Features Order no. PSEN ma adapter Adapter for connecting the safety switch to PSS67 and PDP67 380 300 Operating Manual PSEN 2.2p-20 20915-EN-08... -
Page 19: Ec Declaration Of Conformity
European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany Operating Manual PSEN 2.2p-20... - Page 20 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95446300 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland Mexico +43 1 7986263-0 +41 62 88979-30...
