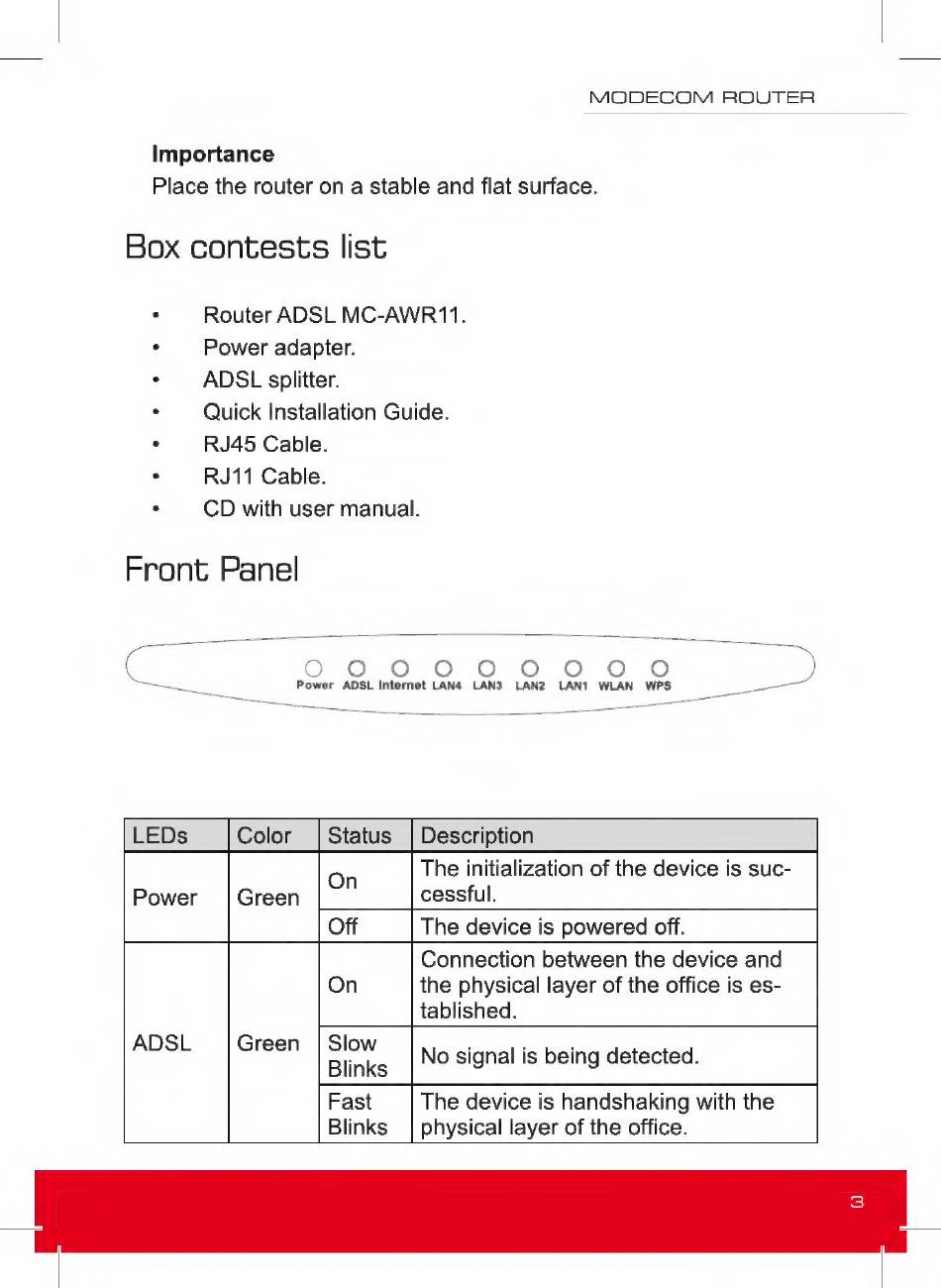

Front Panel - Modecom MC-AWR11 Quick Start Manual

MODECOM ROUTE
Т I
Importance
Place the router on a stable and flat surface.
Box contests list
. Router ADSL MC-AWR11.
. Power adapter.
. ADSL splitter.
. Quick Installation Guide.
. RJ45 Cable.
. RJ11 Cable.
. CD with user manual.
Front Panel
O O O O O O O 0 O
Power ADSL Internet LAN4 LAN3 LAN2 LAN1 WLAN WPS M d
LEDs Color |Status |Description
The initialization of the device is suc-
O
Power |Green |" cessful.
Off The device is powered off.
Connection between the device and
On the physical layer of the office is es-
tablished.
ADSL Green | Slow
Blinks
Fast The device is handshaking with the
Blinks | physical layer of the office.
No signal is being detected.
