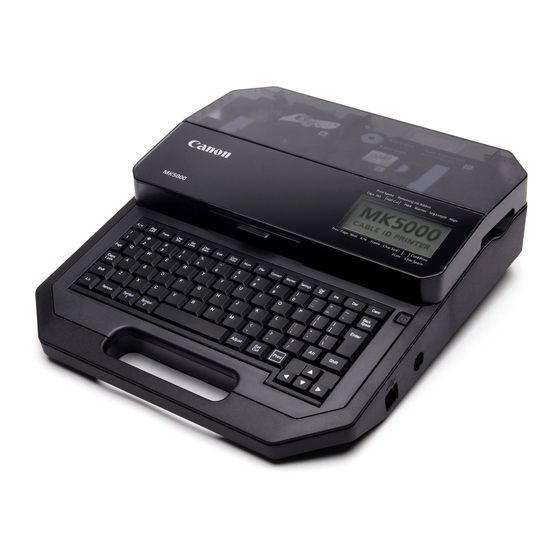

- Page 1 MK5000 CABLE ID PRINTER Supplement for the MK5000 User's Guide This document is a supplementary material to the separate User’s Guide (MK5000). * Please note that the contents of this manual are subject to change without notice. 4Y1-8639-020...
-
Page 2: Table Of Contents
Table of Contents Page Reference Page in the User’s Guide Keyboard Comparison Figures LCD Display Comparison Figures Names and Functions of Keys How to Read the Display 8-10 Use with Batteries 13-14 Basic Input Operations, Before Input ■Switching Character Input Method ■Keys and Input Methods Input Hiragana 11-12... -
Page 3: Keyboard Comparison Figures
Keyboard Comparison Figures The keyboard shown in the User’s Guide is different from the keyboard in the device manufactured for domestic use in Japan, so please refer to the following comparison. Your Device User’s Guide... -
Page 4: Lcd Display Comparison Figures
LCD Display Comparison Figures The LCD display shown in the User’s Guide is different from the display in the device manufactured for domestic use in Japan, so please refer to the following comparison. Your Device User’s Guide... -
Page 5: Names And Functions Of Keys
Names and Functions of Keys Please read this instead of P.6 and P.7 in the MK5000 User’s Guide. This key allows you to check the page number of the currently [Page] key displayed page and the total number of pages in the data. You can also check the remaining memory capacity of the printer. - Page 6 [Warmer] key Switches between tube warmer settings (optional). [Settings] key All functions can be set using this key. [Del All] key Deletes the currently entered characters and settings. [Ins] key Switches between Insert mode and Overwrite mode. [Del] key Deletes the character selected by the cursor. Press this key while printing to stop printing, and then stop [Canc] key after cutting the print media.
-
Page 7: How To Read The Display
How to Read the Display Please read this instead of P.8~P.10 in the MK5000 User’s Guide. Character input method Displays the character input method settings. (→ P.10) a: Alphanumeric characters (lowercase) A: Alphanumeric characters (uppercase) R: Romaji ひ: Kana カ: Katakana Indicates which of the two input modes is selected. - Page 8 Indicates the remaining capacity of the ink ribbon with a mark. Remaining ribbon : The display changes every 10%. When the remaining capacity is low, prepare a (Ribbon remaining) ･ new ribbon cassette. ･ ･ (Out of ribbon) : The ribbon cassette is not loaded, or the (Not displayed) information cannot be read.
- Page 9 Displays the settings for the length (cut length) of a tube (or a Cut Length/ Alignment/Margin label), alignment, and margin of the current page. • When using the "Automatic" cut length feature (The set value is highlighted.) Cut Length (mm) Alignment (Centered “C” ) •...
-
Page 10: Use With Batteries
Use with Batteries Please read this instead of P.13 and P.14 in the MK5000 User’s Guide. If you are outdoors or in any other place where you do not have access to a power supply, you can use the product with batteries. - Page 11 Put the battery cover back on. ● Push the battery cover in until it clicks into place, and close it completely so that there is no gap between the battery cover and the printer. IMPORTANT • If the product has batteries installed and the AC adapter is also plugged into a power outlet, the AC adapter will be given priority as the power supply.
-
Page 12: Basic Input Operations, Before Input
Basic Input Operations Before Input ■ Switching the Character Input Method Every time you press the [Alphanumeric/Romaji/Hiragana] key, the character input method is switched in the order of “a (alphanumeric characters input)→R (romaji input)→ ひ (kana input).” Also, when you press the [Alphanumeric/Romaji/Hiragana] key after pressing the [Caps Lock] key, the character input method is switched in the order of “A (alphanumeric characters (uppercase) input)→R (romaji input)→カ... -
Page 13: Input Hiragana
Input Hiragana Switch to the “romaji input mode” or “kana input mode” to input hiragana. ■ When Using Romaji Input [Example] Entering the word “かっしょく (kasshoku).” Switch to the romaji input mode using the [Alphanumeric/Romaji/ Hiragana] key. ● The display will show “R.” Enter the word “かっしょく(kasshoku).”... - Page 14 ■ When Using Kana Input [Example] Entering the word “かっしょく (kasshoku).” Switch to the kana input mode using the [Alphanumeric/Romaji/ Hiragana] key. ● The display will show “ひ.” ● If “A→R→ カ ” is displayed, press the [Caps Lock] key and repeat the process. Enter the word “かっしょく...
-
Page 15: Input Katakana
Input Katakana Switch to the “romaji input mode,” “kana input mode,” or “katakana input mode” to input katakana. ■ When Using Romaji/Kana Input NOTE • Please refer to “Input Hiragana (P.11)” for more details on romaji input and kana input. [Example] Entering the word “ヴァイオレット... - Page 16 ■ When Using Katakana Input [Example] Entering the word “ヴァイオレット (Violette).” Switch to the kana input mode using the [Alphanumeric/Romaji/ Hiragana] key. ● The display will show “ひ.” Switch to the katakana input mode using the [Caps Lock] key. ● The display will show “カ.” Enter the word “う゛ぁいおれっと...
-
Page 17: Input Alphanumeric Characters
Input Alphanumeric Characters Switch to the “alphanumeric characters input mode” to input alphanumeric characters. [Example] Input "Res7-1." Switch to the alphanumeric characters input mode using the [Alphanumeric/Romaji/Hiragana] key. ● The display will show “a.” ● If “A→R→ カ ” is displayed, press the [Caps Lock] key and repeat the process. -
Page 18: Input Kanji
Input Kanji Switch to the “romaji input mode” or “kana input mode” to input kanji. If you do not know the reading of a kanji character or cannot convert to it using the keyboard, use the “kuten code input” to enter it. NOTE •... - Page 19 Press the [Enter] key. ● The word “回線 (kaisen)” will be entered. ■ When Using Kuten Code Input [Example] Entering the word “塑性 (sosei).” Press the [Symbol] key. Select the “kuten code input” using [▲] or [▼], then press the [Enter] key.
-
Page 20: Change Display Language
Change Display Language You can change the language that appears on the display. The default setting is “Japanese.” Press the [Settings] key. Select “その他 (others)” using [▲] or [▼], then press the [Enter] key. Select “言語/Language” using [▲] or [▼], then press the [Enter] key. -
Page 21: Installing The Software
Installing the Software Please read this instead of P.111 in the MK5000 User’s Guide. The "MK Desktop Utility" application software specially designed for this product allows you to input and edit text on your computer. Install the MK Desktop Utility and Printer driver Install the "MK Desktop Utility"... -
Page 22: Print Media
Print Media Please read this instead of P.228 in the MK5000 User’s Guide. The following print media can be used for printing. PVC tube ø 1.5 mm to ø 10 mm inside diameter 0.4 mm to 0.6 mm thickness Clear tube * With the tube warmer installed: ø... -
Page 23: Romaji/Kana Input Chart
Romaji/Kana Input Chart... - Page 24 *Entering constants in succession displays the character “っ.” However, entering “NN” will display “ん.”...
-
Page 25: Symbol Chart
Symbol Chart Please read this instead of P.233 in the MK5000 User’s Guide. <Symbols 1> <Symbols 2> <Symbols 3> <Symbols 4>... -
Page 26: Kuten Code Chart
Kuten Code Chart...
