INSTALLATION, OPERATION
& MAINTENANCE MANUAL
MODEL:
FJ2T

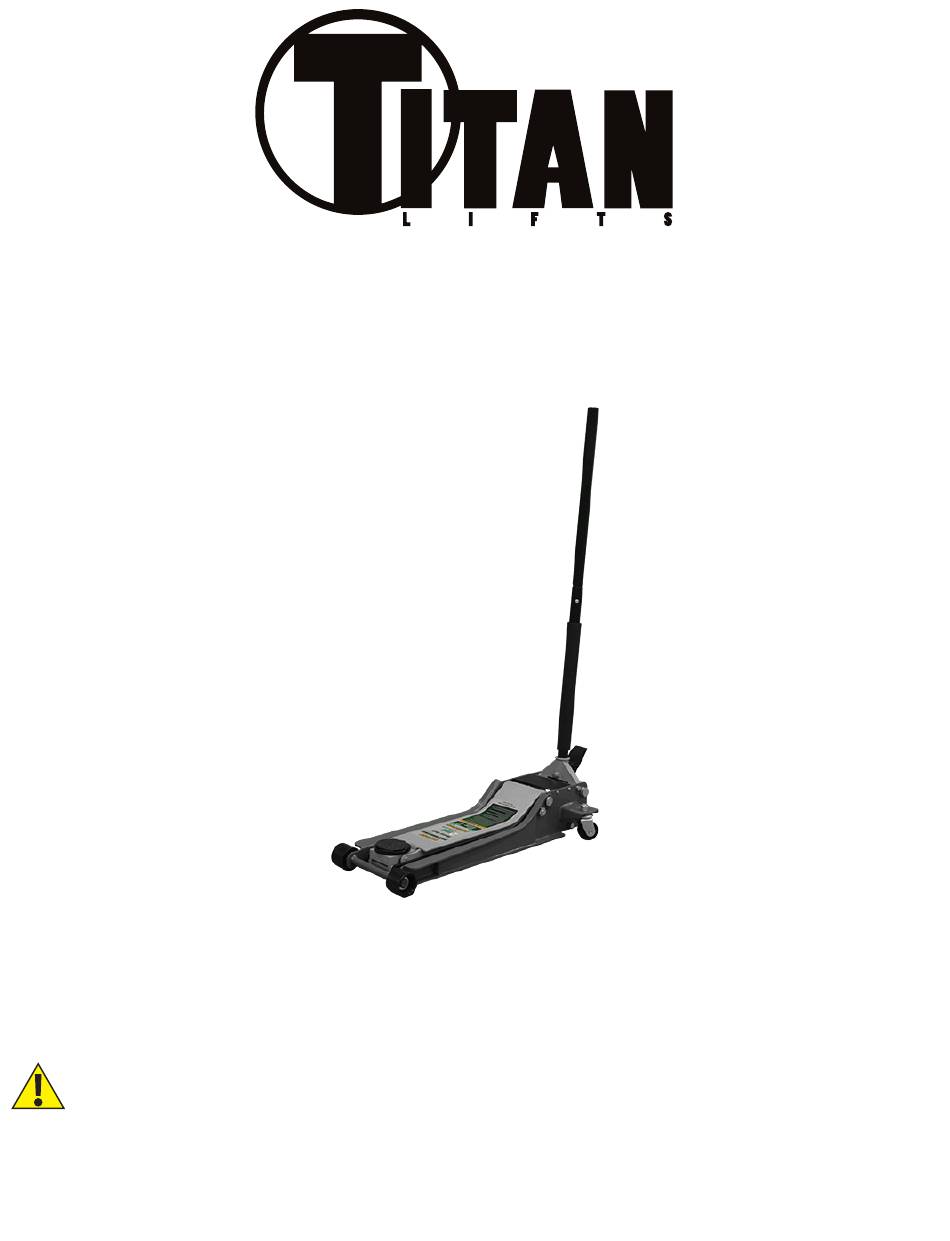

2 TON (4,000 LB) CAPACITY HYDRAULIC FLOOR JACK
FOLLOW THIS MANUAL CAREFULLY TO ENSURE THE EQUIPMENT WILL
FUNCTION CORRECTLY AND PROVIDE MANY YEARS OF DEPENDABLE SERVICE.
FAILURE TO FOLLOW THESE INSTRUCTIONS AND SAFETY WARNINGS MAY
RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE. KEEP THIS MANUAL IN A
SAFE DRY PLACE FOR FUTURE REFERENCE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Titan FJ2T
Summary of Contents for Titan FJ2T
- Page 1 ® INSTALLATION, OPERATION & MAINTENANCE MANUAL MODEL: FJ2T 2 TON (4,000 LB) CAPACITY HYDRAULIC FLOOR JACK FOLLOW THIS MANUAL CAREFULLY TO ENSURE THE EQUIPMENT WILL FUNCTION CORRECTLY AND PROVIDE MANY YEARS OF DEPENDABLE SERVICE. FAILURE TO FOLLOW THESE INSTRUCTIONS AND SAFETY WARNINGS MAY RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE.
- Page 2 Products May Be Upgraded Without Notice Please Visit WWW.TITANLIFTS.COM For The Latest Version Of This Manual P.O. Box 7069 • Greenwood, IN 46142 • Ph. 888-908-4826 • Fx. 317-215-2770 • www.titanlifts.com...
- Page 3 Claims must be filed to cover cost. If you have any questions or if we can be of any further assistance, please don’t hesitate to contact a Titan Lifts® representative at 1-888-908-4826. Thank you for the opportunity to continue to serve your lift equipment needs.
-
Page 4: Specifications
DESCRIPTION This hydraulic floor jack is designed to lift, but not support, one end of a vehicle. Immediately after lifting, load must be supported by at least two appropriately rated jack stands. SPECIFICATIONS Rated capacity 2 Ton (4,000 LB) Min. Height 2-3/4”... -
Page 5: Receiving Instructions
16. Ensure that only hydraulic jack oil is used in the jack. 17. DO NOT operate the jack if damaged. 18. DO NOT allow untrained persons to operate the jack. 19. DO NOT exceed the rated capacity of the jack. 20. - Page 6 ASSEMBLY 1) The jack is comprised the following parts, Jack body, Two-part pumping handle. 2) Unscrew the bolt from handle tube 1, Insert the upper handle into the lower handle. Secure the two pieces together with the bolt. (2) Unscrew the bolt from (3) Insert the upper tube (4) Tighten the bolt (1) Handle Tube 1...
-
Page 7: Hydraulic System Purging
HYDRAULIC SYSTEM PURGING 1. Open the release valve by turning it two full turns counter-clockwise. 2. Pump the handle four full strokes quickly. 3. Close the release valve by turning it clockwise. 4. Pump the handle with full strokes to check if it can reach the maximum height within ten pumps. -
Page 8: Monthly Maintenance
LOWERING A VEHICLE 1. Turn the release valve clockwise to close it. 2. Pump the handle to raise the vehicle off the jack stands. 3. Remove the jack stands from beneath the vehicle. 4. Turn the release valve slowly counter-clockwise to lower the vehicle to the ground. NOTE: When the jack is not in use, ALWAYS leave the saddle and ram fully retracted. -
Page 9: Troubleshooting
TROUBLESHOOTING Problem Cause Solution 1. Oil level low 1. Check / add oil Jack will not lift to full height 2. Release valve not closing 2. Close the release valve 1. Hydraulic oil is contaminated 1. Contact authorized service Jack will not hold the load 2. -
Page 10: Parts Diagrams & Lists
PARTS DIAGRAMS & LISTS DIAGRAM 1... -
Page 11: Parts List
PARTS LIST 1 DESCRIPTION DESCRIPTION UPPER HANDLE SECTION LOCK WASHER BOLT C-CLIP LOWER HANDLE SECTION FOAM HANDLE SLEEVE FRAME BASE C-CLIP ADJUSTMENT SCREW C-CLIP RIGHT ADJUST PLATE FOOT PEDAL C-CLIP FLAT WASHER PUMP SPINDLE FRONT WHEEL LOCK WASHER COVER PLATE BOLT SCREW HANDLE SOCKET... - Page 12 NOTES...
-
Page 13: Warranty Registration
WARRANTY REGISTRATION In order to utilize the warranty on this Titan Lifts product, you must register your product with us. The TITANLIFTS.COM/WARRANTIES simplest way to do this is to visit and submit your information online. If you prefer to send your information through the mail, please fill out the form below and send this page to us at :... -
Page 15: Limited Warranty
Jacks, Mini Jacks, tie down products, wheel service accessories, Bulldog Moto Cradle Wheel Chock accessories, dollies, stands, Multi-purpose Jacks, etc. Titan TJ1T, FJ2T, and FJ3T are warrantied for replacement parts only to the original purchaser for a period of 1 year from the date of purchase. - Page 16 4/30/19 Copyright © 2019 by Titan Marketing, LLC. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express consent of Titan Marketing, LLC. Diagrams within this manual may not be drawn proportionally.
