Summary of Contents for fine fixtures ST4W

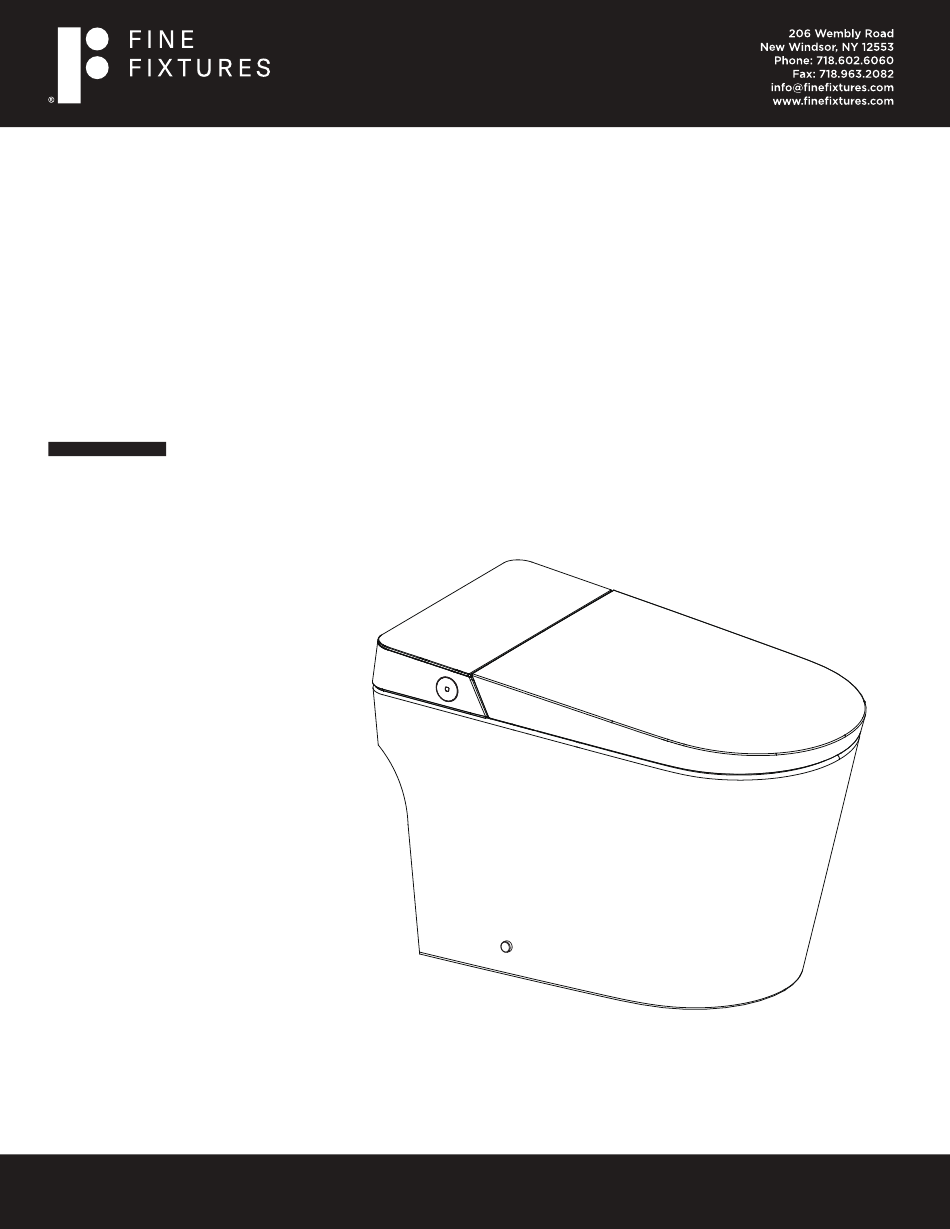

- Page 1 INSTALLATION INSTRUCTIONS SMART TOILET Installation Manual: (Pages 01 - 11) Toilet User Manual: (Pages 12 - 21) Remote Control User Manual: (Pages 22 - 27) MODEL# ST4W...
-
Page 2: Important Safeguards
READ ALL INSTRUCTIONS BEFORE USING IMPORTANT SAFEGUARDS When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: 1. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS INDICATES THAT FAILURE TO FOLLOW THE INSTRUCTION MAY CAUTION CAUSE BODY INJURY OR PROPERTY DAMAGE. 1. Do not install or use the product in wet places such as a steam room, etc. 2. It is recommended to use a water-proof electrical outlet, which should be installed in a dry and safe place where it is not easy to get wet. 3. - Page 4 INSTRUCTIONS SMART TOILET ONE PIECE TANKLESS Installation Manual: (Pages 01 - 11) Toilet User Manual: (Pages 12 - 21) Remote Control User Manual: (Pages 22 - 27) MODEL# ST4W Main Unit Installation Manual Remote Components Installation Cardboard NPT 1/2 Sealing Flange...
- Page 5 1. The product drawing is for reference only, and we reserve the right to modify the appearance of the product. 2. If the appearance of the product is changed, the actual product shall prevail.
- Page 6 TOILET INSTALLATION PRECAUTION BEFORE INSTALLING Minimum dynamic working water pressure: 0.18+ MPa (5.81+ gal/min or 22+ L/min), failure to meet this pressure will not achieve the best flushing effect. Remark: Apply the methods below if you don’t have water pressure testing device. Hose in the package Angle valve in...
- Page 7 STEP #2 Installation Method 1: Installation Method 2: Installation of mating angle valve Draw drain outlet centerline on the floor, NPT 1/2 Install angle valve at proper position on wall according to dimension of toilet. Mating angle valve Line Drain outlet Note: 1.
-
Page 8: Mounting Bracket Installation
STEP #5 Mounting bracket Mounting bracket installation Washer Bolt Assemble the mounting bracket with bolts and then secure them to the pre-installed flange on the ground and tighten with nuts. STEP #6 STEP #7 Ceramic toilet installation Screw installation Put the screw through the fixing sleeve and Install sealing flange on drain outlet;... -
Page 9: After Installation
AFTER INSTALLATION 1. Turn on the angle valve 2. Power Connection Check thread connection, make sure no Insert power line leakage protection plug into leakage is found,unscrew angle valve the power socket, press the reset switch, plug anticlockwise to maximum opening. indicator lights on indicating that the power is (Tips: When opening for the first time, the angle valve handle has a larger torque) - Page 10 AUTO LID OPEN/CLOSE If you purchase the intelligent toilet with auto lid open/close function, the product can achieve the function of auto lid open/close. 1. Approaching the toilet When approaching the toilet, the mechanism will detect the movement and the cover will open automatically.
- Page 11 SENSOR FOOT If the toilet is equipped with foot sensor lid-open function, it can make lid auto-open by sensing foot movement. 1. When the lid and seat are both closed, put the foot within the sensing area and then lid opens automatically. Seat 2.
- Page 12 TOILET USER MANUAL (PAGES 12 TO 21) READ ALL INSTRUCTIONS BEFORE USING IMPORTANT SAFEGUARDS When using electrical products, especially when children are present, basic safety precautions should always be followed,including the following: 1. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
- Page 13 IMPORTANT SAFETY INSTRUCTIONS INDICATES THAT FAILURE TO FOLLOW THE INSTRUCTION MAY CAUTION CAUSE BODY INJURY OR PROPERTY DAMAGE. 1. Do not install or use the product in wet places such as a steam room, etc. 2. It is recommended to use a water-proof electrical outlet, which should be installed in a dry and safe place where it is not easy to get wet. 3.
-
Page 14: Technical Specification
Technical specification Model ST4W Rated voltage 110V-120V, 50/60Hz Rated power 1170W Main Unit Overall unit Waterproof IPX4 Electrical wire Length is about 2.2m Flush volume 1.28Gpf (4.8Lpf) Flushing mode Siphonic jet Rough-in distance 305mm Toilet Outlet outside diameter Drainage method Down-drain 0.18 MPa (dynamic pressure, flow rate of... - Page 15 Model ST4W Warm air volume Over 0.2m /min Warm wind temperature 6 different level adjustment Drying device Heating power 250W Thermal fuse, Temperature senor, Thermostat Safety device Deodorization Deodorization Method Photocatalyst-free Surface temperature 6 different level adjustment Heating power Heated seat...
-
Page 16: Parts Identification
PARTS IDENTIFICATION LEFT SIDE Bumper Seat button Ceramic toilet RIGHT SIDE Spray rod baffle Warm-air baffle Rear Front Remote washing washing sensing window Spray nozzle Use the foot to touch the sensing area... -
Page 17: Daily Maintenance
DAILY MAINTENANCE Main Unit Care And Maintenace Spray Nozzle Maintenance And Care 1. Shut off power supply before attempting 1. Nozzle self-cleaning maintenance. While not sitting on the unit, short press the “ REAR/MOVE ” Button on the main unit, the spray nozzle will extend outward 2. -
Page 18: Emergency Troubleshooting
EMERGENCY TROUBLESHOOTING No water supply Maintenance of filter net Time for maintenance: It is under Put around 2.1Gal (8L) of water into a bucket and flush the bowl. normal water pressure but poor flush performance occurs. Note: Avoid water spilling from bowl. 1. -
Page 19: Battery Replacement
EMERGENCY TROUBLESHOOTING Battery replacement When the product is left unused for long time 1. Unplug DC connector and remove the battery box. Especially in winter when no one at home for a long time, please drain out the water 2. Install new batteries. inside tank and pipe to prevent freezing. - Page 20 DESCRIPTION OF THE BUTTON FUNCTION The illustration of main unit buttons Press and hold the “Stop” button on the unit, the unit enters the shutdown mode (white light off), press the “Stop” button again, the unit returns to the working mode (White light normally on).
-
Page 21: Troubleshooting Guide
TROUBLESHOOTING GUIDE Problem Cause Solution Water supply hose buckling Solve the buckling causes block No flushing Fill valve is off Turn on the fill valve Water supply is cut off Connect water supply and wait for the water Water supply hose buckling Solve the buckling causes partial block Poor flushing... - Page 22 REMOTE CONTROL USER MANUAL (PAGES 22 TO 27) Drying/ Dryer temperature Rear washing/ Moving washing Front washing/ Moving washing Indicator light Nozzle moving forward Water reducing Water increasing Stop/Energy saver Nozzle moving backward Night light Water Seat temperature temperature Flush Mute Deodorizer Open /Close the seat...
-
Page 23: Remote Control Installation
REMOTE CONTROL INSTALLATION Remote control hanger installation 1： 1. Drill a 6 mm diameter hole in the wall to a depth of about 35 mm. 2. Tear off the double-sided adhesive sticker on the back of the hanger. 3. Install the expansion pipe into the wall hole, and align it with the hanger hole. Attach the double-sided adhesive sticker on the back of the hanger to the wall,lock the screw, and tear off the double-sided adhesive sticker on the back of the patch and stick it on. - Page 24 USAGE INSTRUCTION NOTICE: · The body should touch the seat and the buzzer rings “CLICK”, which means functions of front washing, rear washing and drying are in operation. · Please stay backward when sitting on the seat. So that the washing position can be easily aligned and there will be no splash.
-
Page 25: Energy Saver
DRY|DRYER TEMP ①Press the " " button, the indicator light will light up, showing the current air temperature range. It will stop drying automatically after a cycle or after DRY DRYER TEMP. the human body leaves the seat. ②In the process of drying, press the " "... -
Page 26: Water Temperature Adjustment
Water temperature adjustment Short press the “ ” button to adjust the water temperature. The indicator will show the water temperature level if it’s on. When the indicator is off, the water level is 0. Short press this button to adjust water temperature level from 0 to 5 in cycle. -
Page 27: Other Operations
Open/Close by remote controller · Short press " " button ， open or close the lid. · Short press " " button ， open or close the seat. · Long press " " button to turn on/off auto lid open/close function. Auto deodorization Short press "... - Page 28 ASVFAF0266004A-1.0...
