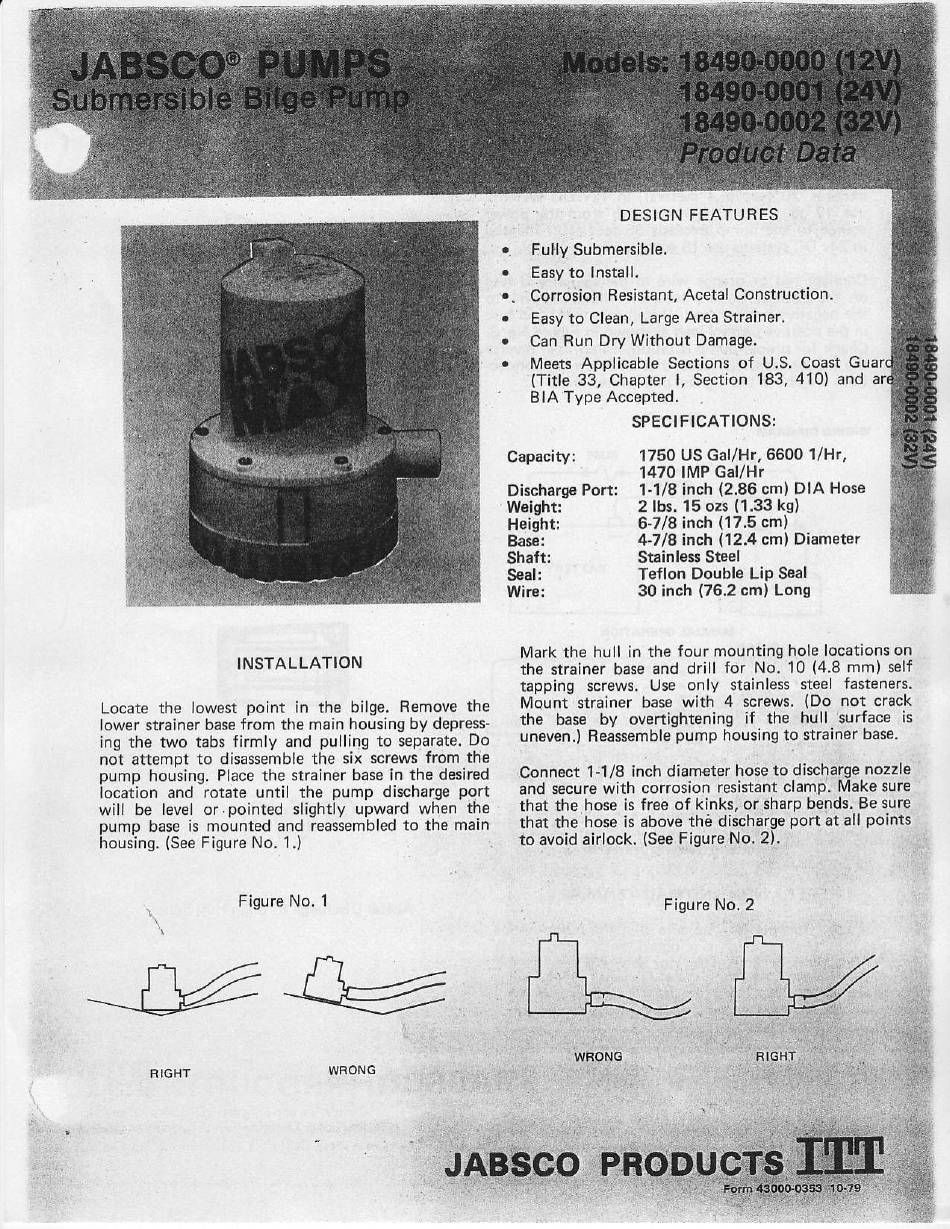

D E S I G N F E A T U R E S
Fully Submersible.
Easy to Install.
Corrosion Resistant, Aceta' Construction.
Easy to Clean, Large Area Strainer,
Can Run Dry Without Damage.
Meets Applicable Sections ol U.S, Coast Gu
(Title 33, Chapter l, Section 183, 410) and
BIA Type Accepted.
SPECIFICATIONS:
1750 US Gal/Hr, 6600 1/Hr.
'1470 IMP GaUHr
1-1l8 inch (2.86 cml DIA Hose
2 lbs, 15 ozs (1.33 kg)
6-718 inch (17.5 cm)
4-718 ihch (12.4 cm) Diameter
Stainlsss Steel
ToJlon Double Lip Seal
30 inch (76.2 cm) Lons
INSTALLATION
Locate the lowest point in the bilge. Femove the
lower straioer base from the main housing by depress'
ing the two tabs firmly and pulling to separate. Do
not attempt to disassemble the six screws from the
pump housing. Place the strainer base in the desired
location and rotate until rhe pump discharge port
will be level or pointed slightly upward when the
oumo base is mounted and reassembled to the main
housing. {See Figure No.
'1.)
N4ark the hull in the tour mounting hole locations on
the strainer base and drill for No, l0 (4.8 mm) sel{
tapping screws, Use only stainless steel fasteners.
l\,4ount strainer base with 4 screws. (Do not crack
the base by overtiqhtening if the hull surface is
uneven.) Reassemble
pump housing to strainer base.
Connect 1-1/8 inch diameter hose to discharge nozzle
and secure with corrosion resistant clamp. lvlake sure
that the hose is lree of kinks, or sharp bends. Be sure
that the hose is above the discharge port at all points
to avoid airlock. (See Figure No.2).
F i g u r e N o . 2
Figure No. 1
_Mv
