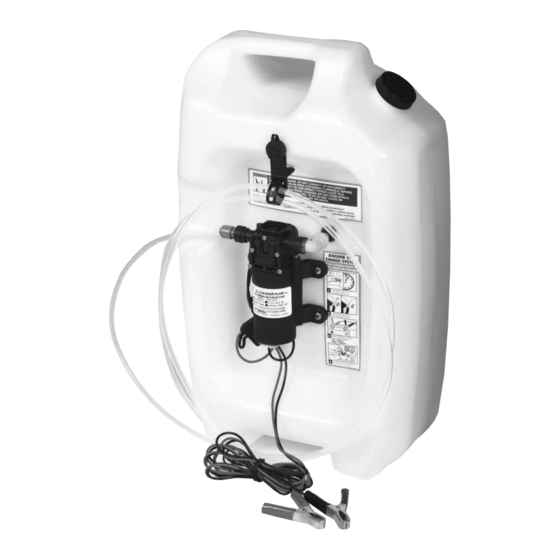

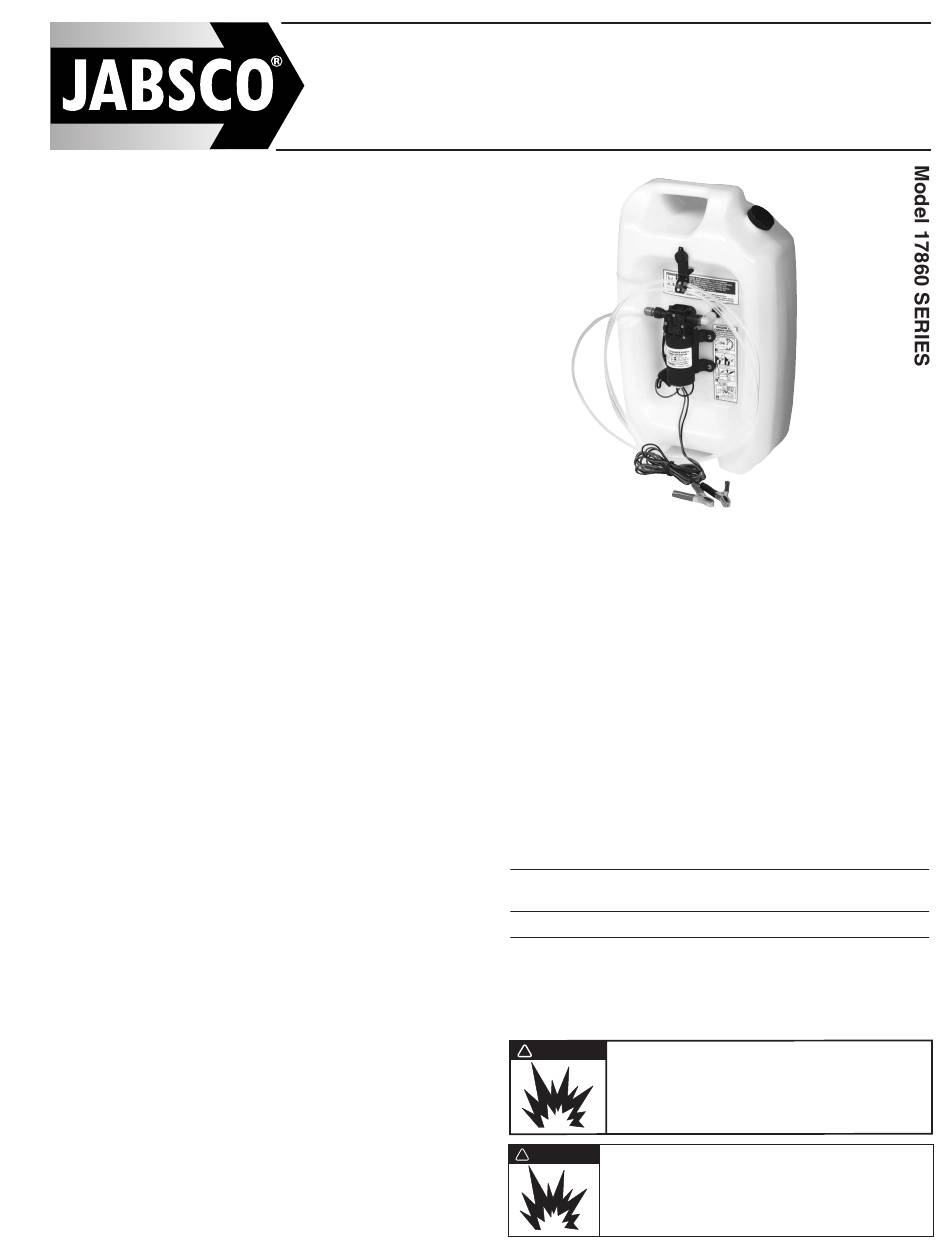

JABSCO 17860 Series Quick Start Manual

FLAT TANK ENGINE OIL
CHANGE SYSTEM
FEATURES
Pump Body: Polypropylene
Diaphragm: Geolast
*
Valves: Viton
**
Motor: 12V/24V DC with integral power
switch
Receiver: Plastic with 3.5 Gal. (13.2L)
(maximum) capacity tank
Battery Leads: 7 ft. (2.1m) with alligator clips
Suction Tube: 8 ft. (2.4m), oil & heat resistant
Dimensions:
Weight: 3.5 lb (1.6 kg)
OPERATING INSTRUCTIONS
Run the engine for approximately 5 minutes to heat oil
1.
to approximately 160°F (71°C), then shut off
engine prior to oil removal.
2. Insert 1/4" (6 mm) tube into pump inlet port and be
sure that it is securely in place.
3. Open the vent cap located on hose retainer strap,
vent cap must be opened to allow tank to vent air.
4. With the pump switch in the off position (to avoid
sparks), clamp the power-leads' alligator clips to a
12V DC battery (red to positive; black to negative).
5. With the engine off, remove the dipstick, and insert
the 1/4" (6 mm) oil change probe through the dip-
stick tube until it contacts the bottom of the oil pan. It
may help to measure the probe against the dipstick,
add an inch and mark the probe. Do not push the
probe too far into the dipstick tube or it may curl up
and out of the oil. It may be useful to tape the probe
in place during evacuation.
6. To evacuate the oil, switch on the pump using the
rocker switch at the rear of the motor. Watch for flow
in the probe. If no flow appears in 15 seconds, check
the probe for sediment blockage. Clean the probe
and reset it 1/4" (6 mm) off the pan bottom.
7. The pump will speed up when the oil has been removed.
An average 5 Quart (5 liters) oil capacity engine will take
around 10 minutes to drain.
8. Switch off pump before removing alligator clips from
the battery, to avoid sparks.
®
, oil resistant
®
, oil resistant
Model 17860-SERIES
9. Remove probe from dipstick tube while wiping with a
rag to prevent oil drips.
10. To empty the container, unscrew the pour cap and
pour the oil into a suitable container for
disposal/recycling.
11. For extended storage, flush pump with water based
degreaser solution.
NOTICE: Always recycle used oil in compliance with
federal and local legislation. Handle petroleum products
in an environmentally responsible manner.
*Geolast is a registered trademark of Monsanto.
**Viton is a registered trademark of du Pont de Nemours & Co.
Model
Number Voltage
17860-0012 12
17860-0024 24
WARNING
Explosion hazard. Motor switch must be in
!
"OFF" position when connecting and
disconnecting alligator clips to battery terminal
and ground. The switch in an "ON" position can
cause an electrical spark which can result in
explosion. Injury or death can occur.
WARNING
Explosion hazard.
!
to ventilate area around battery of potentially
explosive gases
oil changing procedure.
result in explosion.
Amp Fuse
Draw Size
4 5
3 5
T ake necessary precautions
.
Continue ventilation during
Failure to do so can
Injury or death can occur.
