Haztec EconoMax 8-6400 Quick Start Manual

8-6400 EconoMax
Remote Mount Siren
Thank you for purchasing this Haztec product. Before proceeding with installation it is essential
to read and understand this instruction booklet.

Warning!

▪ This product must be installed by persons competent in vehicle electrical installations
▪ Improper installation of this product will void all warranties
▪ Care should be taken to ensure that water ingress cannot occur through mounting or
wiring holes
▪ Regularly inspect the product to confirm correct operation
▪ Use only a mixture of soap and water to clean this product
▪ DO NOT allow solvents, fuels or acetone-based cleaners etc. to contact this product

Basic Operating Specifications:

Supply voltage range:
Maximum current draw:
Sound output:
Amplifier dimensions (mm):
Operating temperature:

Connection Instructions:

Wire Connect to
Red Positive [+] via switch & fuse
Black Negative [-]
Green Speaker
White Speaker
Green (x2) Amplifier
M111 Issue 1.1 Created by: Technical
12VDC
1.4A
102dB @ 3m
104 x 53 x 30
-20 to 55
Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: +44(0)113 202 9115 ∙ info@haztec.uk ∙ www.haztec.uk

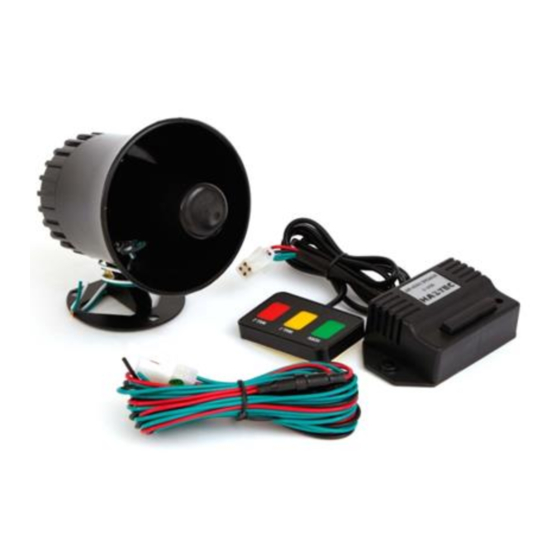

▪ Compact Siren Amplifier
▪ 12VDC
▪ 40W/8 Ohm
▪ Wail/Yelp/Air Horn
▪ Control Panel
O
C
Function
Main feed
Earth/Ground
Amplifier output
Amplifier output
Speaker output
- 1 - August 2019
