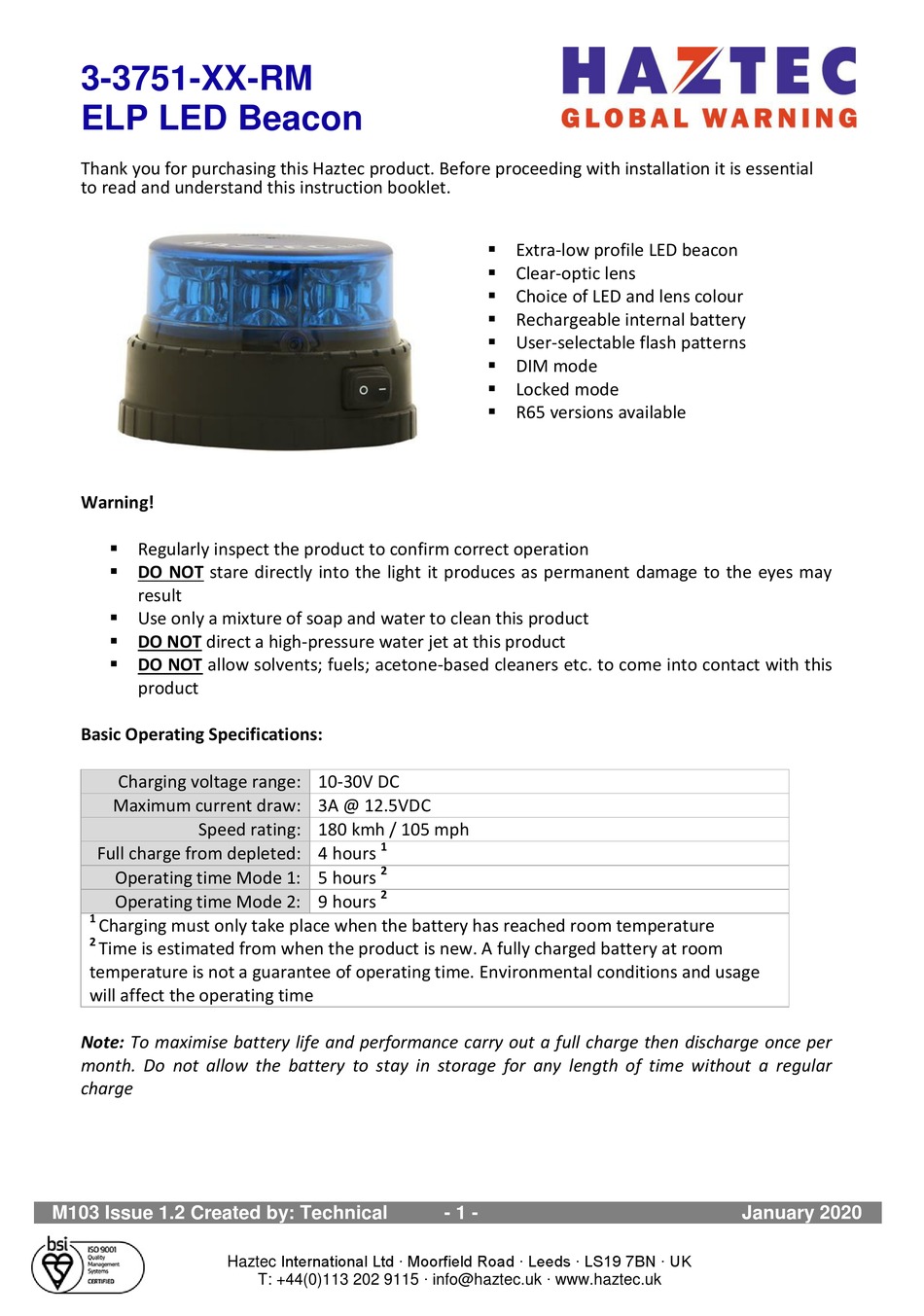

Haztec 3-3751 RM Series Instructions

3-3751-XX-RM

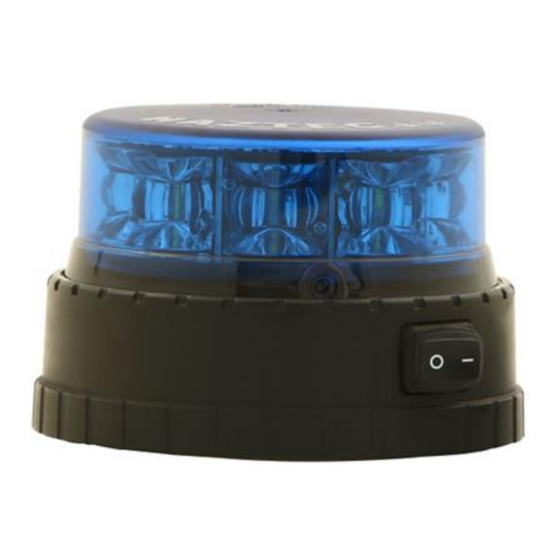

ELP LED Beacon
Thank you for purchasing this Haztec product. Before proceeding with installation it is essential
to read and understand this instruction booklet.
Warning!
 Regularly inspect the product to confirm correct operation
 DO NOT stare directly into the light it produces as permanent damage to the eyes may
result
 Use only a mixture of soap and water to clean this product
 DO NOT direct a high-pressure water jet at this product
 DO NOT allow solvents; fuels; acetone-based cleaners etc. to come into contact with this
product

Basic Operating Specifications:

Charging voltage range: 10-30V DC
Maximum current draw: 3A @ 12.5VDC
Speed rating: 180 kmh / 105 mph
Full charge from depleted: 4 hours
Operating time Mode 1: 5 hours
Operating time Mode 2: 9 hours
1
Charging must only take place when the battery has reached room temperature
2
Time is estimated from when the product is new. A fully charged battery at room
temperature is not a guarantee of operating time. Environmental conditions and usage
will affect the operating time
Note: To maximise battery life and performance carry out a full charge then discharge once per
month. Do not allow the battery to stay in storage for any length of time without a regular
charge
M103 Issue 1.2 Created by: Technical
1
2
2
Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: +44(0)113 202 9115 ∙ info@haztec.uk ∙ www.haztec.uk
 Extra-low profile LED beacon
 Clear-optic lens
 Choice of LED and lens colour
 Rechargeable internal battery
 User-selectable flash patterns
 DIM mode
 Locked mode
 R65 versions available
- 1 - January 2020
