Sealey SM20.V2 Instruction Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly maintained,
give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE
AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
1.1. ELECTRICAL SAFETY
p WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any other
connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate safety devices.
A Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. We also recommend that a Residual Current
Device (RCD) is used. It is particularly important to use an RCD with portable products that are plugged into a supply which is not protected
by an RCCB. If in any doubt consult a qualified electrician. You may obtain a Residual Current Device by contacting your Sealey dealer.
You must also read and understand the following instructions concerning electrical safety.
1.1.1. The Electricity at Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by a qualified
electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances
and the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply. See 1.1.1. and 1.1.2.
and use a Portable Appliance Tester.
1.1.4. Ensure that cables are always protected against short circuit and overload.
1.1.5. Regularly inspect power supply cables and plugs for wear or damage and check all
connections to ensure that none is loose.
1.1.6. Important: Ensure that the voltage marked on the appliance matches the power supply
to be used and that the plug is fitted with the correct fuse - see fuse rating at right.
1.1.7. DO NOT pull or carry the appliance by the power cable.
1.1.8. DO NOT pull the plug from the socket by the cable.
1.1.9. DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty
item repaired or replaced by a qualified electrician. When an ASTA/BS approved UK
3 pin plug is damaged, cut the cable just above the plug and dispose of the plug safely.
Fit a new plug according to the following instructions (UK only).
a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
d) After wiring, check that there are no bare wires, that all wires have been correctly
connected, that the cable outer insulation extends beyond the cable restraint and that
the restraint is tight.
Double insulated products, which are always marked with this symbol
To rewire, connect the wires as indicated above - DO NOT connect either wire to the earth terminal.
1.1.10. Products which require more than 13 amps are supplied without a plug. In this case you must contact a qualified electrician to ensure that a
suitably rated supply is available. We recommend that you discuss the installation of an industrial round pin plug and socket with your electrician.
1.1.11. If an extension reel is used it should be fully unwound before connection. A reel with an RCD fitted is preferred since any appliance
plugged into it will be protected. The cable core section is important and should be at least 1.5mm
capacity of the reel is suitable for this product and for others which may be used in the other output sockets, we recommend the use of
2.5mm section cable. If extension reel is to be used outdoors, ensure it is marked for outdoor use.
2
1.2. GENERAL SAFETY
p WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this equipment.
3 Familiarise yourself with the application, limitations and potential hazards of the tank.
p WARNING! Disconnect the tank from the mains power and air supply before changing accessories, servicing or performing any
maintenance.
3 Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will
invalidate the warranty.
3 Ensure there are no flammable or combustible materials near the work area.
3 In case of fire in tank, do not attempt to move unit or remove parts from tank. The lid is fusible and will
automatically close extinguishing fire.
3 When cleaning parts ensure that nothing in the tank, including any parts basket, is in a position that
would prevent the lid from closing fully if and when the fusible link activates.
WARNING! DO NOT SMOKE and keep sources of ignition, such as heaters, lamps, etc, away from the unit,
p
p
together with flammable or combustible materials, as there is an explosion risk.
p WARNING! When operating the tank always wear approved eye or face protection and appropriate
protective clothing, including gloves, to prevent the cleaning agent contacting the skin.
3 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
3 Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and contain and/or tie
back long hair.
3 Keep children and unauthorised persons away from the work area.
3 Avoid unintentional starting.
3 Use only water soluble solvent.
7 DO NOT overfill tank or allow fluid level to fall below pump inlet.
7 DO NOT use the tank for a task it is not designed to perform.
7 DO NOT operate the tank if any parts are damaged or missing as this may cause failure and/or personal injury.
7 DO NOT allow untrained persons to operate the tank.
7 DO NOT direct air hose at yourself or others.
7 DO NOT operate the tank when you are tired or under the influence of alcohol, drugs or intoxicating medication.
7 DO NOT leave the tank operating unattended.
3 When not in use switch off the pump, close the turbo valve, close the lid and disconnect from the air supply and mains power supply.
I N S T R U C T I O N M A N U A L F O R :

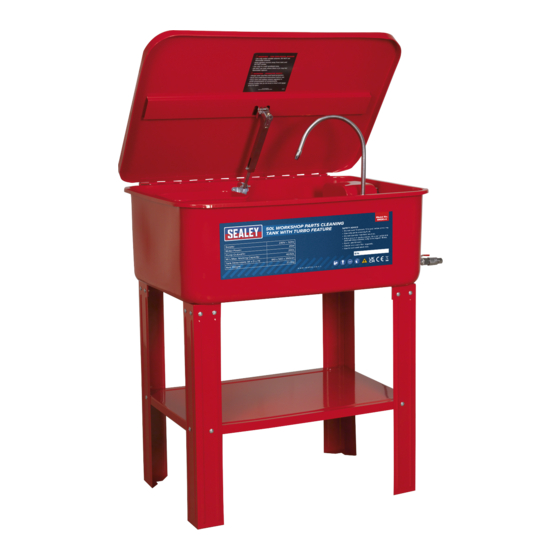

TURBO CLEANING TANK
SM20.V2
MODEL NO:
Blue
Neutral
Wire
, are fitted with live (brown) and neutral (blue) wires only.
, but to be absolutely sure that the
2
Yellow & Green
Earth Wire
Brown
Live
Wire
Cable
Restraint
FUSE RATING
THIS PRODUCT MUST BE FITTED
WITH A
3 AMP FUSE
SM20.V2 - 2 - 180805
