Sealey SM23P Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instruction protection
manual
1. SAFETY
IMPORTANT: Please read the following instructions carefully. Note the safe operation requirements, warnings and cautions. Use
▲
this product correctly and with care for the purpose of which it is intended. Failure to do so may cause damage
and/or personal injury and will invalidate the warranty. Please keep instructions safe for future use.
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using equipment.
‰
WARNING! Installation site must be equipped with suitable fire extinguishers appropriate to the solvents being used (water must not be
‰
used) and escape routes.
WARNING! Disconnect the spray gun / guns from the air supply before changing accessories, servicing or performing any maintenance.
‰
WARNING! Ensure correct air pressure is maintained and not exceed. Recommended pressure is 40-60psi..
‰
WARNING! Never smoke and keep sources of ignition, such as heaters, lamps, etc. away from the unit, together with flammable or
‰
combustible materials, as there is an explosion risk.
WARNING! Wear approved safety eye protection, respirator and gloves. If solvent gets on skin or in eyes wash thoroughly with clean
‰
water and take any other action as required by the solvent instructions.
WARNING! It is the operator's responsibility to ensure that there is no uncontrolled discharge of any fluids used with this unit and that
‰
appropriate arrangements have been made for correct-disposal of waste in accordance with government/local authority regulations.
WARNING! The operator should be a trained and qualified technician.
‰
WARNING! DO NOT run the machine without screen platform inside the tank. It may cause the solvent spilling when opening the lid.
‰
WARNING! Breathing large quantities of a solvent is protentionally harmful, and it may also cause problems to expectant mothers.
‰
WARNING! Removing of earth wire may cause fire.
‰
WARNING! Before opening the lid of the tank to clean the spray gun, earth the metal body of the spray gun to discharge any static
‰
electricity.
Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and tie back long hair.
9
Keep children and unauthorised persons away from the work area.
9
Maintain the spray gun cleaning tank in good condition (use an authorised service agent).
9
Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Locate the tank in an adequate working area. Ensure the tank stands on a firm level surface. Keep area clean and tidy and free from
9
unrelated materials. Ensure the area is well ventilated and has adequate lighting.
Familiarise yourself with the application, limitations and potential hazards peculiar to the product.
9
Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use, and ensure that all connections are secure.
9
Keep the tank clean. Clean the suction filter inside tank regularly for best performance.
9
In case of fire in the tank, do not attempt to move the unit when it is running.
9
When cleaning is completed, ensure all controls are in the off position and that the air supply is turned off.
9
DO NOT use the tank with the lid open and DO NOT use it for spray gun testing.
8
DO NOT use the tank for any purpose other than for which it is designed.
8
DO NOT operate the tank if any parts are missing or damaged as this may cause failure and/or possible personal injury.
8
DO NOT over-fill the tank (less than 19L).
8
DO NOT direct air from the air hose at yourself or others.
8
DO NOT operate the tank when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT open immediately after the wash. Turn the machine off by the stop valve (66), and wait about 30 seconds, let the solvent
8
droplet condense to avoid inhalation of solvent vapour. NOTE: Item numbers in brackets are those in the attached parts diagram.
Instructions should be read in conjunction with reference to the attached parts list.
Be aware of products centre of gravity, when placing in its operational position.
9
2. INTRODUCTION
Built-in timer allows the tank to be used without supervision. Safety switch that automatically shuts the machine down when the lid is
opened during cleaning. Unit can be used to clean spray guns with solvents or water. Diaphragm pump provides a long lifespan and
consistent performance. Drain valve at the bottom of the tank makes it easy to remove used cleaning solutions.
© Jack Sealey Limited

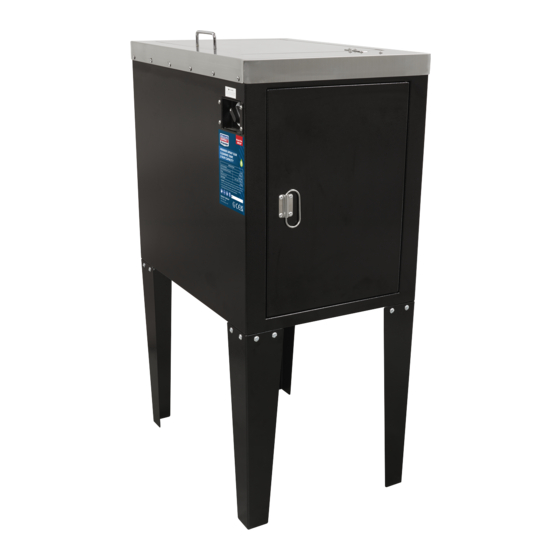

SPRAY GUN CLEANING TANK, 2 GUN CAPACITY,
TIMER
MODEL NO:
Wear Wear protective
respiratory clothing
protection
Original Language Version
SM23P
SM23P Issue:3 (6) 18/01/24
