Lowell LPTR4 Series Quick Start Manual

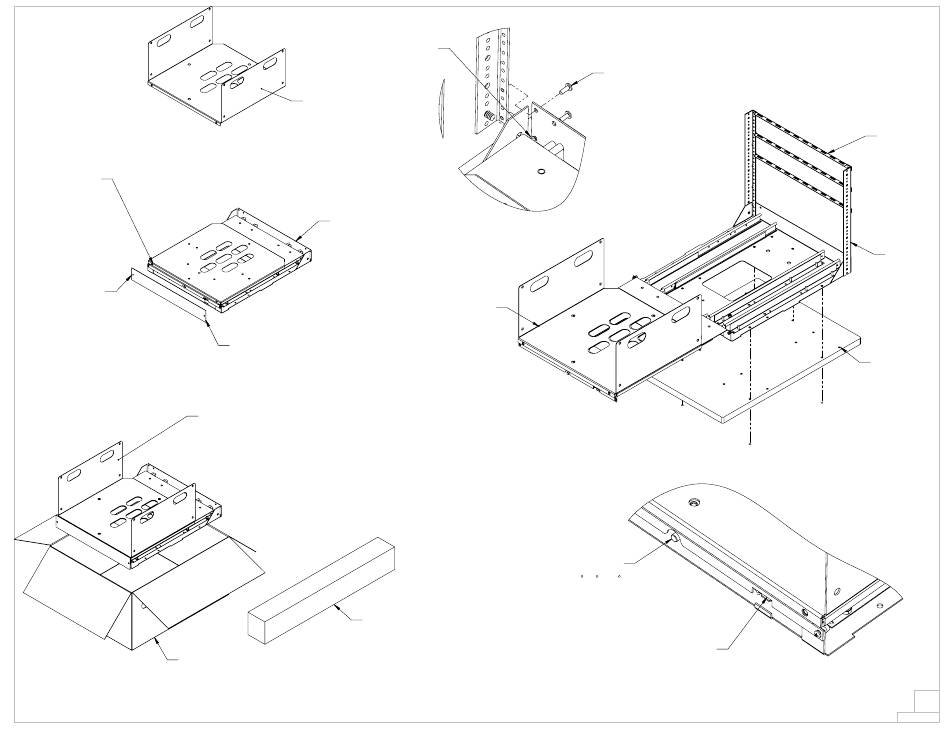

LPTR INSTALLATION
STEP 2:
REMOVE (4)
10-32 CSK SCREWS,
2X IN FRONT
2X IN BACK,
THEN LIFT OFF
CABINET
STEP 1:
REMOVE
(2) 10-32 SCREWS
TO LOOSEN TOP
SLIDING SHELF
BOX 1 CONTENTS:
(1) FULL BASE ASSY &
(1) INSTALL SHEET
Lowell Manufacturing Company
100 Integram Drive Pacific, Missouri 63069 U.S.A.
ATTACH (2X) REAR
MOUNTING RAILS
INSERT STUD THRU
HOLE ON FLANGE
AND ATTACH WITH
LPTR
CABINET
BASE
SUB-ASSEMBLY
LOCKING PANEL
INSTALL WHEN FINISNED
INSTALLING
LPTR BASE ASSEMBLIES
LPTR19B2, LPTR19B4,
LPTR23B4 (SHOWN).
CABINET CAN BE FULLY
ASSEMBLED IN AS SHIPPED
CONDITION. SKIP STEPS 1&2
TO MOUNT BASE TO FINAL
BOX 2 CONTENTS:
(6) LPT MOUNTING RAILS
(1) VENTED PANEL
(6) CABLE LACING BARS
(10) 5/16 NUTS
(1) BAG RACK SCREWS
(1) INSTALL SHEET
(12) 10-32 X .5 SCREWS
800.325.9660 636.257.3400 lowellmfg.com
STEP 3:
5/16 NUT
STEP 6:
ROTATING BASE
NEEDS TO BE
FULLY EXTENDED
TO ACCESS
BASE MTG BASE
PUSH BUTTON
FOR ROTATING,
LOCKS(0 ,60 & 90 ,
EITHER DIRECTION
STEP 4:
ATTACH REAR RAILS
TO BACK WITH
(2) 10-32 SCREWS
2 PLACES
UNIT WILL LOCK OUT
WHEN FULLY EXTENDED,
TO CLOSE, PRESS LEVER DOWN
AND PUSH UNIT IN.
FILENAME: 16451
STEP 5:
CABLE LACING
BARS (3X),
MOUNTED TO
REAR RAILS
WITH 10-32 X .5
SCREWS, (6X)
(2X) REAR
MTG RAILS
MOUNTING
HOLES
REV
D
P/N: 16451
SHEET 1 OF 2
