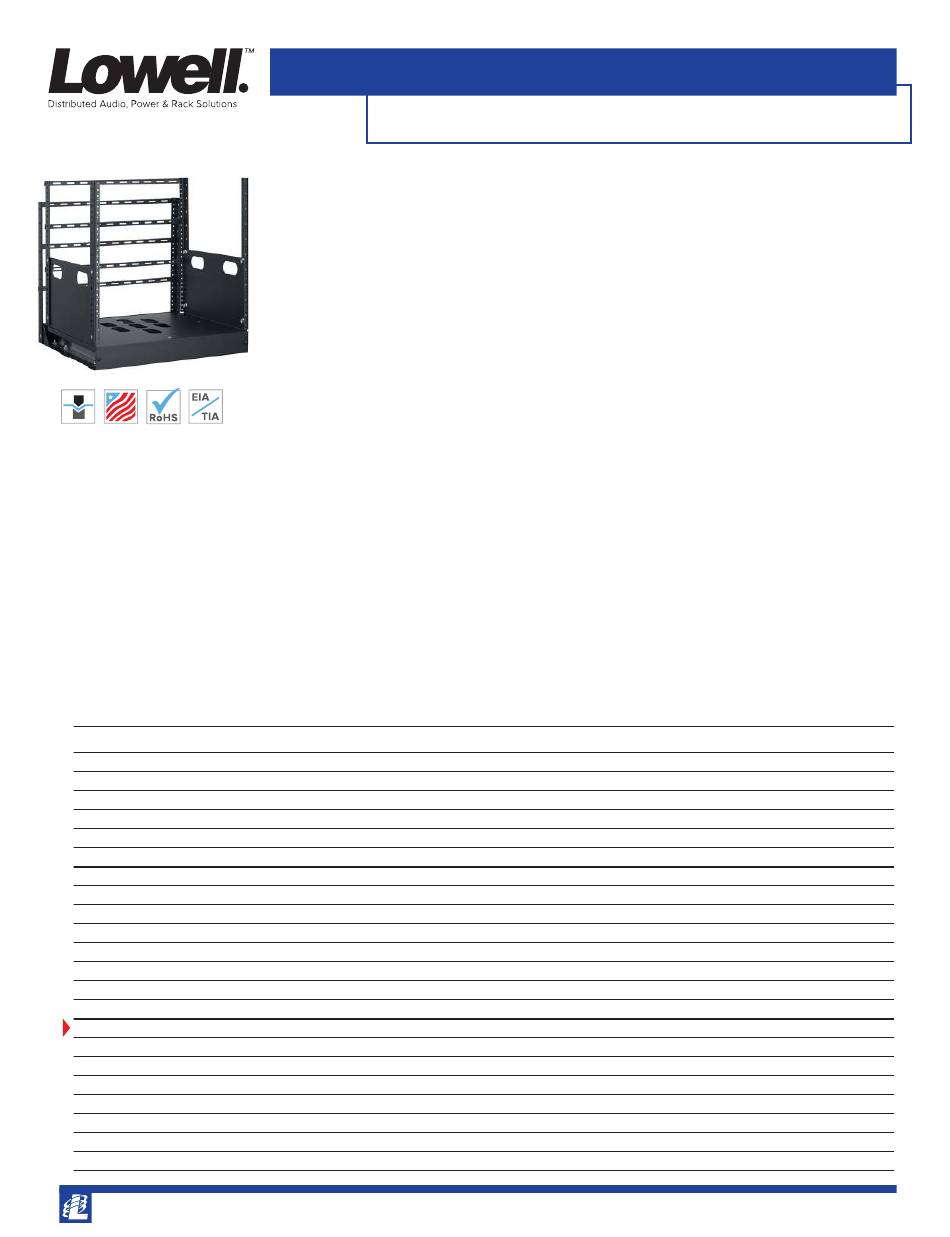

Lowell LPTR4-1023 Quick Start Manual

100% CERTIFIED MADE IN COMPLIANT COMPLIANT
US STEEL THE U.S.A

LPTR series summary

Post Mtg Rear Tie
Model No. Rails (4) Rails (2)
LPTR2-1019 10 U 10 U
LPTR2-1219 12 U 12 U
LPTR2-1419 14 U 12 U
LPTR2-1619 16 U 14 U
LPTR2-2119 21 U 18 U
LPTR2-2419 24 U 23 U
LPTR4-1019 10 U 10 U
LPTR4-1219 12 U 12 U
LPTR4-1419 14 U 12 U
LPTR4-1619 16 U 14 U
LPTR4-2119 21 U 18 U
LPTR4-2419 24 U 23 U
LPTR4-2819 28 U 24 U
LPTR4-3019 30 U 28 U
LPTR4-1023 10 U 10 U
LPTR4-1223 12 U 12 U
LPTR4-1423 14 U 12 U
LPTR4-1623 16 U 14 U
LPTR4-2123 21 U 18 U
LPTR4-2423 24 U 23 U
LPTR4-2823 28 U 24 U
LPTR4-3023 30 U 28 U
Rack dimensions (rounded) – inches and [mm]; 1U = 1.75"
Lowell strives to provide accurate information while reserving the right to change specifications and/or improve manufacturing methods without prior notification.
©2018 Lowell Manufacturing Co., 100 Integram Dr., Pacific MO 63069 / tel. 800.325.9660 / www.lowellmfg.com

features .

.
• Panel Space: 10U or 17.50" [445]
• Overall Height: 20.08" [510]
• Overall Depth: 23.38" [594]
• Pulled-out Depth: 45.36" [1152]
• Overall Width: 19.13" [486]
• Bottom Slide Rails: 4
• Description: For built-in applications, rack slides forward
on support rails in base, then rotates left or right, locking at
60 or 90 degrees, providing superior access to equipment
connections. Ships unassembled (two cartons).
• Construction: 14-ga. certified U.S. steel base and 11-ga.
corner post rails with smooth black powder epoxy finish.
• Mounting Rails: Includes four (10U) 11-ga. steel corner
post mounting rails tapped 10-32 with bi-directional num-
bered RU increments to mount in either direction, plus two
rear rails (10U) for wire tie-off.
• Cable Management: Six rear cable lacing bars. Obrounds
in side panels and base. Lower section of base has a large
central opening.
a&e specifications .
The EIA/TIA compliant 19" equipment rack shall be Lowell #LPTR4-
1023 with overall dimensions of 20.08"H x 23.38"D x 19.13"W
and usable height of 10 rack units. Rack construction shall be cer-
tified U.S. steel—14-gauge base with 11-gauge corner post rails
tapped 10-32—with smooth black powder epoxy finish. The rack
shall slide forward on four (4) rails in the base, and shall rotate
and lock at 60 and 90 degrees. Base and side panels shall feature
multiple obrounds for ventilation or cable management. The rear
Bottom Slide Overall Pulled-out
Rails Depth Depth
2 19.22 [488] 38.30 [973]
2 19.22 [488] 38.30 [973]
2 19.22 [488] 38.30 [973]
2 19.22 [488] 38.30 [973]
2 19.22 [488] 38.30 [973]
2 19.22 [488] 38.30 [973]
4 19.22 [488] 38.30 [973]
4 19.22 [488] 38.30 [973]
4 19.22 [488] 38.30 [973]
4 19.22 [488] 38.30 [973]
4 19.22 [488] 38.30 [973]
4 19.22 [488] 38.30 [973]
4 19.22 [488] 38.30 [973]
4 19.22 [488] 38.30 [973]
4 23.38 [594] 45.36 [1152]
4 23.38 [594] 45.36 [1152]
4 23.38 [594] 45.36 [1152]
4 23.38 [594] 45.36 [1152]
4 23.38 [594] 45.36 [1152]
4 23.38 [594] 45.36 [1152]
4 23.38 [594] 45.36 [1152]
4 23.38 [594] 45.36 [1152]
Pull & Turn Rack #LPTR4-1023
for built-in applications (cabinetry or millwork)
. . . . .
• Hardware: Pilot point screws with captive washers for
quick assembly
• Compliance: EIA/TIA compliant. RoHS compliant.
• Load Capacity: Four (4) bottom slide rails support total
load capacity of 200 lbs.
• Installation: The base can be mounted flush or recessed
up to 1.75" to allow room for equipment knobs. Leave
sufficient room at sides for rack rotation. Base secures
to turntable with front/rear screws. Front security panel
screws into position to deter unauthorized access to
mounted equipment.
• Operation: Remove front security panel, grasp rails and
pull rack firmly towards you, sliding it along rails in base
(locks when fully forward). To rotate, press center button to
release turntable and rotate left or right (locks at 60 and 90
degrees). To return, rotate back to 0 degrees and depress
right tab to release lock and slide back into base.
• Optional:
– Steel top cover, black (#LPTR-TC)
– Zero-space shelf, black (#LPTR-NS)
. . .
shall include six cable lacing bars. The rack shall support a load
capacity of 200 lbs. It shall be manufactured in the U.S.A. and ship
unassembled.
Optional
• The rack shall include zero-space shelf #LPTR-NS.
• The rack shall include steel top #LPTR-TC.
Usable Overall
Depth Height
19.00 [483] 20.08 [510]
19.00 [483] 23.58 [599]
19.00 [483] 27.08 [688]
19.00 [483] 30.58 [777]
19.00 [483] 39.33 [999]
19.00 [483] 44.58 [1132] 42.00 [1067] 19.13 [486]
19.00 [483] 20.08 [510]
19.00 [483] 23.58 [599]
19.00 [483] 27.08 [688]
19.00 [483] 30.58 [777]
19.00 [483] 39.33 [999]
19.00 [483] 44.58 [1132] 42.00 [1067] 19.13 [486]
19.00 [483] 51.58 [1310] 49.00 [1245] 19.13 [486]
19.00 [483] 55.08 [1399] 52.50 [1334] 19.13 [486]
23.00 [584] 20.08 [510]
23.00 [584] 23.58 [599]
23.00 [584] 27.08 [688]
23.00 [584] 30.58 [777]
23.00 [584] 39.33 [999]
23.00 [584] 44.58 [1132] 42.00 [1067] 19.13 [486]
23.00 [584] 51.58 [1310] 49.00 [1245] 19.13 [486]
23.00 [584] 55.08 [1399] 52.50 [1334] 19.13 [486]
10U x 23"D x 19"W
. . . . .
. . . . .
Usable Overall Side
Height Width Brackets
17.50 [445] 19.13 [486] ---
21.00 [533] 19.13 [486] ---
24.50 [622] 19.13 [486] ---
28.00 [711] 19.13 [486] ---
36.75 [933] 19.13 [486] ---
---
17.50 [445] 19.13 [486] ---
21.00 [533] 19.13 [486] ---
24.50 [622] 19.13 [486] ---
28.00 [711] 19.13 [486] ---
36.75 [933] 19.13 [486] ---
---
Y
Y
17.50 [445] 19.13 [486] ---
21.00 [533] 19.13 [486] ---
24.50 [622] 19.13 [486] ---
28.00 [711] 19.13 [486] ---
36.75 [933] 19.13 [486] ---
---
Y
Y
Spec #1580 | Rev. 11-09-2018
.
.
Load
Capacity
125 lbs.
125 lbs.
125 lbs.
125 lbs.
125 lbs.
125 lbs.
250 lbs.
250 lbs.
250 lbs.
250 lbs.
250 lbs.
250 lbs.
250 lbs.
250 lbs.
200 lbs.
200 lbs.
200 lbs.
200 lbs.
200 lbs.
200 lbs.
200 lbs.
200 lbs.
pg. 1/2
