Lowell Vari-Rack LVR Series Assembly Instructions

Vari-Rack Assembly Instructions

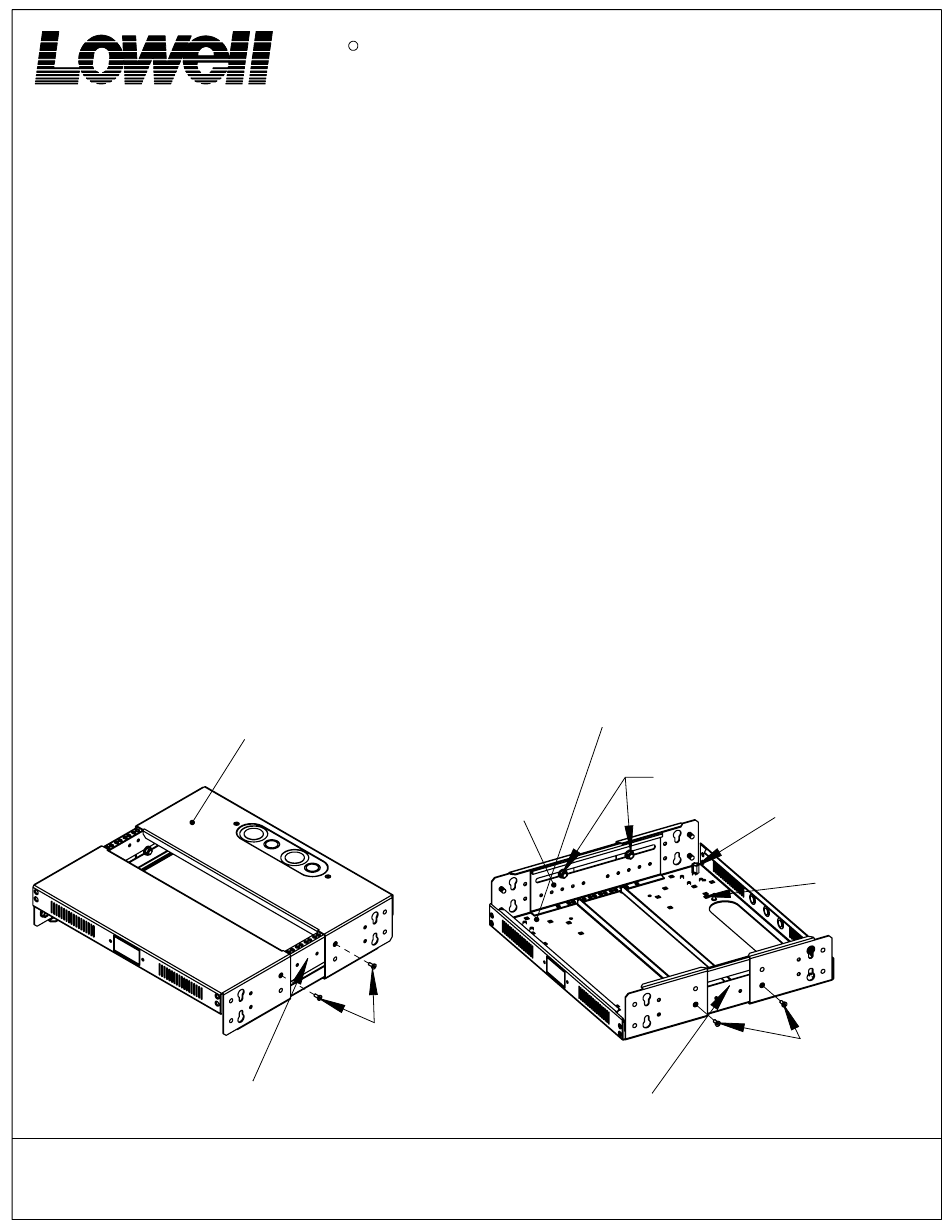

Remove the top and bottom assemblies of the Vari-Rack from
the carton. Loosen the four ea. 5/16" hex nuts and remove the
4 ea. 10-32 x 1/2" screws (shown below) on both sides of each
assembly. Slide the front and rear parts of the assembly to
the desired depth and center the inner bracket on the assembly.
The Vari-Rack top and bottom assemblies can also be adjusted
in standard EIA increments that will accept Lowell standard
blank panels, vent panels and fan panels.
Markings are located on the inner bracket showing 1 through 4
rack unit spaces. Simply follow the steps mentioned above and
adjust the depth of the assembly using the inner brackets as a
guide. Once the depth is determined, replace the 10-32 x 1/2"
flat head screws in the holes (as shown) and secure each screw
with a 10-32 hex nut. Tighten the 5/16" hex nuts. Repeat this
procedure to the remaining assembly.
These 4 pinning screws should be used when possible but the
assembly can be adjusted to depths other than the ones
mentioned above.
It is recommended that cabinets with excessive loads or heights
over 16 RU should be securely fastened at the base.
depth
markings
Lowell Manufacturing Company
100 Integram Dr. Pacific, MO 63069 U.S.A.
HEARD
EVERYWHERE R
Top assembly
10-32 screws
for pinning in
EIA depths
Bottom assembly
inner
bracket
depth
markings
800.325.9660 636.257.3400
lowellmfg.com
5/16" hex
nuts
holes for
leg levelers
holes for
casters
10-32 screws
for pinning in
EIA depths
P/N: 16117
