PROJECT NAME
ONYX
BASED ON
BOSS® SG-1 Slow Gear
EFFECT TYPE
Automatic volume swell
PROJECT SUMMARY
One of the rarest BOSS effects, it acts as a sort of slow noise gate by gradually fading in the signal when
it detects pick attack.

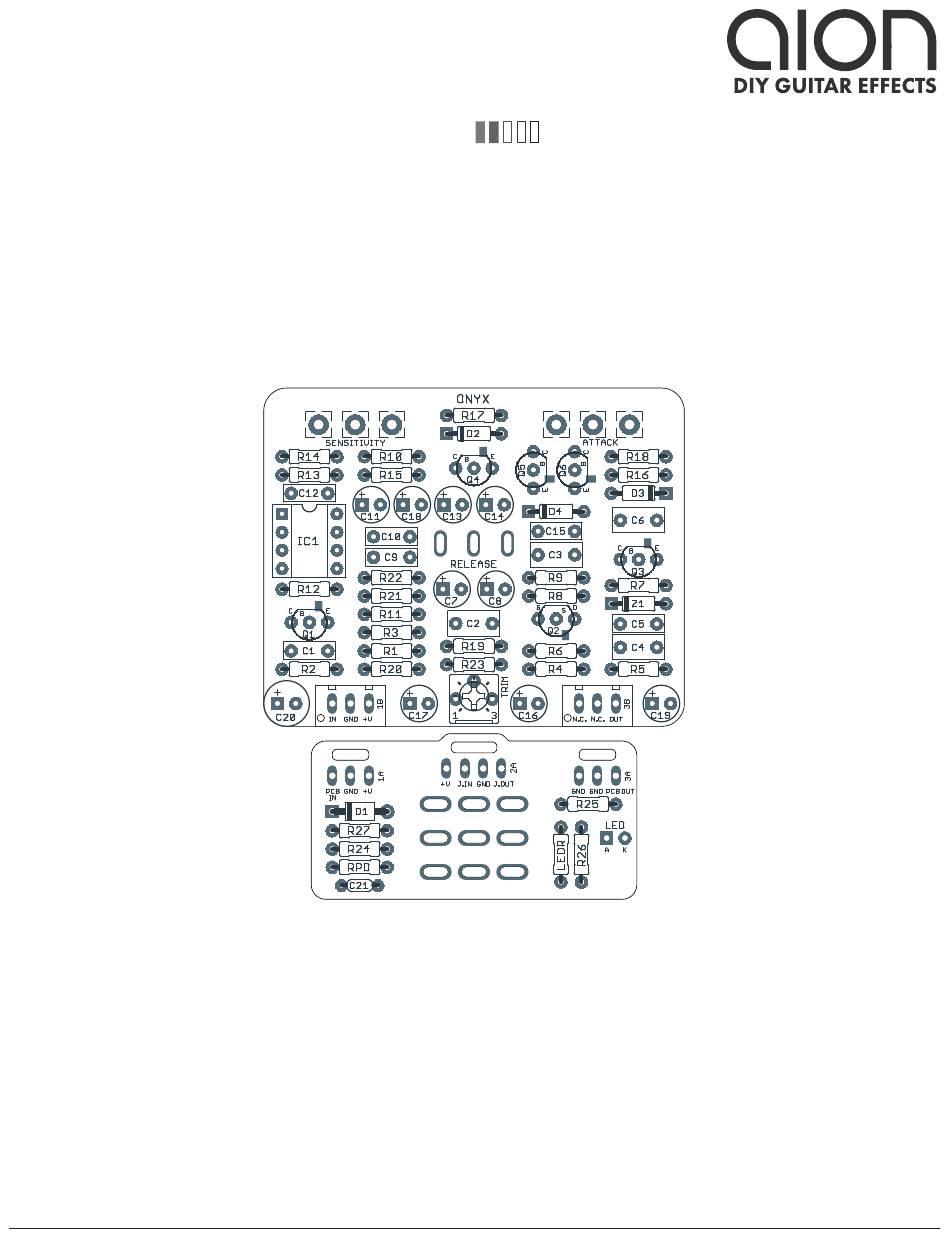

Actual size is 2.3" x 1.86" (main board) and 1.78" x 0.86" (bypass board).
ONYX VOLUME SWELL
BUILD DIFFICULTY
Easy
DOCUMENT VERSION
1.0.0 (2023-09-08)
1
Advertisement
Related Manuals for aion Onyx
Summary of Contents for aion Onyx
- Page 1 One of the rarest BOSS effects, it acts as a sort of slow noise gate by gradually fading in the signal when it detects pick attack. Actual size is 2.3” x 1.86” (main board) and 1.78” x 0.86” (bypass board). ONYX VOLUME SWELL...
-
Page 2: Table Of Contents
11 Document Revisions INTRODUCTION The Onyx Volume Swell is an adaptation of the BOSS SG-1 Slow Gear, first released in 1979. It’s one of the very first BOSS effects pedals and still among the rarest. It has notably been used by Adam Granduciel (The War on Drugs) and Billy Corgan among others. -
Page 3: Parts List
Input pulldown resistor. Can be as low as 1M. LEDR Metal film resistor, 1/4W LED current-limiting resistor. Adjust value to change LED brightness. Film capacitor, 7.2 x 2.5mm Film capacitor, 7.2 x 3.5mm Film capacitor, 7.2 x 3.5mm ONYX VOLUME SWELL... - Page 4 2N5088 BJT transistor, NPN, TO-92 Substitute. Original uses 2SC945. 2N5088 BJT transistor, NPN, TO-92 Substitute. Original uses 2SC945. 2N5088 BJT transistor, NPN, TO-92 Substitute. Original uses 2SC945. TRIM 10k trimmer Trimmer, 10%, 1/4” Bourns 3362P or similar. ONYX VOLUME SWELL...
- Page 5 DC jack, 2.1mm panel mount Mouser 163-4302-E or equivalent. BATT Battery snap 9V battery snap Optional. Use the soft plastic type—the hard-shell type will not fit. 3PDT Stomp switch, 3PDT 125B Enclosure, die-cast aluminum Can also use a Hammond 1590N1. ONYX VOLUME SWELL...
-
Page 6: Build Notes
PCB, so you may want to follow suit on your own build. We chose 2.2uF and 10uF for the default values, but if you want even longer, you might try 10uF and 47uF. Keep in mind you can always dial it back with the Attack knob. ONYX VOLUME SWELL... -
Page 7: Schematic
SCHEMATIC 1N5817 100uF 47uF 47uF 100n 47uF GND GND 2N5088 2N5088 2SK208-GR 680n 2.2uF 10uF 2N5088 LM741N 2N5088 390k 1N914 10uF 2N5088 ONYX VOLUME SWELL... -
Page 8: Drill Template
INCH 0.625” 0.625” ø3/8” ø3/8” ø1/2” ATTACK SENSITIVITY x: -0.65, y: +1.71 x: 0.65, y: +1.71 ø9/32” ø9/32” RELEASE x: 0, y: +0.41 ø1/4” CENTER (0,0) FOOTSWITCH x: -0.775, y: -1.20 x: 0, y: -1.20 ø5/16” ø15/32” ONYX VOLUME SWELL... -
Page 9: Enclosure Layout
ENCLOSURE LAYOUT Enclosure is shown without jacks. See next page for jack layout and wiring. 125B ONYX VOLUME SWELL... -
Page 10: Wiring Diagram
GND +V +V JACK GND JACK GND GND PCB 125B Shown with optional 9V battery. If battery is omitted, both jacks can be mono rather than one being stereo. Leave the far-right lug of the DC jack unconnected. ONYX VOLUME SWELL... -
Page 11: Document Revisions
(In other words: you don’t have to go out of your way to advertise the fact that you use these PCBs, but please don’t go out of your way to hide it. The guitar effects industry needs more transparency, not less!) DOCUMENT REVISIONS 1.0.0 (2023-09-08) Initial release. ONYX VOLUME SWELL...
