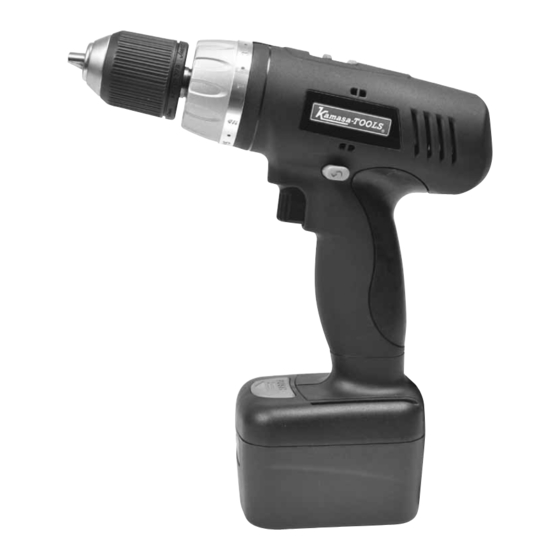

- Page 1 Operating instructions Cordless K 10251 two speed drill/driver...
-
Page 2: Operational Precautions
Operational precautions General safety instructions warninG! Consider work area environment. Do not expose tools to rain. Do not use tools in damp or wet locations – Keep work area clean and well lit. Do not use tools in the present of flammable liquids or gases. -
Page 3: Product Safety Instructions
Product safety instructions warninG! Disconnect battery pack from tool or place the main switch in the locked or off position before making any adjustments, changing accessories, or storing the tool. Such preventative safety measures reduce the risk of starting the tool accidentally. Remove adjusting keys or wrenches before turning the tool on . - Page 4 additional safety rules for charger & battery pack warninG! Do not charge battery pack when temperature is below 10°C (50°F) or above 40°C (104°F). Do not attempt to use a set-up transformer, an engine generator or DC power receptacle. Do not allow anything to cover or clog the charger vents. Always cover the battery pack terminals with the battery pack cover when the battery pack: is not used.
-
Page 5: Specific Safety Rules And/Or Symbols
Direct current Millimeter ft-lb Foot-Pound kg-cm Kilograms per centimeter Revolutions or Reciprocations per minute Model No. K 10251 (Replaceable carbon brush motor) Voltage 14.4V dc High 0–1170 rpm No load speed/min Low 0–325 rpm Max Torque 40Nm (29.5 ft-lb) Tool weight (with battery) 1.9 kg... -
Page 6: Major Components
Major components Torque adjustment ring High/low speed knob Chuck Main Switch Forward/Reverse knob Battery knob Fuel Gauge Label Battery Pack accessory Charger Kamasa Tools is a trade mark of KG Knutsson AB, SE 191 81 Sollentuna, Sweden, Phone +46 8 92 30 00 www.kamasatools.com... - Page 7 Operating instructions installing or removing Battery Pack (See Fig.1 Fig.2) Always switch off the machine before insertion or removal of the battery pack. To remove the battery pack, push the button on the battery pack and pull the tool unit from the battery pack in the direction.(See Fig.1.) Fig 1 To insert the battery pack, align the tool unit slides with the battery pack sliding groove and push the tool unit into place.
- Page 8 LED indication Function The Battery Pack has a “SW” button and 4-step green LEDs for indicating remaining capacity status and Over temperature condition. The remaining capacity (RC) and temperature protection status green LED indications (3 seconds) when the “SW” button is momentarily pressed. POWER INDICATION Remaining Capacity LED Indication RC Status...
-
Page 9: Tool Operation
Tool operation Select the speed by pushing the High / Low Speed Knob Low Speed High Speed (For screwdriver) (For drill) Reverse Forward/Reverse knob Forward Kamasa Tools is a trade mark of KG Knutsson AB, SE 191 81 Sollentuna, Sweden, Phone +46 8 92 30 00 www.kamasatools.com... - Page 10 inserting and removing bits To remove a bit, turn the “A”part by counter clockwise. To insert a bit, turn the “A” part by clockwise. Forward/reverse selection button Press the button to select the direction. High/Low speed selection Turn counter clockwise Use the “High”...
- Page 11 K 10251 Parts name Qt Spare part no Parts name Qt Spare part no Chuck screw Housing L&R Keyless chuck Belt Gear boc ass’y K 10265 Soft grip High/low speed knob K 10267 Housing screw Knob spring Housing label (R)
- Page 12 Kamasa Tools is a trade mark of KG Knutsson AB, SE 191 81 Sollentuna, Sweden, Phone +46 8 92 30 00 www.kamasatools.com...
