Kamasa-TOOLS K 2765 Manual

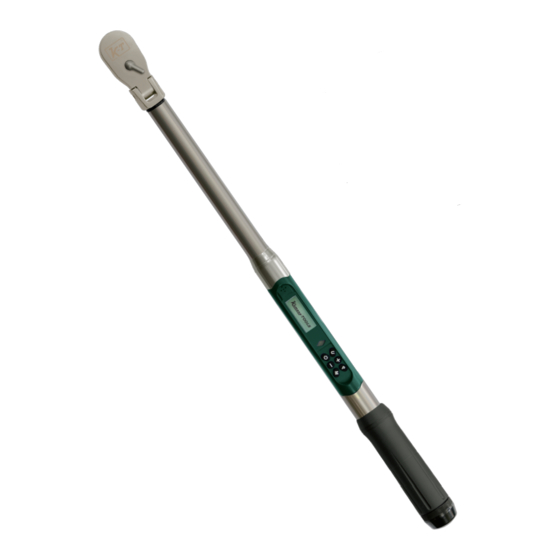

Digital torque wrench
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Digital torque wrench
K 2765
K 2766
K 2767
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K 2765 and is the answer not in the manual?

Questions and answers

Related Manuals for Kamasa-TOOLS K 2765

Summary of Contents for Kamasa-TOOLS K 2765

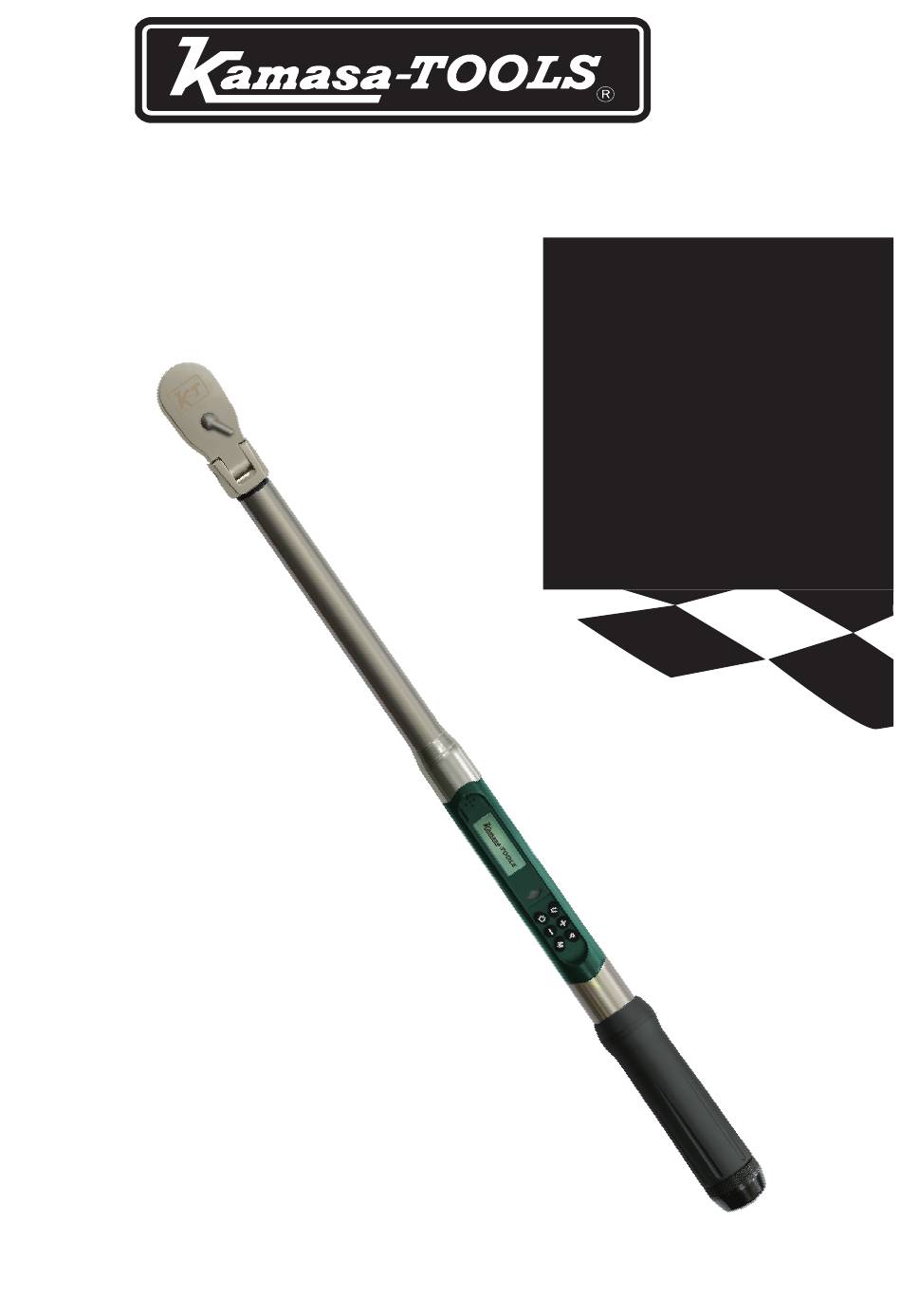

  • Page 1 Digital torque wrench K 2765 K 2766 K 2767...

  • Page 2: Components And Features

    Components and Features P RESET SELECT or CLEAR BUTTON BATTERY CAP INCREMENT BUTTON UNIT BUTTON PROGRESS LIGHT BUZZER MENU BUTTON DECREMENT POWER BUTTON ON/OFF PROGRESS LIGHTS DRIVE...

  • Page 3: Product Specification

    Product Specification K 2767 K 2766 K 2765 Accuracy CW±2%，CCW±3% Memory Display resolution 0.01 17.0~340.0 (N.m) 7.0~136.0 (N.m) 1.40~27.00 (N.m) Display range 12.5~250.0 (ft-lb) 5.0~100.0 (ft-lb) 1.00~20.00 (ft-lb) Drive 1/2" 3/8” 1/4” Peak/Track Operation mode Unit selection ft-lb, in-lb, N.m, kg-m ft-lb, in-lb, N.m, kg-cm...

  • Page 4: Keys Functions

    User Instructions ● Top view DATE MODE INCREMENT BUTTON BATTERY CONDITION PROGRESS P RESET SELECT or LIGHTS CLEAR BUTTON TIME UNIT BUTTON 2015/01/01 10:50 Track 250.0 FT-LB TORQUE or PROGRESS DECREMENT ANGLE LIGHTS BUTTON DISPLAY PRESET GROUP POWER MENU PROGRESS NUMBER ON/OFF BUTTON...
  • Page 5 Operating Wrench Note: If the battery is low, the LCD will show "Replace Batteries". Replace Batteries 1. Turn On/Off the wrench Turn On- Press POWER button Shows the wrench max torque 250.0 FT-LB A "RECALIBRATE" image will display every time the wrench is powered on after RECALIBRATE 125% of full-scale (over...

  • Page 6: Unit Select

    2. Unit Select Press UNIT button to select torque unit , angle mode or torque then angle. 2015/01/01 10:50 Torque mode operation window Peak 250.0 FT-LB Unit FT-LB 2015/01/01 10:50 Torque mode operation window Peak 3000 IN-LB Unit IN-LB 2015/01/01 10:50 Torque mode operation window Peak...

  • Page 7: Preset Setting

    4. Preset Setting The preset setting status will be saved in current setting. There are three set points. Torque Value- Press UP or DOWN button to increase or decrease the  value. Unit- Press UNIT button to select torque unit or angle mode or Torque then ...
  • Page 8 the torque value. When it reaches the preset torque value, it will automatically switch to Angle Mode, then start angle function (the angle preset value must be set in Angle Mode first). 2015/01/01 10:50 T then A 250.0 FT-LB Back to Preset Values Display - If you do not want to wait 10 seconds for the applied values to reset, you may press CLEAR to force the system to clear the...

  • Page 9: Press Menu

    5. Entry Menu function Press MENU button 2015/01/01 10:50 Peak 250.0 FT-LB EXIT MODE SHOW MEM CLEAR MEM EXIT MODE SHOW MEM CLEAR MEM Menu Function Menu settings as following EXIT MODE SHOW MEM CLEAR MEM BACKLIGHT SET DATE/TIME LCD CONTRAST INFORMATION OVER INFO HEAD LENGTH...
  • Page 10 MODE  Peak Mode- To maintain Peak Torque, hold the Peak Torque 10 seconds, LCD will flash and save into memory. When releasing forced torque, the LCD will show real-time torque value and keep flashing 10 seconds then the value will be recorded into memory. Track Mode- Display torque in real time on the LCD.

  • Page 11: Clear Mem

    CLEAR MEM  Clear all stored torque and angle data. EXIT MODE SHOW MEM CLEAR MEM CLEAR MEM CLEAR MEM Clear memory data Not to do EXIT EXIT MODE MODE SHOW MEM SHOW MEM CLEAR MEM CLEAR MEM EXIT MODE SHOW MEM CLEAR MEM NO data...
  • Page 12 SET DATE/TIME  Press MENU button into SET DATE/TIME and press UP or DOWN button to increase or decrease the setting. SHOW MEM CLEAR MEM BACKLIGHT SETDATE/TIME SET TIME SET DATE 01 : 01 : 2015 / 01 / 01 HR:MIN:SEC YR/MON/DAY Set second to adjustment 00~59...
  • Page 13 When HEAD LENGTH is not 0, then HEAD L ADJ will be displayed in exchange with the time! HEAD L ADJ 10:50 Peak 340.0 CYCLE COUNT  Press MENU button into CYCLE COUNT to display usage count. HEAD LENGTH CYCLE COUNT KEY BEEP CAL REQUIRED CYCLE COUNT...
  • Page 14 OVER INFO CYCLE COUNT KEY BEEP CAL REQUIRED CAL REQUIRED CAL REQUIRED DATE DATE CYCLES CYCLES Show last set date Use + or - to select DATE Data: 6 MON for 6 or 12 months 2017 / 01 / 01 MODIFY MODIFY OVER INFO...

  • Page 15: Sleep Time

    SLEEP TIME  Set the sleep time to shut down the wrench. KEY BEEP CAL REQUIRED VIBRATION SLEEP TIME SLEEP TIME SLEEP TIME HOUR MINUTE SLEEP TIME SLEEP TIME MINUTE HOUR SLEEP TIME SLEEP TIME MINUTE MINUTE SLEEP TIME MINUTE SLEEP TIME HOUR LANGUAGE...
  • Page 16 OVER INFO  If the torque is over 110% of full-scale, the value will be saved and the LCD display will show “OVER” and the buzzer will act continuously. You must press the POWER button to reset the wrench. “OVER” Over Max Torque 110% Counter- Summary of the number of times wrench has been over-torqued.
  • Page 17 DIFFERENCES BETWEEN DIFFERENT MODELS  K 2767 K 2766 K 2765 Peak 2015/01/01 10:50 2015/01/01 10:50 Preset Preset Peak Peak 250.0 250.0 group1~9 group1~9 2015/01/01 10:50 2015/01/01 10:50 FT-LB FT-LB Preset Preset 250.0 Peak 250.0 group1~9 group1~9 FT-LB FT-LB 2015/01/01...

  • Page 18: Parts List

    PARTS LIST  For this tool, a repair set including all parts in the ratchet mechanism, is available.

This manual is also suitable for:

K 2766K 2767
