Summary of Contents for STEINEL PROFESSIONAL HG 2320 E

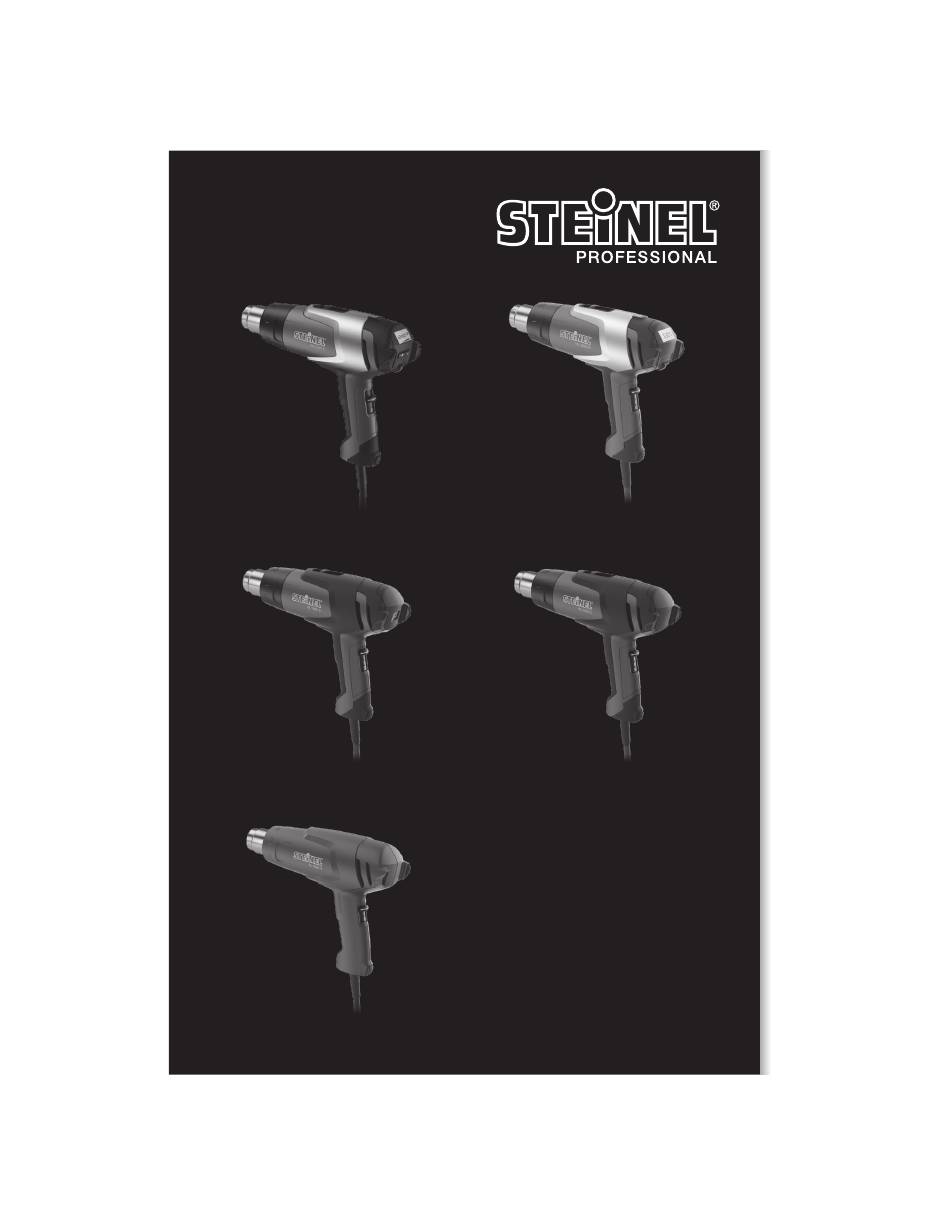

  • Page 1 HG 2320 E HL 2020 E HL 1920 E HL 1820 S HG 2320 E HL 2020 E HL 1920 E HL 1820 S HL 1620 S HL 1620 S 05.01.16 17:05 GlobalTestSupply www. .com Find Quality Products Online at:...
  • Page 2 English IMPORTANT SAFETY INSTRUCTIONS READ THESE INSTRUCTIONS UL WARNING: Read this instruction book before using. To reduce risk of fire or electric shock, do not expose to rain or moisture. Store indoors. Double insulated. When servicing, use only identical replace- ment parts.
  • Page 3 English 15. Do not use in bath or over water. 16. Safety glasses should be worn when using this tool. 17. It is recommended that leather gloves be worn when using a hot air tool. 18. Always unplug after use. 19.
  • Page 4: Extension Cords

    English Thank you Thank you for choosing a STEINEL hot air tool. This tool can be used for completing a wide range of jobs safely and reliably, such as soldering, welding PVC, shaping, drying, shrink-fitting, stripping paint, etc. All STEINEL tools are manufactured to the highest standards and undergo a strict process of quality control. Used in the proper manner, this hot air tool will give you lasting satisfaction.
  • Page 5: For Your Safety

    For Your Safety (HG 2320 E / HL 2020 E / HL 1920 E / HL 1820 S / HL 1620 S) First time use, a small quantity of smoke may occur when the tool is used for the first time. This smoke is caused by binding agents released from the heater’s insulating film during the first time of...
  • Page 6 English HG 2320 E Technical Specifications HG 2320 E Item No. 110025598 Temperature 120°F - 1200°F (49°C - 649°C) Airflow Continuously variable 4-13 cfm (+/- 0.5) Switch Cool air stage, variable temperature & airflow Programs Four customizable pre-set temperature/airflow programs...
  • Page 7 4 cfm 4. Programming mode [P] Besides normal operating mode, the HG 2320 E also has four factory-set programs for the most frequent jobs. Four programs are factory-set for the most common types of work. Press button "P" for programming mode.
  • Page 8 English HL 2020 E Technical Specifications HL 2020 E Item No. 110025597 Temperature 120°F - 1150°F (49°C - 621°C) Airflow 4 / 4-8 / 6-13 cfm (+/- 0.5) 3 Stage Switch Cool air stage 120°F / 4 cfm Variable temperature 4-8 cfm Variable temperature 6-13 cfm Output 1600 watts Voltage 120 VAC / 60 Hz...

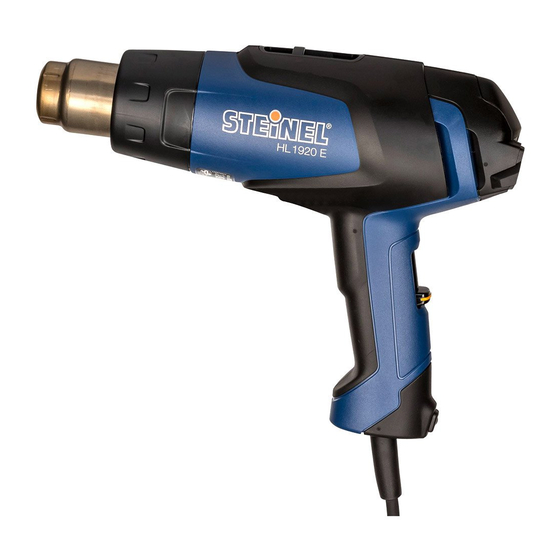

  • Page 9 English HL 1920 E The tool is switched on and off at the three-stage Technical Specifications HL 1920 E switch on the back of the grip handle. In addition to Item No. 110025596 three-stage speed/airflow control (stage 1 is a cool-air Temperature 120°F - 1100°F (49°C - 593°C) stage at 120 °F), temperature can be continuously Airflow 4 / 4-8 / 6-13 cfm (+/- 0.5)
  • Page 10 English HL 1620 S Technical Specifications HL 1620 S Item No. 110023455 2 Stage Switch 575 °F (302°C) / 8 cfm 950 °F (510°C) / 13 cfm Output 1300 watts Voltage 120 VAC / 60 Hz Amps 10.8 Power Cord Industrial grade rubber, length: 6 ft Nozzle Diameter 1.30"...
  • Page 11 English Applications Shrink tubing on cables: The shrink tubing is slipped over the section you want to insulate and heated with hot air. The tubing shrinks by approx. 50% in diameter to give a sealed union. Shrinking is particularly fast and even using reflector nozzles. Sealing and stabilizing cable breaks, insulating soldered joints, gathering cable runs, sheathing terminal blocks.
  • Page 12 Part No. 110048648 29 xx20 Plastic Ring/hanger Part No. 110045172 30 LED Light Part No. 110047650 HG 2320 E / HL 2020 E / HL 1920 E / HL 1820 S / HL 1620 S (1-8) - 12 - GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 13 English HG 2320 E / HL 2020 E / HL 1920 E (only) Special Accessories - 13 - GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 14 Spare Parts List HG 2320 E Shape depends on Pos. Part No. regional version HG 2320 E, Type 3515 Spare Part Housing Set HG 2320 E US 110042251 Spare Part Protection Tube HL 1820-2320 US 110041666 Spare Part Power Cord 2020-2320 US/TW 110025024...
  • Page 15 English Spare Parts List HL 2020 E Shape depends on Pos. Part No. regional version HL 2020 E, Type 3522 Spare Part Housing Set HL 2020 E US 110042058 Spare Part Protection Tube HL 1820-2320 US 110041666 Spare Part Power Cord HL 2020-2320 US 110025024 Spare Part Switch HL 1820-2320 US 110036962...
  • Page 16 English Spare Parts List HL 1920 E Pos. Part No. HL 1920 E, Type 3521 Spare Part Housing Set HL 1920 E US 110041610 Spare Part Protection Tube HL 1820-2320 US 110041666 Spare Part Power Cord 1620-1920 US/TW 110024050 Spare Part Switch HL 1820-2320 US 110036962 Spare Part Electronic Unit HL 1920 S US 110042047...
  • Page 17 English Spare Parts List HL 1820 S Part No. Pos. HL 1820 S, Type 3520 Spare Part Housing Set HL 1820 S US 110041609 Spare Part Protection Tube HL 1820-2320 US 110041666 Spare Part Power Cord 1620-1920 US/TW 110024050 Spare Part Switch HL 1820-2320 US 110036962 Spare Part Electronic Unit HL 1820 S US 110041656...
  • Page 18 English Spare Parts List HL 1620 S Part No. Pos. HL 1620 S, Type 3511 Shape depends Spare Part Housing Set HL 1620 S US 110041603 on regional Spare Part Power Cord HL 1620 - HL 1920 S US 110024050 version Spare Part Electronic Unit HL 1620 S US 110041605...
  • Page 19: Limited Warranty

    English Limited Warranty STEINEL warranties its hot air tools, if properly operated and maintained, and used under normal conditions, for a period of one (1) year from the date of purchase. Warranty does not apply to wearable items such as heating elements which require periodic replacement.
  • Page 20: Other Rights

    English Disclaimers of warranties The warranties contained herein are expressly in lieu of any other expressed or implied warranties, or any other obligation on the part of the Company. Any implied warranty of merchantability or fitness for a particular purpose shall expire one (1) year after the date the product is purchased by the original end-user Purchaser.
