Offgridtec PWM Pro 10A User Manual page 18

www.offgridtec.com
Component
PV
Battery
Load
Note: To clear the PV power data log go to the PV power interface and press SET for 5s until the
digits start blinking. Press SET again to clear the value.
 Fault Indication
Status
Battery discharged
Battery overvoltage
Battery overheated
Load failure
*When load current reaches 1.02-1.05 times, 1.05-1.25 times, 1.25-1.35times and 1.35-1.5 times
more than nominal value, controller will automatically turn off loads in 50s, 30s, 10s and 2s
respectively.

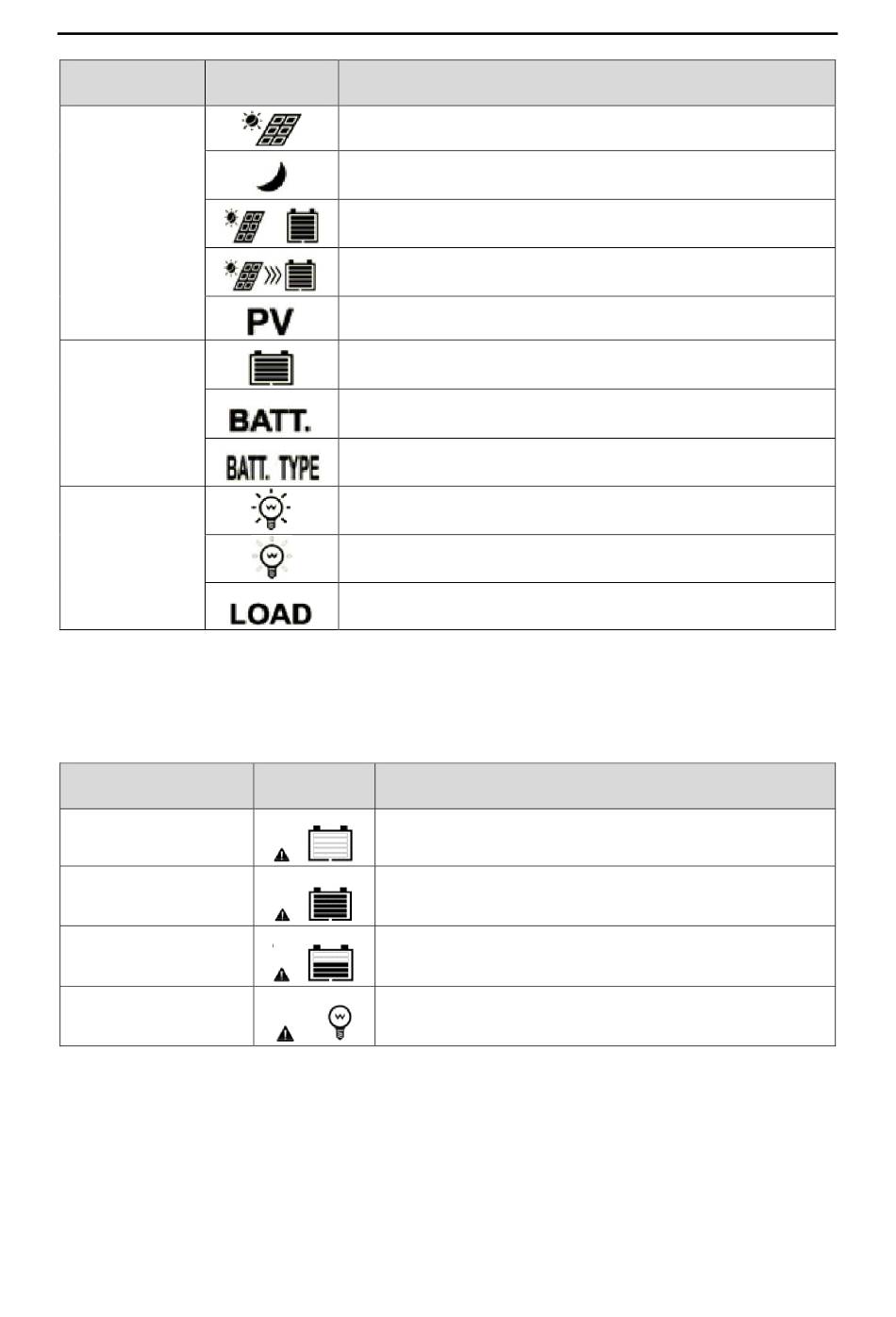

Icon Status
Day
Night
No load
Charging
PV voltage, current, output
Battery capacity during charging
Battery voltage, current, temperature
Battery type
Load on
Load off
Load voltage, current, load mode
Icon Description
Battery icon is empty, frame blinks, fault icon blinks
Battery icon is full, frame blinks, fault icon blinks
Battery icon shows current charging level, battery frame
blinks, fault icon blinks
Load overload*, load short circuit
