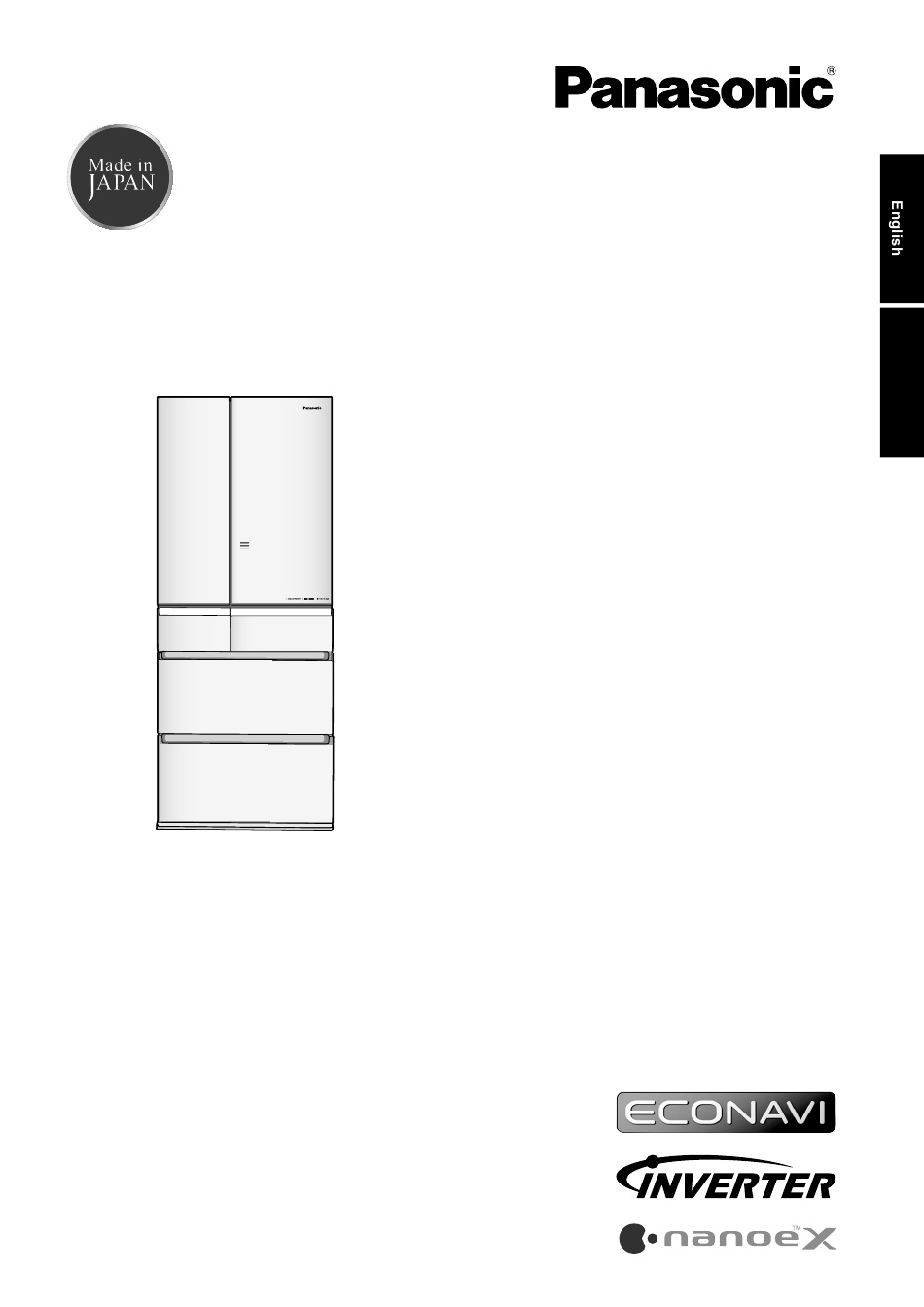

NR-F607HX-N3 NR-F607HX-W3 NR-F507HX-X3 NR-F507HX-N3 NR-F507HX-W3 Thank you for purchasing this Panasonic product. Please read these instructions carefully before using this product. Please keep this manual for future reference. Photos and illustrations of NR-F657WX are used for explanation in this manual.
Introduction Contents Introduction Safety instructions ..................... 3 Installation Installation ........................6 Choosing the right location ..............6 Operation To use all features ...................... 7 Temperature setting and a guide of temperature ......... 7 Control panel ..................8 How to operate ..................8 ECONAVI Operation ................
Introduction Safety instructions What the symbols mean. Make sure Indicates the appliance must be Do not you do this earthed to prevent electric shock Warning; Do not take apart iso-butane Risk of fire / flammable materials 異丁烷 Indicates risk of death or serious injury. WARNING ●...
Page 4
Introduction Safety instructions Stop using the refrigerator immediately and pull out the plug, if there is an abnormality or failure. (Otherwise, it may cause smoke, a fire or electrical shock.) Abnormality and failure examples ● Power cord or plug is abnormally hot ●...
Page 5
Introduction In case of emergency... ● Absolutely do not open the top cover and the back cover. ● Absolutely do not disassemble, repair or modify the refrigerator. (Otherwise, it may cause injury, burn, or electrical shock.) ● If you detect a gas (such as city gas) leak, do not touch the refrigerator and open the windows to ventilate the kitchen.
Installation Installation Choosing the right location 1. Place the refrigerator in the following locations. ● ● Locations free from heat and direct sunlight Locations where allow a heat to dissipate Minimize reduction of cooling power, and Place the refrigerator away from the wall (30 mm or prevent electricity waste.
Installation 3. Plug into a wall outlet. Plug into a wall outlet of the rated voltage on its own with the rated current and insert plug fully. ● The power plug can be plugged into an outlet immediately after installation. ●...
Operation To use all features Control panel Usually, the function setting section and the temperature setting section are not visible. Press once to show the function setting section. Press twice to show the temperature setting section. Press 3 times to hide the function and temperature setting sections. Refrigerator Function setting section compartment...
Operation ECONAVI Operation ■ 3 ECO functions detect the storage amount and the lifestyle. Energy is effectively and automatically saved. * ECONAVI lamp is on during ECONAVI operation. ECONAVI operates only when the temperature setting is “ 2 ” for both the freezer and refrigerator compartments. The storage sensors detect the change in the Storage Eco Memory of 3 weeks’...
Operation To use all features Refrigerator compartment Approx. 3 °C ~ 6 °C Rotary partition ● When the rotary partition is opened forward, put it back into place. Tray (2) (The doors cannot be closed and it Slide tray Glass shelf may cause damage.) Partition shelf Opened forward.
Page 11
Operation Slide tray (the third shelf from the top) ■ Slide the front part back, you can place taller items in front. ● You can easily place large pots. Glass tray (only the second shelf from the top) Lift up the back of the tray and pull it forward. Once the protrusions of the Insert the tray in the desired tray are unhooked from the rails, tilt the tray and remove it.
Operation To use all features Prime Fresh/Chilled select room The select room is set to [CHILLED] at the time of purchase. Please set to fit the intended purpose of food. Using as the prime fresh room Approx. -3 °C ~ -1 °C ■...
Operation Freezer compartment Approx. -20 °C ~ -18 °C Freezer case (Upper) Freezer case (Middle) Freezer case (Lower) A small piece of food may not get lost. A lot of small food items with Tall foods can be placed vertically. thickness can be stored.
Operation To use all features Ice compartment Water supply tank Ice-making tray approx. 1.2 liters Sound-proof mat (Do not remove it.) Back Ice storage box Front “満水” line view from the top “給水” line Ice shovel Automatic ice maker (Provided in front of Water purification filter the box.) To use the automatic ice maker in comfort...
Page 15
Operation Ice can be made in approx. 2 hours! To make ice Take out the water supply tank. Fill with water. Install the water supply tank. Push the water supply tank in completely! Do not add water over the line. Put the lid back Water supply tank tightly.
Operation To use all features Prime Freeze compartment Approx. -19 °C ~ -17 °C Using “PRIME FREEZE” Prime Freeze cools food at once with a dedicated fan and aluminum plate. (Prime Freeze can also be used as a freezer compartment when not in use) Control panel (P.
Page 17
Operation Requests ■ Cross-sectional view ● Do not put bottles or cans. (Crack or breakage may result) ● Do not put food exceeding the height of the case. (The door will not be closed securely, which may form frost or result in breakage of food, case or parts around the case) ●...
Page 18
Operation To use all features Usage Tips Use PRIME FREEZE according to the type of food, how the food is cooked, and other purposes. Purpose Indication (unit: min) Type of food and guideline Tips • Lunch box (rice 150 ) ●...
Appendix Cleaning, removing and re-installing Before cleaning or conducting maintenance, be absolutely sure to disconnect the power plug from the wall outlet. Do not connect or disconnect the power plug with wet hands. Doing so may result in getting an electric shock or injury.
Page 20
Appendix Cleaning, removing and re-installing Trays / Slide tray (made of glass) Once every 3 months ■ ■ Tray (Upper shelf in the refrigerator) Tray (2nd shelf from the top in the refrigerator) Unhook the protrusion at the back of the tray and pull it. Lift up the back of the tray and pull it forward.
Page 21
Appendix Water supply tank / Water purification filter Once a week Remove the lid and clean Turn the water purification Gently wash the water Remove the packing the water supply tank with filter to unhook and remove purification filter in running on the edges from water.
Appendix Setting to suit your preferences To adjust the temperature in more detail ■ The temperature for refrigerator compartment and freezer compartment can be set in 9 stages, more detailed than as “ 1 ”, “ 2 ” and “ 3 ”. (ECONAVI does not operate when the temperature is adjusted in detail.) Setting Stage...
Page 23
Appendix To adjust the brightness of COOLING ASSIST lamp The brightness of COOLING ASSIST lamp can be adjusted. (P. 16) Setting Procedure A beep sounds. Press twice, then press and hold Press to select your desired brightness. at least 3 seconds. Approx.
Appendix Troubleshooting If you feel that the refrigerator is not working properly, check out the following points first. If the trouble persists, disconnect the power plug and contact your dealer or an authorized service center. The following sounds are not abnormal. From inside the refrigerator.
Page 25
Appendix ● Rattling noise Place the refrigerator on a stout and flat floor, make both adjustable legs reach the floor and fixed the refrigerator. (P. 6) ● Do the sides or the back side of refrigerator or the power cord touch the walls or furniture around the refrigerator? → Place the refrigerator so that it does not touch surrounding objects.
Page 26
Appendix Troubleshooting ● Ice smells. Clean the water supply tank and water purification filter once a week. (P. 21) ● Do not use cleaning agent or bleach for washing the water supply tank and the water purification filter. ● Replace the water purification filter every 3 year. (Separately sold part: P. 29) ●...
Appendix In these cases? ● The power failed. Keep the doors closed and do not store additional food. ● [FRESH FREEZING] and [QUICK ICE MAKING] stop. Set these functions again to use after power recovery. ● The power plug was Wait at least 7 minutes, and then plug in the power plug.
Appendix In these cases? ● The automatic ice maker Stop ice making, with the water supply tank empty, and clean the ice maker. is not used for a long time. Discard water in the water supply tank. Press , then press and stop ice making.
Appendix Specifications NR-F607HX-X3 NR-F507HX-X3 MODEL NR-F657WX-X3 NR-F607HX-N3 NR-F507HX-N3 NR-F607HX-W3 NR-F507HX-W3 TOTAL GROSS VOLUME 685 L 630 L 531 L TOTAL STORAGE VOLUME 539 L 494 L 407 L STORAGE FRIDGE 333 L 306 L 252 L VOLUME STORAGE ICE VOLUME...
附錄 規格 NR-F607HX-X3 NR-F507HX-X3 NR-F657WX-X3 NR-F607HX-N3 NR-F507HX-N3 型號 NR-F607HX-W3 NR-F507HX-W3 531 L 685 L 630 L 總容量 407 L 539 L 494 L 總淨容量 252 L 333 L 306 L 冷藏室淨容量 製冰室淨容量 PRIME FREEZE 室 14 L 17 L 17 L 淨容量...
