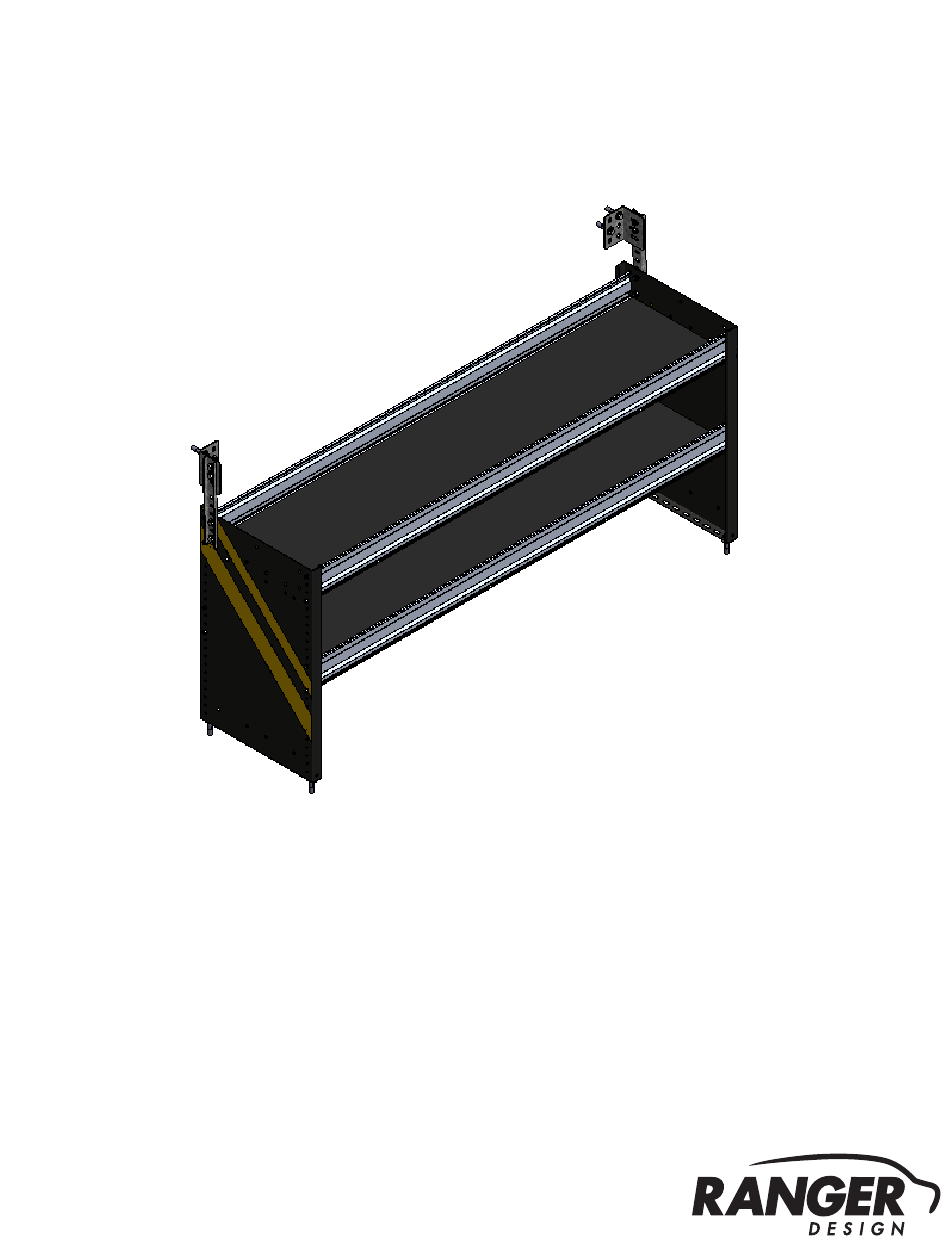

- Page 1 INSTALLATION GUIDE S2-RS60-2 Shelving steel Ram C/V Box Truck / Trailer...
-
Page 2: Required Items
QUICK START GUIDE Phase 1 - Assembly q 1.1 Setup............................... 3 - 4 q 1.2 Shelf Assembly..........................5 - 6 Phase 2 - Installation q 2.1 Attach Wall Brackets To The End Panels..................q 2.2 Mark Holes For Plus Nuts....................... q 2.3 Attach Plus Nut.......................... - Page 3 60 - 13.875 × 60 Shelf Tray, Black Plywood, Usable 14" × 60" 94 - 4029 Assembly Fastener Kit 96 - 4027 Install Fastener Kit S2-RS60-2 Installation Guide | REV. B1 | Page 3 For technical support, contact us at 1-800-565-5321...
- Page 4 ( QTY = G ap beTween floor and end panel #94-132 5/16" Plusnut Spacer 4× 4× # 98-157 0.375" ID, × 1.0" OD × 0.25" LONG NYLON S2-RS60-2 Installation Guide | REV. B1 | Page 4 For technical support, contact us at 1-800-565-5321...
-
Page 5: Shelf Assembly
14" × 60" 40 - 7271 10 - 11/16" ADJUSTABLE TOOLS q Cordless Impact q 3/8" Driver Bit HARDWARE USED 16× #92-102 Screw #14 × 1" S2-RS60-2 Installation Guide | REV. B1 | Page 5 For technical support, contact us at 1-800-565-5321... - Page 6 Cordless Impact q 1/2" Socket HARDWARE USED 4× hand tighten the bolts #90-204 Hex Bolt 5/16" × 3/4" #98-116 Flat Washer #94-116 Serrated Nut S2-RS60-2 Installation Guide | REV. B1 | Page 6 For technical support, contact us at 1-800-565-5321...
-
Page 7: Phase 2 - Installation
1/2" Socket HARDWARE USED 4× hand tighten the bolts #90-204 Hex Bolt 5/16" × 3/4" #98-116 Flat Washer #94-116 Serrated Nut BRACKET HEAD S2-RS60-2 Installation Guide | REV. B1 | Page 7 For technical support, contact us at 1-800-565-5321... - Page 8 TOOLS q Marker MARK Mark 2 holes of each end panel on the vehicle floor. TOOLS q Marker MARK S2-RS60-2 Installation Guide | REV. B1 | Page 8 For technical support, contact us at 1-800-565-5321...
- Page 9 1/2" Drill Bit w/ Drill Collar ( Set at 1/2" ) q Plus Nut Tool ( 5/16" ) HARDWARE USED 8× #94-132 Plus Nut DRILL COLLAR 1/2" ) seT aT S2-RS60-2 Installation Guide | REV. B1 | Page 9 For technical support, contact us at 1-800-565-5321...
- Page 10 1/2" socket until the plusnut locks, then remove the bolt by turning the impact in reverse. FORWARD REVERSE S2-RS60-2 Installation Guide | REV. B1 | Page 10 For technical support, contact us at 1-800-565-5321...
- Page 11 ( QTY = G ap beTween floor and end panel #94-132 5/16" Plusnut most vehicle use spacer when not over ribs W/ Spacer W/O Spacer S2-RS60-2 Installation Guide | REV. B1 | Page 11 For technical support, contact us at 1-800-565-5321...
-
Page 12: Attach Wall Brackets
Cordless Impact q 1/2" Socket HARDWARE USED 4× #90-212 Hex Bolt 5/16" × 1-1/4" #98-122 Lock Washer #98-116 Flat Washer #94-132 5/16" Plusnut S2-RS60-2 Installation Guide | REV. B1 | Page 12 For technical support, contact us at 1-800-565-5321... - Page 13 “You have successfully installed your S2-RS60-2 Thank you for doing business with us.” cs@rangerdesign.com For any feedback or suggestions you may have, please contact: S2-RS60-2 Installation Guide | REV. B1 | Page 13 For technical support, contact us at 1-800-565-5321...
