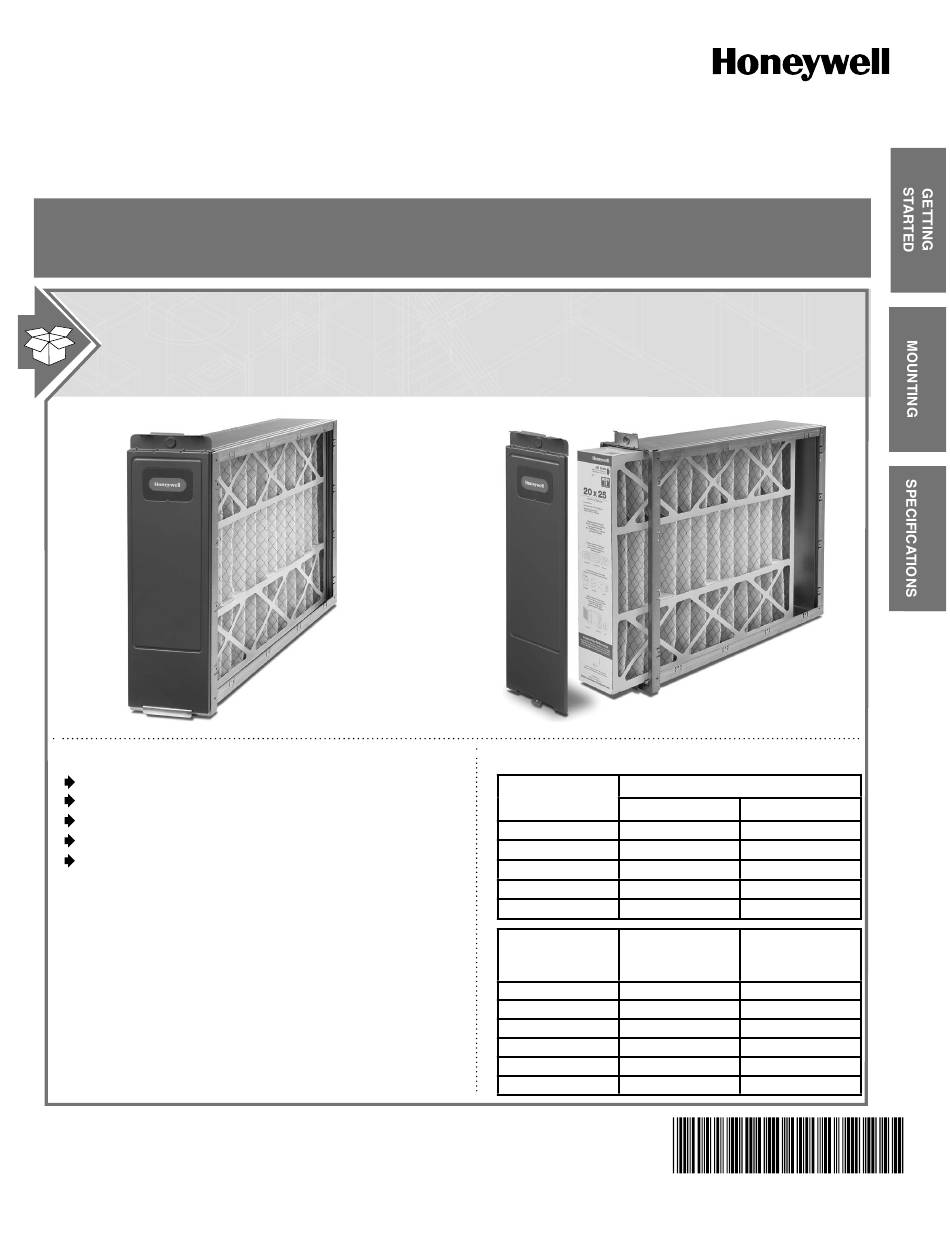

Honeywell Media Air Cleaners
INCLUDED IN THIS BOX
Tools needed to install Enhanced Air Cleaner
Standard screwdriver
Phillips screwdriver
Metal cutter
Drill
Duct Sealant
PROFESSIONAL INSTALLATION
GUIDE D'INSTALLATION
Replacement Air Filters
Part Number
F100 - MERV 11
Filter Size (in.)
12.5 x 20
FC100A1052
16 x 25
FC100A1029
16 x 20
FC100A1003
20 x 25
FC100A1037
20 x 20
FC100A1011
Media Air
F100
Cleaner Size (in.)
Media Air Cleaner
w/ MERV 11 Filter
16 X 25
F100F2002
16 X 20
F100F2028
20 X 25
F100F2010
20 X 20
F100F2036
25 X 22
F100F2051
25 X 20
F100F2044
GUIDE.
PROFESSIONNELLE.
F200 - MERV 13
N/A
FC200E1029
FC200E1003
FC200E1037
FC200E1011
F200
Media Air Cleaner
w/ MERV 13 Filter
F200F2002
F200F2028
F200F2010
F200F2036
-
-
