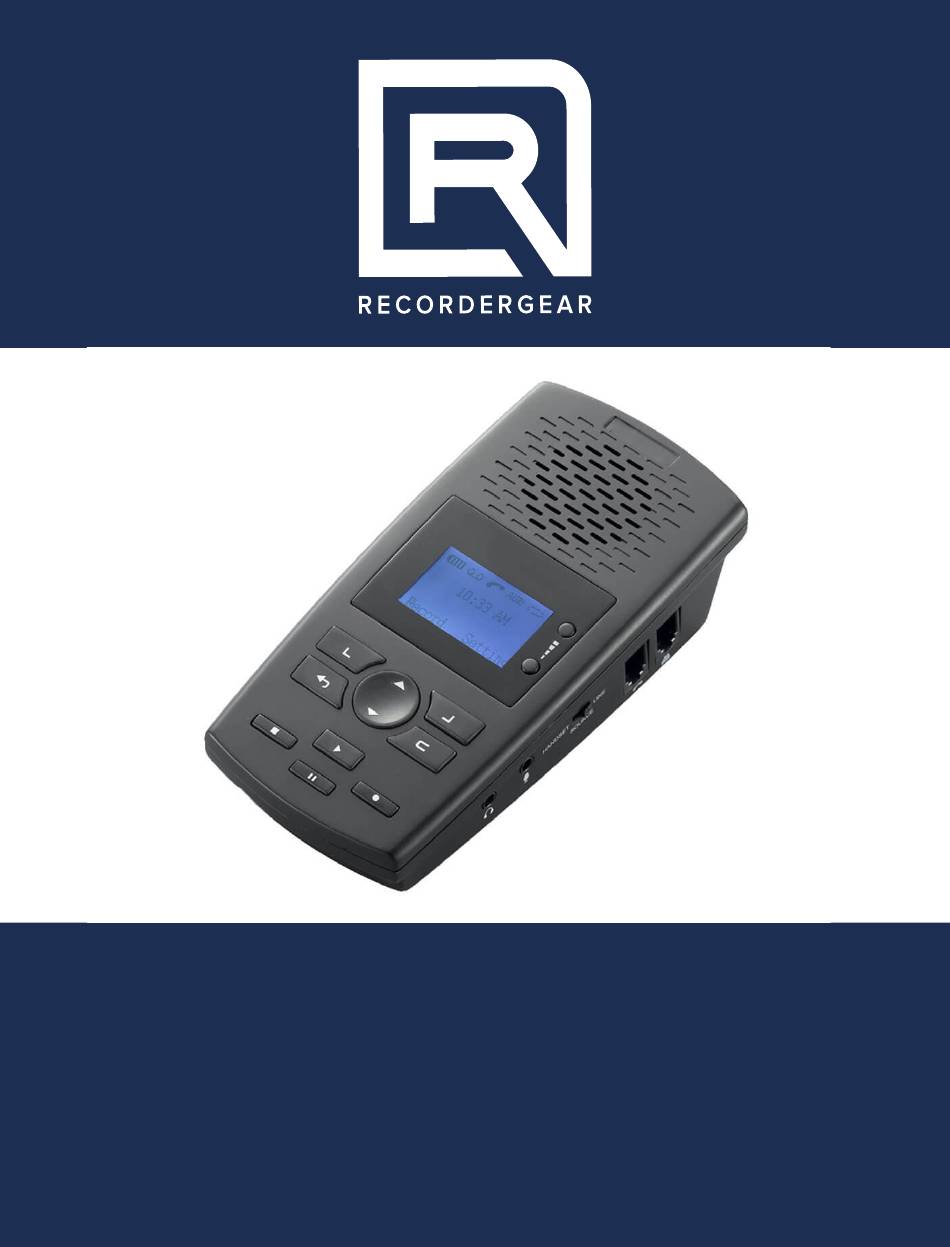

  • Page 1 USER MANUAL TR600 PHONE RECORDER...
  • Page 2 ATTENTION Please read the user manual carefully. Visit the link below to watch instructional videos on setting up your TR600. https://rgear.page.link/tr600 WARRANTY All RecorderGear™ brand products are backed by our Warranty. For full details visit www.recordergear.com MID: SR100...

  • Page 3: Table Of Contents

    Table Of Contents Section & Title Page # What’s In The Box? Videos + Bigger Manual Getting Started Determine Your Phone Line Configuration RJ11 Single Line Recording RJ11 Multi-line & RJ45 Into Phone Base - Recording Playback Recordings Set Time/Date Recording Anouncement Record Meetings/Memos Settings Explained...

  • Page 4: What's In The Box

    What’s In The Box? TR600 Phone Recorder USB Power Cable SD Card USB Data Cable User Manual RJ9 Telephone Cable ( 4 Pin ) RJ11 Telephone Cable ( 2 Pin...

  • Page 5: Videos + Bigger Manual

    Videos + Bigger Manual This manual contains everything you need to know to set-up your TR600. However, we have also made instructional videos for you. Visit the URL below to start watching: https://rgear.page.link/tr600 WANT A BIGGER MANUAL? We understand that the text in this manual is small &...

  • Page 6: Getting Started

    To remove the SD card, push the card in until you feel a spring release; the SD card will be ejected when you let go. NOTE - If no SD card is inserted, the TR600 will not power on; there will be a loud beep & an SD card error.
  • Page 7 B. INSERT AAA BATTERIES (NOT INCLUDED) The TR600 typically runs off wall power, but can run off batteries only. If power is lost, batteries help retain the time/ date. Remove back cover to insert the batteries. C. NAVIGATING THE TR600 The image below labels the TR600 buttons;...

  • Page 8: Determine Your Phone Line Configuration

    (small) This connection/cable is used to hook a phone handset to a phone base; the cable is typically curly. (1 straight cable included with the TR600) RJ11 (medium) This is a common phone connection/cable & is found in most homes/buildings (in the USA).
  • Page 9 Your phone line configuration will fall in one of three types; listed below are the three types. Please carefully read the three options below. Once you have determined which type of phone configuration you have, please go to the appropriate page of this manual to finish the set-up. 1.

  • Page 10: Rj11 Single Line Recording

    Locate the RJ11 cable that is supplying phone service to your phone base; unplug this cable from your phone service source & plug it into the phone port on the back of the TR600. Locate the RJ11 cable that came with your TR600 & plug one end of it into your Phone Service Source.
  • Page 12 The Back Button will always take you back to the previous screen/menu B. ENTER LINE MODE Flip the switch on the side of the TR600 to the PHONE position. Enter the Settings menu and select Recording. Select Manu Rec. Mode and select Line Mode.
  • Page 13 Enter the Settings Menu and select Recording. Select Auto / Manual Rec and select AUTO To record a call, simply make or receive a call & then hang up the call; the TR600 will automatically record the call & save it to the SD card.

  • Page 14: Rj11 Multi-Line & Rj45 Into Phone Base - Recording

    Internet connection to your phone base. Unplug the handset (curly cord) from your phone base & plug it into the handset port on the side of the TR600 (see image below). Using the RJ9 cable that came with your TR600, plug it into the handset port on your phone base.
  • Page 15 The set-up should look like the diagram below. Now that you have the TR600 hooked up properly, you need to input the correct settings in order to start recording calls. For the steps on the next page, you will be navigating the TR600 settings menu.
  • Page 16 The Back Button will always take you back to the previous screen/menu B. ENTER HANDSET MODE Flip the switch on the side of the TR600 to the PHONE position. Enter the Settings menu and select Recording Enter Manu Rec. Mode and select Handset Mode.
  • Page 17 Auto Recording (TRIG Mode): To make it so the TR600 automatically starts & stops recording in Handset Mode (as opposed to Line Mode), you need to put the TR600 into TRIG Mode (Voice Activation). The TR600 will begin recording when sound is detected on the phone line.

  • Page 18: Playback Recordings

    TR600 auto records dependably. VOX Silence (Period of Silence) In TRIG mode, the TR600 will stop recording a call after a period of silence; you can set this time period from 2-99 seconds. If set too short, one recorded phone call may be broken into multiple audio files.
  • Page 19 The folders contained on the SD card are named by Year/ Month/Day so you can keep your recordings organized. The image below shows actual TR600 folders, the year is 2020, month is September, and the day is the 6th (date: 09/06/2020).
  • Page 20 Remove the SD card & insert it into your PC (SD card reader required) & open the removable drive when it appears on your PC. Open & listen to your recordings (files are in .WAV format) NOTE - The TR600 will emit a loud beeping sound if the SD card is...
  • Page 21 PLUG TR600 INTO PC Leave the TR600 powered on; use the USB data cable that came with your TR600 & plug it into your computer (the cable is a mini USB style) Open the removable drive when it appear on your computer.

  • Page 22: Set Time/Date

    NOTE - The batteries in the TR600 act as a backup power source. If wall power is lost, the TR600 will still continue to operate and retain the correct time/date.

  • Page 23: Record Meetings/Memos

    Power off the TR600 & remove the SD card; insert it into your PC Transfer the audio file from your PC to the root/main folder of the SD card (don't put it in any other folder). B. TURN ANNOUNCEMENT ON Enter the Settings Menu and select Recording.

  • Page 24: Settings Explained

    Settings Explained A. RECORDING SETTINGS MIC REC. Mode - Change between Manual & Vox (voice) activation for Mic Mode. Auto / Manual Rec - Change between Manual, Auto, and Trig mode. Manu Rec Mode - Change between Handset Mode and Line mode.
  • Page 25 (15 - 30 Volts) Call Out Delay Time - The time the TR600 will record after you finish the call. (0 - 20 seconds) B. SYSTEM SETTINGS Time - Set up the Time of the TR600.
