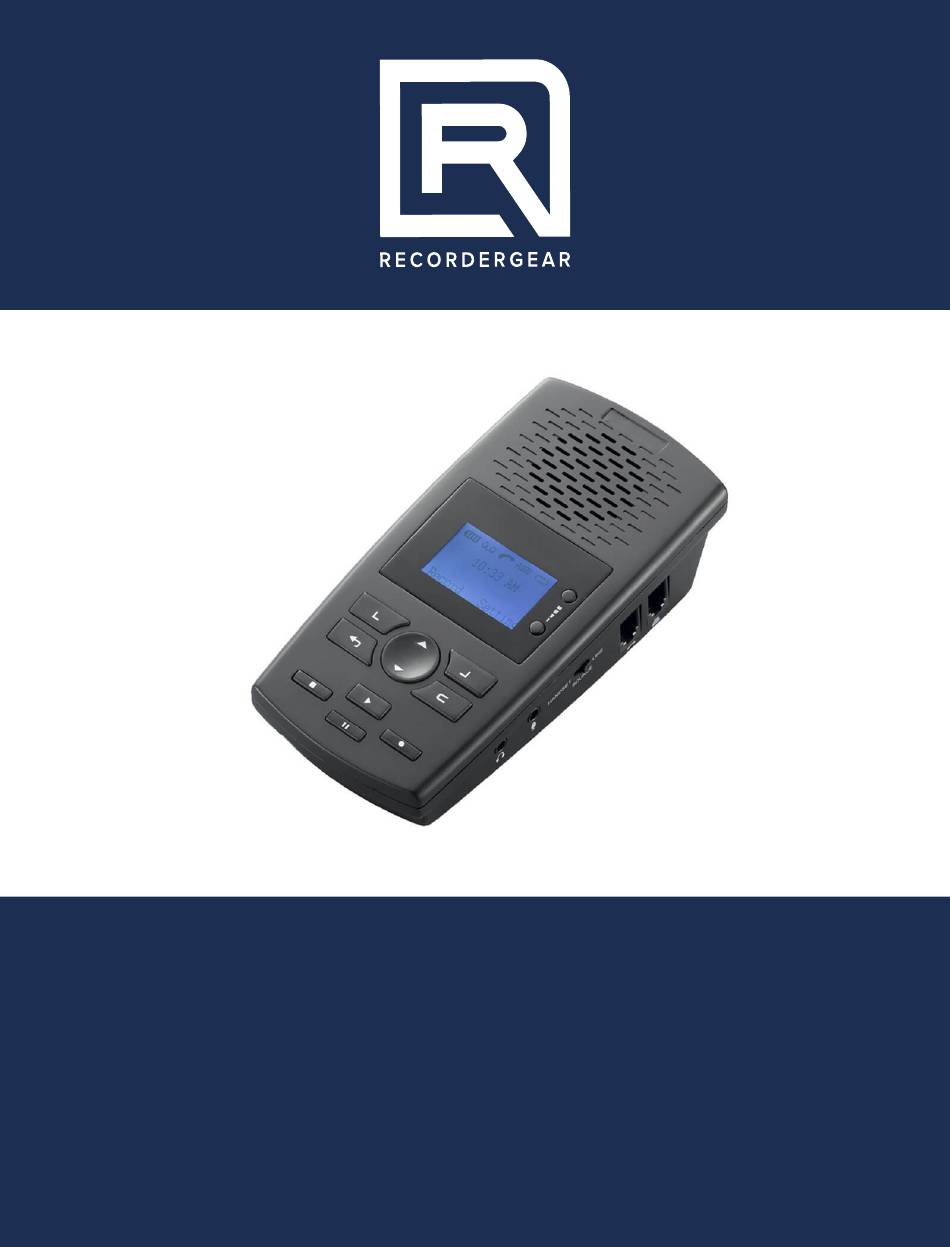

- Page 1 USER MANUAL TR600 PHONE RECORDER...
- Page 2 MID: AR100 1 Year Warranty All RecorderGear™ brand products are backed by our 1 Year Warranty. For full details visit www.recordergear.com...
-
Page 3: Table Of Contents
Table Of Contents Section & Title Page # Insert SD Card Navigating The TR600 Record On Analog Phones Record On Digital, IP, and Multi-line Phones MIC Mode Settings Playback Call Assistant Call Assistant Overview Specs... -
Page 4: Insert Sd Card
32GB SD card). The TR600 will not work without an SD card, please make sure it is inserted before operating the TR600. Insert an SD card into the card slot on the side of the TR600 (a class 10 card is recommended). -
Page 5: Navigating The Tr600

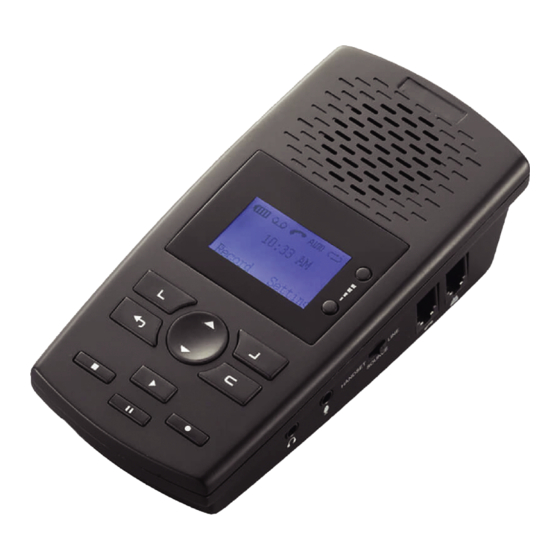

Navigating The TR600 The diagram below outlines the TR600 buttons. You will use these buttons to perform various functions & navigate the menu. NOTE - The Left/Right Select Keys correspond to menu items in the lower left/right of the screen menu. The Up/Down Button allows you to scroll up or down to different menu options. -
Page 6: Record On Analog Phones
Record On Analog Phones To record on an analog phone you will need to put the TR600 in Line Mode. This section shows you how to put the TR600 in the proper mode and how to connect it to an analog phone. - Page 7 A. CONNECT THE TR600 Connect the TR600 to the wall jack - Run the phone line from the wall jack to the line port on the back of the TR600 Connect your phone to the TR600 - Run the phone line from the phone base to the Phone Port on the back of the TR600 B.
-
Page 8: Record On Digital, Ip, And Multi-Line Phones
TR600. To turn this mode on, follow the steps below: Enter the Settings Menu and select Recording Settings. Select Auto / Manual Rec and select MANUAL To record a phone call, press the RECORD button on the TR600 to start recording To stop recording press the STOP button. - Page 9 Connect wall jack to phone base - Run the phone line from the wall jack to your phone base. Connect phone base to the TR600 - Run the phone line from the phone base to the line handset port on the side of the TR600.
- Page 10 Make sure the SD card is inserted & AAA batteries are installed Plug the TR600 into a wall outlet using the provided cord & AC adapter Make sure the source switch on the side of the TR600 is slid to the PHONE position.
-
Page 11: Mic Mode
In this mode the TR600 can operate as an audio recorder for meetings, memos, or lectures. A. MANUAL RECORDING Make sure the source switch on the side of the TR600 is in the MIC position. Enter the Settings Menu and select Recording Settings. - Page 12 B. VOICE ACTIVATION RECORDING Make sure the source switch on the side of the TR600 is in the MIC position. Enter the Settings Menu and select Recording Settings. Enter into MIC Rec. Mode and select VOX. The TR600 will then start recording when sound is detected.
-
Page 13: Settings
You can also test the voltage of the line to determine the correct setting from this screen. (15 - 30 Volts) Call Out Delay Time - The time the TR600 will record after you finish the call. (0 - 20 seconds) -
Page 14: Playback
Playback There are two methods to playback your files; you can playback files on the TR600 or remove the SD card & insert it into a computer. A. PLAYBACK ON TR600 (LOG) On the main menu, the word LOG is displayed in the lower left corner. -
Page 15: Call Assistant
NOTE - If you delete the recording & not the log. The log will stay on the TR600 with no recording file. To exit the Log screen press the Back Button. B. REMOVE SD CARD Unplug the TR600 from power source & remove the AAA batteries. -
Page 16: Call Assistant Overview
Connect the TR600 to your PC using the Mini USB cable provided. Open the Call Assistant software (installed in the previous step). Remove SD card Power off TR600. Remove the SD card & insert it into your PC. Open the Call Assistant software (installed in the previous step). Call Assistant Overview... - Page 17 View Record of PC Backup - Will show the call files backed up to your PC. Auto Backup Recordings of Device SD Card - When set, this will automatically backup the call files to your PC when the TR600/SD card is connected.
- Page 18 Search - Define your search by Date, Phone Number and Type of Call. Refresh - Will rescan the TR600 and refresh the display of calls. Mark - Flags a call for easier reference. Export - Export Excel - Select the range of calls and export the list view to Excel Export Voice.
-
Page 19: Specs
Specs File Type .WAV Voice Activation, Recording modes Manual Recording, Auto Recording Loop Recording Compatible Phone Systems Digital, IP Phones, Multi-Line (HandSet mode) Phones Compatible Phone Systems Analog Phones (Line Mode) Memory Support Up to 32GB SD Card Weight 6.21 oz Dimensions 5.7 in / 2.8 in / 1.4 in... - Page 20 W W W. R E CO R D E R G E A R . CO M R ecorderG ear™ and resp ec ti ve log os a re t rad emar ks of Teton Webstores LLC © 2018 AL L RIG HTS RES ER VED...
