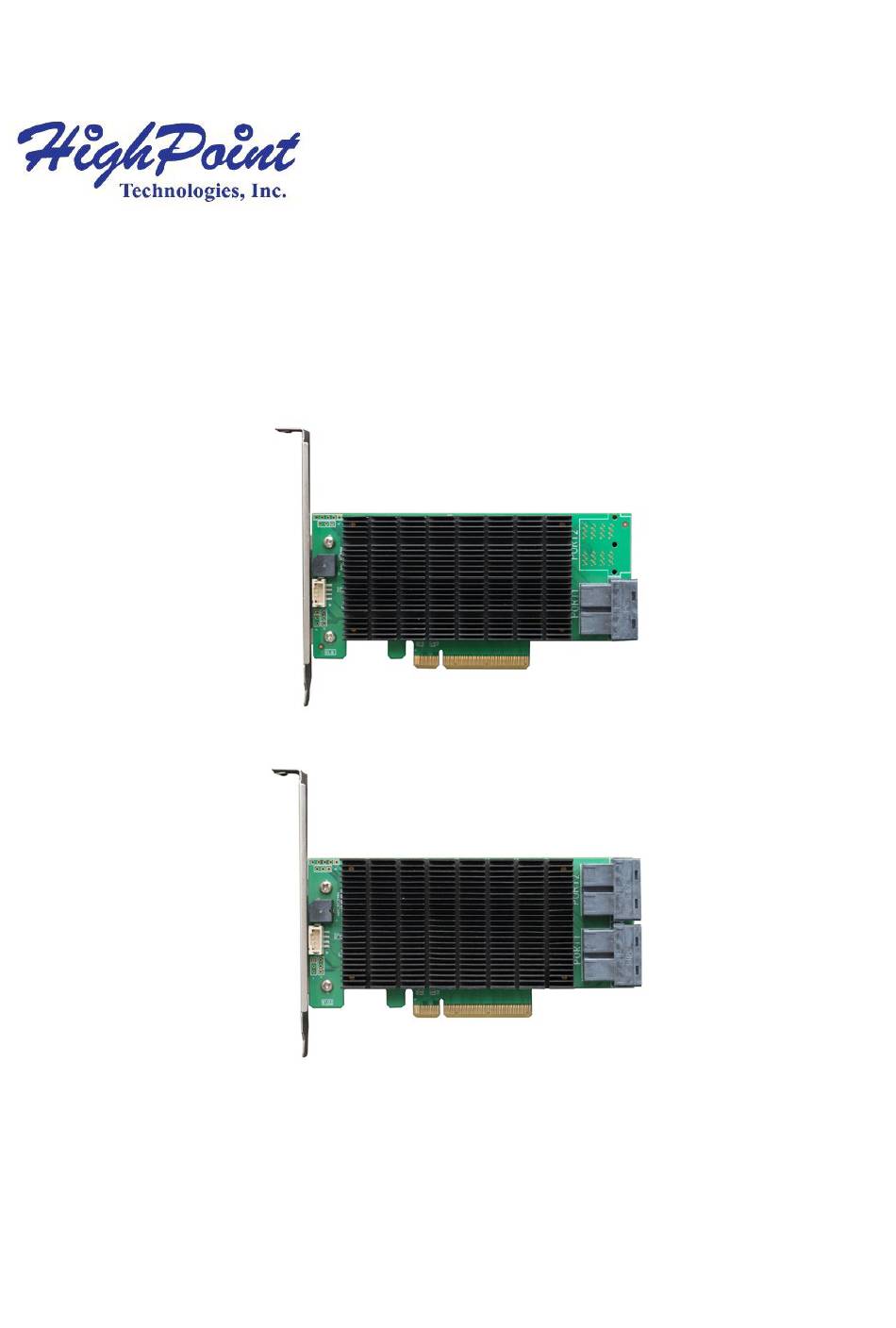

- Page 1 Rocket 710L (R710L) Rocket 720L (R720L) PCI-Express 3.0 x8 Controller R710L R720L Quick Installation Guide V1.00...
- Page 2 R710L Kit Contents • 1x Rocket 710L Controller Card • 1x Low Profile Bracket • 1x Quick Installation Guide R720L Kit Contents • 1x Rocket 720L Controller Card • 1x Low Profile Bracket • 1x Quick Installation Guide Operating System •...
-
Page 3: Required Accessories

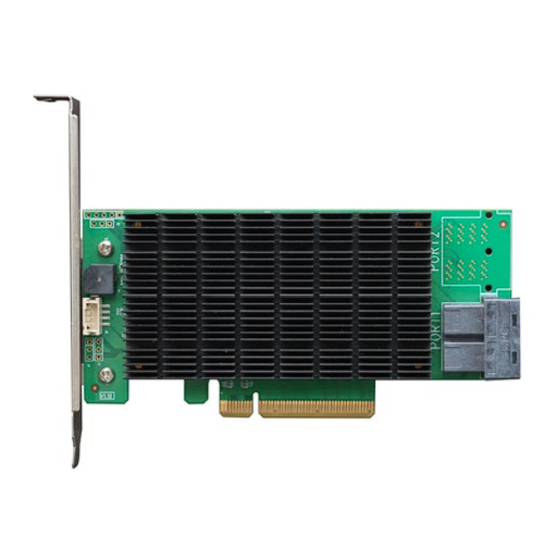

Required Accessories Certified cables are available directly from HighPoint and our authorized resellers. For more information, please contact our Sales Department (sales@highpoint-tech.com). 1. In order to use SATA drives with the R710L/ R720L SAS controller, you will need at least one 8643-4SATA-1M cable. - Page 4 R710L Hardware Front View R720L Hardware Front View...
- Page 5 R710L/ R720L Hardware Installation Note: Make sure the system is powered-off before installing the SAS Controller. 1. Connect the R710L/ R720L into the PCIe 3.0 (4.0 or 5.0) x8 or x16 slot of the motherboard. 2. How to connect disks to the R710L/ R720L using the 8643- 4SATA-1M cable.
- Page 6 3. How to connect disks to the R710L/ R720L using the 8643- 4SAS-1M cable. Each cable can support up to four SAS/SATA hard drives or SSDs via an SFF-8642 port. SAS Power Connector SATA/SAS Drivers...
- Page 7 R710L Channel Layout Channels 5-8 Channels 1-4 R720L Channel Layout Channels 13-16 Channels 9-12 Channels 5-8 Channels 1-4...
- Page 8 Optional Certified Cable Accessories Device Cables 8643-4SAS-1M SFF-8643 SAS to 4x SAS cable, with Power Connector Length: 1M 8643-4SATA-1M SFF-8643 SAS to 4x SATA cable, with Power Connector Length: 1M...
- Page 9 710L/ Rocket 720L SAS controllers. In addition, we recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides. For Software Downloads, Documentation and more information about this product, please visit the following website: https://www.highpoint-tech.com/rocket700L-series FAQ & Troubleshooting: FAQ - HighPoint Technologies, Inc. (helpjuice.com)
-
Page 10: Customer Support
If you encounter any problems while utilizing the SAS controllers, or have any questions about HighPoint Technologies, Inc. products & solutions, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com © Copyright 2023 HighPoint Technologies, Inc. All rights reserved.
