- Page 1 Omron TM Collaborative Robot: Mobile Workstation User’s Manual Original Instruction I628-E-03...
- Page 2 Manual will be reviewed periodically. The Corporation will not be liable for any error or omission. logo is registered trademark of TECHMAN ROBOT INC. in Taiwan and other countries and the Corporation reserves the ownership of this manual and its copy and its copyrights. Omron TM Collaborative Robot: Mobile Work Station User’s Manual...
- Page 3 Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.
- Page 4 LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE OR STRICT LIABILITY. Further, in no event shall liability of Omron Companies exceed the individual price of the Product on which liability is asserted.
- Page 5 Product may be changed without any notice. When in doubt, special part numbers may be assigned to fix or establish key specifications for your application. Please consult with your Omron representative at any time to confirm actual specifications of purchased Product.
- Page 6 • When using devices equipped with an SD Memory Card, there is a security risk that a third party may acquire, alter, or replace the files and data in the removable media by removing or unmounting the media. Omron TM Collaborative Robot: Mobile Work Station User’s Manual...
-
Page 7: Table Of Contents
2. Packing List ................................. 10 3. Installation ................................... 11 Control Box Installation ............................11 Robot Installation ............................... 14 TM Mobile Workstation Application ........................15 Casters Setting ..............................15 Terminal Block Wiring ............................16 Omron TM Collaborative Robot: Mobile Work Station User’s Manual... -
Page 8: Revision History Table
Revision History Table Revision Date Revised Content October, 2018 Original release June, 2019 Revise quantity of M4L6 screw & update Packing List June, 2023 Minor updates Omron TM Collaborative Robot: Mobile Work Station User’s Manual... -
Page 9: Product Function And Specification

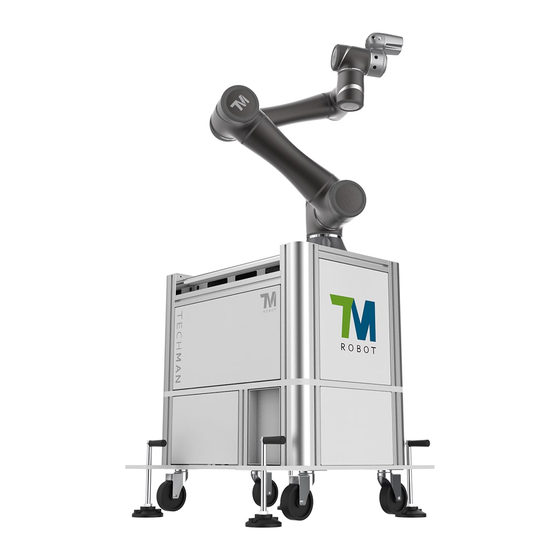

Overview TM Mobile Workstation is a convenient tool for users to organize and store the TM Robot, the control box, and other components. Users can move the TM Mobile Workstation with the TM Robot to different work cells for easy and flexible deployment. -
Page 10: Flange Surface
*The distances have the wheel range deducted. Flange Surface Omron TM Collaborative Robot: Mobile Work Station User’s Manual... -
Page 11: Packing List
America. For the compatibility of the plugs and sockets regulated by the local government. It is favored to use the power cord coming with the TM Mobile Workstation to connect between the control box and TM Mobile Workstation and the power cord coming with TM Robot for external power. -
Page 12: Installation
Use the screws from the handgrips and the foot stands to mount the brackets on the control box. Note that Foot Stand Brackets for HW3.X and HW5.0 are different. Foot Stand Bracket for HW5.0 Hand Grip Bracket Omron TM Collaborative Robot: Mobile Work Station User’s Manual... - Page 13 Foot Stand Bracket for HW3.X Hand Grip Bracket Unlock the drawer for the control box of the TM Mobile Workstation, and remove the drawer. Use the screws M4*8 ㎜ to mount the control box on the drawer bracket. Omron TM Collaborative Robot: Mobile Work Station User’s Manual...
- Page 14 M4*8 ㎜ M4*8 ㎜ Use the screws M4*8 ㎜ to mount the stick bracket on the mobile station. Omron TM Collaborative Robot: Mobile Work Station User’s Manual...
-
Page 15: Robot Installation
2. Secure TM Robot with M10*30 ㎜ screws and washers. Cable of the Robot 3. Pass the cable of the robot through the cord hole, connect to the control box, and cover the cord hole with a desktop cover. Omron TM Collaborative Robot: Mobile Work Station User’s Manual... -
Page 16: Tm Mobile Workstation Application
TM Mobile Workstation Application Users can put insertion stopper nuts into the slots at the top of the TM Mobile Workstation and thread the application with bolts together on the nuts. The recommended thread nominal of the insertion stopper nuts coming with 10 ㎜... -
Page 17: Terminal Block Wiring
Handle Leveling Mount Caster Terminal Block Wiring 1. After shutting down the control box and turning off the circuit breaker, connect L2, N2, and PE with the extension cord as shown. Omron TM Collaborative Robot: Mobile Work Station User’s Manual... - Page 18 2. Turn on the circuit breaker. Omron TM Collaborative Robot: Mobile Work Station User’s Manual...
