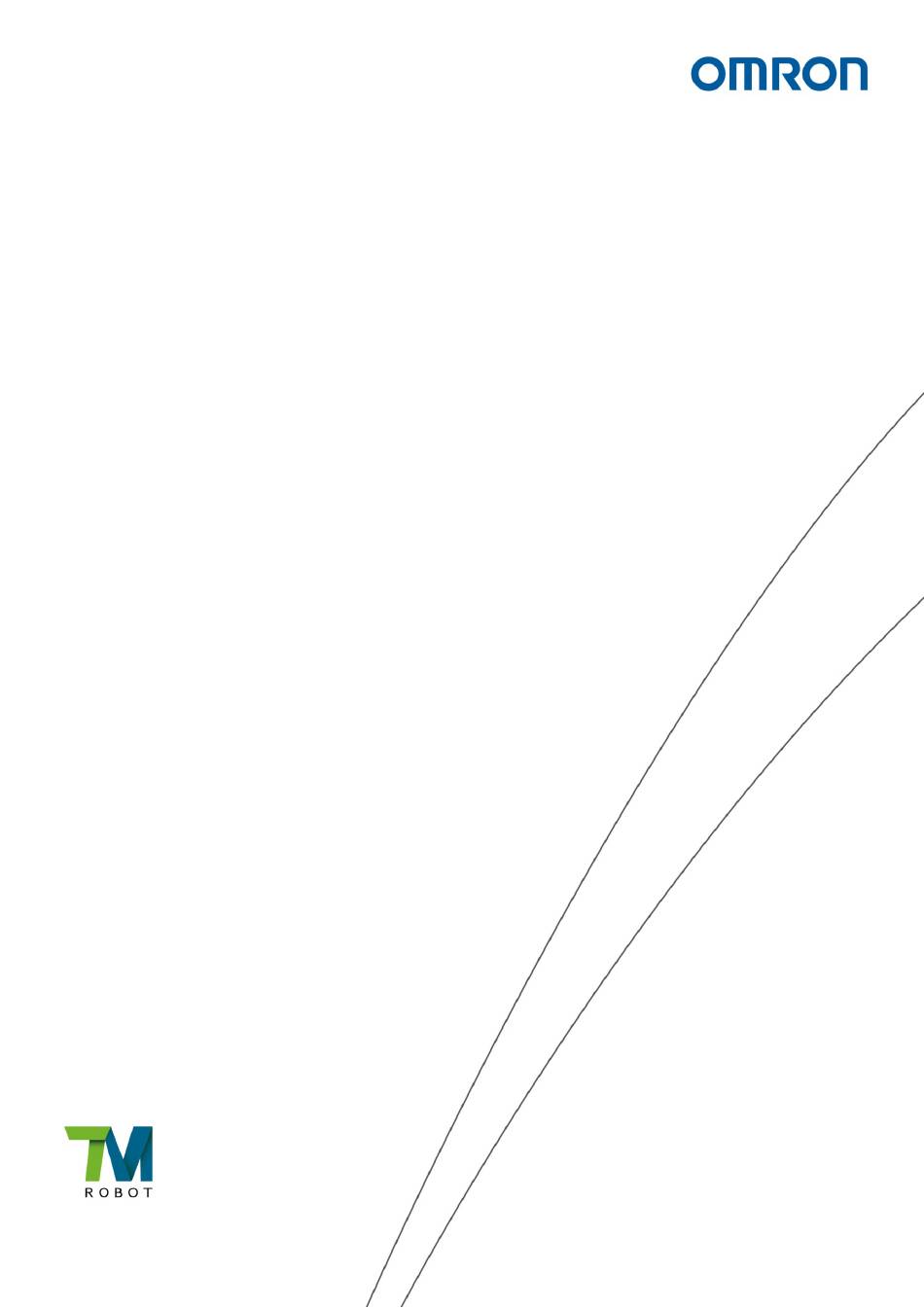

- Page 1 TM Mobile 安全說明書 Workstation Manual I628-E-02...
- Page 2 The Corporation assumes no responsibility for any errors or omissions in the documentation. logo is registered trademark of TECHMAN ROBOT INC. in Taiwan and other countries and the Corporation reserves the ownership of this manual and its copy and its copyrights. TM Mobile Workstation Manual...
-
Page 3: Table Of Contents
Flange Surface ..............................6 2. Packing List ................................... 7 3. Installation ..................................9 Control Box Installation ............................9 Robot Arm Installation ............................12 TM Mobile Workstation Application ........................13 Casters Setting ..............................13 Terminal Block Wiring ............................14 TM Mobile Workstation Manual... - Page 4 Revision History Table Revision Date Revised Content October 2018 Original release June 2019 Revise quantity of M4L6 screw & update Packing List TM Mobile Workstation Manual...
-
Page 5: Product Function And Specification

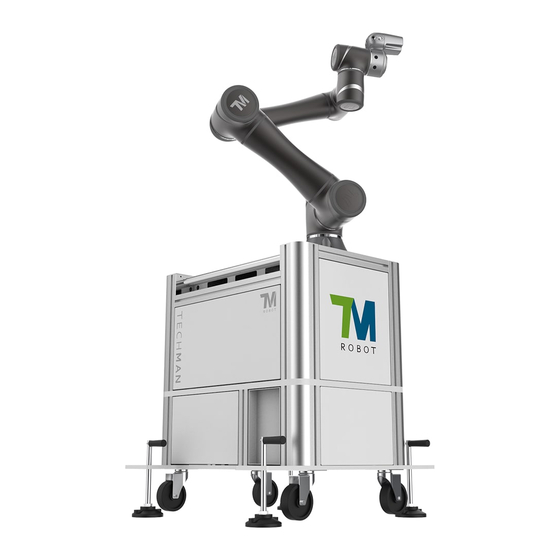

Function TM Mobile Workstation is a convenient tool for users to organize and store the TM Robot, the control box and other components. Users can move the TM Mobile Workstation with the TM Robot to different work cells for easy and flexible deployment. -
Page 6: Three-View Diagram
Three-view Diagram ＊ ＊ * The distances have deducted the wheel range. Flange Surface TM Mobile Workstation Manual... -
Page 7: Packing List
2. Packing List and a box packaging with the following items: TM Mobile Workstation comes with a TM Mobile Workstation 1 x Power Cord* with rating of 16A 10 x M4*6mm Combination 6 x M4*6mm Flat Screw 300V and length of 1830±5mm... - Page 8 Taiwan, Japan, and North America. To compatible with the plugs and sockets regulated by your local governments, it is recommend to use the power cord comes with the TM Mobile Workstation to connect between control box and TM Mobile Workstation and use the power cord comes with TM Robot for external power.
-
Page 9: Installation
3. Installation Control Box Installation Remove the hand grips and the foot stands. Hand Grip Foot Stand Positions to Detach the Hand Grip Positions to Detach the Foot Stand TM Mobile Workstation Manual... - Page 10 2. Mount both of the Rails on the braces inside of the TM Mobile Workstation with M4*6mm Flat Screws to the respective holes as shown. Holes for M4*6mm Flat Screws 3. Put the control box on both of Rails of the TM Mobile Workstation as shown below, and then secure the control box with both of Brackets A, both of Brackets B, M4*6mm Combination Flanged-Hex/Phillips-Head Screws, and the screws removed from the hand grips.
- Page 11 The screw removed from the hand grips M4*6mm Combination Bracket A Flanged-Hex/Phillips-Head Screw M4*6mm Combination Bracket B Flanged-Hex/Phillips-Head Screw TM Mobile Workstation Manual...
-
Page 12: Robot Arm Installation
2. Secure TM robot with M10 screws and washers. Cable of the Robot 3. Pass cable of the robot through the cord hole and connect to control box, and cover the cord hole with desktop cover. Desktop Cover Cord Hole TM Mobile Workstation Manual... -
Page 13: Tm Mobile Workstation Application
TM Mobile Workstation Application 1. You can put insertion stopper nuts into the slots at the top of the TM Mobile Workstation, and thread your application with bolts together on the nuts. The recommended thread nominal of the insertion stopper nuts come with the dimension of 10mm x 5mm is M5 or M6. -
Page 14: Terminal Block Wiring
Terminal Block Wiring • After shutting down the control box and turning off the circuit breaker, connect L2, N2, and PE with the extension cord. • Turn on the circuit breaker. TM Mobile Workstation Manual... - Page 15 TM Mobile Workstation Manual...
- Page 16 The Netherlands IL 60169 U.S.A. Tel: (31)2356-81-300/Fax: (31)2356-81-388 Tel: (1) 847-843-7900/Fax: (1) 847-843-7787 OMRON ASIA PACIFIC PTE. LTD. OMRON ADEPT TECHNOLOGIES, INC. No. 438A Alexandra Road # 05-05/08 (Lobby 2), 4550 Norris Canyon Road, Suite 150, San Ramon, CA 94583 U.S.A.
