- Page 1 USER INSTRUCTIONS OptiCell Alternating pressure air mattress systems 2 NX • 2 PRO • 3 NX • 3 PRO • 4 NX • 4 PRO...
-
Page 3: Introduction
Thank you for choosing OptiCell. We aim to ensure you are satis ed with your mattress in terms of both performance and durability. We therefore kindly ask you to spend a few minutes reading through these user instructions to ensure you can take the best possible care of your mattress. If you have any questions that are not answered in these user instructions, please contact us at Järven Health Care. -
Page 4: Safety Information
SAFETY DIRECTIVES Please read the following information before using the air mattress. • The product should only be used in accordance with these user instructions. • The product should not be combined, tted or repaired using any parts, accessories or spare parts, other than those speci ed in these user instructions or other documentation from Järven Health Care. -
Page 5: Table Of Contents
CONTENTS Introduction ..........................3 Safety information ........................4 Table of contents ........................5 General information about OptiCell air mattress systems ......6 Commissioning ........................6 The OptiTex Cover ........................7 Fire safety .............................7 Intended use ..........................8 How it works ..........................9 Before using it ...........................10 Handling ............................11 Air hose connection ......................12 Hand test ............................13 Maintenance –... -
Page 6: General Information About Opticell Air Mattress Systems
ABOUT OPTICELL ALTERNATING PRESSURE AIR MATTRESS SYSTEMS IN GENERAL OptiCell alternating pressure air mattress systems have been designed as an aid for the prevention and treatment of pressure sores up to and including bedsore category 4. Mattresses are available in di erent heights, see respective user weights under Intended use p 6. -
Page 7: The Optitex Cover
® THE OPTITEX COVER OptiTex® is a bi-stretch hygiene layer whose structure boosts the pressure relieving properties of the mattress. The OptiTex™ cover has an integrated, waterproof cable holder that minimises the risk of spread of bacteria, keeps the cable out of the way, and also protects the air hoses. The top and bottom sides of the cover are made of PU material. -
Page 8: Intended Use
OptiCell 3 PRO Replacement mattress (TPU Cells+foam) 18 cm 230 kg Mattress Mattress type Height Max load OptiCell 2 NX Bed mattress (Nylon cells) 13 cm 210 kg OptiCell 2 PRO Replacement mattress (Nylon cells+foam) 18 cm 230 kg OptiCell 2 PRO... -
Page 9: How It Works
FUNCTION DESCRIPTION OptiCell air mattress systems are designed to enable individual cells to be disconnected simply while a user is lying on the mattress. The mattress has three di erent types of cells. • Main cells – air cells (13/16/18 or 20 cm high) that are mainly intended to sit under the head of the user with continuous air pressure. -
Page 10: Before Using It
BEFORE USE DELIVERY AND UNPACKING OptiCell mattresses are delivered rolled up in cardboard. Avoid opening the packaging with a knife to prevent risk of damage to the product. First check that the product is not damaged. In the event of transport damage, see page 17. An OptiCell air mattress system contains •... -
Page 11: Handling
HANDLING The mattress can be used immediately on delivery. It takes around 15 minutes to in ate the mattress and this should be done without anyone lying on the mattress. AUTOMATIC SETTING When you start the pump, it is set to automatically adjust the air pressure to the weight, height, location, movement and position of the user in the bed. -
Page 12: Air Hose Connection
AIR HOSE CONNECTION Connect the air hoses to the pump To connect and remove the air hoses, and to remove the protective cover on the air connector, press in the clips on both sides of the connector. This releases the catches that hold the connector in place. -
Page 13: Hand Test
HAND TEST Check that the mattress is working with a simple hand test. Checking the mattress is providing the correct therapeutic treatment is done via a simple hand test. This test should be done every time a mattress is used to enable any problems with the air pressure in the mattress to be detected. -
Page 14: Maintenance - Inspection And Troubleshooting
CARE – INSPECTION AND TROUBLESHOOTING INSPECTION OF YOUR PRESSURE AIR MATTRESS An inspection plan ought to be established for the mattress to ensure your pressure air mattress stays in good condition and lasts as long as possible. If you would like help with this, please contact us at Järven Health Care. -
Page 15: Maintenance - Cleaning
MAINTENANCE – CLEANING CLEANING THE PUMP Use a damp cloth and gentle cleaning agent to clean the pump, pump housing and electric cable. CLEANING THE COVER The top and bottom of the cover are made of PU material. If necessary, the whole cover (both the top and bottom surfaces) can be wiped clean with a disinfectant agent. -
Page 16: Overview - Pump Oc20 2.0

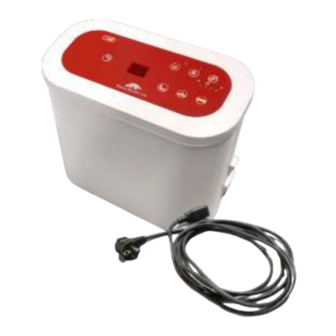

+2 +3 OVERVIEW – PUMP 2 NX AND 2 PRO (PUMP OC20 V2) The switch is on the right side of the pump. Press ON/OFF to start/stop the pump. In ating the mattress normally takes about 15 minutes. The light will come on when the mattress is ready to use. - Page 17 SPECIFICATIONS Pump OC20 2.0 Speci cations Size 28.0 x 11.0 x 20.5 cm Weight 2.6 kg Pressure area 20 ~ 70 mm Hg Cycle time 10 minutes System Speci cations Classi cation Class II; IPXO, No AP/APG; Type BF** Applicable part Mattress Voltage ~230 V AC/50 Hz...
-
Page 18: Overview - Pump Oc30 2.0
+2 +3 OVERVIEW – PUMP 4 PRO , 3 NX AND 3 PRO (PUMP OC30 2.0) The switch is on the right side of the pump. Press ON/OFF to start/stop the pump. In ating the mattress normally takes about 15 minutes. The light will come on when the mattress is ready to use. - Page 19 SPECIFICATIONS Pump OC30 2.0 Speci cations Size 28.0 x 11.0 x 20.5 cm Weight 3.4 kg Pressure area 20 ~ 70 mm Hg Cycle time 10, 15, 20 or 30 minutes System Speci cations Classi cation Class II; IPXO, No AP/APG; Type BF** Applicable part Mattress Voltage...
-
Page 20: Overview - Pump Oc40 2.0
OVERVIEW – 4 NX (PUMP OC40 2.0) The switch is on the right side of the pump. Press ON/OFF to start or stop the pump. In ating the mattress normally takes about 15 minutes. The light will come on when the mattress is ready to use. Setting of cycle time. - Page 21 SPECIFICATIONS Pump OC40 (2.0) Speci cations Size 28.0 x 11.0 x 20.5 cm Weight 2.6 kg Pressure area 20 ~ 70 mm Hg Cycle time 5, 10, 15, 20 or 25 minutes System Speci cations Classi cation Class II; IPXO, No AP/APG; Type BF** Applicable part Mattress Voltage...
-
Page 22: Recycling
RECYCING All materials in OptiCell air mattress systems, except for certain parts in the pump, are suitable for energy recovery via combustion at waste to energy power stations. The product does not contain any PVC. PUMP A used OptiCell® pump must not be dismantled, but sent to a recycling station instead. Sort as Electronic Waste. -
Page 23: Other Information
OTHER INFORMATION PRODUCT LIABILITY Product liability refers to the manufacturer's, importer's or seller's statutory liability for any damage caused by the product. The Product Liability Act (EU Directive 85/374 / EEC, Swedish Act SFS 1992: 18) establishes the manufacturer's, importer's or seller's statutory liability for damages for any damage caused by the product. -
Page 24: Accessories
ACCESSORIES, OPTICELL NAME FOR MODEL PRODUCT CODES. 12 960704 003 TPU Cell non ventilating OC 4 NX / 4 PRO 90 cm 12 960704 004 TPU Cell non ventilating OC 4 NX / 4 PRO 105 cm 12 960704 005 TPU Cell non ventilating OC 4 NX / 4 PRO 120 cm 12 960603 003... -
Page 25: Key To Symbols
KEY TO SYMBOLS Product code Serial number Batch number The product is a medical Date of manufacture Name of manufacturer device product = 0-xxx kg This product is CE Read user instructions Bedsore category the Max user weight. marked in accordance before use mattress is suitable up to. - Page 28 OptiCell V2 User instructions. All trademarks are the property of their respective owners. Järven AB reserves the right to update these user instructions if necessary and / or to correct any spelling or factual errors. Additional copies can be ordered from Järven Health Care. Copying for internal use is permitted OptiCell AB, Bromsvägen 3 Phone:...
