BMW
MOTORRAD

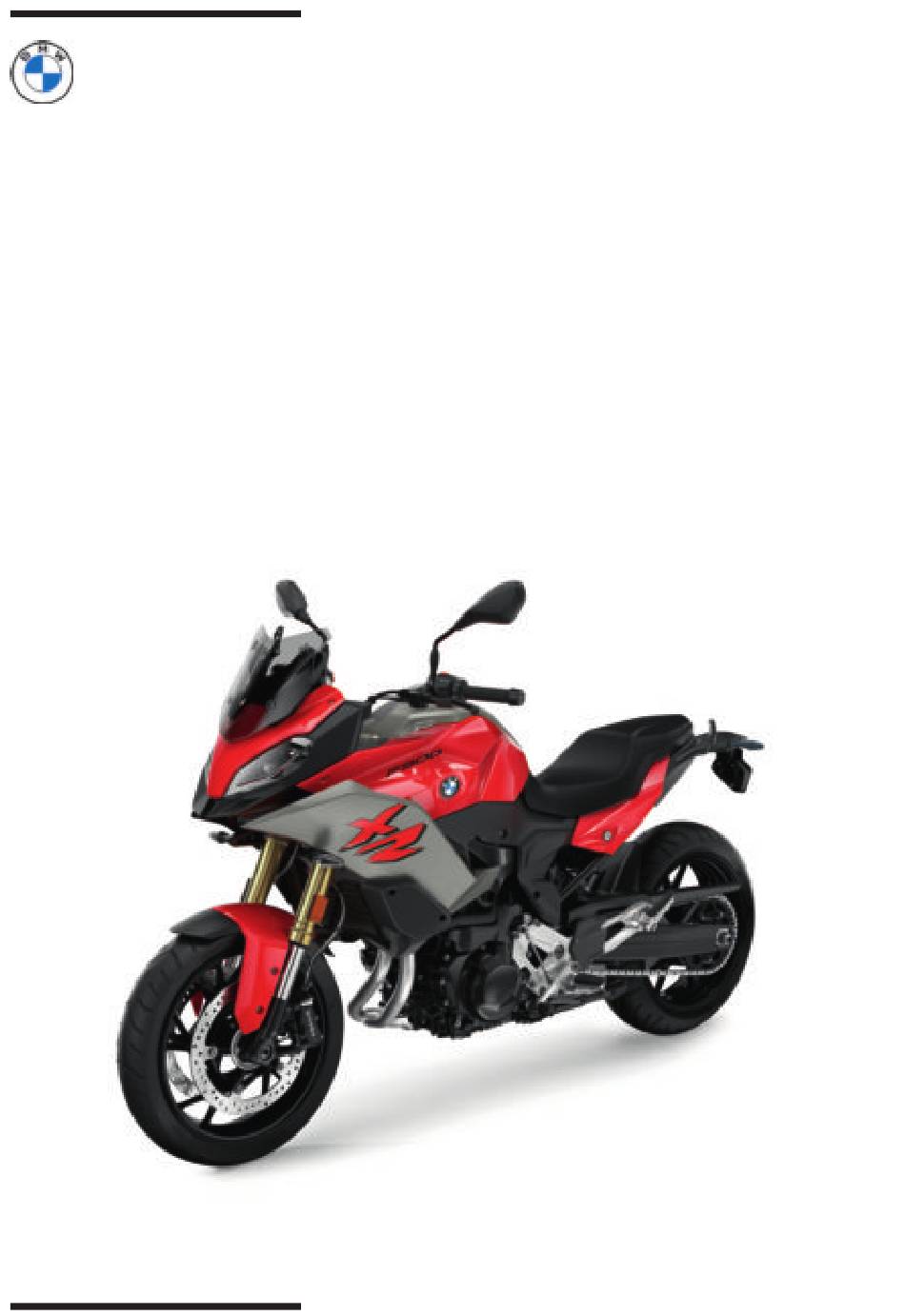

RIDER'S MANUAL
(US MODEL)
F 900 XR
MAKE LIFE A RIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F 900 XR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BMW Motorrad F 900 XR

Summary of Contents for BMW Motorrad F 900 XR

  • Page 1 MOTORRAD RIDER'S MANUAL (US MODEL) F 900 XR MAKE LIFE A RIDE...
  • Page 2 Vehicle data Model Vehicle identification number Color number First registration License plate Retailer data Contact in Service Ms./Mr. Phone number Retailer's address/Phone (company stamp)
  • Page 3 YOUR BMW. We are pleased that you have chosen a BMW Motorrad vehicle and welcome you to the family of BMW riders. Familiarize your- self with your new vehicle so that you can ride safely and confi- dently in all traffic situations.
  • Page 4 GENERAL Indicator lights INSTRUCTIONS OPERATION Overview Abbreviations and sym- Ignition switch/steer- bols ing lock Equipment Ignition with Key- Technical data less Ride Timeliness of the status EWS Electronic immo- of this manual bilizer Additional sources of Emergency-off switch information Lights Certificates and operat- Hazard warning lights ing permits...
  • Page 5 My Vehicle TECHNOLOGY IN Onboard computer DETAIL Navigation General notes Media Anti-lock braking sys- Phone tem (ABS) Displaying software Traction control version (ASC/DTC) Displaying license in- Dynamic engine formation brake control Dynamic ESA SETTING Riding mode Dynamic Brake Con- Mirrors trol Headlight Tire pressure control...
  • Page 6 CARE BMW Motorrad Service Care products BMW Motorrad Washing the vehicle Service History Cleaning sensitive BMW Motorrad Mo- motorcycle parts bility Services Care of paintwork Maintenance work Paint preservation Maintenance sched- Storing the motorcy- Maintenance confir- Putting the motorcy-...
  • Page 7 INDEX...
  • Page 8 GENERAL INSTRUCTIONS...
  • Page 9 OVERVIEW ABBREVIATIONS AND SYMBOLS EQUIPMENT TECHNICAL DATA TIMELINESS OF THE STATUS OF THIS MANUAL ADDITIONAL SOURCES OF INFORMATION CERTIFICATES AND OPERATING PERMITS DATA MEMORY...
  • Page 10 GENERAL INSTRUCTIONS ATTENTION Special OVERVIEW instructions and pre- Chapter 2 of these operating cautionary measures. Non- instructions will provide you compliance can cause damage with an initial overview of your to the vehicle or accessories motorcycle. All maintenance and warranty claims may be and repair procedures carried denied as a result.
  • Page 11 Optional equipment. offered by BMW and selected BMW Motorrad op- optional accessories (OA). This tional equipment is explains why the manual may already completely in- also contain descriptions of stalled during motor- equipment which you have not cycle production. ordered. Please note, too, that your motorcycle might not be Optional accessories.
  • Page 12 GENERAL INSTRUCTIONS Internet from your BMW Motorrad re- tailer or other qualified service The rider's manual for your partner or specialist workshop. vehicle, the operating and in- stallation instructions for op- The information on the vehicle tional accessories and general...
  • Page 13 Internet. locations that store the vehicle The vehicle owner can have user's personal data. a BMW Motorrad retailer or These locations may be: other qualified service partner or specialist workshop read out the data stored in the vehicle...
  • Page 14 GENERAL INSTRUCTIONS stored beyond the period in The vehicle data is read out via which the vehicle is operating. the vehicle's legally mandated Electronic components such socket for onboard diagnosis as control units contain com- (OBD). ponents for storing technical Legal requirements for the information.
  • Page 15 The fault memory and event memory. When a vehicle is serviced, data recorder in the vehicle can such as for repairs, servicing be reset by a BMW Motorrad processes, warranty cases and retailer or other qualified quality assurance measures, service partner or specialist...
  • Page 16 GENERAL INSTRUCTIONS Data about the use of Inter- as those for navigation or audio net services. This data can playback. The way the data is processed be stored locally in the ve- further is determined by the hicle or is on a device con- provider of the particular app nected to the vehicle, such used.
  • Page 17 website. The relevant legal in- obtained from the particular formation on data privacy is service provider. also provided there. Personal data may be used in order to provide online services. The data is exchanged over a se- cure connection, i.e. with the vehicle manufacturer's IT sys- tems which are intended for this purpose.
  • Page 18 OVERVIEWS...
  • Page 19 OVERALL VIEW, LEFT SIDE OVERALL VIEW, RIGHT SIDE UNDERNEATH THE SEAT MULTIFUNCTION SWITCH, LEFT MULTIFUNCTION SWITCH, RIGHT INSTRUMENT CLUSTER...
  • Page 20 OVERVIEWS OVERALL VIEW, LEFT SIDE Onboard power socket 186) Seat lock ( Setting the damping 107) Oil filler opening and oil level dipstick ( 153)
  • Page 21 OVERALL VIEW, RIGHT SIDE Spring preload setting 107) Brake fluid reservoir for rear wheel brake 158) Brake fluid reservoir for front wheel brake 157) Vehicle identification number, nameplate (on steering head) Coolant level indicator (behind the side trim pan- el) ( 160)
  • Page 22 OVERVIEWS UNDERNEATH THE SEAT Onboard vehicle tool kit 151) Battery ( 177) Main fuse ( 180) Diagnostic socket 182) Fuses ( 181)
  • Page 23 MULTIFUNCTION SWITCH, LEFT High beams and headlight 10 Multi-Controller Operating elements flasher ( Cruise control ( Hazard warning lights ASC/DTC ( Dynamic ESA ( with LED additional headlight Auxiliary headlights 59). Turn signals ( Horn Rocker button MENU...
  • Page 24 OVERVIEWS MULTIFUNCTION SWITCH, RIGHT Operating heated grips Select riding mode Emergency-off switch Starter button ( 116)
  • Page 25 INSTRUMENT CLUSTER Indicator and warning lights ( Shiftpoint light TFT display ( DWA LED ( with Keyless Ride Indicator light for radio- operated key ( Photodiode (for adjusting brightness of instrument lighting)
  • Page 26 DISPLAYS...

  • Page 27: Table Of Contents

    INDICATOR AND WARNING LIGHTS TFT DISPLAY IN PURE RIDE VIEW TFT DISPLAY IN THE VIEW MENU TFT DISPLAY IN SPORT 1 VIEW INDICATOR LIGHTS...

  • Page 28: Indicator And Warning Lights

    DISPLAYS INDICATOR AND WARNING LIGHTS Turn signal, left ( High beams ( General warning light Turn signal, right ( ASC/DTC ( ABS ( with LED additional headlight Auxiliary headlights 59).

  • Page 29: Tft Display In Pure Ride View

    TFT DISPLAY IN PURE RIDE VIEW Tachometer ( 13 Heated grip settings Speedometer Status line ( 14 Outside temperature Cruise control ( warning ( Speed Limit Info ( 15 Outside temperature Riding mode ( Upshift recommendation Gear display, "N" (Neutral) is displayed in the neutral position.

  • Page 30: Tft Display In The View Menu

    DISPLAYS TFT DISPLAY IN THE VIEW MENU Speedometer 13 Outside temperature Cruise control ( warning ( Speed Limit Info ( 14 Outside temperature Riding mode ( 15 Menu area Status line ( Upshift recommendation Gear display, "N" (Neutral) is displayed in the neutral position.

  • Page 31: Tft Display In Sport 1 View

    TFT DISPLAY IN SPORT 1 VIEW with riding modes Pro Maximum DTC torque re- duction Current DTC torque re- duction Tachometer Maximum braking decel- eration Current braking decelera- tion Current angle of inclina- tion Maximum angle of inclina- tion Unit for displaying RPM: 1000 RPM...

  • Page 32: Indicator Lights

    DISPLAYS Green CHECK OK 1: no mes- INDICATOR LIGHTS sage, values optimal. Layout White circle with small "i" 2: Warnings are indicated by the information. corresponding warning light. Yellow warning triangle 3: Warnings are indicated by the warning message, value not general warning light in combi- optimal.
  • Page 33 White: (---) There is no valid If the icon 2 is active, you can value. Instead of the value, acknowledge this by tilting dashes 5 are displayed. the Multi-Controller to the left. Check Control messages are The evaluation of the indi- dynamically attached as addi- vidual values is possible in tional tabs to the pages in the...
  • Page 34 DISPLAYS Overview of warning indicators Indicator and Display text Meaning warning lights is displayed. Outside temper- ature warning lights up Radio-operated Remote key not yellow. key outside re- in range. ception range lights up Keyless Ride fail- Keyless Ride yellow. ure ( failure! lights up...
  • Page 35 Indicator and Display text Meaning warning lights Anti-theft alarm Anti-theft battery low alarm batt. charge ( capacity low. Anti-theft Anti-theft alarm battery alarm battery discharged discharged. DWA failure Anti-theft alarm system failure. lights up Coolant temper- Coolant temper- yellow. ature too high ature too high! lights up Engine control...
  • Page 36 DISPLAYS Indicator and Display text Meaning warning lights Tire pressure is Tire Press. outside the ap- Monitor. Loss proved tolerance of pressure. range ( " " Transmission fault lights up " " Sensor faulty yellow. or system fault Battery of the tire TPM sensors pressure sensor battery low.
  • Page 37 Indicator and Display text Meaning warning lights lights up. ABS Pro failure ABS Pro fail- ure! flashes ASC/DTC inter- rapidly. vention ( flashes ASC/DTC self-di- slowly. agnosis not com- pleted ( lights up. ASC/DTC Off! switched off Traction con- trol deacti- vated.
  • Page 38 DISPLAYS Indicator and Display text Meaning warning lights Service due Service due! lights up is displayed in yel- Service appoint- yellow. low. ment missed Service over- due!
  • Page 39 Outside temperature The outside temperature is dis- WARNING played in the status line of the Risk of black ice, even TFT display. above 37 °F (3 °C) Engine heat can lead to spuri- Accident hazard ous readings the outside tem- At a low outside temper- perature when the motorcycle ature, icy conditions must...
  • Page 40 Visit a specialist workshop The vehicle voltage is too low. immediately if possible, ideally If you continue riding, the ve- an authorized BMW Motorrad hicle electronics will discharge retailer. the battery. Engine start can no longer be Possible cause: turned on using Keyless Ride.
  • Page 41 BMW Motorrad retailer. possible at a specialist work- shop, preferably an authorized Vehicle voltage critical BMW Motorrad retailer.
  • Page 42 Left auxiliary headlight replaced in full; for details faulty! please contact a specialist Rear left turn workshop, preferably an au- signal faulty! thorized BMW Motorrad re- Rear right turn signal tailer. faulty! License plate light faulty! Have checked by a spe-...
  • Page 43 Contact a specialist work- immediately following the Pre- shop, preferably an authorized Ride-Check. BMW Motorrad retailer. Possible cause: DWA failure The anti-theft alarm battery with anti-theft alarm system no longer has its full capacity.
  • Page 44 Other- quickly as possible by a spe- wise, the engine runs in emer- cialist workshop, preferably an gency operation. authorized BMW Motorrad re- tailer.
  • Page 45 Control messages, there is also Accident hazard window: TIRE PRESSURE Drive slowly and avoid rapid acceleration and passing maneuvers. If possible, have the vehi- cle picked up and the fault eliminated at a specialist workshop, preferably an au- thorized BMW Motorrad re- tailer.
  • Page 46 19 mph (min 30 km/h) For further information about (The RDC sensor transmits the BMW Motorrad tire pres- its signal to the vehicle only sure control (TPC), see the once the minimum speed has...
  • Page 47 Tire pressure is at limit of Tire pressure is outside the approved range approved tolerance range with tire pressure monitor with tire pressure monitor (TPM) (TPM) lights up yellow. lights up yellow. is displayed in yellow. is displayed in yellow. Tire pressure not at Tire pressure not at setpoint.
  • Page 48 BMW Motorrad retailer. rized BMW Motorrad retailer. Possible cause: If you are unsure about the The radio link to the RDC sen- tire's ridability: sors is disrupted.
  • Page 49 Possible cause: shop, preferably an authorized The battery for the tire BMW Motorrad retailer. pressure sensor is no longer Sensor faulty or system fault charged to full capacity. with tire pressure monitor Operation of the RDC is only (TPM) ensured for a limited time.
  • Page 50 Contact a specialist work- agnosis has been completed. shop, preferably an authorized ABS fault BMW Motorrad retailer. lights up yellow. Side stand monitoring faulty lights up yellow. lights up. Side stand monitor- Limited ABS avail- ing faulty.
  • Page 51 ABS at a specialist workshop, function is not available. Ob- preferably an authorized serve additional information BMW Motorrad retailer. on special situations which can lead to ABS fault memory ASC/DTC intervention entries ( 135).
  • Page 52 Do not carry along any ob- Contact a specialist work- jects under the rider's or shop, preferably an authorized passenger's seat. BMW Motorrad retailer. Secure vehicle tools. ASC/DTC switched off Do not damage the rotational lights up. speed sensor.
  • Page 53 ASC/DTC error BMW Motorrad retailer. lights up. D­ESA fault lights up yellow. Traction control failure! Onward journey possible. Ride Spring strut adjust- carefully to the next ment faulty! Onward specialist workshop. journey possible. Ride Possible cause: carefully to next spe- The ASC/DTC control unit has cialist workshop.
  • Page 54 Reserve fuel quantity BMW Motorrad retailer. Hazard warning lights system Approx. 3.7 quarts (Approx. switched on 3.5 l) flashes in green.
  • Page 55 This situation can occur if the shop, preferably an authorized battery was disconnected. BMW Motorrad retailer. The operating and road safety Service due of the vehicle remains un- is displayed in white.
  • Page 56 OPERATION...
  • Page 57 IGNITION SWITCH/STEERING LOCK IGNITION WITH KEYLESS RIDE EWS ELECTRONIC IMMOBILIZER EMERGENCY-OFF SWITCH LIGHTS HAZARD WARNING LIGHTS TURN SIGNALS TRACTION CONTROL (ASC/DTC) ELECTRONIC CHASSIS AND SUSPENSION ADJUST- MENT (D-ESA) RIDING MODE PRO RIDING MODE ACTIVE CRUISE CONTROL SHIFTPOINT LIGHT ANTI-THEFT ALARM SYSTEM (DWA) TIRE PRESSURE CONTROL (TPC) HEATED GRIPS SEAT...

  • Page 58: Ignition Switch/Steering Lock

    Parking lights and all function Please contact a specialist circuits are turned on. workshop for this purpose, Engine can be started. preferably a BMW Motorrad Pre-Ride-Check is carried out. retailer. 116) ABS self-diagnosis is per- Locking the steering lock formed.

  • Page 59: Ignition With Keyless Ride

    Turning off the ignition You are provided with one radio-operated key and one spare key. Should you lose your keys, refer to the notes regard- ing the electronic immobilizer (EWS) ( 57). The ignition, fuel filler cap and anti-theft alarm system are ac- tivated with the radio-operated key.
  • Page 60 OPERATION Locking the steering lock Version 1: Requirement Briefly press button 1. Parking lights and all function Handlebars are turned to the circuits are turned on. left. The radio-operated key is with LED additional head- within reception range. light Auxiliary LED headlights are turned on.
  • Page 61 operated key into the ring an- tenna under the seat. The ignition can be deacti- vated in two ways. Version 1: Removing the seat ( 76). Briefly press button 1. Insert spare key or the dead Light is switched off. folded-in radio-operated Steering lock is not locked.
  • Page 62 OPERATION Replacing the battery of the radio-operated key Requirement The key fob transmitter does not react because the battery is weak. Remote key battery low. Limited cen- tral locking function. Press button 1. Change battery. Key bit folds open. Press battery cover 2 upward. Remove battery 3.

  • Page 63: Ews Electronic Immobilizer

    If you lose an ignition key, you Battery type can have it disabled by your BMW Motorrad retailer. When For Keyless Ride radio-oper- having a radio-operated key ated key disabled you should also bring CR 2032 all of the motorcycle's remain- Install battery cover 2.

  • Page 64: Emergency-Off Switch

    OPERATION EMERGENCY-OFF SWITCH Engine turned off Operating position Emergency-off switch LIGHTS Low beams and parking lights WARNING The parking lights come on au- Operation of the emergency tomatically when the ignition is ON/OFF switch when riding switched on. Danger of falling due to The parking lights are a blocking of rear wheel strain on the battery.
  • Page 65 High beams and headlight The vehicle lights light up for flasher one minute and then turn off Turning on the ignition automatically. This can be used, for example, 52). to illuminate the path to your front door after the vehicle is parked.

  • Page 66: Hazard Warning Lights

    OPERATION The auxiliary headlights If a turn indicator button are approved for use as is pressed when hazard fog lights and may only be warning lights are on, the turn used in poor weather condi- indicator function replaces the tions. Comply with the country- hazard warning light function specific road traffic regulations.

  • Page 67: Traction Control (Asc/Dtc)

    100 km/h): after a speed-de- pendent distance is covered or during acceleration. Speed is above 60 mph (100 km/h): after turn signals blink five times. When button 1 is pushed to the right or left and held slightly longer, the turn signals Press button 1 to the left to will only turn off automatically turn on the left-side turn sig-...
  • Page 68 OPERATION Immediately after pressing but- goes out, and if self-diag- ton 1, the ASC/DTC system nosis has not been com- status is displayed. pleted, it begins to flash. lights up. Possible ASC system status ON is displayed. Release button 1 after Possible ASC system status changeover of the status.

  • Page 69: Electronic Chassis And Suspension Adjustment (D-Esa)

    ELECTRONIC CHASSIS AND SUSPENSION ADJUSTMENT (D-ESA) with Dynamic ESA Adjustment options Using the electronic chassis and suspension adjustment Dynamic ESA, you can adjust The chassis and suspension the damping on the rear wheel adjustment options for damp- comfortably to the road sur- ing 2 and spring preload 3 are face.
  • Page 70 OPERATION Adjusting spring preload To adjust the damping rate: Repeatedly press button 1 briefly until the desired setting is displayed. The damping cannot be adjusted while the motor- cycle is being ridden. To adjust the spring preload: Starting the engine ( 116).

  • Page 71: Riding Mode

    Dynamic ESA RIDING MODE The chassis and suspension ad- Use of the riding modes justments can also be adapted BMW Motorrad has developed in the selected scenario. riding scenarios for your mo- Riding mode preselection torcycle from which you can...
  • Page 72 OPERATION Two to a maximum of four rid- Select riding mode ing modes can be added to the Turning on the ignition riding mode preselection. 52). Factory setting: RAIN, ROAD, DYNAMIC and DYNAMIC PRO Configuring the riding mode preselection with riding modes Pro Turning on the ignition 52).

  • Page 73: Pro Riding Mode

    The new riding mode is acti- vated while the motorcycle is in motion under the following conditions: The throttle grip is in Neutral. Brake is not engaged. Cruise control is deactivated. The riding mode selected and its associated engine charac- teristics, ABS, ASC/DTC and Press button 1 repeatedly un- Dynamic ESA settings are re-...

  • Page 74: Active Cruise Control

    OPERATION Riding mode settings reset Configuring the DYNAMIC 67). PRO riding mode Select and confirm. Reset The following factory settings apply to DYNAMIC PRO rid- ing mode DYNAMIC PRO DYNAMIC system is se- Engine DYNAMIC Engine lected. The current setting is ACTIVE CRUISE CONTROL displayed as a diagram 1 with with cruise control...
  • Page 75 Display while adjusting Saving the speed (Speed Limit Info active) Briefly push button 1 forward. The symbol 1 for the cruise Adjustment range of the control is displayed in the cruise control Pure Ride view and in the 19...130 mph (30...210 km/h) upper status line.
  • Page 76 OPERATION The speed increases continu- Decelerating ously. If button 1 is no longer pressed, the speed reached is maintained and saved. Briefly press button 1 back- ward. Speed is reduced by 1 mph (1.6 km/h) each time the but- ton is pressed. Briefly push button 1 forward.

  • Page 77: Shiftpoint Light

    you might have wanted to slow The speed is reduced continu- down to a lower speed. ously. If button 1 is no longer The indicator light for pressed, the speed reached is cruise control illuminates. maintained and saved. Turning off cruise control Deactivating the cruise control Actuate the brakes, coupling...

  • Page 78: Anti-Theft Alarm System (Dwa)

    OPERATION Setting shifting flash Confirmation tone sounds twice (if programmed). Turn on the Shift light The anti-theft alarm system is function. Go to menu active. Settings with Keyless Ride hicle settings Con- (under figuration Shift light The following settings are available: Start RPM End RPM...
  • Page 79 Turn signals flash three times. nals blink. The type of alarm Confirmation tone sounds tone can be set by an autho- three times (if programmed). rized BMW Motorrad retailer. Motion sensor is with Keyless Ride deactivated. Alarm signal with anti-theft alarm system...
  • Page 80 OPERATION Light signals on DWA LED: approximately 30 seconds if "activation after ignition off" is 1 blink: motion sensor 1 2 blinks: motion sensor 2 programmed. 3 blinks: ignition turned on Turn signals flash once. with unauthorized ignition key Confirmation tone sounds 4 blinks: anti-theft alarm sys- once (if programmed).

  • Page 81: Tire Pressure Control (Tpc)

    for example, in the event of at- HEATED GRIPS tempted wheel theft or towing with heated grips away. Operating heated grips Deactivate the tilt sensor Starting the engine ( 116). when transporting the ve- The heated grips option hicle to avoid triggering the can only be activated DWA.

  • Page 82: Seat

    OPERATION High heater output Medium heater output Low heater output If no further changes are made, the selected heating Lift seat 2 in arrow direc- level is set. tion 4. To turn off the heated grip, Pull seat 2 in arrow direc- press button 1 repeatedly un- tion 5 from the holder 3.
  • Page 84 TFT DISPLAY...
  • Page 85 GENERAL NOTES PRINCIPLE PURE RIDE VIEW GENERAL SETTINGS BLUETOOTH MY VEHICLE ONBOARD COMPUTER NAVIGATION MEDIA PHONE DISPLAYING SOFTWARE VERSION DISPLAYING LICENSE INFORMATION...

  • Page 86: General Notes

    Operate these systems or BMW Motorrad devices only if the traffic Connected App situation allows. With the BMW Motorrad Con- If necessary, stop and oper- nected App, you can call up ate the system or devices at information about the vehicle a standstill.

  • Page 87: Principle

    Controller Turn the Multi-Controller up: On some mobile devices, Move the cursor up in lists. e.g. with operating sys- Make settings. tem iOS, the BMW Motorrad Increase volume. Connected App must be called Turn the Multi-Controller up before using. down: Currentness of this manual Move the cursor down in lists.
  • Page 88 TFT DISPLAY Rocker button MENU Operating instructions in the functions main menu Navigation instructions are displayed as a dialog if the menu has Navigation not been called up. Operation of the MENU rocker button is temporarily restricted. Briefly press the MENU up: In the menu view: move up one hierarchy level.
  • Page 89 Operating instructions in Show Pure Ride view submenus Press and hold the top MENU In addition to the operating rocker button. instructions in the main menu, Switching functions on and there are additional operating instructions in submenus. Some items are preceded by a box.
  • Page 90 TFT DISPLAY Going to a menu Moving the cursor in lists Show Pure Ride view ( 83). Going to a menu ( 84). Briefly press button 2 down- To move the cursor down ward. in lists, turn the Multi-Con- The following menus can be troller 1 down until the de- called up: sired entry is marked.
  • Page 91 Calling up the last menu used System status displays In the Pure Ride view: press The system status is displayed and hold the bottom of the in the lower menu area when a MENU rocker button. function has been turned on or The last used menu is called switched off.
  • Page 92 TFT DISPLAY with tire pressure monitor Riding time 1 (TPM) In addition, information from Riding time 2 the tire pressure control can be displayed. Break 1 Selecting status line content 86). Break 2 (average) Speed 1 (average) Speed 2 with tire pressure monitor (TPM) Tire pressure Press and hold button 1 to...

  • Page 93: Pure Ride View

    1000 revolutions per or off minute Requirement The vehicle is connected to a compatible mobile end de- vice. The BMW Motorrad Con- nected app is installed on the mobile end device. displays Speed Limit Info the currently permitted max- imum speed insofar as this...

  • Page 94: General Settings

    TFT DISPLAY Range Upshift recommendation The range 1 indicates how far The upshift recommendation you can ride with the remaining in the Pure Ride view 1 or in fuel. This distance is calculated the status line 2 indicates the based on average consumption best time for an upshift from and the remaining fuel quantity.
  • Page 95 Adjusting the date format The following languages can be set: Call up menu Settings German System settings Date English (UK) and time Date format English (US) Select desired setting. Spanish Confirm setting. French Setting the clock Italian Turning on the ignition Dutch 52).

  • Page 96: Bluetooth

    On some mobile devices, faults are possible as with any e.g. with operating sys- other wireless technology. tem iOS, the BMW Motorrad Connections can be subject Connected App must be called to interference, can be briefly up before using.
  • Page 97 The Bluetooth function of the Select Mobile device device must be enabled confirm. The device must be "visible" Select Pair new mobile to others and confirm. device The device must support the Mobile end devices are A2DP profile searched for. Other Bluetooth-capable de- During the pairing, the vices must be switched off...
  • Page 98 TFT DISPLAY the troubleshooting chart Deleting connections in the Technical data chap- Call up menu Settings ter may provide assistance. Connections Select 207) Delete connec- tions Connect the rider's helmet To delete an individual con- and the passenger helmet nection, select the connection Pairing ( 91).

  • Page 99: My Vehicle

    MY VEHICLE Start screen Check Control display Coolant temperature Range ( Odometer Service display ( Rear tire pressure 161) Voltage of the vehicle electrical system 177) Front tire pressure 161)
  • Page 100 TFT DISPLAY Operating instructions The following screens are in- cluded in the My Vehicle menu: MY VEHICLE ONBOARD COMPUTER TRIP COMPUTER with tire pressure monitor (TPM) TIRE PRESSURE SERVICE REQUIREMENTS CHECK CONTROL MESSAGE present) Operating instructions 1: tabs Further information on the tire that show how far to the left pressure and Check Control or right you can scroll.
  • Page 101 Service display If the time remaining until the next service is less than a month, or if the next service is due within 600 mi (1000 km), a white Check Control message is displayed.

  • Page 102: Onboard Computer

    TFT DISPLAY Press MENU rocker button ONBOARD COMPUTER down. Calling up the on-board Select Automatic reset computer Reset all values Call up the My vehicle confirm. menu. is se- Automatic reset Scroll to the right until the lected, the travel on-board menu ONBOARD COMPUTER computer is automatically re-...
  • Page 103 BMW Motorrad Con- On some mobile devices, nected app. It is not possible e.g. with operating sys- to create new favorites on the tem iOS, the BMW Motorrad TFT display. Connected App must be called Go to the Navigation up before using.

  • Page 104: Media

    TFT DISPLAY Entering special destinations Ending route guidance Special destinations, e.g. land- Call up menu Navigation marks, can be displayed on Active route guidance Select the map. End route guidance Call up menu and confirm. Navigation POIs Switching spoken instructions The following locations can be on or off selected:...

  • Page 105: Phone

    Shuffle Select Repeat Call up the menu. Media (current title) or BMW Motorrad recom- mends setting the volume PHONE for media and conversations via Prerequisite mobile end devices to the max- The vehicle is connected to a imum before starting a journey.

  • Page 106: Displaying Software Version

    TFT DISPLAY Mute DISPLAYING LICENSE INFOR- The microphone in the helmet MATION can be muted during active Call up menu Settings conversations. formation Licenses Conversations with multiple users A second telephone call can be accepted during a conversation. The first conversation will be put on hold.
  • Page 108 SETTING...
  • Page 109 MIRRORS HEADLIGHT WINDSHIELD CLUTCH BRAKE SPRING PRELOAD DAMPING...

  • Page 110: Mirrors

    Slide the protective cap 1 up checked by a specialized work- over the bolted connection on shop, preferably by an autho- the mirror arm. rized BMW Motorrad retailer. Loosen nut 2. Turn the mirror arm into the desired position. Tighten the nut to the speci- fied torque while holding the mirror arm in place.

  • Page 111: Windshield

    Adjusting the headlight range If the spring preload adjust- WARNING ment is no longer able to main- Adjusting the windshield tain the correct beam height to while driving avoid dazzling oncoming traffic Accident hazard owing to high vehicle payloads: Only adjust the windshield Adjust the height of the head- when the motorcycle is sta- light beam throw at the ad-...

  • Page 112: Brake

    SETTING WARNING Adjusting the brake lever while driving Risk of accident Do not attempt to adjust the brake lever unless the motorcycle is at a standstill. Turn the adjusting screw 1 clockwise to increase distance between clutch lever and han- dlebar grip.

  • Page 113: Spring Preload

    To increase the spring SPRING PRELOAD preload, rotate the adjustment without Dynamic ESA wheel 1 clockwise using the Setting onboard vehicle tool kit. It is essential to set the spring To reduce the spring preload, preload at the rear wheel to rotate the adjustment wheel 1 suit the load carried by the counterclockwise using the...
  • Page 114 SETTING A rough road requires softer To reduce damping, turn the damping than a smooth road. adjustment screw 1 counter- An increase in spring preload clockwise. requires firmer damping, a Basic setting of rear reduction in spring preload wheel damping requires softer damping.
  • Page 116 RIDING...
  • Page 117 SAFETY INSTRUCTIONS REGULAR CHECK STARTING BREAKING IN SHIFTING SHIFTPOINT LIGHT BRAKES PARKING THE MOTORCYCLE REFUELING FASTENING MOTORCYCLE IN PLACE FOR TRANS- PORTATION...

  • Page 118: Safety Instructions

    This applies even to short data). journeys, and to every season of the year. Your authorized WARNING BMW Motorrad retailer will be happy to advise you and has When cornering with low- the correct clothing for every ered motorcycles, motor- purpose.
  • Page 119 the spring preload should be also see the Accessories adjusted accordingly. 190) chapter. Payload per case Correct loading WARNING max 11 lbs (max 5 kg) Reduced riding stability with topcase caused by overloading and Observe the maximum uneven loading payload and maximum speed; Accident hazard also see the Accessories Do not exceed the gross...
  • Page 120 RIDING Risk of poisoning Exhaust gas contains carbon WARNING monoxide, which is colorless Opening the radiator cap and odorless but highly toxic. Risk of burning Do not open the radiator WARNING cap when it is hot. Check the coolant level ex- Harmful exhaust gas clusively at the expansion Danger of suffocation...

  • Page 121: Regular Check

    Danger of overheating Adjusting damping at the rear wheel ( 108). ATTENTION with Dynamic ESA Adjusting damping ( 63). Engine idling for a lengthy period while at a standstill Before every journey: Overheating due to insuf- Check operation of the brake ficient cooling;...

  • Page 122: Starting

    RIDING STARTING Starting the engine ATTENTION Sufficient transmission gear- box lubrication only when the engine is running. Transmission damage Press starter button 1. Do not allow the motorcycle The starting procedure is to roll for longer periods or automatically canceled if push it over longer distances the battery voltage is too low.
  • Page 123 After a longer standstill of the The self-diagnosis routine vehicle, an animation is dis- is determining whether played during the system start. BMW Motorrad ABS is ready Phase 2 for operation. The self- The general warning light diagnosis routine launches switches from red to yellow.
  • Page 124 The self-diagnosis rou- min 3 mph (min 5 km/h)) tine checks whether the If an ASC error is indicated fol- BMW Motorrad ASC is lowing completion of the ASC ready for operation. The self-diagnosis routine: self-diagnosis routine runs You may continue riding.

  • Page 125: Breaking In

    If a DTC fault is displayed after The self-diagnosis routine the DTC self-diagnosis is com- is determining whether pleted: BMW Motorrad DTC is ready You may continue riding. for operation. The self-diagno- Please note that the DTC sis runs automatically when you function is restricted or is not switch on the ignition.

  • Page 126: Shifting

    RIDING Observe mileage, after which the running-in check should WARNING be performed. Loss of adhesion of new Mileage until first run- tires on wet roads and at ning-in check extreme angles Accident hazard 311...746 miles Always think well ahead and (500...1200 km) avoid extreme angles.

  • Page 127: Shiftpoint Light

    Function RPMs and attempt to shift gears without clutch control, it can cause a strong load- change response. BMW Motorrad recommends clutch control for shifting gears in these riding situa- tions. Use of the Pro Gear Shift As- sistant should be avoided at...

  • Page 128: Brakes

    The front 72) chapter. wheel can lock up. Locking up of the front wheel BRAKES is prevented by BMW Motorrad ABS. How do you achieve the shortest braking distance? Descending mountain passes The dynamic load distribution...

  • Page 129: Parking The Motorcycle

    Falling cannot be excluded Although ABS Pro represents WARNING valuable support and an enor- Poorer braking action due to mous safety advantage for the moisture and dirt rider when braking in the in- Accident hazard clined position, it by no means Brake until brakes are dry or redefines the physical riding clean;...

  • Page 130: Refueling

    RIDING ATTENTION ATTENTION Poor ground conditions in Poor ground conditions in area of stand area of stand Component damage cause by Component damage cause by tipping over tipping over Always check that the Always check that the ground under the stand is ground under the stand is level and firm.
  • Page 131 ATTENTION of downtime. Your authorized Contact of fuel and plastic BMW Motorrad retailer can surfaces provide you with more detailed Damage to surfaces (become information. unattractive or cloudy)
  • Page 132 RIDING is resting on a firm and level fuel reserve so that the new support surface. fill level is detected and the with center stand fuel reserve indicator light is Make sure the ground is level switched off. and firm and put the motorcy- The "usable fuel quantity"...
  • Page 133 with Keyless Ride Turning off the ignition WARNING 54). Fuel is highly flammable After the ignition is Fire and explosion hazard switched off, the fuel filler Do not smoke. Never bring cap can be opened within the a naked flame near the fuel specified run-on time even tank.
  • Page 134 RIDING Open fuel filler cap com- If refueling is carried out pletely. after running on fuel re- serve, the resulting filling ca- Version 2 pacity must be greater than the with Keyless Ride fuel reserve so that the new Requirement fill level is detected and the After the end of the after-run fuel reserve indicator light is...

  • Page 135: Fastening Motorcycle In Place For Trans- Portation

    Keyless Ride The fuel filler cap cannot be opened. Have the defect rectified as quickly as possible by a spe- cialist workshop, preferably an authorized BMW Motorrad re- Position the emergency re- tailer. lease 2. Install screws 1. FASTENING MOTORCYCLE...
  • Page 136 RIDING ATTENTION ATTENTION Motorcycle tips to the side Pinching of components Component damage when raising Do not pinch components, Component damage cause by e.g. brake lines or wiring tipping over Secure the motorcycle harnesses. against tipping to the Fasten the front luggage side, preferably with the straps on both sides on the assistance of a second...
  • Page 138 TECHNOLOGY IN DETAIL...
  • Page 139 GENERAL NOTES ANTI-LOCK BRAKING SYSTEM (ABS) TRACTION CONTROL (ASC/DTC) DYNAMIC ENGINE BRAKE CONTROL DYNAMIC ESA RIDING MODE DYNAMIC BRAKE CONTROL TIRE PRESSURE CONTROL (RDC) GEAR SHIFT ASSISTANT ADAPTIVE HEADLIGHTS...

  • Page 140: General Notes

    At this of the road. Gravel, ice, snow point, the BMW Motorrad ABS and wet roads offer a consider- must assume extremely low ably poorer friction coefficient...
  • Page 141 Apart from problems with the BMW Motorrad ABS? BMW Motorrad ABS, unusual The BMW Motorrad ABS en- riding conditions can also sures riding stability on any sur- cause a fault memory entry to face within the limits of riding be generated: physics.
  • Page 142 How important is regular Further development of ABS maintenance? to ABS Pro with riding modes Pro WARNING In the past, the BMW Motorrad ABS system provided for Brake system not regularly a very high level of safety serviced while braking during straight- Accident hazard ahead riding.

  • Page 143: Traction Control (Asc/Dtc)

    ABS torque when the slip limit is ex- control is more uniform. ceeded. BMW Motorrad ASC/DTC is Advantages for the rider designed as an assistance sys- The advantages of ABS Pro for tem for the rider and for riding the rider are sensitive response on public roads.
  • Page 144 DYNAMIC PRO before the fault memory entry BMW Motorrad recommends will be displayed. that you respond to the front Under the following un- wheel lifting off by letting off...

  • Page 145: Dynamic Engine Brake Control

    Using a ride height sensor, Hard brake onset in sporty Dynamic ESA detects move- riding style. ments of the chassis and Like the BMW Motorrad DTC suspension and responds traction control, the dynamic to them by adjusting the engine brake control compares damper valve.

  • Page 146: Riding Mode

    TECHNOLOGY IN DETAIL Dynamic ESA calibrates itself For each of these riding modes, at regular intervals to ensure there is a coordinated setting that the system is operating for the ABS and ASC⁄DTC correctly. systems, the dynamic engine brake control and the throttle Adjustment options response.
  • Page 147 The rear wheel lift-off detec- In the ASC setting ROAD, the tion is reduced in DYNAMIC ASC intervenes later than in riding mode to achieve a RAIN riding mode. Spinning greater braking effect. of the rear wheel without traction is avoided wherever In the DYNAMIC PRO riding possible.

  • Page 148: Dynamic Brake Control

    TECHNOLOGY IN DETAIL the DTC setting corresponds to DYNAMIC BRAKE CONTROL the riding mode. with riding modes Pro In the DYNAMIC PRO setting Dynamic Brake Control of the DTC, the DTC can be set function differently. The Dynamic Brake Control Switchover function helps the rider in the Riding modes can be changed...

  • Page 149: Tire Pressure Control (Rdc)

    If the gas is shut off (throt- Before initial reception of the tle position <5%) during the tire pressure, is shown in intervention of the Dynamic the display for each tire. The Brake Control, the engine sensors continue to transmit torque required by the ABS the measured readings for brake system will be restored.

  • Page 150: Gear Shift Assistant

    TECHNOLOGY IN DETAIL The tire pressures are Example shown in the display with temperature compen- The following value is indi- sation and are always based cated in the display: on the following tire air tem- 33.4 psi (2.3 bar) perature: The shortfall is thus: 68 °F (20 °C) 2.9 psi (0.2 bar)
  • Page 151 Benefits change. The load factor (throt- tle grip position) should remain 70-80 % of all gearshifts can constant both prior to and dur- be performed without using the clutch. ing execution of shifts using Less movement between pi- the Gear Shift Assistant Pro. lot and pillion due to shorter Changing the accelerator twist- gear-change intervals.

  • Page 152: Adaptive Headlights

    TECHNOLOGY IN DETAIL ADAPTIVE HEADLIGHTS with Adaptive Lights Function In addition to the low beams, high beams and daytime run- ning lights or parking lights, the headlight is equipped with sep- arate LED elements with their own reflectors. Depending on the angle, the LED elements are also switched on for the low beams in order to improve...
  • Page 154 MAINTENANCE...
  • Page 155 GENERAL NOTES ONBOARD VEHICLE TOOL KIT SERVICE TOOL SET FRONT WHEEL STAND REAR-WHEEL STAND ENGINE OIL BRAKE SYSTEM CLUTCH COOLANT TIRES RIMS WHEELS DRIVE CHAIN LIGHT SOURCE JUMP-STARTING BATTERY FUSES DIAGNOSTIC SOCKET...

  • Page 156: General Notes

    During ist workshop, preferably your installation, a new microencap- authorized BMW Motorrad re- sulated screw must be used. tailer. Therefore, before removal, ensure that you have suitable tools for cleaning the thread and have a replacement screw.

  • Page 157: Onboard Vehicle Tool Kit

    Attaching the front wheel Key range: 14 mm stand Adjusting the mirror arm 104). ATTENTION Torx wrench, T25/T30 Use of the BMW Motorrad T25 on short end, T30 on front wheel stand without an long end auxiliary stand Keys Component damage cause by...

  • Page 158: Rear-Wheel Stand

    For a description of the cor- rect installation, please re- fer to the instructions for the rear-wheel stand. BMW Motorrad offers a suit- able auxiliary stand for each For a description of the cor- motorcycle. Your authorized rect installation, please re-...

  • Page 159: Engine Oil

    BMW Motorrad recommends ENGINE OIL the use of a suitable auxiliary Checking the engine oil level stand. with center stand ATTENTION Make sure the surface is level and firm and place the mo- Misinterpretation of the oil torcycle on its center stand at filling quantity, as the oil operating temperature.
  • Page 160 MAINTENANCE Place oil dipstick on oil filler BMW Motorrad recom- opening, but do not insert. mends occasionally check- Remove the oil level dipstick ing the motor oil after a jour- and check oil level. ney of at least 31 mi (50 km) in order to reduce the environ- mental impact.

  • Page 161: Brake System

    Have the brakes checked by a specialist workshop, preferably an authorized Front brake-pad wear BMW Motorrad retailer. limit Checking the front brake pad min 0.04 in (min 1.0 mm) thickness (Only friction material without Park the motorcycle, making carrier plate.
  • Page 162 In order to ensure the oper- at a specialist workshop, ating reliability of the brake preferably an authorized system, make sure that the BMW Motorrad retailer. brake pads are not worn be- yond their minimum thick- Checking the rear brake pad ness.
  • Page 163 Checking the front brake fluid level WARNING Insufficient or contaminated brake fluid in the brake fluid reservoir Considerably reduced braking power caused by air, dirt or Check brake fluid level at water in the brake system brake fluid reservoir for front Stop riding immediately until wheel brake 1.
  • Page 164 If the brake fluid level falls be- low the approved level: Have the defect rectified as quickly as possible by a spe- cialist workshop, preferably an authorized BMW Motorrad re- tailer. Checking the rear brake fluid level Check the brake fluid level at...

  • Page 165: Clutch

    BMW Motorrad re- Clutch cable play tailer. CLUTCH 0.12...0.2 in (3...5 mm) (along the outside of the hand lever, Checking clutch function handlebars in the straight- Pull back the clutch lever. ahead position, when the en- A rising force must be per-...

  • Page 166: Coolant

    MAINTENANCE If the correct clutch play can only be set through further unscrewing, contact a spe- cialist workshop, preferably a BMW Motorrad retailer. Checking clutch pedal free play ( 159). Tighten lock nut 1, hold down adjustment screw 2 while do- ing so.

  • Page 167: Tires

    Close cap 1 of expansion Rear tire pressure tank 2. TIRES 42.1 psi (2.9 bar) (with tire cold) Checking tire pressure If tire pressure is too low: Correct tire pressure. WARNING Checking tire tread depth Incorrect tire inflation pres- sure WARNING Poorer handling characteristic of motorcycle, reduction of...

  • Page 168: Rims

    Removing the front wheel approved by BMW Motorrad. Park the motorcycle, making Detailed information can be sure the ground is level and obtained from your authorized firm. BMW Motorrad retailer or on- line at bmw-motorrad.com/service...
  • Page 169 Remove screw 1 and remove Push the brake pads 5 apart wheel speed sensor from the slightly by turning the brake drilled hole. caliper 6 against the brake disc 7. ATTENTION Using hard or sharp-edged objects near the component Component damage Do not scratch components, if necessary tape off or cover.
  • Page 170 MAINTENANCE ATTENTION Unintentional pressing to- gether of brake pads Component damage when mounting the brake caliper or when pressing the brake pads apart Do not actuate the brakes Remove axle screw 8. with the brake caliper re- Loosen left-side axle clamping moved.
  • Page 171 Always have the tightening torques checked by a specialized workshop, preferably an authorized Remove spacer bushing 12 BMW Motorrad retailer. on left side from wheel hub. Installing the front wheel WARNING Use of a wheel which does not comply with series spec-...
  • Page 172 MAINTENANCE Remove front wheel stand and firmly compress front ATTENTION forks. Do not actuate hand- Front wheel installation op- brake lever at the same time. posite the running direction Attaching the front wheel Accident hazard stand ( 151). Observe running direction arrows on tire or rim.
  • Page 173 Pinch bolt on quick-re- Pinch bolt on quick-re- lease axle lease axle Tightening sequence: Tighten Tightening sequence: Tighten the screws 6 times, alter- the screws 6 times, alter- nating between one and the nating between one and the other each time other each time M8 x 35 M8 x 35...
  • Page 174 MAINTENANCE Brake caliper on tele- Wheel speed sensor at scopic forks front on fork M10 x 65 M6 x 16 Thread-locking compound: 28 lb/ft (38 Nm) micro-encapsulated Remove adhesive tape from wheel rim. 6 lb/ft (8 Nm) Remove the front wheel WARNING stand.
  • Page 175 with center stand Make sure the ground is level and firm and put the motorcy- cle on its center stand. Support the rear wheel, e.g. with a wooden block, so that it cannot fall down after the quick-release axle is removed. Remove the axle nut 4 and washer 5.
  • Page 176 10 toward rear until specialized workshop, rear-wheel rim can be guided preferably an authorized past it. BMW Motorrad retailer. The camshaft sprocket Roll the rear wheel on the and the spacing bushings support into the swinging arm on the left and right are loosely until the brake-caliper support inserted in the wheel.
  • Page 177 place the drive chain 7 on the camshaft sprocket. Mount brake caliper carrier 1 in guide 2. Insert the right-hand chain tensioner 6 into the swinging arm. Lubricate the quick-release axle 5 and install it in the brake caliper carrier 4 and rear wheel.

  • Page 178: Drive Chain

    To extend and maximize Risk of accident due to de- the chain's service life layed braking effect. Before driving off, check BMW Motorrad recommends that the braking effect kicks using BMW Motorrad chain in without any delay. lubricant or:...
  • Page 179 Lubricant Chain sag Chain spray, O-ring compati- 1.2...1.6 in (30...40 mm) (Motorcycle unloaded on side Wipe off excess lubricant. stand) If the measured value is outside Checking chain tension the approved tolerance: Park the motorcycle, making Adjusting chain tension sure the ground is level and 173).
  • Page 180 MAINTENANCE Rear-wheel quick-re- lease axle in swinging M24 x 1.5 Thread-locking compound: mechanical 74 lb/ft (100 Nm) Check whether the third marker line 1 is fully visible. If the third marker line 1 is fully visible, check the chain length: Engage 1st gear.

  • Page 181: Light Source

    Contact a specialist work- hicle. If an LED light source is shop, preferably an authorized faulty, please contact a spe- BMW Motorrad retailer. cialist workshop, preferably an authorized BMW Motorrad re- tailer.

  • Page 182: Jump-Starting

    MAINTENANCE JUMP-STARTING ATTENTION CAUTION Jump-starting with a voltage higher than 12 V Touching live parts of the Damage to the motorcycle's ignition system when the electronics engine is running The battery of the donor Electrocution motorcycle must have a volt- Do not touch parts of the age of 12 V.

  • Page 183: Battery

    to the negative terminal of BATTERY the empty battery (negative Maintenance instructions terminal on this vehicle: posi- Correct battery maintenance tion 3). combined with proper charg- As an alternative to the ing and storage procedures ex- negative battery terminal, tends the battery's service life, the spring strut bolt can also be and is also required for war- used.
  • Page 184 MAINTENANCE BMW Motorrad has de- veloped a trickle-charger ATTENTION specially designed for com- Unsuitable chargers con- patibility with the electronics nected to the power socket of your motorcycle. Using this Damage to charger and vehi- charger, you can keep the bat-...
  • Page 185 Comply with operating with anti-theft alarm system instructions of charger. (DWA) Turn off the anti-theft alarm If you are unable to system if necessary. charge the battery via the onboard socket, you may Turn off the ignition. be using a charger that is not compatible with your motorcycle's electronics.

  • Page 186: Fuses

    MAINTENANCE Installing the battery Close positive terminal cover 5. If the vehicle has been disconnected from the battery for a long time, the current date must be entered in the instrument cluster to make sure the service display is working properly. Turn off the ignition.
  • Page 187 Replace the faulty fuse 1. If the fuses blow frequently, have the electrical system checked by an authorized specialized workshop, preferably an authorized BMW Motorrad retailer. Main fuse ATTENTION 40 A (Voltage regulator) Bypassing defective fuses Installing the seat ( 76).

  • Page 188: Diagnostic Socket

    (DWA), ignition lock, diagnos- Do not have the diagnos- tic socket, main relay coil) tic socket disconnected ex- cept during BMW Motorrad 7.5 A (Slot 2: left multifunc- service by a specialist work- tion switch, tire pressure con- shop or other authorized trol (RDC)) persons.
  • Page 189 Loosen the diagnostic socket 2 from the bracket 3. The interface for the diagnos- tic and information system can be connected to the diag- nostic socket 2. Fastening the diagnostic socket Disconnect the interface for the diagnostic and informa- tion system. Insert the diagnostic socket 2 into the bracket 3.
  • Page 190 ACCESSORIES...
  • Page 191 GENERAL NOTES ONBOARD POWER SOCKETS TOURING CASE SOFTCASE TOPCASE NAVIGATION SYSTEM...

  • Page 192: General Notes

    Your authorized Safety risk BMW Motorrad retailer BMW Motorrad cannot ex- offers you qualified advice for amine or test each product choosing genuine BMW parts, of outside origin to ensure accessories and other products.

  • Page 193: Touring Case

    tion is then switched off, the accessory remains in opera- tion. The sockets are switched off approx. 15 minutes after switching off the ignition to re- duce the strain on the onboard electrical system. Accessories with low power consumption are possibly not Turn the key 1 counterclock- detected by the vehicle elec- wise to the OPEN position.
  • Page 194 ACCESSORIES The lid clicks audibly into Attaching the touring case place. with case carrier, left/right Turn the key 1 in the case with touring case lock so that it points in the driving direction and remove Removing the touring case with case carrier, left/right with touring case Turn the key 1 clockwise to...

  • Page 195: Softcase

    Turn the key in the case lock so that it points in the driving direction and remove it. Maximum load and maximum speed with case carrier, left/right with touring case Observe maximum load and maximum speed. Turn radio-operated key 1 Maximum speed for rid- against direction of travel and ing with case...

  • Page 196: Topcase

    ACCESSORIES TOPCASE Opening a topcase with topcase with luggage rack Detach softcase 1 from the lock 2 in the arrow direc- tion 1. Then press softcase 2 from the retaining lugs 3 in the arrow direction 1. Turn the 1 key counterclock- Maximum load and maximum wise in the topcase lock to speed...
  • Page 197 Closing a topcase Turn key in topcase lock to the LOCK position and re- with topcase with luggage rack move. Removing a topcase with topcase with luggage rack Pull the release lever 1 all the way up. Close the topcase lid and hold it down.

  • Page 198: Navigation System

    2. Securely fastening navigation device The navigation prepara- tion is suitable as from the BMW Motorrad Naviga- tor IV. The locking system of the Mount Cradle offers no protection against theft. Press the carrying handle 1 Remove the navigation system down until it engages.
  • Page 199 The locking mechanism 3 is locked. Turn the ignition key 4 clock- wise. Navigation device is locked and ignition key can be re- moved. Removing the navigation device and installing the cover Turn the ignition key 1 coun- terclockwise. ATTENTION Pull the shut-off lock 2 to the left.
  • Page 200 Multi-Con- BMW Motorrad Navigator V troller 1 and the rocker but- and the BMW Motorrad Navi- gator VI. The BMW Motorrad ton MENU 2. Navigator IV does not offer all Turning the Multi-Controller 1 options described.
  • Page 201 system connected via Blue- In detail, the following functions tooth. can be operated: On the BMW special menu: Se- Map view lect menu items. Turning upward: zooms in on map section (Zoom in). Briefly tilt the Multi- Turning downward: zooms Controller 1 to the left and out of map section (Zoom right...
  • Page 202 1 at The Mediaplayer function the upper left on the map view. is only available when If a BMW Motorrad com- using a Bluetooth device as munication system is con- per A2DP standard, e.g., a nected, an acoustic signal is...
  • Page 203 Nav- Security settings igator via the display settings. The BMW Motorrad Naviga- tor V and the BMW Motorrad Navigator VI can be secured against unauthorized use with a four-digit PIN (Garmin Lock). If this function is activated while...
  • Page 204 CARE...
  • Page 205 CARE PRODUCTS WASHING THE VEHICLE CLEANING SENSITIVE MOTORCYCLE PARTS CARE OF PAINTWORK PAINT PRESERVATION STORING THE MOTORCYCLE PUTTING THE MOTORCYCLE INTO OPERATION...

  • Page 206: Care Products

    BMW Insect Re- products available at your au- mover to soften and wash off thorized BMW Motorrad re- insects and stubborn dirt from tailer. BMW Care Products painted parts before washing have been materials tested, lab- the vehicle.

  • Page 207: Cleaning Sensitive Motorcycle Parts

    Increased effect of salt caused by warm water Fairings and panels Corrosion Clean trim panel components Only use cold water to re- with water and BMW Motorrad move road salt. solvent cleaner. Windshields and lenses are ATTENTION manufactured in plastic...

  • Page 208: Care Of Paintwork

    Use BMW Motorrad metal pol- lution or natural sources of dirt, ish for additional treatment. such as tree resin or pollen.

  • Page 209: Paint Preservation

    PUTTING THE MOTORCYCLE painted surface. INTO OPERATION BMW Motorrad recommends Remove the protective wax BMW Motorrad high gloss pol- coating. ish or agents that contain car- Clean the motorcycle. nauba or synthetic wax for Install the battery.
  • Page 210 TECHNICAL DATA...
  • Page 211 TROUBLESHOOTING CHART SCREW CONNECTIONS FUEL ENGINE OIL ENGINE CLUTCH TRANSMISSION REAR-WHEEL DRIVE FRAME CHASSIS BRAKES WHEELS AND TIRES ELECTRICAL SYSTEM ANTI-THEFT ALARM SYSTEM DIMENSIONS WEIGHTS PERFORMANCE DATA...

  • Page 212: Troubleshooting Chart

    TECHNICAL DATA TROUBLESHOOTING CHART Engine does not start: Possible cause Remedy Side stand extended and gear Engage neutral or fold in side engaged stand. Gear engaged and clutch not Shift transmission to neutral or disengaged disengage clutch. No fuel in tank Refueling.
  • Page 213 100). Active route guidance is not displayed in the TFT display. Possible cause Remedy Navigation from the Call up the BMW Motorrad BMW Motorrad Con- Connected App on the con- nected App was not nected mobile end device be- transferred.

  • Page 214: Screw Connections

    TECHNICAL DATA SCREW CONNECTIONS Front wheel Value Valid Wheel speed sensor at front on fork M6 x 16, Renew bolt 6 lb/ft (8 Nm) micro-encapsulated Front wheel cover on telescopic forks M5 x 14, Renew bolt 1 lb/ft (2 Nm) micro-encapsulated Brake caliper on tele- scopic forks...
  • Page 215 Rear wheel Value Valid Rear-wheel quick-re- lease axle in swinging M24 x 1.5 74 lb/ft (100 Nm) mechanical Mirror arm Value Valid Mirror (locknut) on clamping piece M10 x 1.25 Left-hand thread, 16 lb/ft (22 Nm) Adapter to clamping block M10 x 14 - 4.8 18 lb/ft (25 Nm)

  • Page 216: Fuel

    Approx. 3.2 quarts (Approx. 3.0 l), with filter replacement Specification SAE 5W-40, API SL/ JASO MA2, Additives (for instance, molybdenum- based substances) are prohibited, because they would attack the coatings on engine components, BMW Motorrad recommends BMW Motorrad ADVANTEC Ultimate oil. BMW recommends...

  • Page 217: Engine

    Oil additives BMW Motorrad does not recommend the use of oil additives, as these can adversely affect the operation of the clutch. Ask your BMW Motorrad retailer for engine oils suitable for your motorcycle. BMW recommends ENGINE Engine number location...

  • Page 218: Clutch

    TECHNICAL DATA CLUTCH Clutch design Multiple-disc oil bath (anti- hopping) TRANSMISSION Transmission design Claw-shifted 6-speed manual gearbox integrated in engine housing Transmission gear ratios 1.821, Primary gear ratio 1:2.833, 1st gear 1:2.067, 2nd gear 1:1.600, 3rd gear 1:1.308, 4th gear 1:1.103, 5th gear 1:0.968, 6th gear REAR-WHEEL DRIVE...

  • Page 219: Frame

    FRAME Frame design Steel bridge frame in shell construction Location of type plate Frame at front left on steering head Location of the vehicle identifi- Frame, front right cation number CHASSIS Front wheel Type of front suspension Upside-down telescopic forks Spring travel, front 6.7 in (170 mm), on front wheel...

  • Page 220: Brakes

    Perpendicular to the direction of travel between brake-light switch actuator and footrest plate WHEELS AND TIRES Recommended tire combina- An overview of the current tions tire approvals is available from your authorized BMW Motorrad retailer or on the Internet at bmw-motorrad.com.

  • Page 221: Electrical System

    Speed category of front/rear W, minimum requirement: tires 168 mph (270 km/h) Front wheel Front wheel design Aluminum cast wheel Front-wheel rim size 3.50" x 17" Front tire designation 120/70 ZR 17 Load index for front tire Permissible front-wheel imbal- max 0.2 oz (max 5 g) ance Rear wheel...

  • Page 222: Anti-Theft Alarm System

    TECHNICAL DATA Battery Battery design AGM (Absorbent Glass Mat) battery Battery voltage 12 V Battery capacity 12 Ah Battery type (For Keyless Ride radio-operated key) with Keyless Ride CR 2032 Spark plugs Spark plugs, manufacturer and NGK LMAR9J-9E designation Light source Bulb for high-beam headlight Bulbs for low-beam headlight Bulb for parking light...

  • Page 223: Dimensions

    DIMENSIONS Motorcycle length 85 in (2160 mm), over rear wheel with lowered 84.6 in (2150 mm), over rear wheel Motorcycle height 52...55.9 in (1320...1420 mm), over windshield, at DIN un- loaded vehicle weight with lowered 51.2...55.1 in (1300...1400 mm), over windshield, at DIN un- loaded vehicle weight Motorcycle width 33.9 in (860 mm), using han-...

  • Page 224: Weights

    TECHNICAL DATA WEIGHTS Unloaded vehicle weight 483 lbs (219 kg), DIN un- loaded vehicle weight, ready for road, 90 % full tank of gas, without OE Front wheel load at unloaded 247 lbs (112 kg) vehicle weight Permissible front wheel load max 397 lbs (max 180 kg) Rear wheel load at unloaded 236 lbs (107 kg)
  • Page 226 SERVICE...
  • Page 227 REPORTING SAFETY DEFECTS BMW MOTORRAD SERVICE BMW MOTORRAD SERVICE HISTORY BMW MOTORRAD MOBILITY SERVICES MAINTENANCE WORK MAINTENANCE SCHEDULE MAINTENANCE CONFIRMATIONS SERVICE CONFIRMATIONS...

  • Page 228: Reporting Safety Defects

    However, the NHTSA cannot be- come involved in individual problems between you, your autho- rized BMW Motorrad retailer, or BMW of North America, LLC. You can contact the NHTSA by calling the Vehicle Safety Hot- line on 1–888–327–4236 (Teletypewriter TTY for the hearing impaired: 1–800–424–9153) for free, by visiting the website at...

  • Page 229: Bmw Motorrad Service

    BMW MOTORRAD SERVICE your motorcycle. With its worldwide retailer net- Have all preventive mainte- work, BMW Motorrad can at- nance and repair procedures tend to you and your motor- confirmed in the Service chap- cycle in over 100 countries ter in this manual.

  • Page 230: Bmw Motorrad Mobility Services

    The BMW pre-delivery check is electronic Service History. carried out by your authorized Objection BMW Motorrad retailer before At the BMW Motorrad retailer it turns the motorcycle over to or specialist workshop, the ve- you. hicle owner can object to the...
  • Page 231 The service interval indicator in the display reminds you of the next service appointment approx. one month or 621 mi (1000 km) before the entered values. More information on the topic of service is available at: bmw-motorrad.com/service The required scope of mainte- nance work for your vehicle can be found in the following main- tenance schedule:...

  • Page 232: Maintenance Schedule

    SERVICE MAINTENANCE SCHEDULE BMW break-in service At first after one year, Standard scope of then every two years BMW Motorrad service Engine oil change with filter Check valve clearance Replace all spark plugs Replace the air filter ele- ment Oil change in the tele-...

  • Page 233: Maintenance Confirmations

    MAINTENANCE CONFIRMATIONS BMW Motorrad Service standard scope The repair procedures belonging to the BMW Motorrad Service standard package are listed below. The actual maintenance work applicable for your vehicle may differ. Performing the vehicle test using the BMW Motorrad diagnostic...
  • Page 234 SERVICE BMW pre-delivery check BMW running-in check performed performed at km Next service latest or, if reached earlier at km Stamp, signature Stamp, signature...
  • Page 235 BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Engine oil change with filter Checking valve clearance Replacing all spark plugs Replacing air cleaner element Oil change - telescopic fork...
  • Page 236 SERVICE BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Engine oil change with filter Checking valve clearance Replacing all spark plugs Replacing air cleaner element Oil change - telescopic fork...
  • Page 237 BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Engine oil change with filter Checking valve clearance Replacing all spark plugs Replacing air cleaner element Oil change - telescopic fork...
  • Page 238 SERVICE BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Engine oil change with filter Checking valve clearance Replacing all spark plugs Replacing air cleaner element Oil change - telescopic fork...
  • Page 239 BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Engine oil change with filter Checking valve clearance Replacing all spark plugs Replacing air cleaner element Oil change - telescopic fork...
  • Page 240 SERVICE BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Engine oil change with filter Checking valve clearance Replacing all spark plugs Replacing air cleaner element Oil change - telescopic fork...
  • Page 241 BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Engine oil change with filter Checking valve clearance Replacing all spark plugs Replacing air cleaner element Oil change - telescopic fork...
  • Page 242 SERVICE BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Engine oil change with filter Checking valve clearance Replacing all spark plugs Replacing air cleaner element Oil change - telescopic fork...
  • Page 243 BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Engine oil change with filter Checking valve clearance Replacing all spark plugs Replacing air cleaner element Oil change - telescopic fork...
  • Page 244 SERVICE BMW Motorrad Service performed at km Next service latest or, if reached earlier at km Work performed BMW Motorrad Service Engine oil change with filter Checking valve clearance Replacing all spark plugs Replacing air cleaner element Oil change - telescopic fork...

  • Page 245: Service Confirmations

    SERVICE CONFIRMATIONS The table serves to provide evidence of maintenance and repair work, as well as installed optional accessories and special cam- paigns performed. Work performed at km Date...
  • Page 246 SERVICE Work performed at km Date...
  • Page 248 CERTIFICATE FOR ELECTRONIC IMMOBILIZER CERTIFICATE FOR KEYLESS RIDE CERTIFICATE FOR TIRE PRESSURE CONTROL CERTIFICATE FOR TFT INSTRUMENT CLUSTER...
  • Page 249 Declaration of Conformity Radio equipment electronic United Arab Emirates immobiliser (EWS4) For all countries without EU Technical information Frequency Band: 134 kHz (Transponder: TMS37145 / Type DST80, TMS3705 Transponder Base Station IC) Philippiens Output Power: 50 dBµV/m Manufacturer and Address Manufacturer: BECOM Electronics GmbH Address: Technikerstraße 1,...
  • Page 250 Indonesia Taiwan 72790/SDPPI/2021 13349 低功 電波 射性電機管 辦法 第十二條 經型式認證合格之低 功率射頻電 機，非經許可，公 司、商號或使用者均不得擅 自 變更頻率、加大功率或變更原 設計之特性及 功能。第十四條 Dilarang melakukan perubahan 低功率射頻電機之使用不 得影 Spesifikasi yang dapat 響飛航安全及干擾合法通信； Menimbulkan gangguan fisik 經發現有干 擾現象時，應立即 dan/atau elektromagnetik 停用，並改善至無干擾時方 得 terhadap lingkungan sekitarnya 繼續使用。 前項合法通信，指 依電信法規定作業之無線電...
  • Page 251 United States (USA) Canada Contains FCC ID: Contains IC: ODE-MREWS5012 10430A-MREWS5012 FCC § 15.19 Labelling This device complies with part 15 requirements of the FCC Rules and Industry This device complies with part Canada license-exempt RSS 15 of the FCC Rules and Industry standard(s).
  • Page 252 Certifications BMW Keyless Ride ID Device USA, Canada: Product name: BMW Keyless Ride ID Device FCC ID: YGOHUF5750 IC: 4008C-HUF5750 Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Canada: Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and...
  • Page 253 USA: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Argentina: H-17115...
  • Page 254 Declaration Of Conformity We declare under our responsibility that the product BMW Keyless Ride ID Device (Model: HUF5750) camplies with the appropriate essential requirements of the article 3 of the R&TIE and the other relevant provisions, when used for its intended purpose.
  • Page 255 The product is Iabeted with the CE marking: Velbert, October 15 th , 2013 Benjamin A. Müller Product Development Systems Car Access and Immobilization - Electronics Huf Hülsbeck & Fürst GmbH & Co. KG Steeger Straße 17, D-42551 Velbert...
  • Page 256 Certification Tire Pressure Control (TPC) FCC ID: MRXBC5A4 FCC ID: MRXBC54MA4 IC: 2546A-BC54MA4 IC: 2546A-BC5A4 This device complies with Part 15 Le présent appareil est conforme of the FCC Rules and with aux CNR d'Industrie Canada Industry Canada license-exempt applicables aux appareils radio RSS standard(s).
  • Page 257 Declaration of Conformity Radio equipment TFT instrument Argentina cluster For all Countries without EU C-24711 Technical information Brazil BT operating frq. Range: Este equipamento opera em 2402 – 2480 MHz caráter secundário, isto é, não BT version: 4.2 (no BTLE) tem direito a proteção contra BT output power: <...
  • Page 258 Mexico Le présent appareil est conforme La operación de este equipo está aux CNR d'Industrie Canada sujeta a las siguientes dos applicables aux appareils radio condiciones: exempts de licence. L'exploitation (1) es posible que este equipo o est autorisée aux deux conditions dispositivo no cause interferencia suivantes : (1) l'appareil ne doit perjudicial y...
  • Page 259 Thailand เครื ่ อ งโทรคมนาคมและอุ ป กรณ์ น้ ี มี ค วามสอดคล้ อ งตามข้ อ กํ า หนดของ กทช. (This telecommunication equipments is in compliance with NTC requirements) United States (USA) This device complies with Industry Canada’s licence-exempt RSSs and part 15 of the FCC Rules.
  • Page 260 INDEX Brake fluid Abbreviations and symbols, 4 Checking the front fill level, 157 Displays, 44 Checking the rear fill Self-diagnosis, 117 level, 158 Technology in detail, 134 Front expansion tank, 15 Accessories Rear expansion tank, 15 General notes, 186 Brake pads Adaptive front lighting, 146 Breaking-in, 120 Technology in detail, 146...
  • Page 261 Clutch Electrical system Adjusting play, 159 Technical data, 215 Adjusting the clutch Emergency-off switch lever, 105 Operating, 58 Checking function, 159 Operating element, 18 Checking play, 159 Engine Technical data, 212 Indicator light for engine Coolant Checking the fill level, 160 control, 39 Fill level indicator, 15 Indicator light for engine...
  • Page 262 INDEX Keyless Ride, 34 Gearshift assistant Layout, 26 Gear not taught in, 48 Light source defect, 36 Riding, 120 My Vehicle, 93 Technology in detail, 144 Outside temperature warning, 33 Hazard warning flasher Overview, 22 Operating, 60 RDC, 41 Operating element, 17 Tire pressure control Headlight (RDC), 43...
  • Page 263 Lights Multifunction switch Overview, left, 17 Adaptive headlights, 146 Overview, right, 18 Headlight courtesy delay feature, 59 Low beams, 58 Navigation Operating element, 17 Operating, 96 Operating headlight Notice concerning current flasher, 59 status, 6 Operating high beams, 59 Operating the auxiliary Onboard computer, 96 headlights, 59 Onboard vehicle toolkit...
  • Page 264 INDEX Pure Ride Shifting gears Overview, 23 Shiftpoint light, 121 Upshift recommendation, 88 Socket Information on use, 186 Indicator lights, 41, 43 Spark plugs Technology in detail, 143 Technical data, 216 Rear-wheel drive Speed control Technical data, 212 Operating, 68 Rear-wheel stand Attaching, 152 Speedometer, 19...
  • Page 265 Spark plugs, 216 Vehicle identification number Position on vehicle, 15 Standards, 5 Vehicle voltage Transmission, 212 Indicator light, 34, 35 Weights, 218 Wheels and tires, 214 TFT display, 19 Warning lights, 19 Operating, 84, 85 Overview, 22 Operating element, 17 Weights Overview, 23, 24 Payload table, 16...
  • Page 266 Reprinting, in whole or in hands frequently when ser- part, is only permitted with vicing your vehicle. the written permission of Further information is avail- BMW Motorrad, Aftersales. able at: Original Rider's Manual, printed www.P65Warnings.ca.gov/ in Germany. passenger_vehicle...
  • Page 267 Important data for refueling: Fuel Recommended fuel quality Regular unleaded (max. 15% ethanol, E15) 87 AKI (91 ROZ/RON) 87 AKI Fuel tank capacity Approx. 4.1 gal (Approx. 15.5 l) Reserve fuel quantity Approx. 3.7 quarts (Approx. 3.5 l) Tire pressure Front tire pressure 36.3 psi (2.5 bar), with tire cold Rear tire pressure...

Table of Contents
