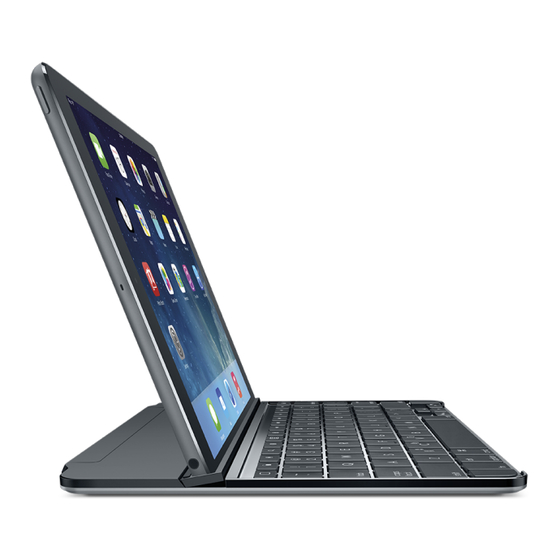

Logitech Ultrathin iK1060 Setup Manual

Logitech Ultrathin iK1060 Setup Manual

Magnetic clip-on keyboard cover for ipad air

Advertisement

Quick Links

Ultrathin
iK1060 磁力夹式超薄键盘盖
Magnetic clip-on keyboard cover
For iPad Air
适用于 iPad Air
Setup Guide | 设置指南

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ultrathin iK1060 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Logitech Ultrathin iK1060

  • Page 1 Ultrathin iK1060 磁力夹式超薄键盘盖 Magnetic clip-on keyboard cover For iPad Air 适用于 iPad Air Setup Guide | 设置指南...
  • Page 2 Ultrathin - Magnetic clip-on keyboard cover - For iPad Air Contents / 目录 English 简体中文 www.logitech.com/support/ultrathin-air...
  • Page 3: Know Your Product

    Ultrathin - Magnetic clip-on keyboard cover - For iPad Air Know your product UltraThin Magnetic clip-on keyboard cover For iPad Air™ ® www.logitech.com/support/ultrathin-air 620-005824.002 1. Protective cover 6. Bluetooth connect button 2. iPad® holder 7. Micro-USB charging port 3. Hot keys 8.
  • Page 4 Ultrathin - Magnetic clip-on keyboard cover - For iPad Air Set up your product ® 50°-70° 1. Place your iPad into the slot in the 3. Establish Bluetooth connection: Keyboard Cover. • Make sure your iPad’s Bluetooth feature is on. Select Settings > 2.
  • Page 5: Charge The Batteries

    Ultrathin - Magnetic clip-on keyboard cover - For iPad Air Charge the batteries 1. Plug one end of the micro-USB cable into Battery information: the charging port, and the other end into • A fully charged battery provides about a USB port on your computer. 3 months of power when the Keyboard Cover is used about two hours a day.
  • Page 6: Function Keys

    Ultrathin - Magnetic clip-on keyboard cover - For iPad Air Hot keys Screen Shot Home = iPad Home screen Previous track Switch applications Play/Pause Siri® Use your voice to send messages, make calls, schedule meetings, Next track and more Mute Search Use your voice to send messages, make calls, schedule meetings,...
  • Page 7 Ultrathin - Magnetic clip-on keyboard cover - For iPad Air Use your product Status light indications Light Description Blinking green The battery is charging. Solid green The battery is fully charged (100%). Battery power is low (less than 20%). Recharge the battery. Blinking blue Fast: The keyboard cover is in discovery mode, ready for pairing.
  • Page 8 Ultrathin - Magnetic clip-on keyboard cover - For iPad Air Detaching your iPad 1. Pull back: Tilt your iPad backwards 3. Lift iPad: Lift your iPad out of the until it is vertical: Keyboard Cover vertically: 50°-70° 2. Push down: Apply downward pressure to ensure that the slot is completely flat: 8  English...
  • Page 9 Ultrathin - Magnetic clip-on keyboard cover - For iPad Air Storing your iPad for travel 1. Slide your iPad towards the hinge at the Note: back of the Keyboard Cover. As your iPad • DO NOT try to slide your iPad into the hinge from the opposite direction: gets close to the rear hinge, it pops up: 10°-40°...
  • Page 10 Ultrathin - Magnetic clip-on keyboard cover - For iPad Air Battery disposal at product end of life 1. Pry off top cover of keyboard 3. Dispose of your product and its battery with screwdriver. according to local laws. 2. Detach battery from circuit board and remove battery.
  • Page 11: Troubleshooting

    • Make sure you are inserting your iPad on its side into the slot. The Keyboard Cover Go to: doesn’t support portrait mode. www.logitech.com/support/ultrathin-air What do you think? Thank you for purchasing our product. Please take a minute to tell us what you think of it.
  • Page 12 磁力夹式超薄键盘盖 - 适用于 iPad Air 了解您的产品 UltraThin Magnetic clip-on keyboard cover For iPad Air™ ® www.logitech.com/support/ultrathin-air 620-005824.002 1. 保护盖 6. 蓝牙连接按钮 2. iPad 支架 7. 微型 USB 充电端口 3. 热键 8. 开启/关闭开关 4. 键盘 9. 文档 5. 蓝牙® 和电池状态指示灯...
  • Page 13 iK1060 磁力夹式超薄键盘盖 - 适用于 iPad Air 设置您的产品 ® 50°-70° 1. 将 iPad 插入键盘盖的插槽中。 3. 建立蓝牙连接: • 确保 iPad 的蓝牙功能已开启。 依次 2. 打开键盘盖: 选择:“设置” > “蓝牙” > “开启”。 • 蓝牙搜索功能自动开启,将持续 • 在 iPad 的“设备”菜单上选 15 分钟。状态指示灯将闪烁蓝灯。 择“Ultrathin for Air”。 蓝牙连 • 如果状态指示灯短暂变为红灯,请为 接完成。...
  • Page 14 iK1060 磁力夹式超薄键盘盖 - 适用于 iPad Air 为电池充电 1. 将微型 USB 连接线的一端插入充 电池信息: 电端口,将另一端插入电脑上的 • 电池充满电之后,如果键盘盖每天使用 USB 端口。 约两个小时,则电量可以维持三个月。 或者,您也可以使用 USB 充电器 • 如果打开键盘盖之后,状态指示灯短暂 (如 iPad 随附的充电器) 进行充电, 亮起红灯,请为电池充电。 前提是电源输出功率为 5V 和至少 • 不使用时,请关闭键盘盖,节省电 500mA。 池电量。 电池充电过程中,状态指示灯将闪 • 如果键盘盖处于开启状态而未使用, 烁绿灯。 则会进入休眠模式。按任意键退出休 2.
  • Page 15 iK1060 磁力夹式超薄键盘盖 - 适用于 iPad Air 热键 上一曲目 Home = iPad 主屏幕 播放/暂停 切换应用程序 Siri® 下一曲目 通过语音发送消息、拨打电话、 安排会议等 静音 搜索 调低音量 启动 iPad 的搜索功能 切换语言 调高音量 切换键盘语言 虚拟键盘 锁屏 显示或隐藏虚拟键盘 锁定或解锁 iPad 屏幕 截屏 功能键 Fn + 左光标 = 选择左侧内容 Fn + X = 剪切...
  • Page 16 iK1060 磁力夹式超薄键盘盖 - 适用于 iPad Air 使用您的产品 状态指示灯 指示灯 说明 闪烁绿灯 电池正在充电。 稳定绿灯 电池已充满 (100%)。 红灯 电量不足 (<20%)。为电池充电。 闪烁蓝灯 快速闪烁: 键盘盖处于可被搜索状态, 已准备好可以进行配对。 缓慢: 键盘盖正在尝试重新连接 iPad。 稳定蓝灯 蓝牙配对或重新连接成功。 连接另一个 iPad 3. 检查并确保 iPad 的蓝牙功能已开启。 依次选择:设置 > 蓝牙 > 开启。 ® 4. 按下蓝牙连接按钮。键盘盖在 3 分钟内 将处于可被搜索状态。...
  • Page 17 iK1060 磁力夹式超薄键盘盖 - 适用于 iPad Air 卸下 iPad 1. 将 iPad 拉回:向后转动 iPad 直到其呈 3. 提起 iPad:将 iPad 从键盘盖中垂 竖直角度: 直提起: 50°-70° 2. 向下按压:向下按压 iPad,确保插槽处 的平整: 17  简体中文...
  • Page 18 iK1060 磁力夹式超薄键盘盖 - 适用于 iPad Air 旅行时收纳 iPad 1. 将 iPad 滑向键盘盖后部的转轴。 请注意: 当 iPad 靠近后部转轴时,转轴会弹出: • 请勿将 iPad 从相反方向滑入转轴: 10°-40° 2. 将 iPad 固定到后部转轴上: 3. 将 iPad 向下贴近键盘盖直至闭合。 磁力夹将把 iPad 固定到位: 18  简体中文...
  • Page 19 iK1060 磁力夹式超薄键盘盖 - 适用于 iPad Air 电池废弃处置 1. 用螺丝刀撬开键盘的顶盖。 3. 根据当地法律对产品和电池进行弃置。 2. 从电路板上分离电池,取出电池。 19  简体中文...
  • Page 20 • 教程 • 确保 iPad 的蓝牙功能已开启。 • 疑难解答 • 在 iPad 的“设备”菜单上 • 支持社区 选择“Ultrathin for Air”。蓝牙连接 • 软件下载 成功后,状态指示灯短暂变为蓝灯。 • 在线文档 我的 iPad 无法插入插槽 • 保修信息 • 请确保您是将 iPad 的横边插入插槽。 • 备用部件(若有供应) 键盘盖不支持纵向模式。 访问: www.logitech.com/support/ultrathin-air 您对本产品有何感想? 欢迎拨冗告知我们。 感谢您购买罗技产品。 www.logitech.com/ithink 20  简体中文...
  • Page 21 Ultrathin - Magnetic clip-on keyboard cover - For iPad Air www.logitech.com/support/ultrathin-mini Table of Toxic and Hazardous Substances/Elements and their Content 产品中有毒有害物质或元素的名称及含量 根据中国<<电子信息产品污染控制管理办法>> 手持通讯设备配件 Mobile Accessory 有毒有害物质或元素 Toxic or Hazardous Substances and Elements 部件名称 镉 六价铬 多溴联苯 多溴二苯醚 铅 汞...
  • Page 22 © 2014 Logitech. All rights reserved. Logitech, the Logitech logo, and other Logitech marks are owned by Logitech and may be registered. Apple, iPad, iPad Air and Siri are trademarks of Apple Inc., registered in the U.S. and other countries.
