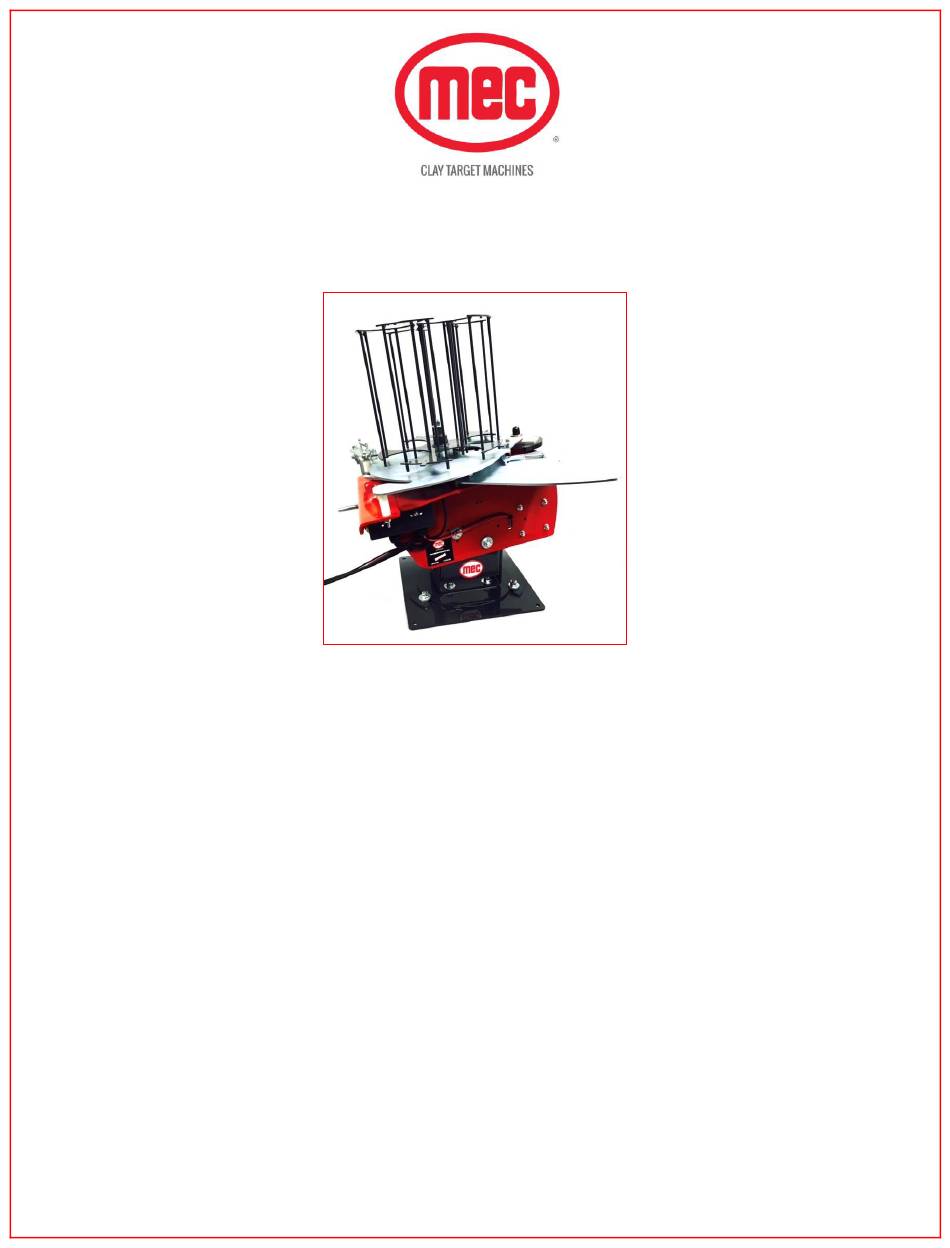

OWNERS MANUAL
FOR MEC MODELS 100ESKT
CAUTION: ANY MEC CLAY TARGET MACHINE MUST BE IN THE
DISARMED STATE WITH THE BATTERY DISCONNECTED PRIOR TO
MAKING ANY ADJUSTMENTS, LOADING THE CLAY TARGETS OR
TRANSPORTATION OF MACHINE.
Step 1 – Securely set the machine on level ground, either on the optional T Cart
with hardware supplied or a pallet. If using a pallet, please make sure that it is
fastened with clamps to keep machine from tipping.
IF NOT FASTENED
SECURELY, SERIOUS INJURY OR DAMAGE TO MACHINE CAN OCCOUR!!!
DO NOT CONNECT THE BATTERY. Ensure that the machine is in the
DISARMED/SAFE
position.
Step 2 – In most cases, your machine has been supplied to you ready to fire. If
so, please proceed to Step 3. If your machine is supplied in a box without its
carousel (shown below) fitted, you will need to attach it to the machine. Simply
slide the carousel weldment onto the top plate shaft. If no grease is present,
please add a little bit to the shaft. You may have to spin/rotate the carousel for it
to slide on. Next, place the gray plastic collar over the shaft and onto the flange
bearing in the carousel. Now place the ¾" washer and nut onto the threads and
Page 1
Advertisement
Table of Contents
Related Manuals for Mec 100ESKT
Summary of Contents for Mec 100ESKT
- Page 1 OWNERS MANUAL FOR MEC MODELS 100ESKT CAUTION: ANY MEC CLAY TARGET MACHINE MUST BE IN THE DISARMED STATE WITH THE BATTERY DISCONNECTED PRIOR TO MAKING ANY ADJUSTMENTS, LOADING THE CLAY TARGETS OR TRANSPORTATION OF MACHINE. Step 1 – Securely set the machine on level ground, either on the optional T Cart with hardware supplied or a pallet.
- Page 2 tighten. Do not over tighten. You want a little bit of resistance there, but not too much. You shouldn’t be able to spin the carousel with one finger. Step 3 – The machine comes set to White Flyer standard clays. If using something different you will need to check the height / clearance of the knife- edges by placing a clay in the carousel.
- Page 3 Step 5 – Check that the ON/OFF/DISARM toggle switch on the grey control box in the OFF position. Connect the terminals from the wire harness to the battery, (a fully charged, good quality, deep cycle marine battery is recommended.) It is imperative that the “RED”...
- Page 4 Step 8 – Adjust the machines elevation by loosening the ½”-13 nut on the side of the machine. Tip machine backwards to the desired angle and then retighten the nut securely. Step 9 – Adjust the machines tilt by loosening the ½”-13 nut on the front and rear on the base of the machine, as shown below.
- Page 5 Step 10 – Rotate the machine by loosening the three 1/2” nuts. Once the machine is rotated to desired position, retighten the three nuts to secure machine. Step 11 - Carefully load carousel with clays, removing any clays that show signs of damage.
- Page 6 Step 15 – You can adjust the distance that the clay is thrown by extending the spring. This is achieved by winding tension on or off the main spring using a ¾” wrench or the optional ¾” extended socked which can be attached to an impact drive.
- Page 7 Any spring tension does not need to be released. Thanks for choosing MEC! Every machine is hand set and tested prior to leaving our shop to ensure quality. We take pride in our products, so you can have a better experience in the field.
