LCD mini panel
LCD mini panel
Art.-No.: MT 701
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect device before working on it. At the same
time, take into account all circuit breakers that supply dangerous voltage to the device.
Do not use any sharp objects, acids or organic solvents for cleaning. Device can be
damaged.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components

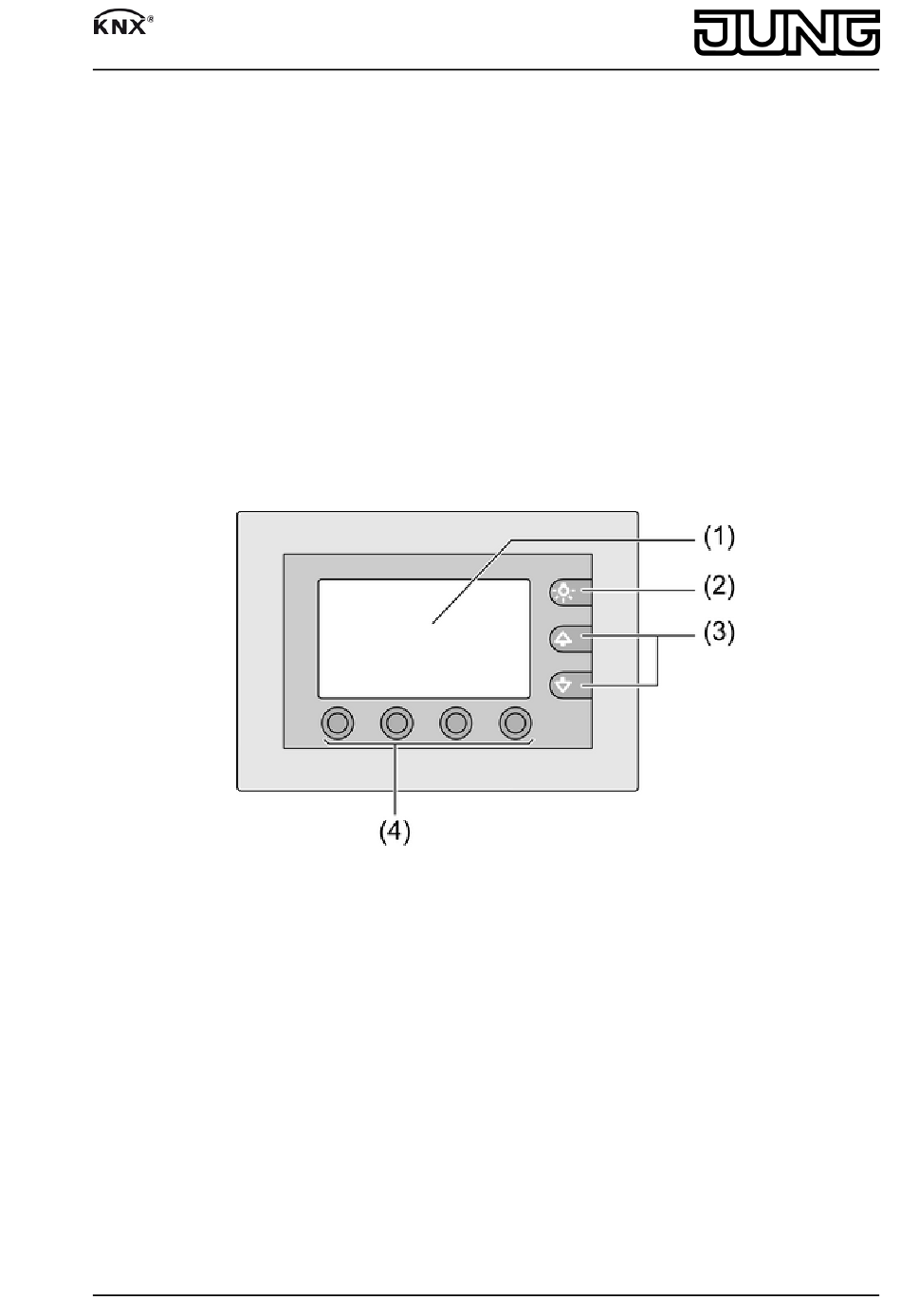

picture 1
(1) Screen
(2) Screen illumination button
(3) Scroll buttons
(4) Function keys
3 Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper
understanding.
The function of this device depends upon the software. Detailed information on loadable
software and attainable functionality as well as the software itself can be obtained from the
manufacturer´s product database. Planning, installation and commissioning of the device are
carried out with the aid of KNX-certified software. The latest versions of product database and
the technical descriptions are available on our website.
82507913
1/5
17.08.2010
Advertisement
Related Manuals for Jung KNX MT 701
Summary of Contents for Jung KNX MT 701
- Page 1 LCD mini panel LCD mini panel Art.-No.: MT 701 Operationsmanual 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
-
Page 2: Operation
LCD mini panel Intended use Operating loads and displaying the status of systems and information e.g. light switching, dimming, controlling blinds/shutters, temperature and consumption values etc. Flush-mounted installation in hollow or solid walls in the interior Product characteristics Illuminated programmable screen, 240x128 pixels RS232 port for quick programming using PC Max. - Page 3 LCD mini panel 5 Information for electrically skilled persons 5.1 Fitting and electrical connection DANGER! Electrical shock when live parts are touched. Electrical shocks can be fatal. Before working on the device, disconnect all the corresponding miniature circuit breakers. Cover up live parts in the working environment. Connecting and mounting the device picture 2: Rear side (5) Bus connection...
- Page 4 LCD mini panel 5.2 Commissioning Downloading the physical address The device must have been connected and ready for use. The programming button (6) and LED (7) must be accessible on the rear side of the device. Configuration and startup with ETS2 version 1.3a or later. Press the programming button (6).
-
Page 5: Warranty
We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
