IROX ET112c Operating Instructions

ET112c

Operating Instructions

1- FIRST STEPS

Place the thermometer near a window. Hang it on the wall or place it on a nearby table. Lead

the cable together with the sensing element through the open window to the outside. The

cable adapts to the window sealing shape. But please take care of sharp-edged window

frames—avoid frequent opening and closing of the window.

Open the battery compartment and insert one battery (Type AAA) in the correct polarity.

Remove the protection foil from the LCD display. The unit is now ready to use.

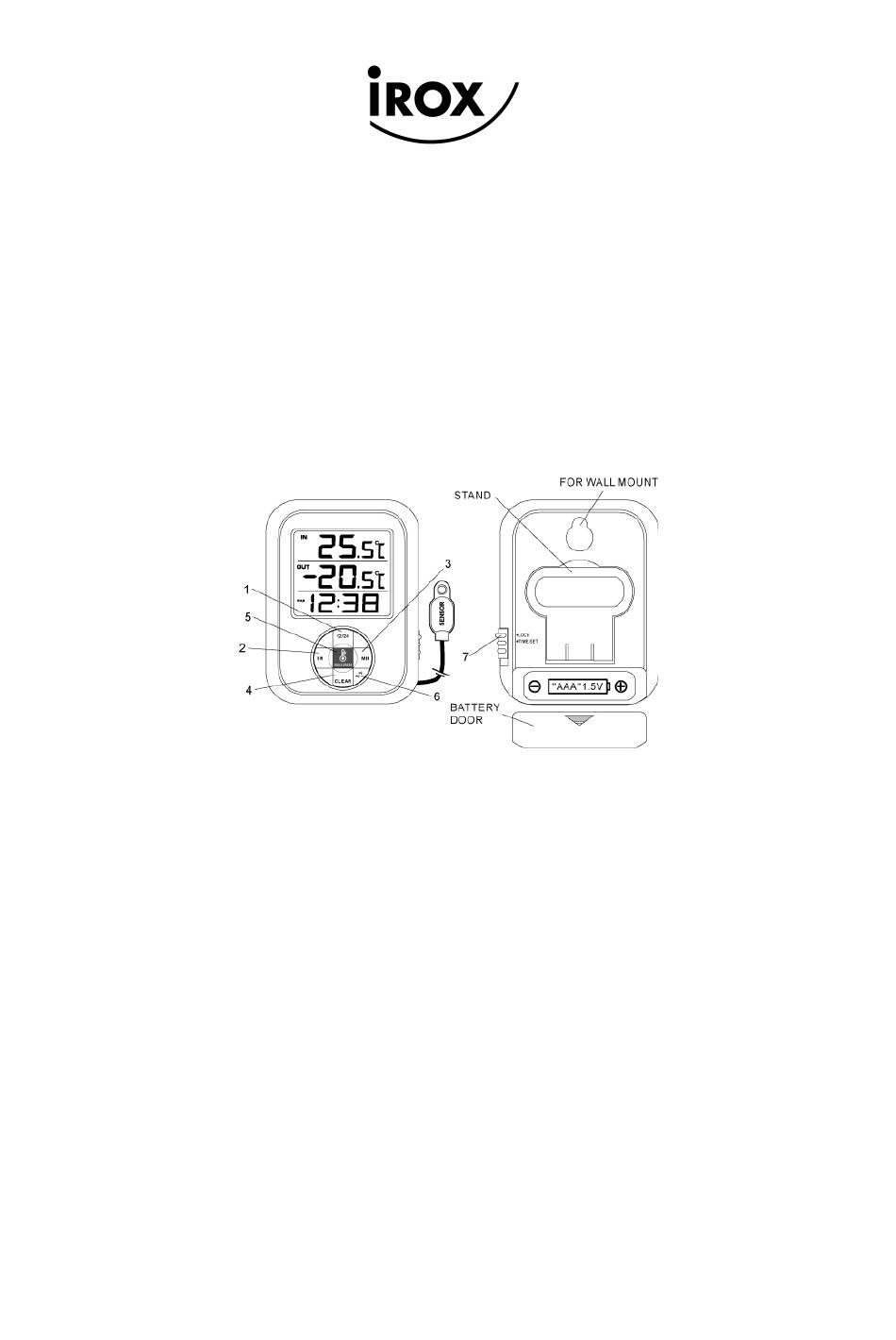

Locations of Control

1. 12/24 Button

2. HR (hour) Button

3. MIN (minute) Button

4. CLEAR Button

5. MAX/MIN Button

6. °C/°F Button

7. LOCK/ TIME SET slide switch

Feature

• Triple window indoor-outdoor thermometer and quartz clock.

• 12 or 24-hour format.

• Weather proof sensor wire.

• Records minimum / maximum indoor / outdoor temperatures.

• Celsius or Fahrenheit selectable.

• Temperature resolution 0.5°C/ 0.5°F.

Table of Contents

Do you have a question about the ET112c and is the answer not in the manual?

Page 1 ET112c Operating Instructions 1- FIRST STEPS Place the thermometer near a window. Hang it on the wall or place it on a nearby table. Lead the cable together with the sensing element through the open window to the outside. The cable adapts to the window sealing shape.
Page 2 2- OPERATING THE PRODUCT Setting the Time • Slide LOCK/ TIME SET switch to TIME SET. The clock display begins flashing. • Press HR button or MIN button to set the desired time. • Slide the switch to LOCK after setting. Setting 12 Hour AM/PM or 24 Hour Time Display •...
Page 3 EU (WEEE) have been paid. 6- SUPPORT This device is a new development of Irox Development Technology. All information was made and checked by means of a functioning instrument. It may occur that adjustments and improvements of the device will take place that due to typographical procedures were not able to be listed in this manual.
