Zu diesem Dokument | 1 Zu diesem Dokument 1. Dieses Dokument vor Beginn der Arbeiten lesen. 2. Die Vorgaben in diesem Dokument einhalten. Bei Nichtbeachten erlischt der Gewährleistungsanspruch gegenüber der WOLF GmbH. Gültigkeit des Dokuments Dieses Dokument gilt für: Fertigfundament – CHA-07·10, CHA-16/20 –...
Bedeutet, dass leichte bis mittelschwere Personenschäden auftre- ten können. HINWEIS Bedeutet, dass Sachschäden auftreten können. Aufbau von Warnhinweisen Warnhinweise sind nach folgendem Prinzip aufgebaut: SIGNALWORT Art und Quelle der Gefahr Erläuterung der Gefahr. ► Handlungsanweisung zur Abwendung der Gefahr. 6 | WOLF GmbH 9149242 | 202311...
Fähigkeiten oder mangels Erfah- rung und/oder mangels Wissen benutzt zu werden, es sei denn, sie werden durch eine für ihre Sicherheit zuständige Person beaufsichtigt oder erhielten von ihr Anweisungen, wie das Gerät zu benutzen ist. 9149242 | 202311 WOLF GmbH | 7...
Page 11
ð Dazu die, im Fundament geprägte, Vertiefung als Bohr-Punkt verwenden. ð Hierbei ist auf ausreichenden Frostschutz zu achten. 6. Das eingesetzte Fundamentes von außen mit Erdreich verfüllen. 7. Den inneren Bereich mit grobkörnigen Kies verfüllen. 9149242 | 202311 WOLF GmbH | 11...
Page 12
3 | Installation CHA / FHA Es ist darauf zu achten, dass das Mantelrohr jeweils 4 Wellentäler an jeder Austrittsstelle übersteht. 1 min. 4 Wellentäler Überstand Weitere Dokumente Betriebsanleitung für die Fachkraft Hydraulische Anschlusssets 12 | WOLF GmbH 9149242 | 202311...
1. Die Bodenkonsole auf das Fertigfundament stellen. 2. Die Bodenkonsole mit einer Wasserwaage an den Füßen in der Längs- und Querachse exakt waage- recht ausrichten. 3. Die 4 Füße der Bodenkonsole mit den 4 Befestigungsblechen und dem Fertigfundament verankern. 9149242 | 202311 WOLF GmbH | 13...
2. Die Basiskonsole mit einer Wasserwaage an den Füßen in der Längs- und Querachse exakt waage- recht ausrichten. 3. Die 4 Füße der Basiskonsole mit den 4 Befestigungsblechen und mit dem Fertigfundament veran- kern. 14 | WOLF GmbH 9149242 | 202311...
Grundmaterialen bei möglichst geringer Umweltbelastung zu erreichen. 1. Verpackungen aus Karton, recycelbaren Kunststoffen und Füllmaterialien aus Kunststoff umweltge- recht über entsprechende Recycling-Systeme oder Wertstoffhöfe entsorgen. 2. Jeweilige landesspezifische oder örtliche Vorschriften beachten. 9149242 | 202311 WOLF GmbH | 15...
Page 16
Operating instructions for contractors FERTIGFUNDAMENT CHA-07·10, CHA-16/20, FHA-05/06·06/07·08/10·11/14·14/17 (Original) German | Subject to technical modifications. 9149242 | 202311...
Page 17
Installation of prefab foundation ....................... 21 Setup of prefab foundation........................22 Installing a floor bracket on the prefab foundation ................... 25 Installing a base bracket on the prefab foundation .................. 26 4 Recycling and disposal ........................... 27 9149242 | 202311 WOLF GmbH | 17...
1. Read this document before you begin working on the appliance. 2. Follow the instructions in this document. Failure to observe these instructions voids any warranty claim with respect to WOLF GmbH. Scope of application of document This document applies to: Prefab foundation –...
This means that material damage may occur. Layout of warnings These warnings are laid out as follows: KEYWORD Type and source of risk Explanation of the risk. ► Action to prevent the risk. 9149242 | 202311 WOLF GmbH | 19...

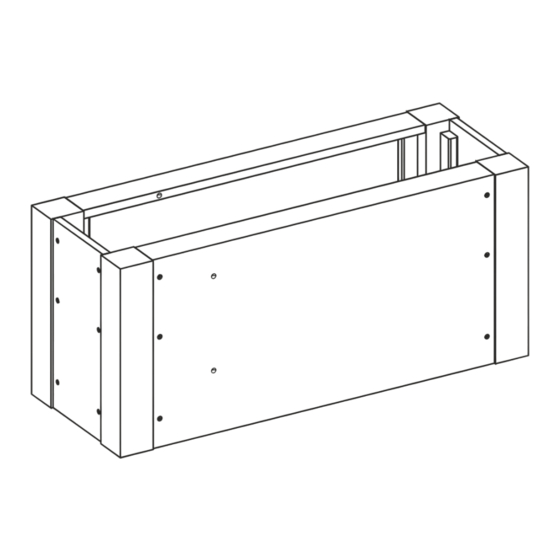

3 | Installation CHA / FHA Setup of prefab foundation 128 0 Fig. 1: CHA-07·10 1 District heating line 2 Condensate drain 3 Level and compacted substrate 4 Soil 5 Floor level 22 | WOLF GmbH 9149242 | 202311...
Page 23
2 District heating line 3 Level and compacted substrate 4 Soil 5 Floor level Fig. 3: FHA-05/06·06/07·08/10-11/14·14/17 1 Condensate drain 2 District heating line 3 Level and compacted substrate 4 Soil 5 Floor level 9149242 | 202311 WOLF GmbH | 23...
Page 24
7. Backfill the inner area with coarse gravel. Make sure that the sleeve protrudes by 4 depressions at each outlet point. 1 min. 4 depressions overhang Additional documents Hydraulic connection set operating instructions for contractors 24 | WOLF GmbH 9149242 | 202311...
2. Level the floor bracket in the longitudinal and transverse axes using a spirit level by adjusting the feet. 3. Anchor the 4 feet of the floor bracket to the prefab foundation using the 4 mounting plates. 9149242 | 202311 WOLF GmbH | 25...
2. Level the base bracket in the longitudinal and transverse axes using a spirit level by adjusting the feet. 3. Anchor the 4 feet of the base bracket to the prefab foundation using the 4 mounting plates. 26 | WOLF GmbH 9149242 | 202311...
1. Dispose of packaging made of cardboard, recyclable plastics and synthetic filler materials in an envir- onmentally compatible manner through appropriate recycling systems or a recycling centre. 2. Please observe the applicable national and local regulations. 9149242 | 202311 WOLF GmbH | 27...
Page 28
WOLF GmbH | Postfach 1380 | 84048 Mainburg | Deutschland Tel. +49 8751 74-0 | www.wolf.eu Anregungen und Korrekturhinweise gerne an feedback@wolf.eu...
