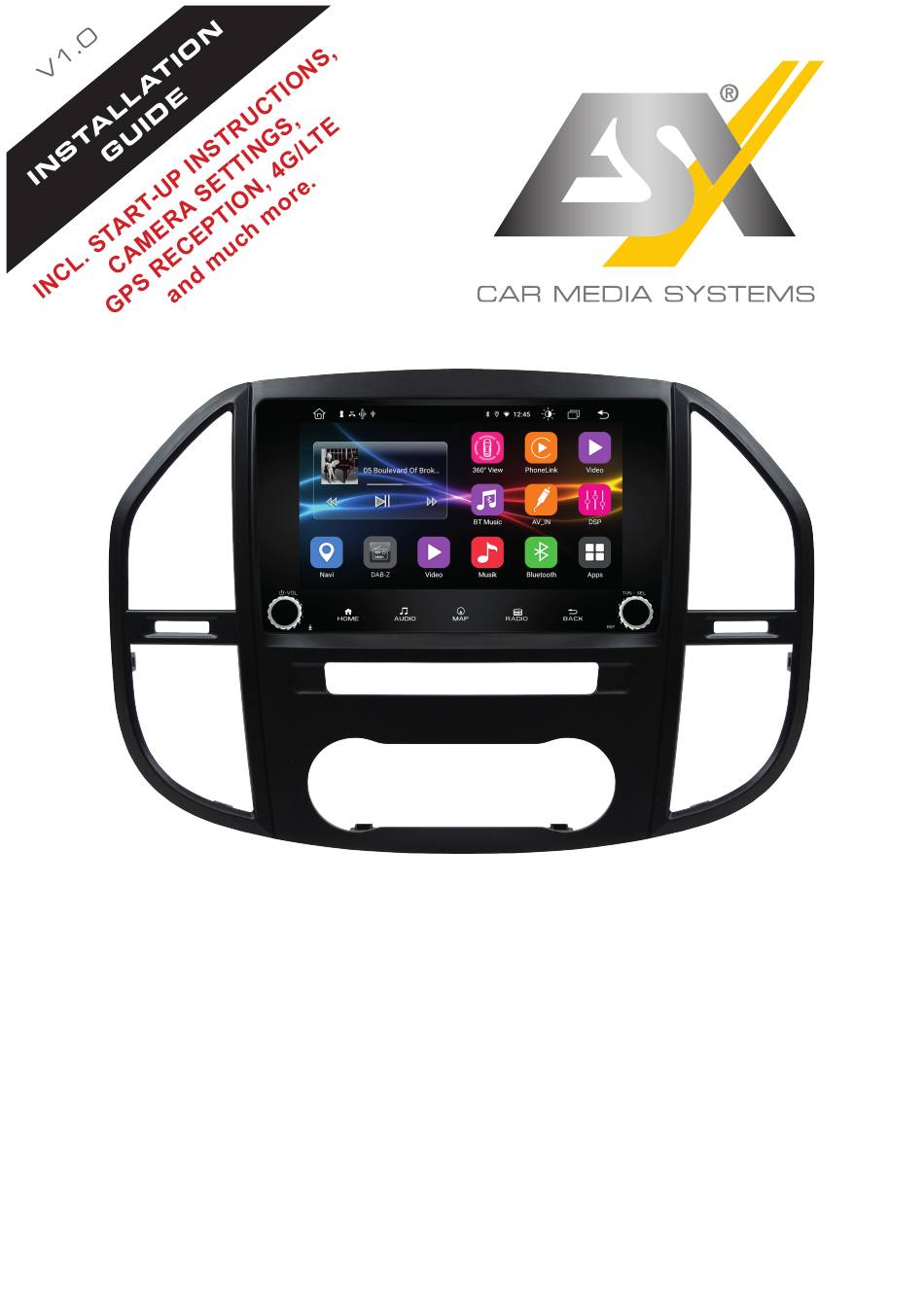

- Page 1 VN945-MVB-4G SMART NAVICEIVER MOBILE INTERNET READY V I S I O N A N D R O I D S E R I E S ™...
-
Page 2: Scope Of Delivery
SCOPE OF DELIVERY ITEM FIGURE QUANTITY Main device Art. No. VN940-4G Large built-in console for Mercedes-Benz Vito W447 Includes 4 screws, black Art. No. VNA-CON-MVB AV cable set 1 with audio and video connections incl. rear view camera (14-pin plug) Art. - Page 3 SCOPE OF DELIVERY ITEM FIGURE QUANTITY AV cable set 2 with power, audio and video connections, additional camera input (8-pin plug) Art. No. ZERW-120008-210 Y-adapter for the external microphone and the receiver of the separately available remote control (6-pin plug) GPS antenna Art.
-
Page 4: Wiring Diagram
WIRING DIAGRAM GPS antenna DAB antenna plug from vehicle (brown connector) 4G/LTE antenna 8-pin system socket WiFi antenna Fuse 10 A Inputs for Optical stereo AV cable sets audio output (S/PDIF) Radio antenna plug from vehicle (FM/AM) 16-pin system socket Der System-Kabelsatz ist NICHT im Lieferumfang enthalten. - Page 5 WIRING DIAGRAM AV cable set 1 (14-pin connector, black) RCA white (FL): Audio output Front/Left RCA red (FR): Audio output Front/Right RCA white (RL): Audio output Rear/Left RCA red (RR): Audio output Rear/Right RCA green (SUB): Audio output Subwoofer RCA yellow (VIDEO OUT 1): Video output for external monitor 1 RCA yellow (VIDEO OUT 2): Video output for external monitor 2...
-
Page 6: Important Notes
IMPORTANT NOTES This guide is an aid for the professional installation of the device. Please note the following notes before installation: • Always handle all parts of the device and the components of your vehicle with care. • Under all circumstances observe the regulations of the vehicle manufacturer and do not make any changes to the vehicle which could impair driving safety. -
Page 7: General Installation Instructions
GENERAL INSTALLATION INSTRUCTIONS GPS antenna Remove the foil on The GPS antenna should be glued horizontally to the dashboard with the the bottom of the adhesive side down. Reception is not possible with a metal-coated pane. GPS antenna Choose a level spot with a clear view of the sky. The location should be about 50 - 70 cm away from the main unit, otherwise the GPS measurement accuracy will decrease. -
Page 8: Installation Steps
INSTALLATION STEPS Remove the shelf and the paneling above it. Set Start by unclipping the outer frame. Use a suit- these aside, they are no longer needed. able mounting wedge for this. Then put the frame aside, it is no longer needed. Loosen the 4 screws (T25) of the inner frame as Then pull out the air conditioning control unit and marked above. - Page 9 INSTALLATION STEPS After you have led all the connection cables out At the back of the ESX installation console, slide of the radio slot, plug them into the corresponding the air conditioning control unit and the control connections on the ESX Smart Naviceiver, which panel above it out to the front and allow the ele- you first screwed to the large built-in console.
- Page 10 SETUP THE 4G/LTE INTERNET CONNECTION First lay the two 4G/LTE antennas inside the dashboard towards the windshield, one an- tenna for the left and one for the right. Ideally, you should stick the antennas to the windshield to ensure optimal reception. Then insert your SIM card in the 4G/LTE dongle: Open the dongle by pushing the flap to the Now open the metal flap carefully with a...
- Page 11 SETUP THE 4G/LTE INTERNET CONNECTION Then turn on the device to test the 4G/LTE connection. After the device has started, enter your 4-digit After successful entry, the SIM card is un- PIN code of the SIM card here. Confirm the locked.
-
Page 12: Rear View Camera Settings
REAR VIEW CAMERA SETTINGS If you have connected a compatible reversing camera to the camera input of the device, the camera image is automatically displayed when reverse gear is engaged. This view is also shown when pressing the camera direct button. If your rear view camera does not have dynamic To do this, open the Car Infotainment menu guidelines, you can use the device‘s static parking... - Page 13 REAR VIEW CAMERA SETTINGS If you have connected a compatible additional camera to the second camera input of the device, this will be displayed via the F-CAM app. This view is also shown when you press (twice) the camera direct button, but only if you have previously activated it.
- Page 14 HD CAMERA SETTING If you are using an ESX HD camera or a compatible AHD camera on cable set „A“ (14-pin plug, black), the settings in the ESX Naviceiver must be changed accordingly. Open the Settings from the app menu, then tap Tap on About Device below.
- Page 16 ESX Car Media Systems · Audio Design GmbH Am Breilingsweg 3 · D-76709 Kronau/Germany Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510 www.esxnavi.de - www.audiodesign.de © Alle Rechte vorbehalten. Technische Änderungen und Fehler vorbehalten.
